Stage platform. Maximum load of 750 kg/m2.
Professional aluminum platform with birch board (15 mm) (LEGS NOT INCLUDED). TM300
Regular price
368,97 €
inc. VAT
Couldn't load pickup availability
If you have any questions about this product, we can assist you by filling out the contact form
Ask an expert
High resistance modular platform, with water-repellent and fire-retardant treatments, certified for loads of up to 750 kg/m2 (2x1m: 1500 kg Evenly distributed ). The TM300 deck is weather-resistant and made of extruded aluminum and 15 mm birch wood phenolic panel, with a non-slip finish and sealed edges.
| SPECIFICATIONS | TM300 |
| Maximum load | 750 kg/m 2 (7.5 KN/m2) (2×1 m: 1500 kg) |
| Board | > Birch Wood > Thickness: 15mm > Phenolic plywood (WBP) |
| Certification according to regulations | DIN 15921 Entertainment technology |
| DGUV Regulation 17 & 18, DGUV Rule 115-002 | |
| Environment | FSC certificate |
| PEFC certificate | |
| Fire resistance | Classification: B-s1 (according to regulations: DIN EN 13501-1 ) |
| Non-slip behavior | R-13 (according to regulations: DIN 51130 ) |
| Material | Aluminum , alloy EN AW 6063 80-T6 |
| Use | For Interiors and Exteriors. For all weather conditions |
| Standard heights | from 10 to 200 cm (other heights on request) |
| Standard measurements | 2×1m / 1×1m / 2×0.5m / 1×0.5m (other measurements on request) |
| Net weight | 32kg (2×1m) |
| Storage height | 10cm |
Modular aluminum platform for stages, platforms, ramps, stands, stands, etc. With 6 types of legs to choose from (fixed, telescopic, with pin...). Modular aluminum pallets can have different finishes, shapes, colors and special measurements.
GUARANTEED SECURITY:
Our TM300 Pallets They are certified for 750 kg/m2 by the German certification company DEKRA (certificate No. C18.048G) under the following Standards:
- DIN 15921:2015-09 : Technical safety and testing requirements for aluminum platforms and frames in the entertainment industry.
- Directive 2001/95/EC : Product safety requirements of the European Parliament of December 3, 2001
- DGUV Regulation 17 : Installations and set-ups of Stages for the Entertainment Industry
- DGUV Rule 115-002 : Installations and set-ups of Stages for the Entertainment Industry
These regulations require a safety factor of 1.95. Safety tests and load tests for the GUIL TM300 pallet were carried out with 2,925 kg .
You can request all certificates from our Engineering department.
BOARD:
The TM300 pallets are equipped with a 15 mm thick birch wood panel.
The panel, provided with a non-slip finish through special hot printing, is composed of layers glued with weather- and water-resistant phenolic resin (WBP).
The board is subjected to water-repellent and fire-retardant treatments, as well as treatments against commonly used chemicals. These features ensure the highest strength and durability for both outdoor and indoor applications.
To make this panel safer and more durable, all its edges have been sealed with acrylic paint, preventing the penetration of moisture.
You can request the board certificates from our Engineering department.
The board used, made ONLY from birch wood, is specially designed for those applications where non-slip properties are required along with great wear resistance. The multi-layer construction ensures that the board is very compact and resistant.
The panel used complies with the following Regulations and Standards:
– EN 13986:2004+A1:2015
– EN 314-2/class 3
– DIN 53799
– DIN 51130
Our pallets are designed for indoor and outdoor use. Important: The panel of our pallets is water resistant, IT IS NOT WATERPROOF. In case of rain, humidity or other inclement weather, they must be disassembled and stored. They can withstand short periods exposed to rain and humidity. They are not designed to be used as a permanent outdoor installation where they may be exposed to extreme conditions all year round.

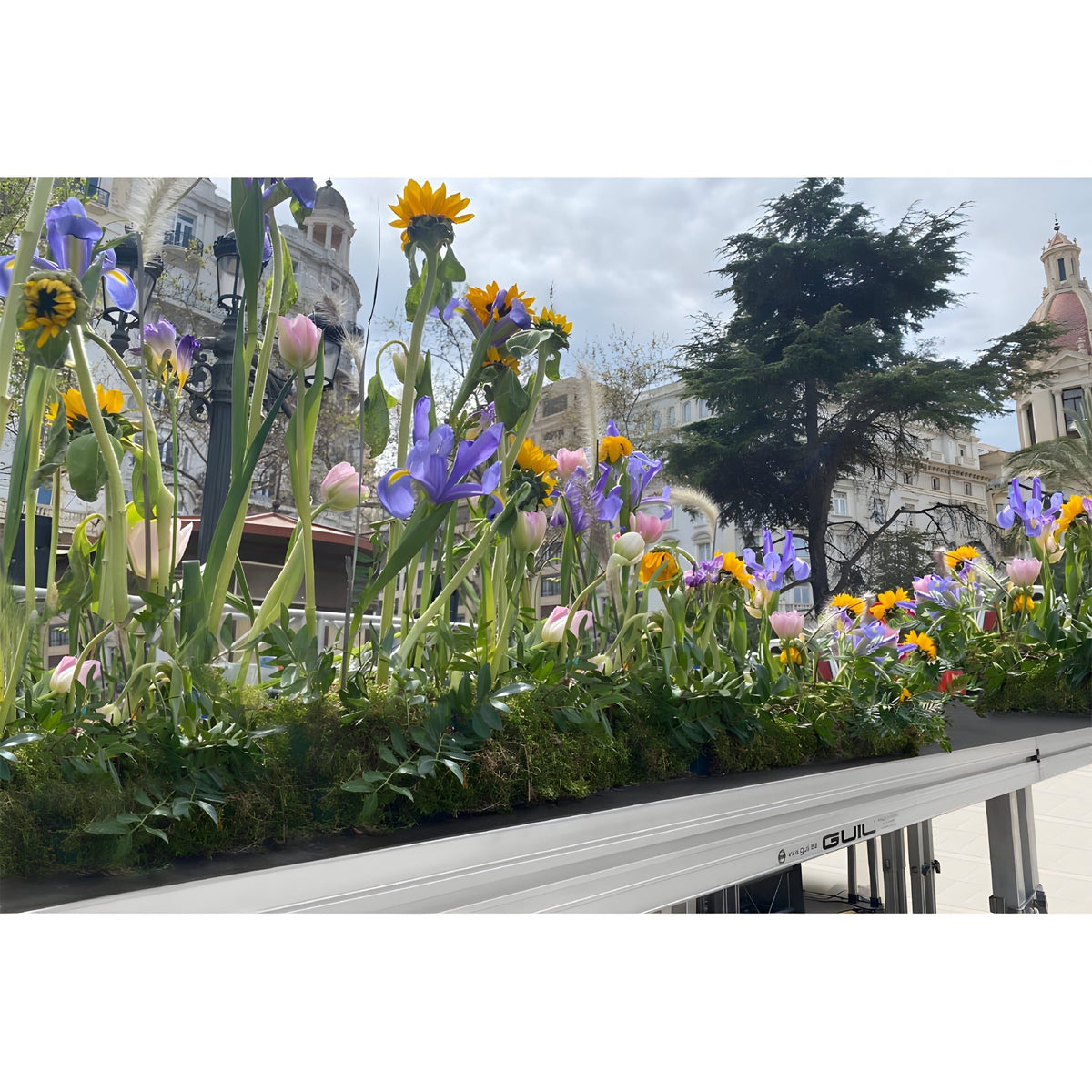

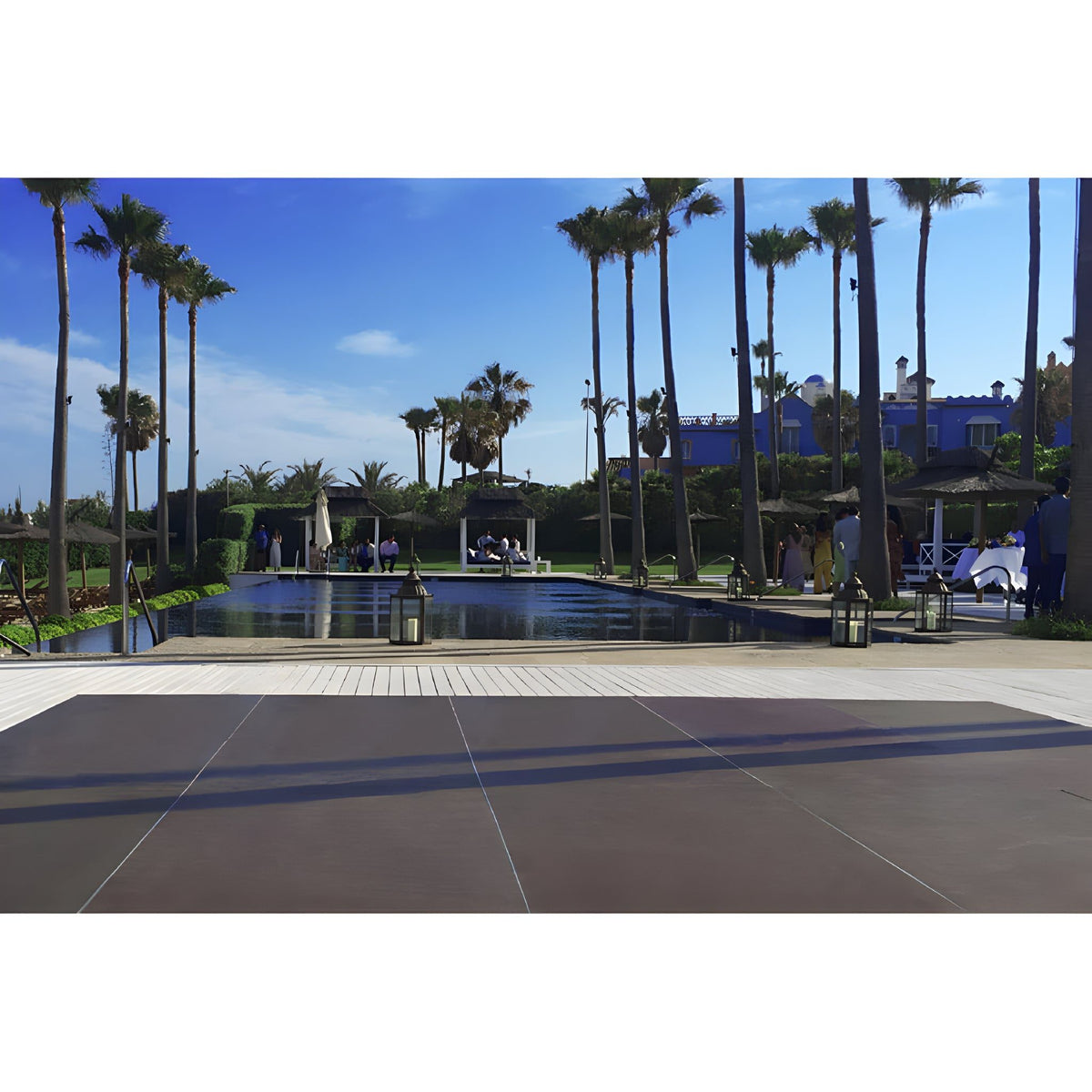

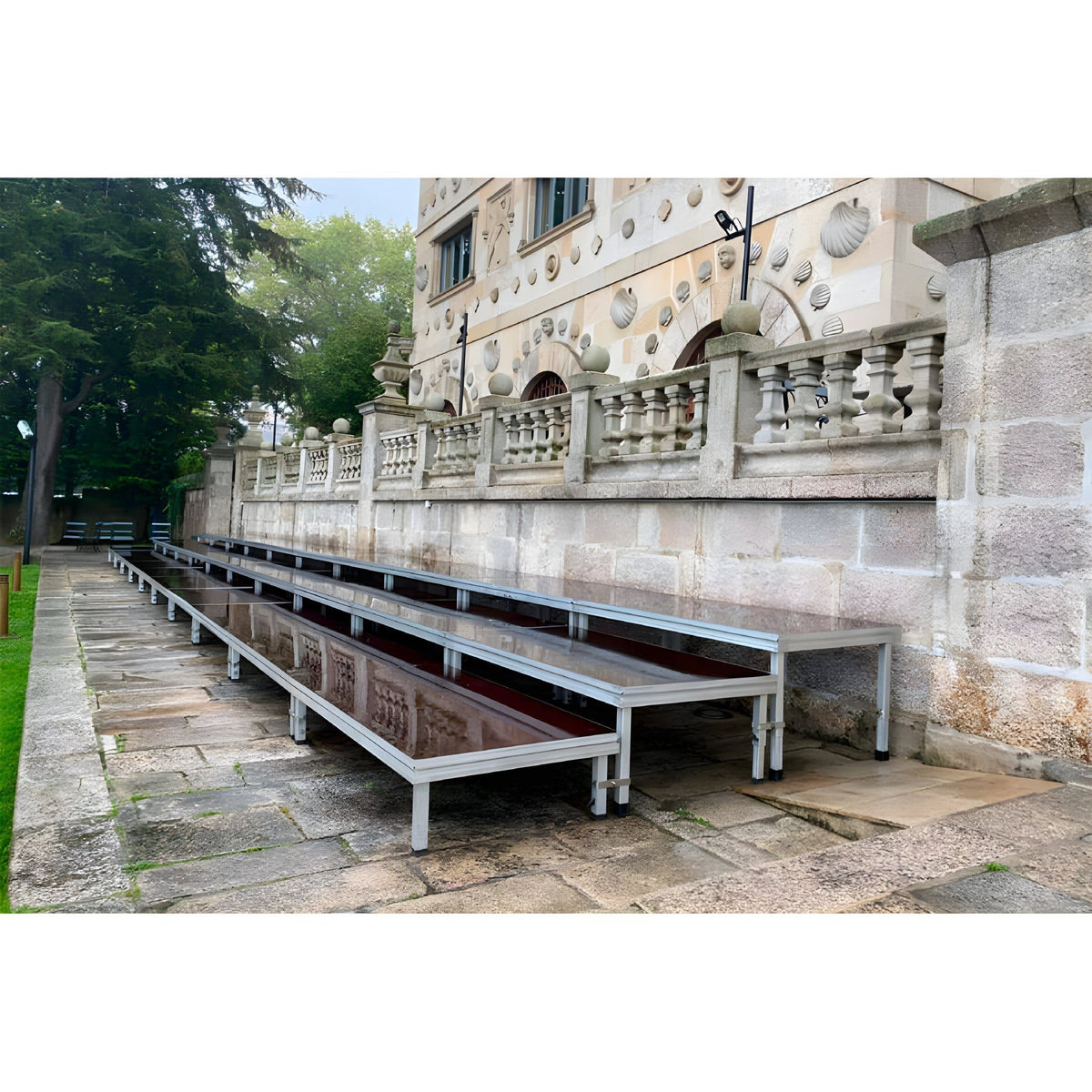

TM300 Pallets can be used for assemblies where light weight and quick and simple assembly are required, both for permanent (interior) and temporary installations (podiums, stands, decoration, walkways, etc.).
Thanks to its weather-resistant phenolic birch board and its reinforced aluminum structure, TM300 pallets are perfect for outdoor use.
Boards yes, but from sustainable forests.
That is why at GUIL the boards we use to manufacture our pallets carry the FSC seal (Forest Stewardship Council, or Forest Management Council) which guarantees that the products come from well-managed forests, in this way, consumers can choose from responsible manner.
Our pallets do not need reinforcement bars, since their components guarantee maximum safety (reinforced profile, 15 mm WOOD – from BIRCH and fixing elements); exceeding the load required in the regulations during test tests.
FRAME:
The TM300 pallet is built with a strong, high-load capacity aluminum frame with a special 94 mm profile with 4 reinforcing ribs.
Its multifunctional continuous guide design guarantees quick and easy joining of pallets to each other and allows simple and quick adaptation of a wide variety of accessories (handrails, access stairs, skirts, coverings, seats, etc.).
The panel is fixed to the frame structure using three fastening systems: high fixation foam, stainless steel screws, and silicone, thus avoiding possible noise and vibrations and at the same time providing the platform with great resistance to the elements. time.
TRIPLE FIXING SYSTEM from board to profile using:
– High fixation foam
– Stainless steel screws
– Silicone
The four brackets, made of high-strength extruded aluminum, are fixed to the frame (each one) using 4 M8 screws with self-locking nuts.
The squares are provided with a reinforcing protector with double utility:
– When placed directly on the floor (without legs) it avoids friction and noise.
– When several pallets are stacked, avoid scratching the pallet where it rests.
The legs fit into the brackets quickly and easily using the ergonomically designed metal knob; guaranteeing maximum fixation and resistance.
Our pallets do not need reinforcement bars, since their components guarantee maximum safety (reinforced profile, birch wood and fixing elements); exceeding the load required in the regulations during test tests.
PAWS:
• Possibility of painting the legs in different colors. • Upon request, we can manufacture the platform for 60x60 mm legs.
– PTA5-T : Telescopic legs adjustable millimeter by millimeter.
– PTA5-D : Telescopic legs adjustable millimeter by millimeter with leveling spindle
– PTA5-P : Telescopic legs with pin and leveling spindle
– PTA-R : Telescopic legs with inclination angle to make ramps and uneven assemblies
– PTA5-F : Legs for a fixed height
– PTA5-N : Fixed height legs with leveling spindle
UNION SYSTEMS:
Connectors that guarantee maximum security in their assemblies:
TMU-01: Quick anchoring system for TM440, TM440XL, TM440XL, TM300 and TM441 pallets by joining their profiles (guide). This system, injected into metal with a zinc-plated finish, is designed to prevent the separation of pallets placed at the same height.
The anchoring and leveling union ref. TMU-01 is a very useful component as it ensures that there is no gap/joint or unevenness between the modules.
TMU-02: It allows the union of the pallets internally, frame to frame; reinforcing the entire modular composition of the stage. (Made of stainless steel).
TMU-04: It allows the union of the platforms using two of its legs (double flange). (Made of stainless steel).
Note: For every 4 telescopic legs of height 70-120 or higher, 1 leg-leg union system is included free of charge (Ref. TMU-04)
TMU-08 Quadruple flange: Allows the union of the pallets using four legs.
MEASURES:
- Ref. TM300/1×0.5 : 1000 x 500 mm pallet (750 kg/m 2 ). 15 mm Birch Board. (Net Weight: 12.5 Kg)
- Ref. TM300/1×1 : 1000 x 1000 mm pallet (750 kg/m 2 ). 15 mm Birch Board. (Net Weight: 19 Kg)
- Ref. TM300/2×0.5 : 2000 x 500 mm pallet (750 kg/m 2 ). 15 mm Birch Board. (Net Weight: 20 Kg)
- Ref. TM300/2×1 : 2000 x 1000 mm pallet (750 kg/m 2 ). 15 mm Birch Board. (Net Weight: 32 Kg)
NOTE: Upon request we manufacture platforms/stages with different shapes and sizes.
FINISHES:
CONFIGURE YOUR STAGE WITH PLATES OF DIFFERENT SHAPES AND SPECIAL FINISHES.
> Platforms with transparent methacrylate panel, grooved and smooth aluminum, rubber, mesh, carpet...
> Colored pallets: Possibility of painting the frame and legs in different colors.
