ADAM Audio T7V - 7" Active Studio Monitor

ADAM Audio T7V - 7" 2-Way Active Studio Monitor

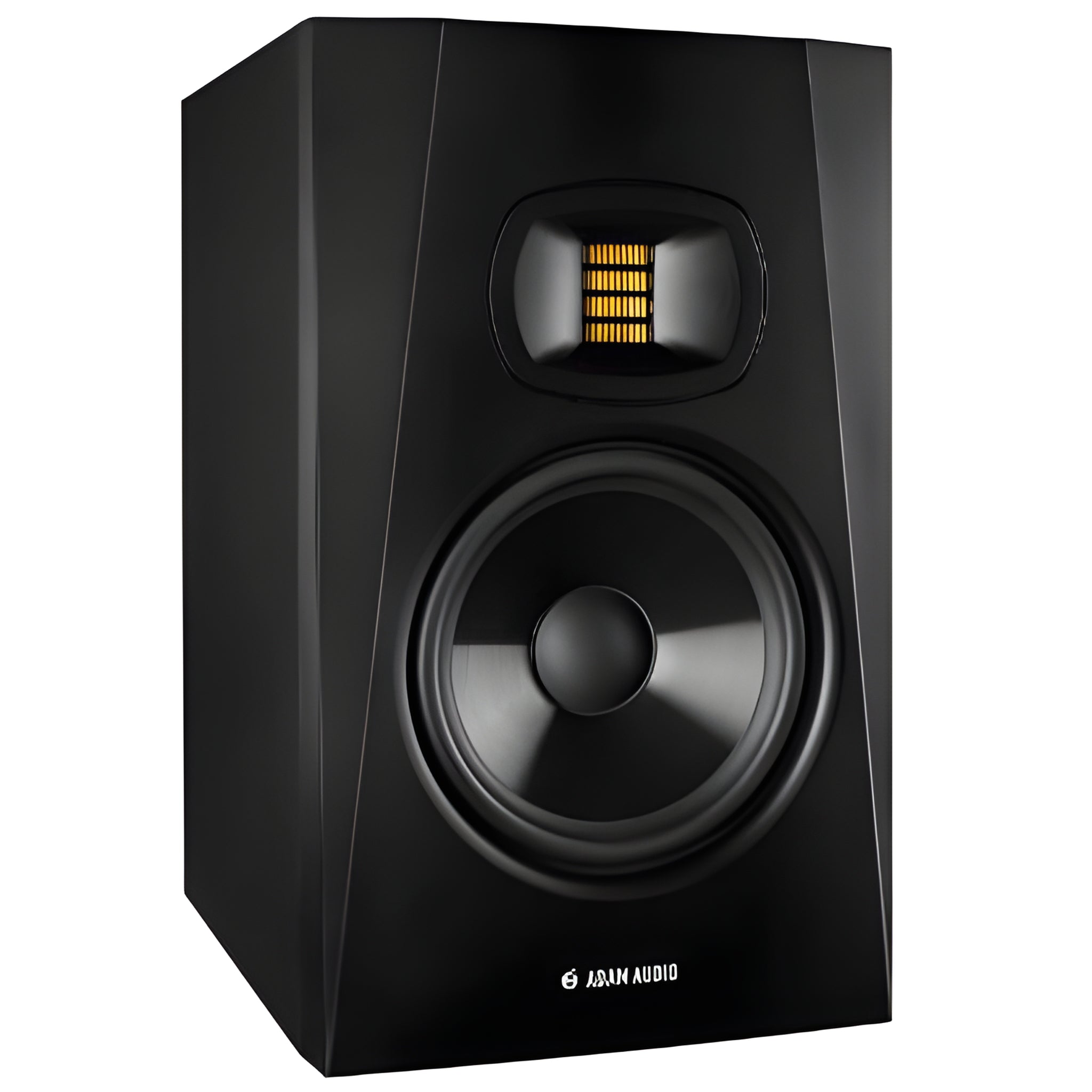

The ADAM Audio T7V is a 2-way nearfield monitor with a 7″ polypropylene woofer and a 1.9″ U-ART tweeter mounted on an HPS waveguide, offering controlled dispersion and a wide sweet spot for mixing and mastering sessions.

Main features

• 7″ polypropylene woofer and 1.9″ U-ART tweeter with HPS guide.
• Frequency response: 39 Hz – 25 kHz (@ –6 dB).
• Class D amplification: 50 W RMS (woofer) + 20 W RMS (tweeter); 70 W RMS total.
• Digital crossover at 2.6 kHz with DSP, HF/LF shelving ±2 dB.
• Maximum SPL: 110 dB per pair @ 1 m.
• Balanced XLR and unbalanced RCA inputs; sensitivity and input selector.
• Dimensions 347 × 210 × 293 mm; Weight 7.1 kg; Max. power consumption 132 W; 5-year warranty.

Product benefits

• Ultra-wide range for mixing with total confidence.
• Generous sweet spot thanks to the HPS guide.
• Headroom and dynamics suitable for professional environments.
• Easy integration into any monitor chain.

Use cases

• Home studios and small/medium control rooms.
• Audiovisual mixing, mastering and post-production.
• Radio, television and multimedia production.

Frequently Asked Questions

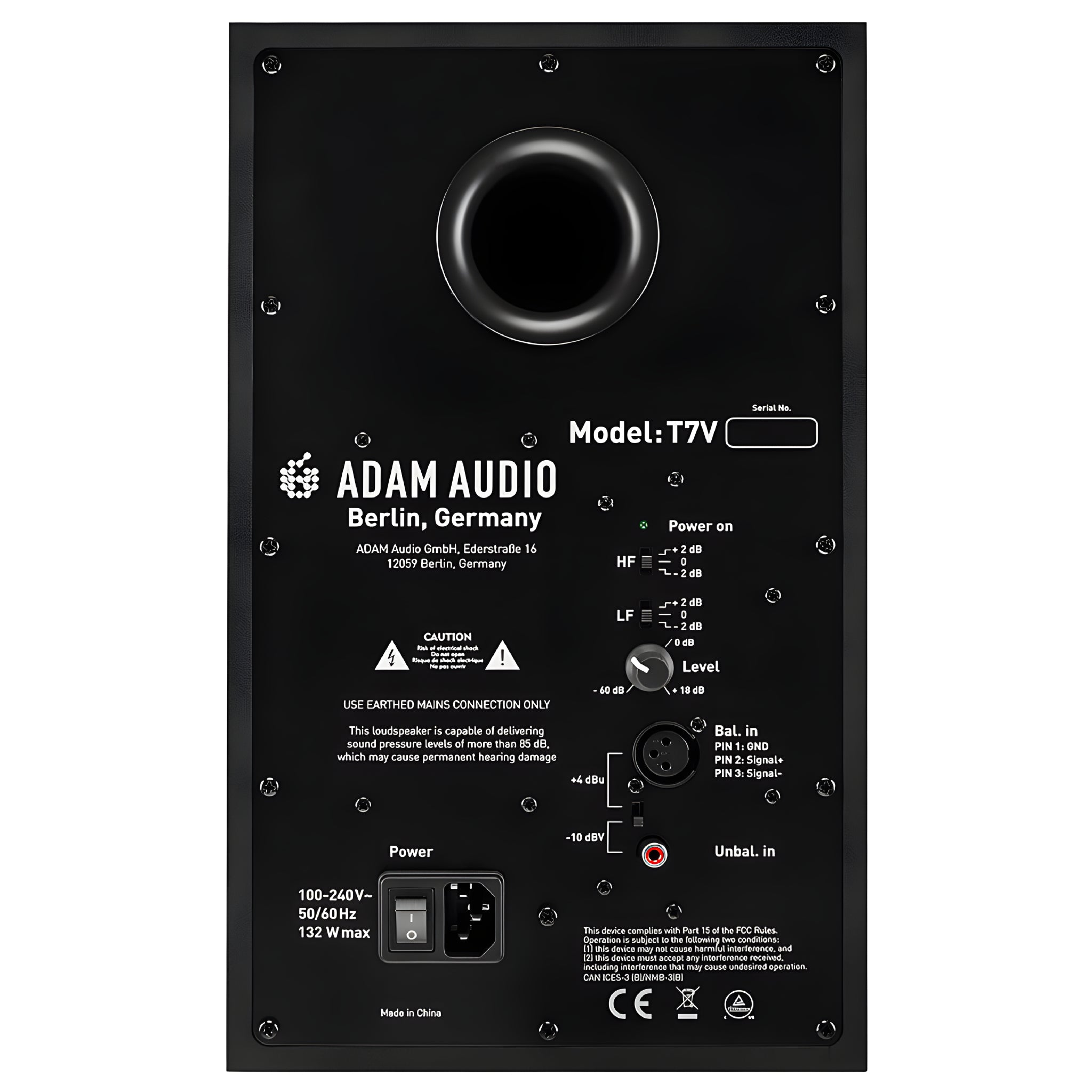

• How do I adjust the equalization? Using the HF/LF switches on the rear panel (±2 dB) or via the built-in DSP.
• Can I connect it to unbalanced equipment? Yes, it has an RCA input with an active connector selector.
• What does the extended warranty cover? After registering on the ADAM website, it extends from 2 to 5 years.

Description for projects

2-way active monitor with 7″ polypropylene woofer and 1.9″ HPS U-ART tweeter; Class D amplification 50 W/20 W; response 39 Hz–25 kHz; SPL 110 dB pair @1 m; 2.6 kHz crossover; XLR/RCA inputs; dimensions 347 x 210 x 293 mm; weight 7.1 kg.
