Triton Blue STICK-GU2B - 128 Channel Wall-Mounted Touch DMX Controller, White

Triton Blue STICK-GU2B - 128 Channel Wall-Mounted Touch DMX Controller, White

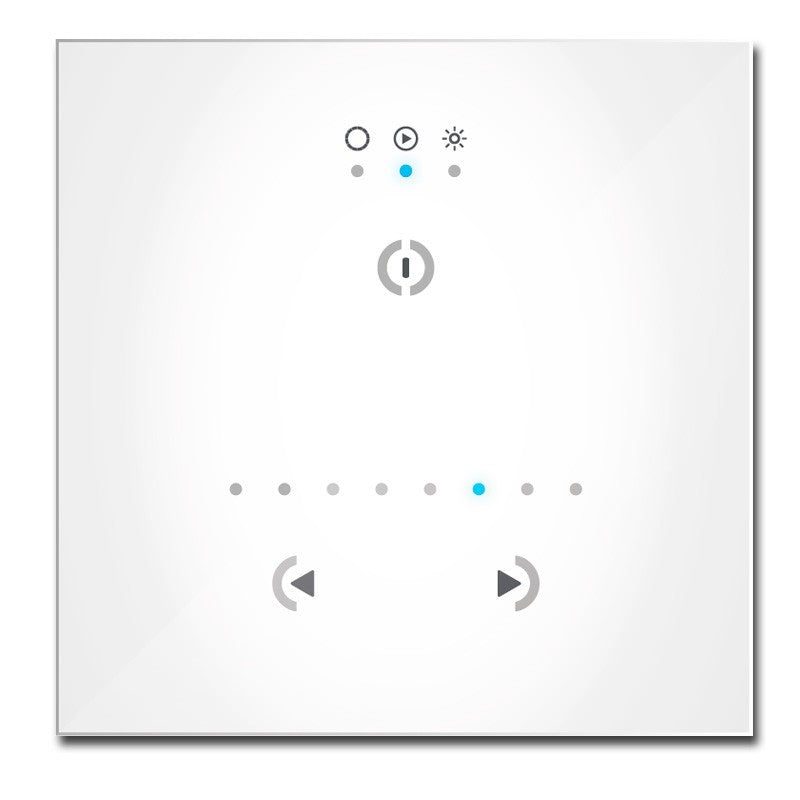

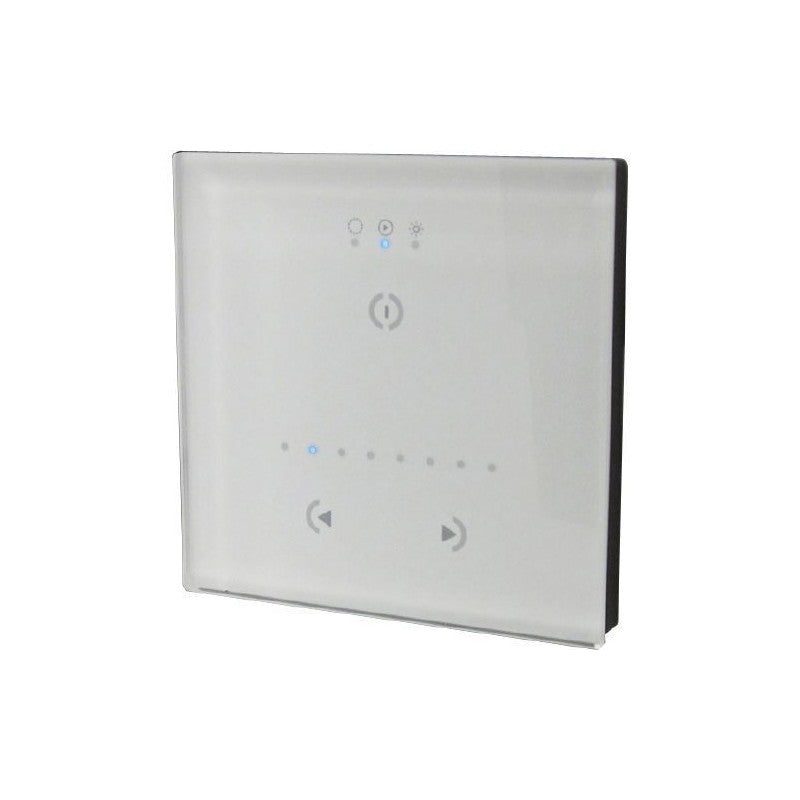

The Triton Blue STICK-GU2B is a wall-mounted DMX controller that combines sophisticated design with powerful and intuitive functionality. Manufactured by Nicolaudie, this touch panel is the ideal solution for controlling architectural lighting in residential and commercial environments. With its elegant white glass finish and minimalist three-button touch interface, it integrates seamlessly into any wall, adding a touch of modern simplicity. Despite its compact size, this controller can manage up to 128 DMX channels, allowing for the creation of complex and dynamic lighting environments independently, without needing to be connected to a computer once programmed.

Programming the STICK-GU2B is simple via its USB port and the powerful ESA2 or ESA Pro 2 software, compatible with Windows and Mac operating systems. This software allows you to design and store up to 24 custom scenes, both static and dynamic, directly in the device's internal memory. During operation, the controller offers the ability to adjust the intensity and color of the active scene in real time, providing complete flexibility to adapt the lighting to any situation.

Main Features

• Elegant and Minimalist Design: High-quality white glass front panel (86 x 86 mm) with three touch-sensitive buttons that ensure a discreet and modern integration into any space.
• Stand-Alone DMX Control: Capable of operating autonomously with 128 DMX channels once programmed, ideal for permanent installations.
• Internal Scene Memory: Stores up to 24 different lighting scenes, allowing you to switch between static environments or complex dynamic sequences. The first 8 scenes are visually indicated by an LED.

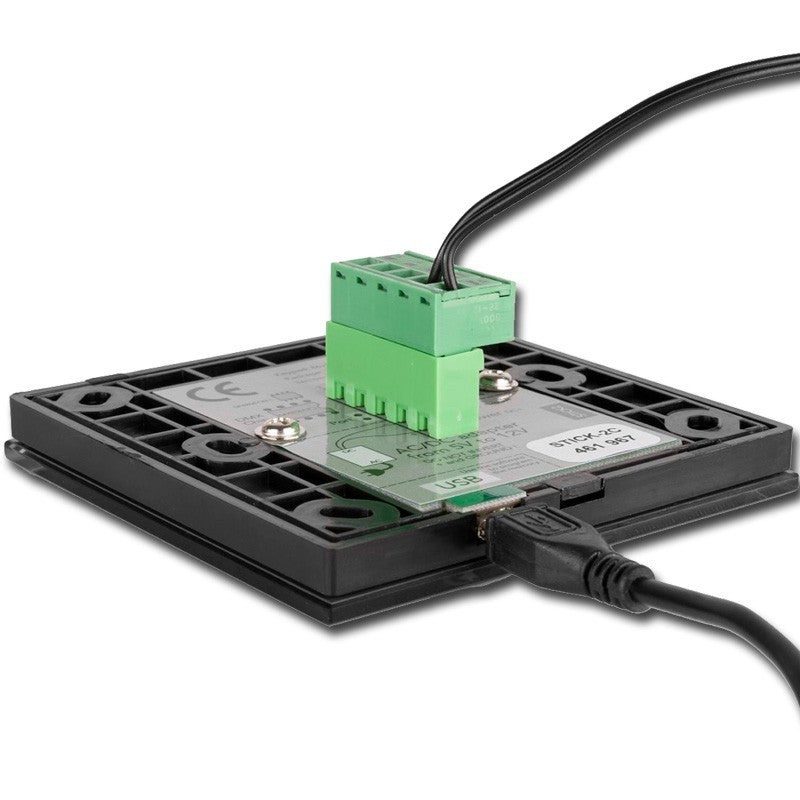

• Intuitive Programming: Connects via USB to a PC or Mac for easy programming with Nicolaudie's software (ESA2 and ESA Pro 2), recognized in the industry for its power and ease of use.
• Real-Time Adjustments: Allows you to modify the intensity and color of scenes while they are playing, offering dynamic and instant control.
• Easy Installation: Designed to be mounted in a standard European 60mm flush-mount box.

Product Benefits

• Total Control at Your Fingertips: Its touch interface simplifies the handling of complex lighting systems, making scene selection and color and brightness adjustments incredibly easy.
• Impeccable Aesthetics: It brings a professional and high-tech finish to any installation, eliminating the need for bulky and unsightly DMX consoles.
• Reliable and Autonomous Solution: Once configured, the STICK-GU2B operates independently and reliably, ensuring that programmed lighting runs flawlessly and without constant supervision.
• Application Versatility: It is compatible with any luminaire or device that uses the DMX512 protocol, making it a universal control solution for RGB LED strips, spotlights, and other lighting equipment.

Use Cases

The Triton Blue STICK-GU2B controller is the perfect choice for a wide variety of applications, including:

• Residential Lighting: Ideal for living rooms, home cinemas, kitchens or outdoor areas where you want to create different atmospheres with just the touch of a button.
• Commercial and Hospitality Sector: Perfect for shops, restaurants, bars, hotel receptions and event venues to adapt the atmosphere of the premises according to the time of day or the type of event.
- Exhibitions and Showrooms: Allows you to highlight products and architectural features with programmed light sequences that capture the visitor's attention.
• Offices and Workspaces: Helps create more dynamic and pleasant work environments by adjusting the lighting to improve concentration or create relaxation areas.

Frequently Asked Questions

What software do I need to program the STICK-GU2B?
It requires Easy Stand Alone 2 (ESA2) or ESA Pro 2 software, developed by Nicolaudie/Sunlite. It can be downloaded from the manufacturer's official website and is compatible with Windows and Mac OS.

Can I control multiple zones independently?
This model is designed to control a single lighting zone. For multi-zone control, Nicolaudie offers other, higher-end models in the STICK range.

Is it compatible with any DMX light fixture?
Yes, it is compatible with any device that operates under the standard DMX512 protocol, up to a maximum of 128 channels.

Is the installation complicated?
Physical installation is simple, as it mounts in a standard 60mm electrical box and is powered by a power adapter. Programming requires basic knowledge of DMX and the control software.

Can it be controlled via WiFi or an Ethernet network?
No, this model is programmed exclusively via its USB connection. It does not have Ethernet or Wi-Fi connectivity for network control.

Project description

Wall-mounted DMX lighting controller with a white glass touch panel. It features 128 DMX output channels and can store up to 24 scenes per zone. Programming is done via USB connection with compatible software for Windows and Mac (ESA2 / ESA Pro 2). It has three touch-sensitive buttons for scene selection, intensity adjustment, and color selection. It operates independently (stand-alone) on a 5-12V DC power supply. Its dimensions are 86 x 86 x 11 mm, and it is designed for mounting in a standard 60 mm recessed box.
