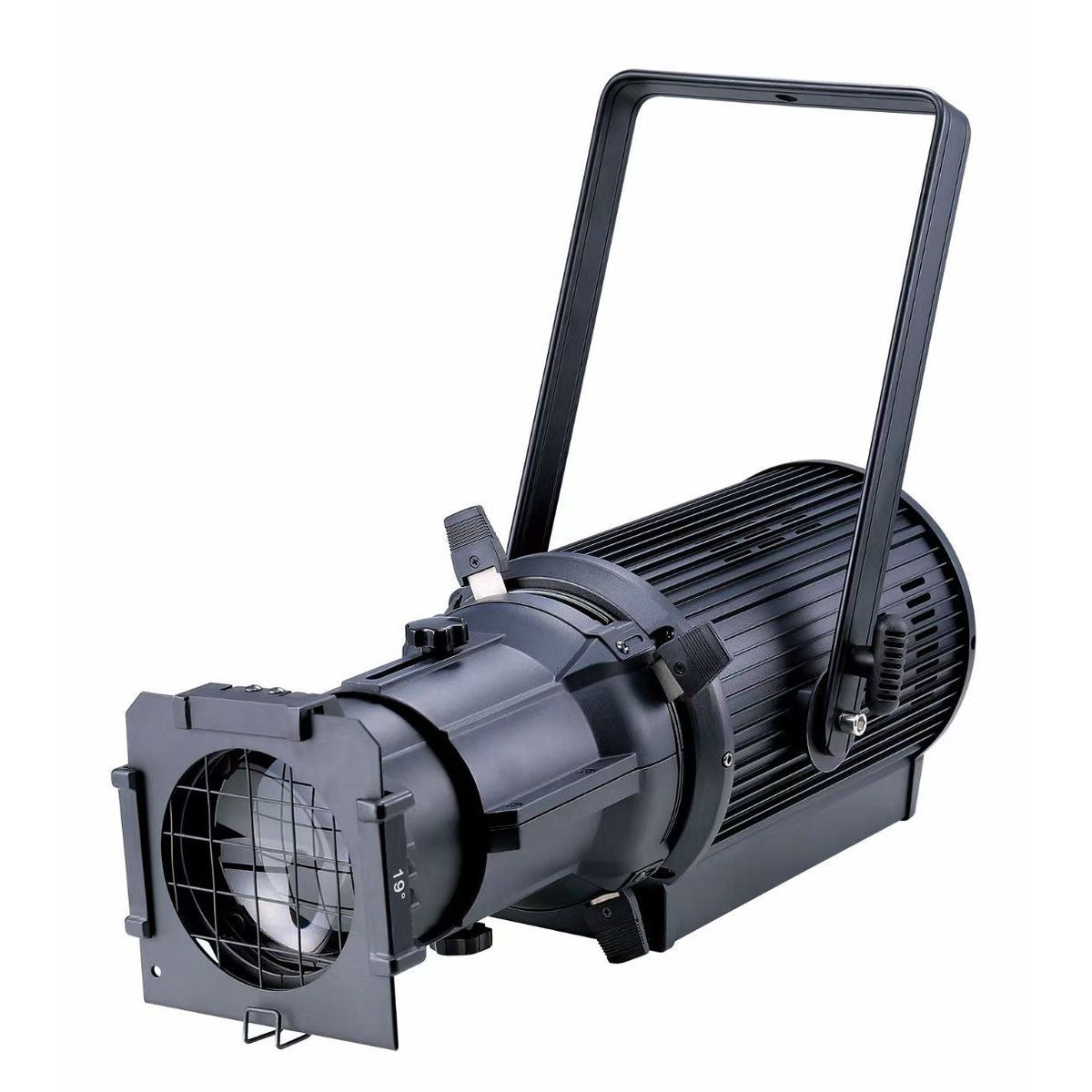

AFX Light STAGELIGHT300-RGBW - RGBW 300W Trim Projector

AFX Light STAGELIGHT300-RGBW – 300W RGBW spotlight for theatrical lighting

The AFX Light STAGELIGHT300-RGBW is a professional 300W LED profile light designed to deliver precise, even light output in theatres, studios, auditoriums and live shows. Its powerful 4-in-1 RGBW LED enables vibrant colour mixing and smooth transitions, while the selectable 19°/26°/36° beam angle allows for everything from narrow beams to wide washes. Featuring 9-channel DMX control, a 0–100% electronic dimmer, built-in stroboscope and programmable macros (colour jump, fade, strobe and sound-active), this profile light ensures versatile and creative performance for any production.

Main features

• Light source: High-performance 4-in-1 RGBW LED.
• Power: 300 W.
• Opening angle: 19° / 26° / 36° (selectable).
• DMX512 control on 9 channels.
• Smooth electronic dimmer from 0% to 100% without flickering.
• Stroboscope with speed adjustment.
• Predefined macros: color jump, fade, strobe and sound control.
• Universal voltage input 100–240 V AC, 50/60 Hz.
• Nominal consumption: 300 W.
• Dimensions: 620 × 285 × 217 mm; weight: 9.3 kg.

Product benefits

• Professional color mixing: Thanks to the 4-in-1 RGBW LED, it achieves high-fidelity saturated and white tones.
• Beam versatility: three opening angles to adapt the profile spotlight to different stage sizes.
• Creative Control: 9 DMX channels and advanced macros facilitate complex, synchronized programming.
• Reliable operation: Flicker-free electronic dimmer and strobe for video recording and live production.
• Easy installation: lightweight housing, standard connectors and truss rail mounting.

Use cases

• Profiling of actors and sets in theatrical settings.
• Spot lighting on television and film sets.
• Setting for corporate events and product presentations.
• Musical shows and live productions.
• Permanent installations in auditoriums and conference rooms.

Frequently Asked Questions

• Can it be connected to a DMX network with other lights? Yes; its DMX512 compatibility allows multiple units to be linked together on a single line.
• Is it suitable for video and film? Yes; its flicker-free dimmer and adjustable macros ensure stable light output in front of cameras.
• How are the beam angles selected? An internal mechanical selector adjusts the beam to 19°, 26°, or 36°.
• Does it require special maintenance? Periodically clean the lens and housing with compressed air and check the DMX connections.

Description for projects

300W 4-in-1 RGBW LED spotlight, beam angles 19°/26°/36°, 9 DMX channels, dimmer 0–100%, stroboscope, color jump/fade/strobe/sound macros, power supply 100–240V AC, consumption 300W, dimensions 620×285×217 mm, weight 9.3 kg.
