Samson SRK12 – 12U Universal 19" Rack with Closed Sides and 75mm Casters

Samson SRK12 – 12U Universal 19" Rack with Closed Sides and 75mm Casters

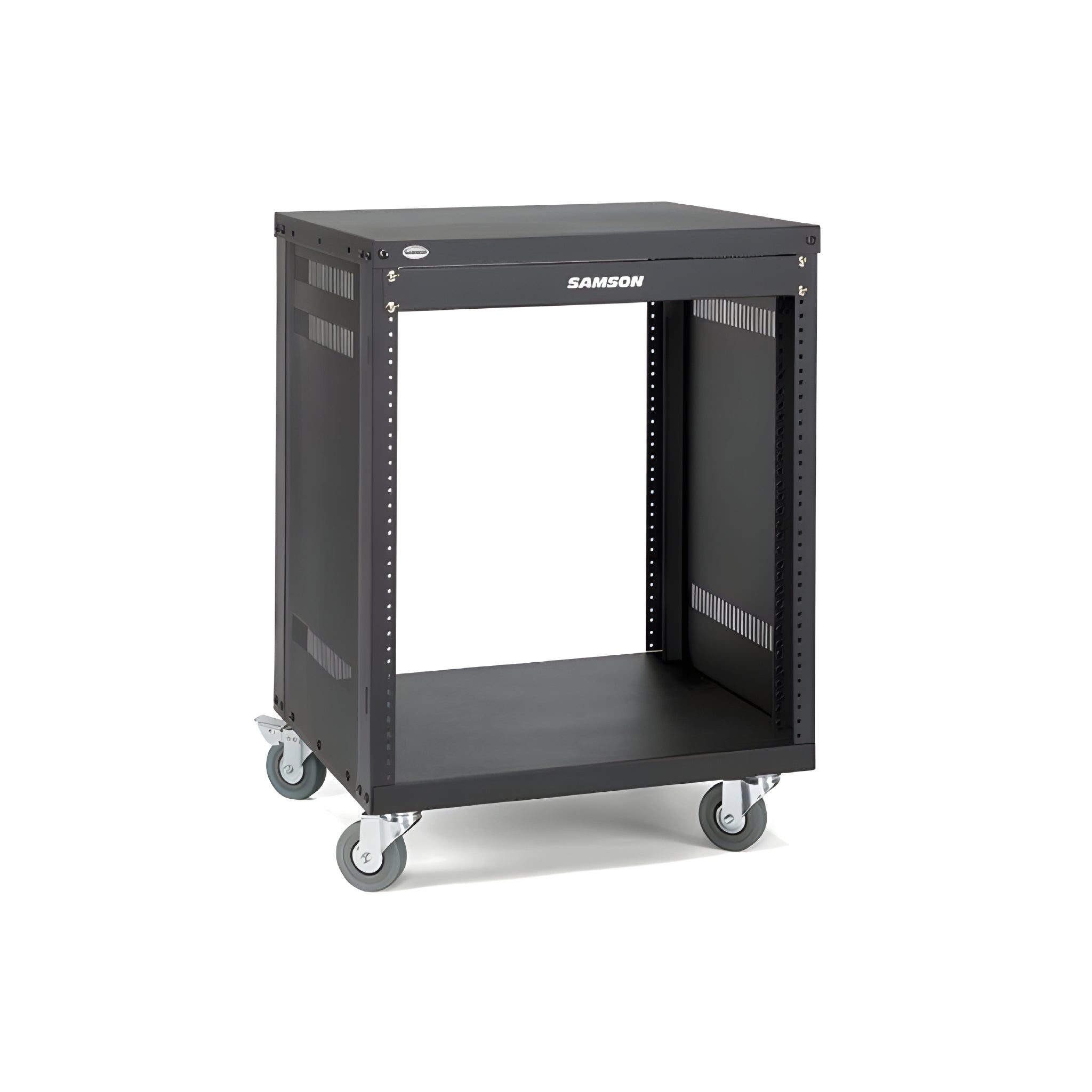

The Samson SRK12 is a standard 19" equipment rack cabinet offering 12U of usable height in a robust steel frame. It features fully enclosed side panels with passive ventilation holes , as well as front and rear rails to secure and balance the mounting of deep equipment. It rolls on four 3" (75mm) locking front casters and has a load capacity of up to 136kg with casters and 204kg without casters . The assembly includes a 1U blanking panel and M6 (EU) and 10-32 (US) hardware for full compatibility with any rack standard.

With a brushed black anodized finish , the SRK12 fits perfectly into studios, AV installations or IT environments. Its external dimensions are compact and practical for a technical room or home studio: with wheels (H × W × D) 69.85 × 50.80 × 45.72 cm ; without wheels 59.69 × 50.80 × 45.72 cm . It is supplied disassembled for easy transport and quick assembly on site.

Main features

• Standard 19" format with 12U of useful height.
• Steel construction with closed sides and perforations for passive ventilation.
• Front and rear rails included for secure attachment and load distribution.
• 75 mm wheels with front brake to move the rack and secure it in the working position.
• Load capacity: up to 136 kg with wheels / 204 kg without wheels .
• Screws compatible with M6 and 10-32 ( sets included ).
• Includes 1U blanking panel to close gaps and improve airflow.
• High strength anodized brushed black finish .
• External dimensions: with wheels 69.85 × 50.80 × 45.72 cm ; without wheels 59.69 × 50.80 × 45.72 cm .

Product benefits

• Flexible installation thanks to front/rear rails and compatibility with the two most common hardware standards.
• Protection and organization for audio, video, IT, and telecommunications equipment in a solid, stable chassis.
• Safe mobility : large wheels with lock for internal transport and fixation in use.
• Passive thermal management through lateral perforations that promote air circulation.
• Aesthetic integration thanks to its professional brushed black finish.

Use cases

• Recording studios, control booths and post-production.
• AV installations in auditoriums, conference rooms and churches.
• Corporate IT/Telecommunications and Home Studio Integration.

Frequently Asked Questions

• Is it delivered assembled? No; it is shipped flat and requires simple assembly.
• What screws does it use? It accepts M6 and 10-32 and includes sets of both.
• What is the usable depth? The exterior depth is 18 inches ; the front and rear rails allow for easy mounting of standard 19-inch equipment.
• Does it support drawers and shelves? Yes, it's compatible with SRK Rack Drawers and SRK Rack Shelves (sold separately).

Description for projects

19" 12U universal steel rack with perforated closed sides , front and rear rails , 75mm front locking casters , 136kg capacity with casters / 204kg without casters , M6 and 10-32 hardware included and 1U blanking panel . External dimensions : with casters 69.85 × 50.80 × 45.72 cm ; without casters 59.69 × 50.80 × 45.72 cm . Brushed black anodized finish . Supplied disassembled.
