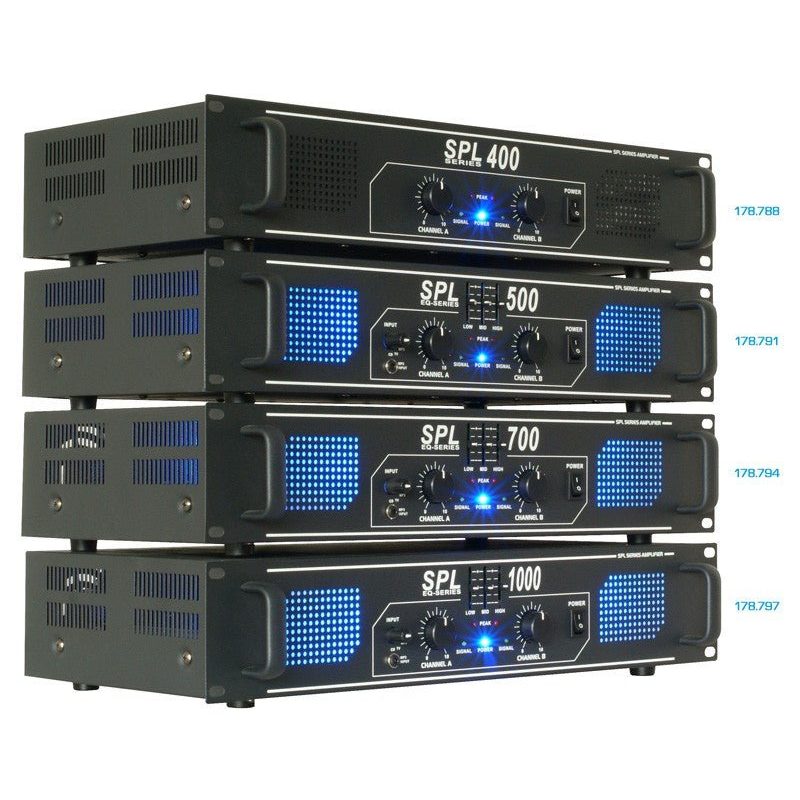

Skytec SPL500EQ - 2x250W Stereo Amplifier with 3-Band EQ (19", 2U)

Skytec SPL500EQ - 2x250W Stereo Amplifier with 3-Band EQ (19", 2U)

The Skytec SPL500EQ is a 2x250W at 4Ω stereo power amplifier with 3-band EQ , designed for DJ booths, venues and small installations. It incorporates multiple stereo RCA inputs on the rear panel for TV, CD/DVD players, tuners or mixers, and a 3.5mm front auxiliary input for portable sources. Operation is straightforward thanks to the input selector , signal and clip indicators and the blue LED lighting front panel . It offers 20Hz–20kHz passband , THD+N <0.05% , signal-to-noise ratio >95dB and crosstalk >82dB , with convection cooling (fanless) for quiet operation. It is rack mountable in a 19” (2U) and features a compact chassis of 482x290x88mm .

Main features

• Max power per channel: 2×250 W @ 4 Ω / 2×200 W @ 8 Ω.
• 3-band equalizer on the front (bass, midrange, and treble).
• Connectivity: 3 pairs (6 RCA) rear + 3.5 mm minijack front; dedicated input selector .
• Indicators: power, signal, and clip per channel; front with blue LEDs .
• Audio specifications: 20 Hz–20 kHz (±3 dB), THD+N <0.05% , S/N >95 dB , crosstalk >82 dB @ 1 kHz .
• Line sensitivity: 0.775 V (supports up to ~1.2 V); input impedance: 10 kΩ.
• Speaker outputs: screw terminals; minimum load 4 Ω .
• Architecture: Class AB ; convection cooling (fanless).
• Professional format: 19” rack (2U), 482 × 290 × 88 mm .

Product benefits

• Quick setup : Switch sources instantly with the switcher and use the front input for guests or mobile devices.
• Instant sound control without external processors thanks to the built-in 3-band EQ.
• Silent convection operation , no fan noise in booths and classrooms.
• Safe monitoring : The clip indicator helps you avoid clipping and protect your speakers.

Use cases

• DJ booths in bars and small venues with 4–8 Ω passive speakers.
• Fixed installations (classrooms, gyms, social centers) with several analog sources.
• Mobile events in a 19” flight case .

Compatibility and connections

Connect RCA or 3.5 mm sources and speakers to the terminals . Keep the impedance per channel ≥ 4 Ω . Adjust levels to prevent the clip LED from lighting continuously. Use speaker cabling appropriate for power and length (e.g., 2x2.5 mm² for medium runs).

Frequently Asked Questions

• Does it include Bluetooth or USB? No. This model is analog with EQ and RCA/3.5mm inputs.
• Does it have bridge mode? No, it works in 2-channel stereo.
• Does it support 2 Ω loads? No. The minimum load is 4 Ω per channel.

Description for projects

Stereo amplifier with 3-band EQ; max. power 2×250 W @ 4 Ω ( 2×200 W @ 8 Ω ); response 20 Hz–20 kHz (±3 dB) ; THD+N <0.05 % ; S/N >95 dB ; crosstalk >82 dB @ 1 kHz ; inputs 6×RCA + 1×3.5 mm front; terminal outputs ; sensitivity 0.775 V ; input impedance 10 kΩ ; minimum load 4 Ω ; power supply 220–240 VAC 50 Hz ; 19” (2U) format ; dimensions 482 × 290 × 88 mm .
