Skytec SPL1000MP3 - 2x500W Amplifier with MP3 Player (USB/SD), Blue LEDs and EQ (19”, 2U)

Skytec SPL1000MP3 - 2x500W Amplifier with MP3 Player (USB/SD), Blue LEDs and EQ (19”, 2U)

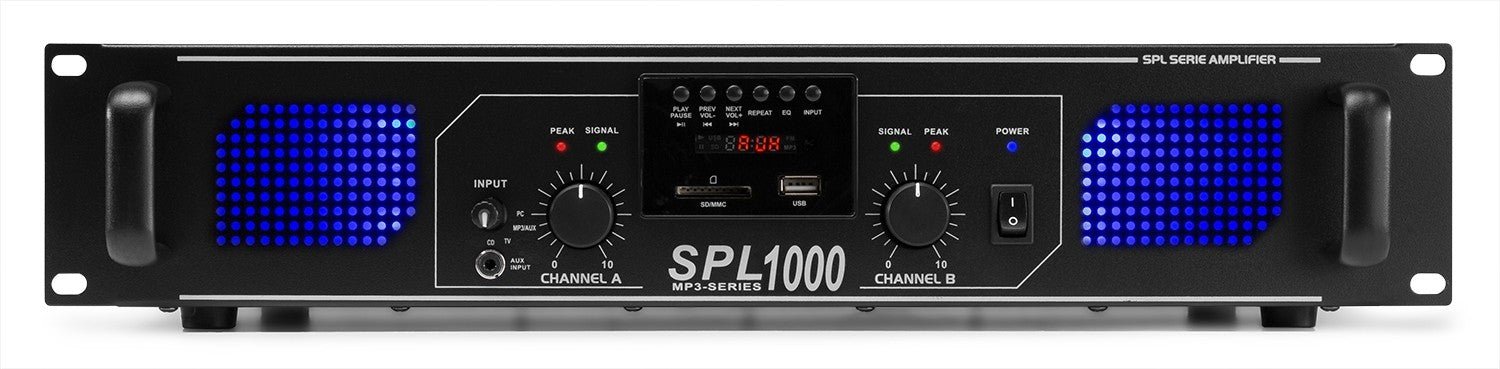

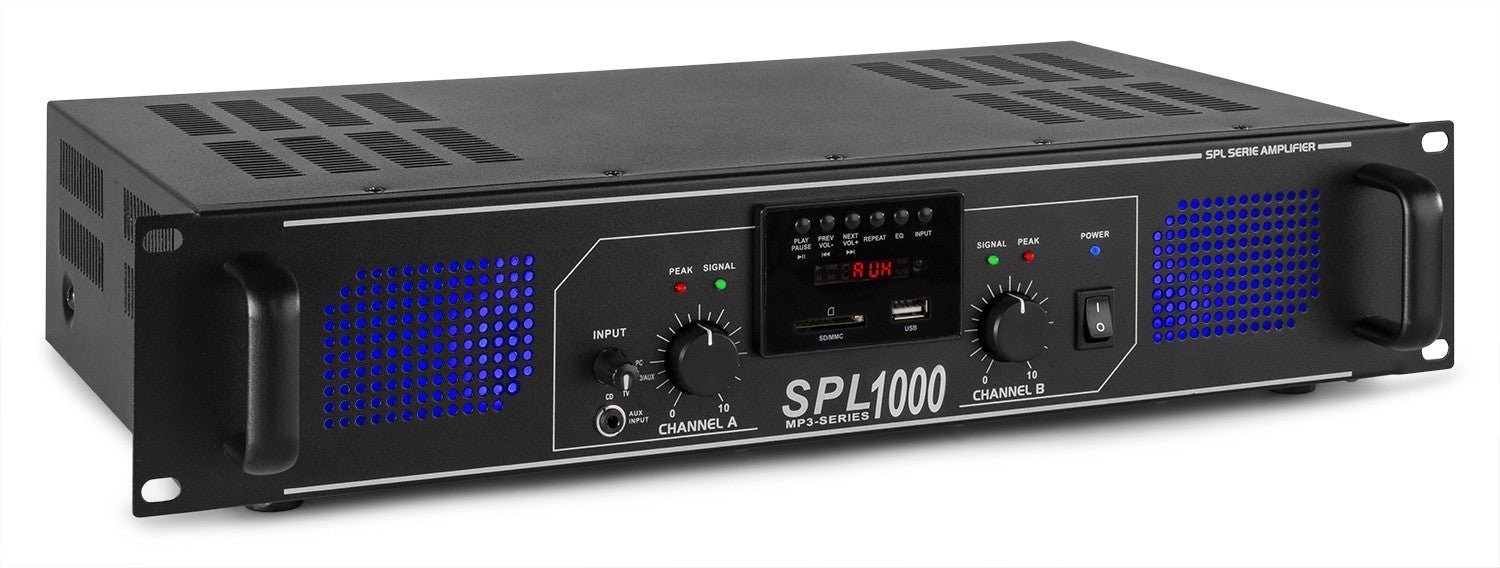

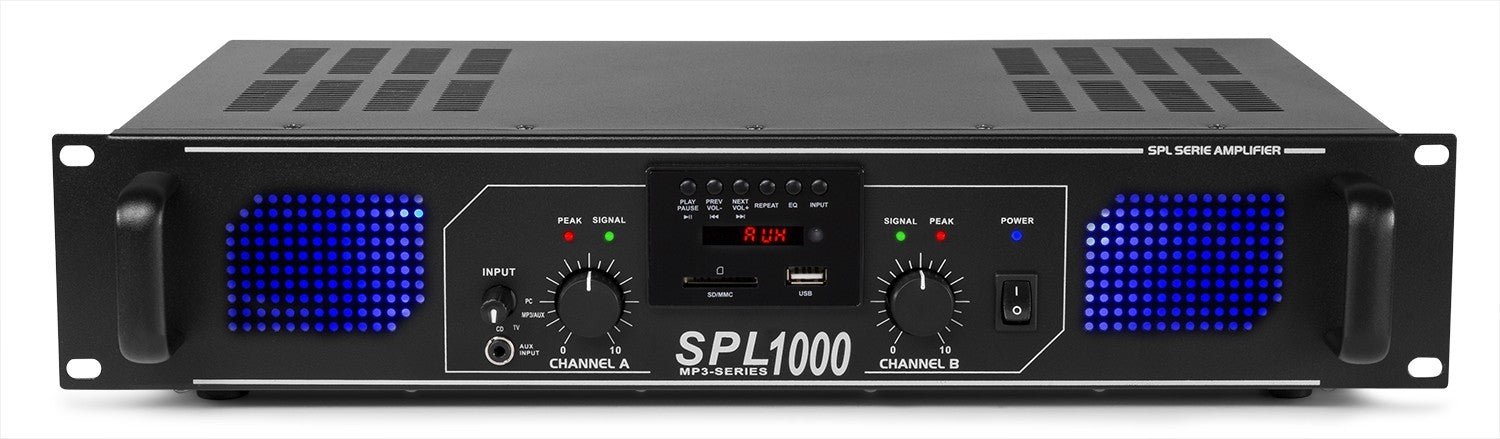

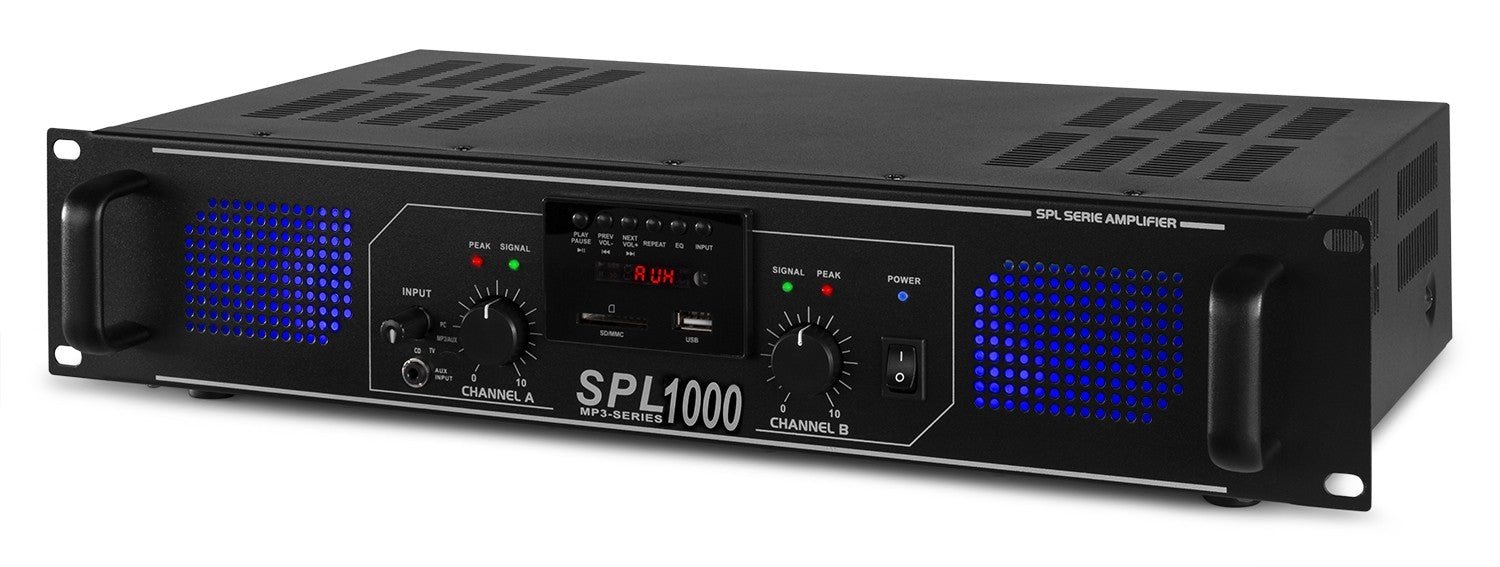

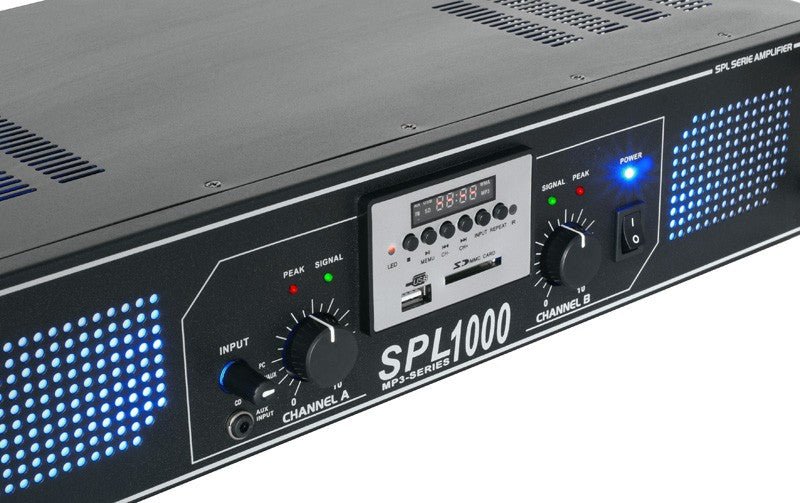

The Skytec SPL1000MP3 combines 2x500W (at 4Ω, max) stereo amplification with an integrated MP3 player via USB and SD slot , all in a 19” rackmount (2U) chassis designed for DJ booths, bars and small installations. It has 4 selectable line inputs — 3x RCA on the rear panel and 1x 3.5mm AUX on the front —, an input selector , independent volume control per channel and signal/clip indicators . The front panel features blue LED lighting and the player offers EQ modes (presets) accessible from the remote control. Key specifications: 20 Hz–20 kHz , THD < 0.05 % , S/N > 95 dB , crosstalk > 82 dB , line sensitivity 0.775–1.2 V , Z _in 10 kΩ . Dimensions 482 × 270 × 88 mm ; weight approx. 5.3 kg .

Main features

• 2×500 W max. per channel @ 4 Ω ; response 20–20,000 Hz , THD < 0.05 % , S/N > 95 dB , crosstalk > 82 dB .

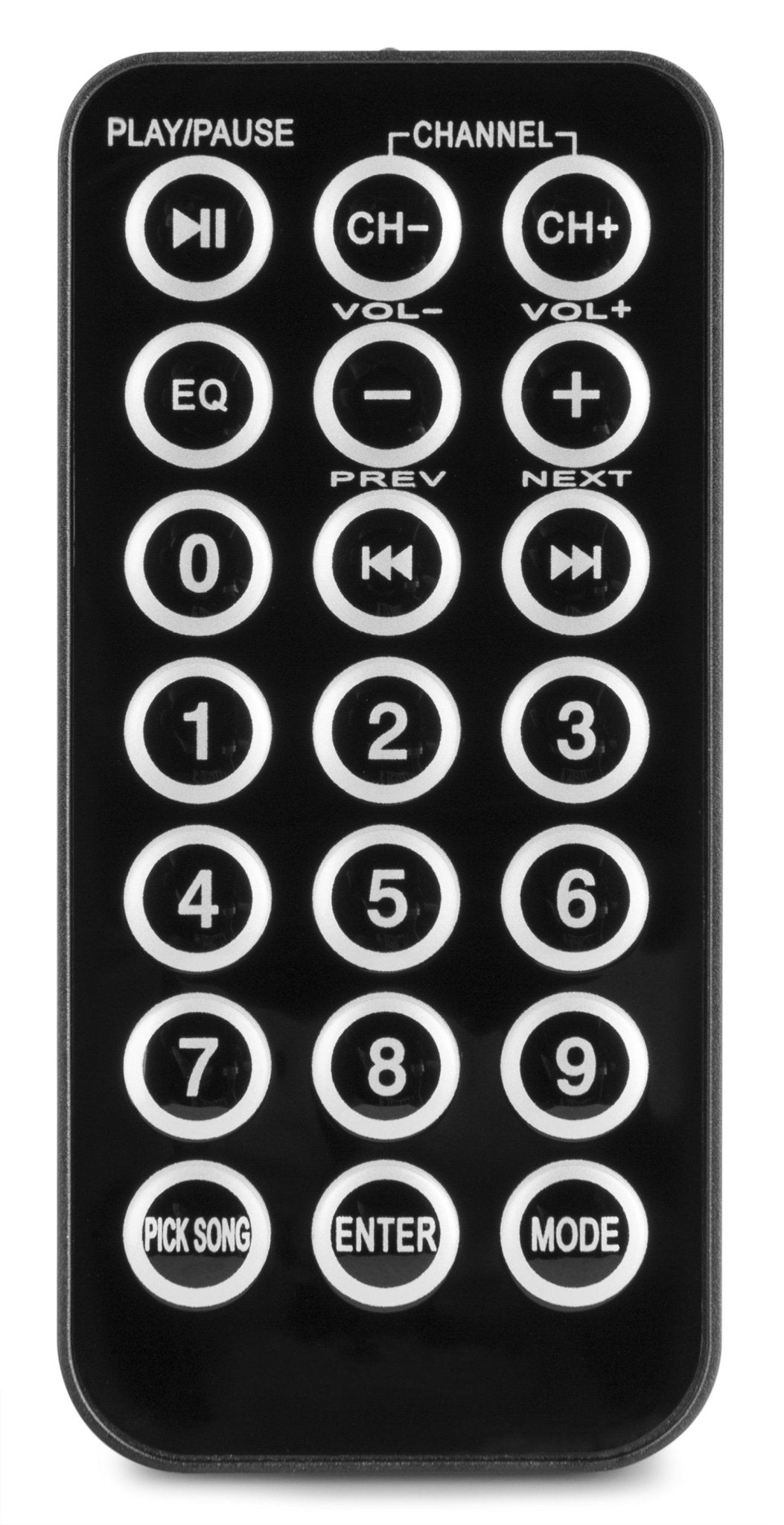

• Integrated MP3 player with USB and SD ; IR remote control and EQ presets on the player itself.
• 4 line inputs : 3× rear RCA + 1× front AUX 3.5 mm ; input selector on the panel.
• Signal and clip indicators per channel; independent A/B volume .
• Front with blue LEDs ; 19" rack format (2U) for integration into flight cases and installations.
• Speaker outputs via terminals ; minimum load 4 Ω per channel.

Product benefits

• All-in-one : Play music from USB/SD or analog inputs without additional equipment.
• Agile handling : switch sources from the front and adjust the curve with the player's EQ presets .
• Safe operation : Clip-on LEDs help prevent clipping and protect your speakers.
• Easy installation : standard RCA/AUX connectivity and 19” (2U) mounting.

Use cases

• DJ booths in bars and small venues with USB/SD playlists.
• Basic facilities (classrooms, gyms, social centers) with several analog sources.
• Mobile events mounted on a 19” flight case .

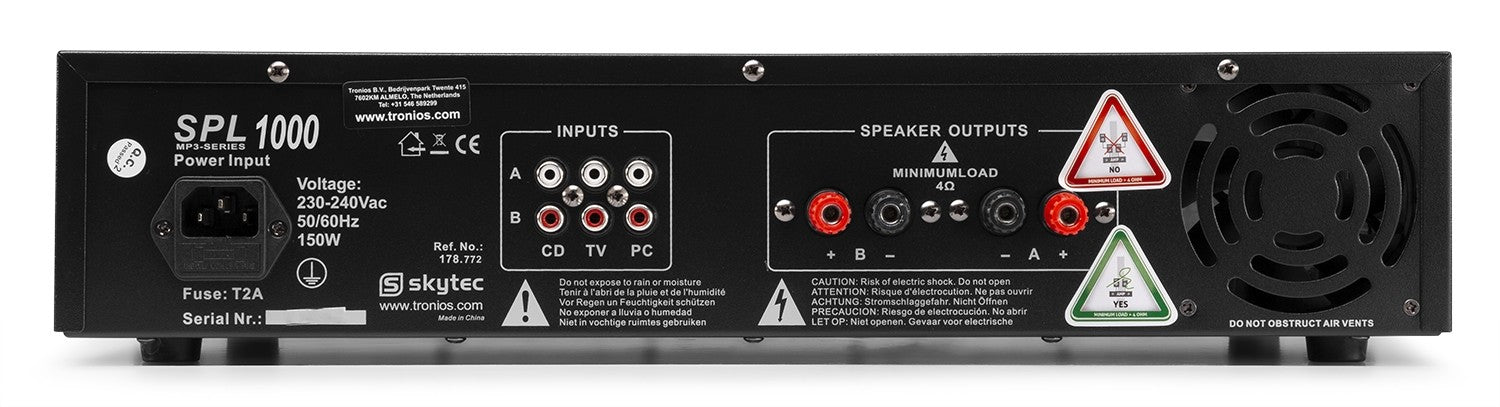

Compatibility and connections

The minimum load impedance is 4 Ω per channel. Connect sources via RCA or 3.5 mm and wire speakers to the terminals . Adjust input levels (0.775–1.2 V) to prevent the clip LED from remaining lit. Maintain adequate ventilation.

Frequently Asked Questions

• Does it include Bluetooth or FM radio? This version is a USB/SD card without Bluetooth; FM variants may be available in other models in the series.
• Does it have a physical 3-band equalizer? On the MP3 range, the EQ is built into the player (presets selectable via remote control).
• Can it be used with two pairs of speakers per channel? Only if the resulting impedance per channel is no lower than 4 Ω .

Description for projects

2-channel stereo amplifier with integrated MP3 player ( USB/SD ); 2×500 W max. @ 4 Ω ; 4 line inputs (3× rear RCA + 1× front AUX 3.5 mm) with selector ; response 20–20,000 Hz ; THD < 0.05 % ; S/N > 95 dB ; crosstalk > 82 dB @ 1 kHz ; sensitivity 0.775–1.2 V ; input impedance 10 kΩ ; power supply 220–240 VAC 50 Hz ; terminal outputs ; 19” (2U) format ; dimensions 482 × 270 × 88 mm ; weight approx. 5.3 kg ; front with blue LEDs .
