Vonyx SPJ-800A - 8" 200W Active Speaker: Power and Versatility in a Compact Design

Vonyx SPJ-800A - 8" 200W Active Speaker: Power and Versatility in a Compact Design

The Vonyx SPJ-800A is presented as a comprehensive high-fidelity audio solution, designed to deliver exceptional acoustic performance in a compact and manageable format. This 8-inch active speaker requires no external amplifiers, as it integrates a powerful 200W maximum power amplifier module into its ABS chassis, optimized to get the most out of its transducers. It is the perfect choice for fixed installations or mobile applications where portability and sound quality are paramount.

Its two-way acoustic architecture combines a high-efficiency 8-inch mid-bass woofer with a piezoelectric tweeter. This configuration, managed by a precision internal crossover, ensures clear and balanced sound reproduction, covering a frequency range of 65Hz to 18kHz . The tweeter's wide dispersion ensures that sound is projected evenly throughout the room, eliminating dead zones and guaranteeing that the message or music reaches the entire audience clearly.

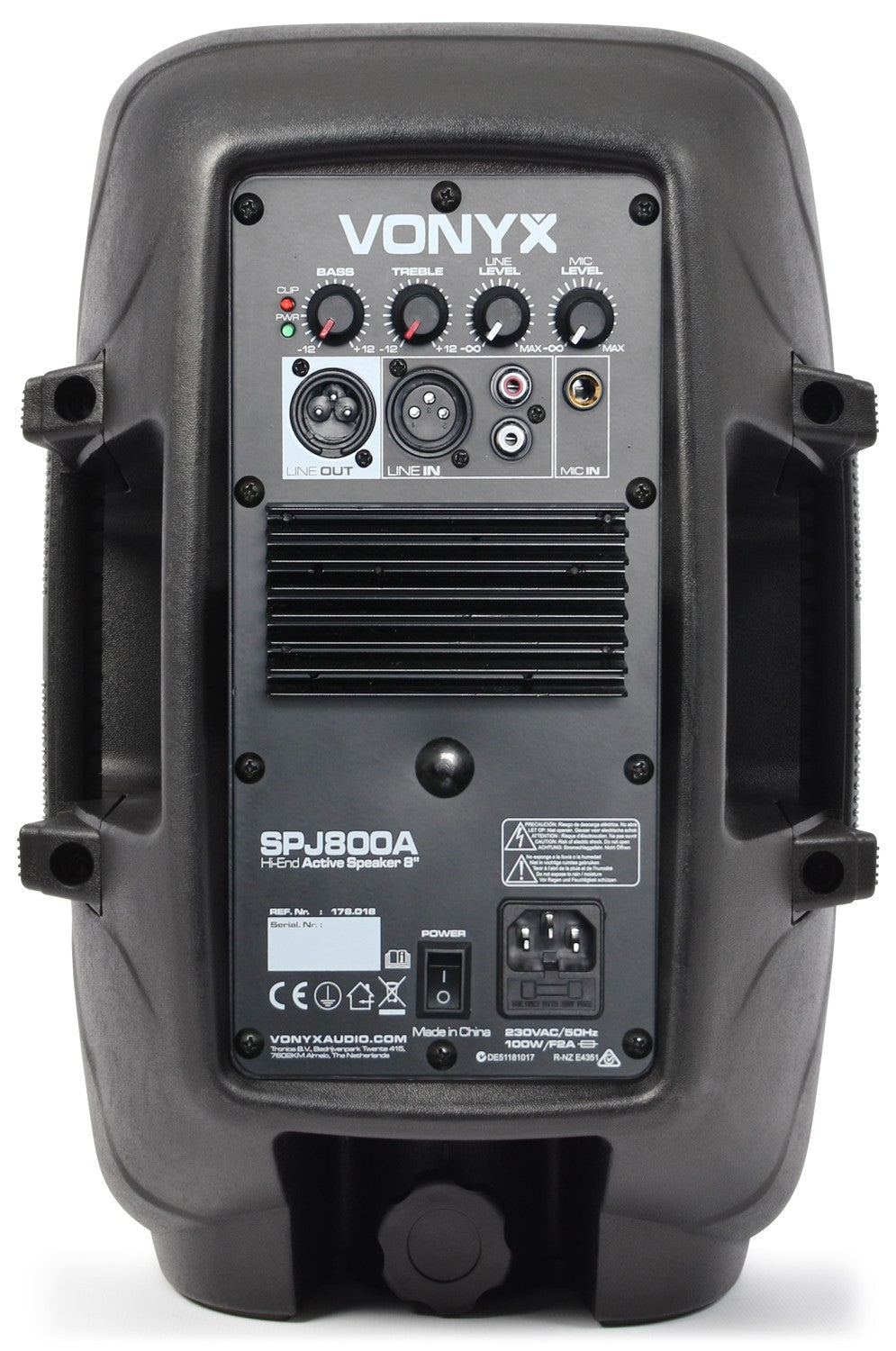

On the rear panel, the SPJ-800A stands out for its comprehensive mixing and control section. It offers complete connectivity flexibility thanks to its dedicated inputs: a microphone input (6.3mm jack) for directly connecting dynamic microphones and a line input (switchable between RCA and XLR) for music players, mixing consoles, or mobile devices. Furthermore, it features integrated two-band equalization (bass and treble), allowing the user to adjust the final tone according to the acoustics of the venue or the type of event.

Construction is another of this unit's strengths. Built with a rigid, impact- and scratch-resistant ABS enclosure, it's ideal for intensive use on tours or in crowded venues. A robust metal front grille protects the woofer from accidental bumps. Its design includes a standard 35mm pole mount for tripod mounting, and its trapezoidal shape allows it to be used as a floor monitor on smaller stages if needed.

Main features

• Integrated amplification: "Plug & Play" system with a powerful 200W Max amplifier that eliminates the need for external power racks.
• Built-in mixer: Total control over microphone and line input volume independently.
• Professional connectivity: XLR, RCA and Jack inputs to suit any audio source, from DJ consoles to vocal microphones.
• Mix Out: XLR output connection for interconnecting multiple active speakers in a chain to cover larger spaces.
• Durable and lightweight design: High-density ABS shell and metal mesh, weighing only 6.1 kg for effortless transport.
• Onboard equalization: Rotary bass and treble controls to customize the sound response.
• Universal mounting: Integrated 35mm socket in the base for quick installation on standard speaker stands.

Product benefits

The main advantage of the Vonyx SPJ-800A is its autonomy and ease of use. As an active system, any user, regardless of their technical skill level, can set up a professional sound system in minutes: all that's needed is a power supply and a sound source. Its compact size allows it to be placed in small spaces without sacrificing power, offering a size-to-performance ratio that surpasses the average for its class. Furthermore, the ability to daisy-chain multiple units facilitates scalability of the sound system as the event's needs grow.

Use cases

• Presentations and conferences: Thanks to its direct microphone input, it is ideal for speakers in meeting rooms, classrooms or small auditoriums.
• Hospitality and Bars: Perfect for background music or sound reinforcement in pubs, restaurants and terraces, where durability and good sound are required.
• Gyms and Fitness: Its power and clarity make it suitable for instructors of directed activities who need music with punch and clear vocals.
• Stage monitoring: Useful as a reference monitor for musicians or DJs in small booths.
• Home events: A robust solution for house parties, karaoke or garden celebrations.

Frequently Asked Questions

Do I need an external amplifier to use this speaker?
No, the Vonyx SPJ-800A is an active speaker, meaning it already has the amplifier built into the cabinet. You just need to plug it into a power outlet and connect your music or microphone.

Can I connect a microphone directly?
Yes, it has a dedicated 6.3mm jack input for microphones with its own volume control, allowing you to use it for speaking or singing without the need for an additional mixing console.

Is it possible to connect two SPJ-800A speakers together?
Yes, the speaker has a line output (Mix Out) via an XLR connector. You can use an XLR female to XLR male cable (or the corresponding adapter) to carry the signal from the first speaker to a second active speaker, thus doubling the sound coverage.

Can it be placed on a stand?

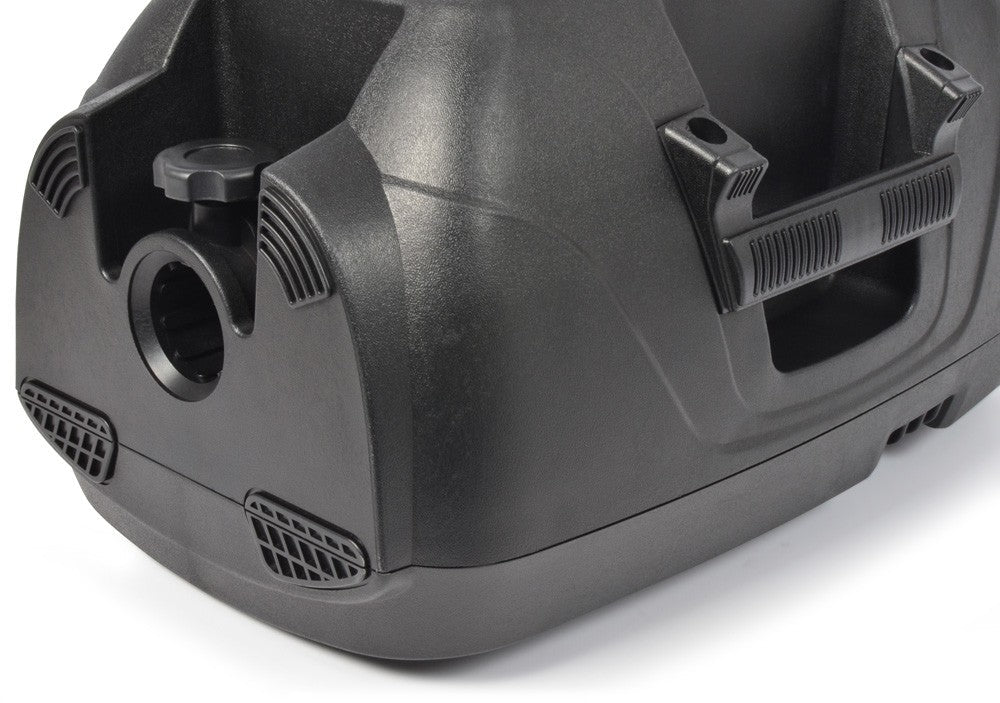

Yes, the speaker base includes a standard 35mm hole (socket), compatible with the vast majority of speaker tripods and wall mounts on the market.

Project description

The Vonyx SPJ-800A is a 2-way active speaker constructed of heavy-duty ABS with a protective metal grille. It features an integrated amplifier with a maximum power output of 200W (100W RMS) and an electronic crossover. The transducer system consists of a high-efficiency 8" woofer and a piezoelectric tweeter. The rear panel includes a microphone input (6.3mm jack), a switchable line input (XLR/RCA), and a line mix output (XLR) for daisy-chaining. It has independent level controls for microphone and line signals, as well as a 2-band equalizer (bass/treble). Frequency response is 65Hz to 18kHz, and the maximum SPL is 115dB. Dimensions: 215 x 250 x 390 mm. Weight: 6.1 kg. A 35mm pole mount is included for stand installation.
