Soundcraft GB2R – High-performance analog mixing console in a 19" rack
The Soundcraft GB2R is a 19-inch rack-mountable analog console designed for small installations in houses of worship, performance venues, or portable PA systems. Available in two versions (the GB2R-16 with 16 mono inputs and the GB2R-12.2 with 12 mono and 2 stereo inputs), it offers a total of 22 or 26 signals to be mixed via flexible busses and 6 aux sends. It features integrated GB30 preamps with four-band parametric EQ, 100 Hz high-pass filters, and switchable +48 V phantom power on each channel, all controlled by 100 mm faders and switchable pre/post direct outputs. It features a rotatable jack pod for top or rear input, a limiter on the record output, and an internal universal switch-mode PSU, ensuring reliability and professional quality.
Main features
- GB2R-16 and GB2R-12.2 formats : 16 mono or 12 mono + 2 stereo; total number of inputs to mix: 22 or 26.
- 8 or 10 buses : 8 buses on GB2R-16, 10 buses on GB2R-12.2.
- 6 aux sends with pre/post configuration on channels 1–4 and post on channels 5–6.
- GB30 preamps with 4-band parametric EQ on each mono channel.
- Phantom +48 V individually switchable per channel.
- 100Hz high-pass filter before insert.
- Direct pre/post outputs on each mono channel for recording or effects.
- High-precision 100mm faders .
- Separate Stereo Mix and Mono Sum output , plus recording output with dedicated limiter.

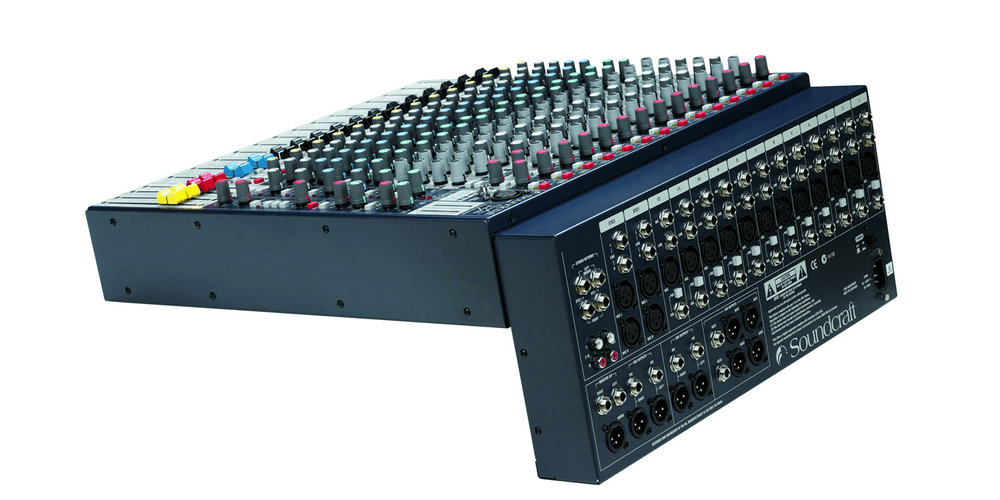

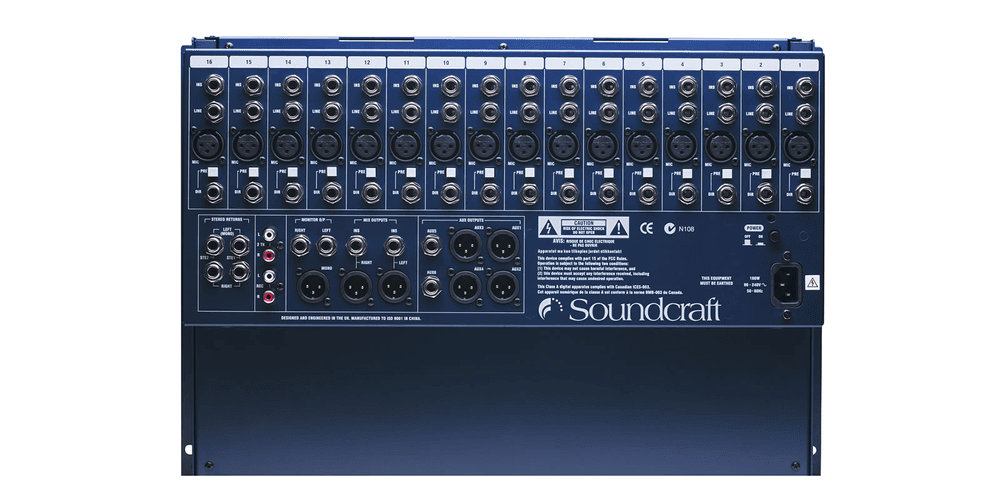

- Rotating connector pod for top or rear access.
- Universal internal switch-mode PSU with no external power supply required.
- Steel chassis with vertical PCBs and screw-in potentiometers for maximum robustness.
User benefits
- Input versatility: choose the model based on your needs for mono or stereo inputs.
- Simplified control: Long faders and pre/post direct outputs make live adjustments easy.
- Quick installation: Rotating pod and integrated PSU eliminate extra power supplies and cabling.
- Professional Quality: GB30 preamps and high-precision EQ ensure clear audio.
- Touring reliability: Steel construction and switching PSU withstand demanding environments.
Use cases
- Fixed installations in churches and small event halls.
- Portable PA for touring and performing in small spaces.
- Broadcast and field recording with dedicated direct outputs.
- Corporate rooms and auditoriums requiring simultaneous mixing and recording.
- Monitoring and FOH in traveling companies and mobile studios.
Frequently Asked Questions
- How many channels can I mix? The GB2R-16 mixes up to 22 inputs; the GB2R-12.2 mixes up to 26 with stereo mics.
- How do I activate the phantom power? Each mono channel has a +48 V switch with an LED indicator.
- Is it plug-and-play? Yes, it recognizes settings without any additional adjustments upon power-up.
- Can I record live? Use the Record output with a dedicated limiter to prevent clipping.
- Do I need an external power supply? No, the universal internal PSU powers the power directly without any additional accessories.
Description for projects
Soundcraft GB2R-16/12.2 19″ rack console with GB30 mic preamps and 4-band EQ, 16/12+2 channels, 8/10 buses, 6 aux, 100 mm faders, pre/post direct outputs, Stereo Mix, Mono Sum, Record Out with limiter, 100 Hz filter, +48 V phantom, rotary pod and internal universal PSU.
- Type Audio
- Vendor SOUNDCRAFT
- SKU GB2R
