Soundcraft FX16II - High-performance mixer

Soundcraft FX16II – High-performance mixer with Lexicon® effects

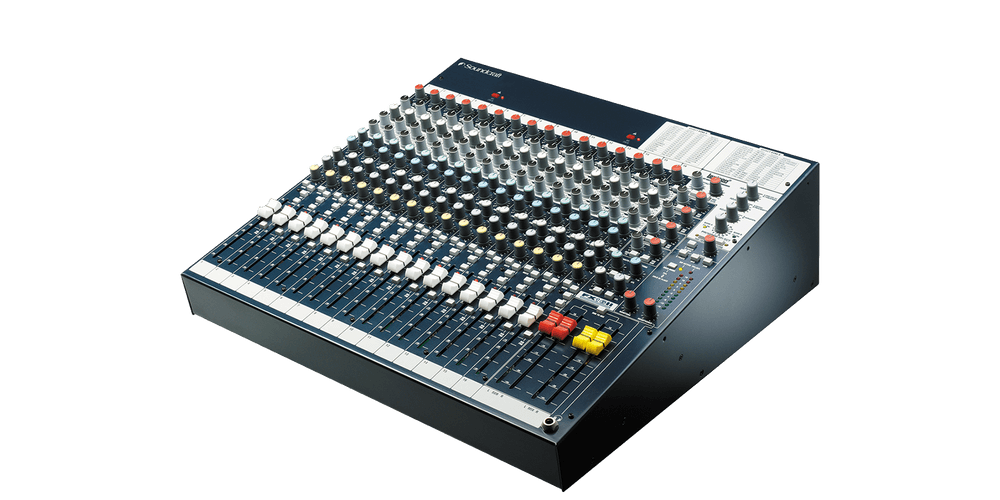

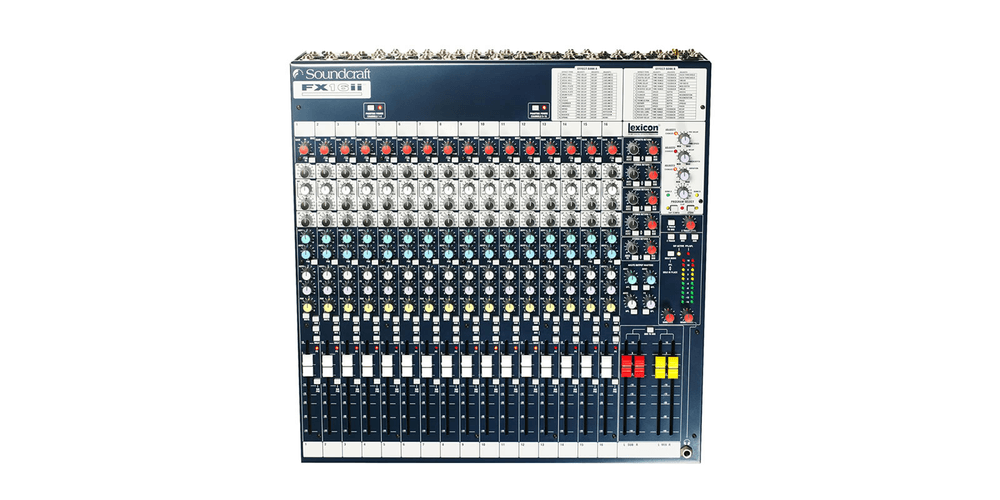

The Soundcraft FX16II is a 16-channel multi-purpose analog mixing console designed for live performance and recording. It features 16 XLR microphone preamps with +48V phantom power and high-pass filters, 16 line inputs and inserts per channel, and 16 switchable pre/post fader direct outputs for multitrack recording. Its onboard effects block employs a 24-bit Lexicon® processor with 32 editable settings, tap tempo, and three parameter knobs, delivering professional-quality reverb and delay. Featuring a 4-bus architecture with two stereo subgroups, a 3-band EQ with swept mids, 100Hz filters in the stereo mix, 10-segment tri-color meters, and an internal universal power supply, the FX16II packs power, versatility, and reliability into a 10U rack-mountable chassis.

Main features

• 26 total inputs: 16 mono mic with +48 V phantom and 4 stereo returns.
• 4 main buses, 2 stereo subgroups and separate mono mix.
• 16 direct pre/post fader outputs for multitrack.
• Inserts on all mono channels and on the stereo output.
• Classic 3-band EQ with swept midband and 100 Hz HPF filters.
• 24-bit Lexicon® effects processor with 32 presets, tap tempo and 3-parameter control.
• 10-segment tri-color LED meters per channel and on main outputs.
• Individual mute control per channel and dual global phantom power (channels 1–8 and 9–16).
• 18 dB/octave stereo HPF filter at 100 Hz in main mix.

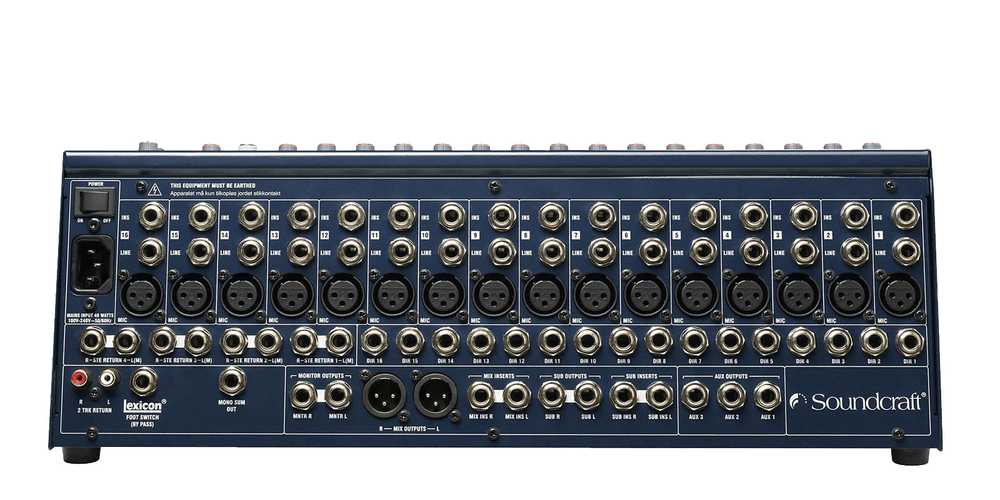

• Rugged chassis with rotating backplate for 10U rack mounting.
• Internal universal power supply without additional fan.

User benefits

• Multi-track recording at no extra cost: direct pre/post fader outputs for each channel.
• Built-in professional effects : Lexicon® reverb and delay without external hardware.
• Mixing flexibility : configurable bus routes and subgroups on the fly.
• Live Reliability : Rugged construction, internal power supply and accurate meters.
• Intuitive control : tap tempo and parameter knobs accessible next to the panel.

Use cases

• Live sound in clubs, theaters, and small festivals.
• Multitrack recording in studio or live.
• Monitoring and reinforcement in fixed installations such as churches and auditoriums.
• Broadcast and OB vans that require effects and direct outs.
• Corporate and event productions with simultaneous mixing and recording needs.

Frequently Asked Questions

• How many direct channels does it offer? 16 pre/post fader switchable direct outputs.
• What effects does it have? 32 Lexicon® presets with tap tempo and parameter control.
• Can it be rack-mounted? Yes; with the rear rotating connector, it takes up 10U of rack space.
• How do I activate the phantom power? Using two global switches covering channels 1–8 and 9–16.
• Is the output filter adjustable? Yes; 100 Hz stereo HPF in the main mix.

Description for projects

Soundcraft FX16II 16-channel mixing console with 16 XLR preamps, 16 line inputs, 4 buses, 2 stereo subgroups, 16 pre/post direct outputs, inserts, 3-band EQ, 100 Hz HPF filter, LED meters, 24-bit Lexicon® effects, tap tempo, 10U rackmount rotary panel and internal universal power supply.
