HK Audio SONAR 110 Xi - 10" Powered Speaker with 24-bit DSP, Bluetooth 5.0 & TWS

HK Audio SONAR 110 Xi — 10" Powered Speaker with 24-bit DSP, Bluetooth 5.0 & TWS

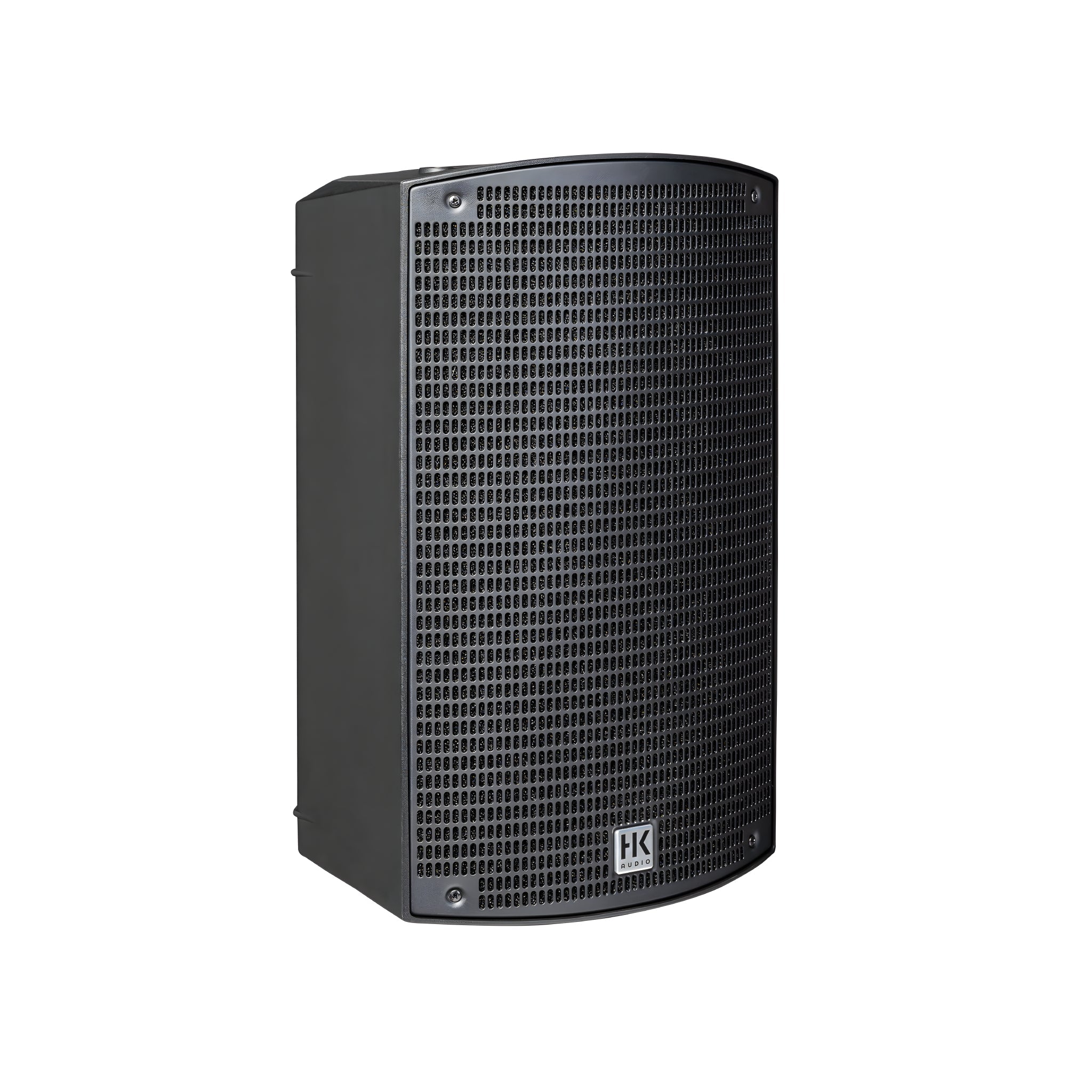

The HK Audio SONAR 110 Xi is an extremely compact 2-way active loudspeaker that works as a full-range speaker , stage monitor , or satellite speaker with subwoofer . It features a 10" woofer and 1" driver powered by a 24-bit DSP with a color display and three operating modes (Live, DJ, Monitor). It offers Bluetooth 5.0 for streaming and TWS (True Wireless Stereo) for true stereo with two units, plus remote control via iOS/Android app. With 800 W (peak) , max. peak SPL 123 dB (126 dB calculated, half-space) and 90° × 60° coverage , it delivers pressure and clarity with fast and reliable deployment.

Main features

• Transducers : LF 1 × 10" (2" coil) + HF 1 × 1" with CD waveguide (90° × 60°).
• Power/Level : 800 W peak ; 123 dB SPL peak measured / 126 dB calculated (half-space).
• Frequency response : 64 Hz – 18 kHz (–6 dB) / 59 Hz – 20 kHz (–10 dB) .
• 24-bit DSP + color LCD : Live / DJ / Monitor modes, Delay 0–10 m, Low-Cut , Front LED, Output Pre/Post Master .

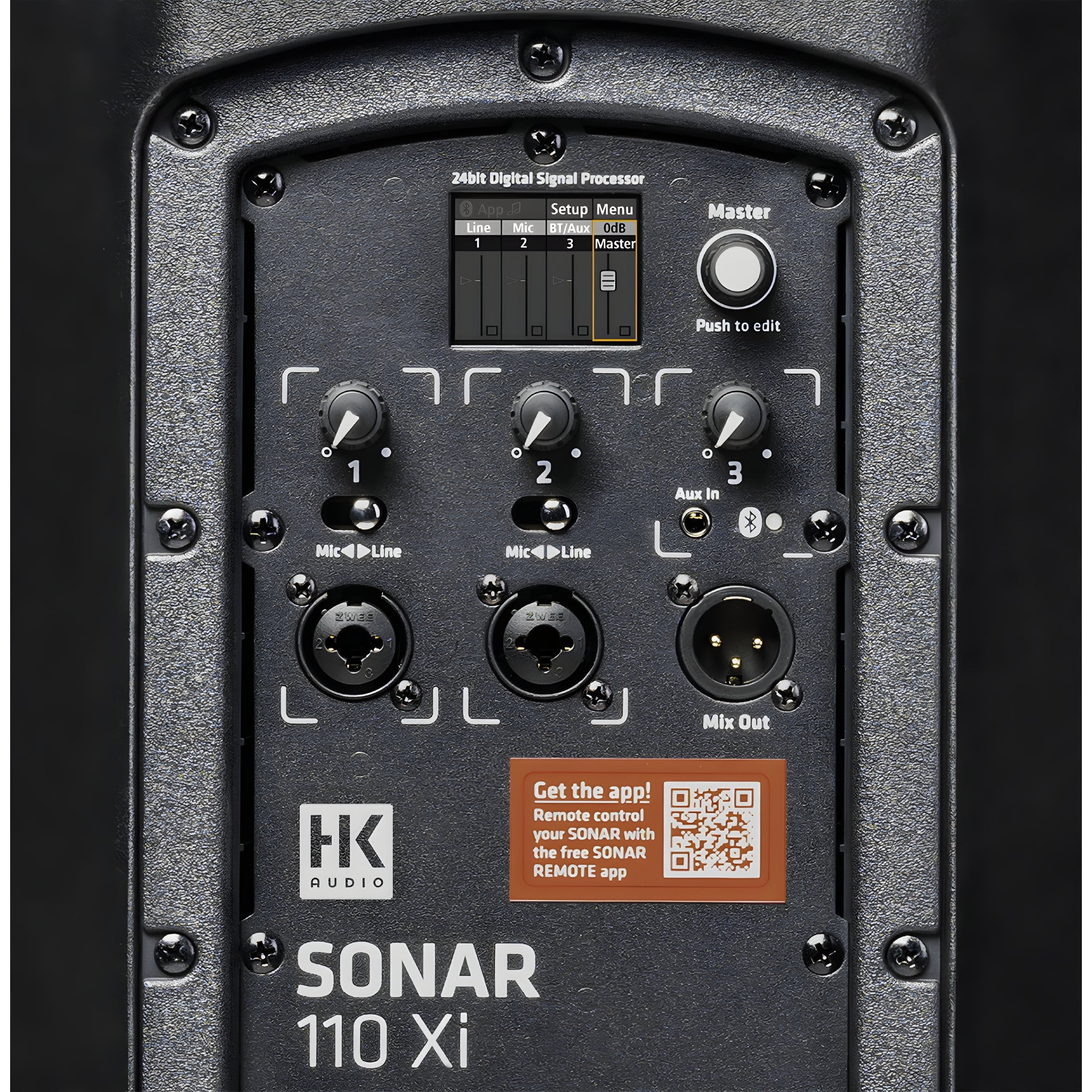

• Integrated digital mixer : CH1/CH2 Mic/Line with 3-band EQ and variable HPF (20–400 Hz) ; CH3 Aux/Bluetooth with 3-band EQ ; Mix Out XLR .

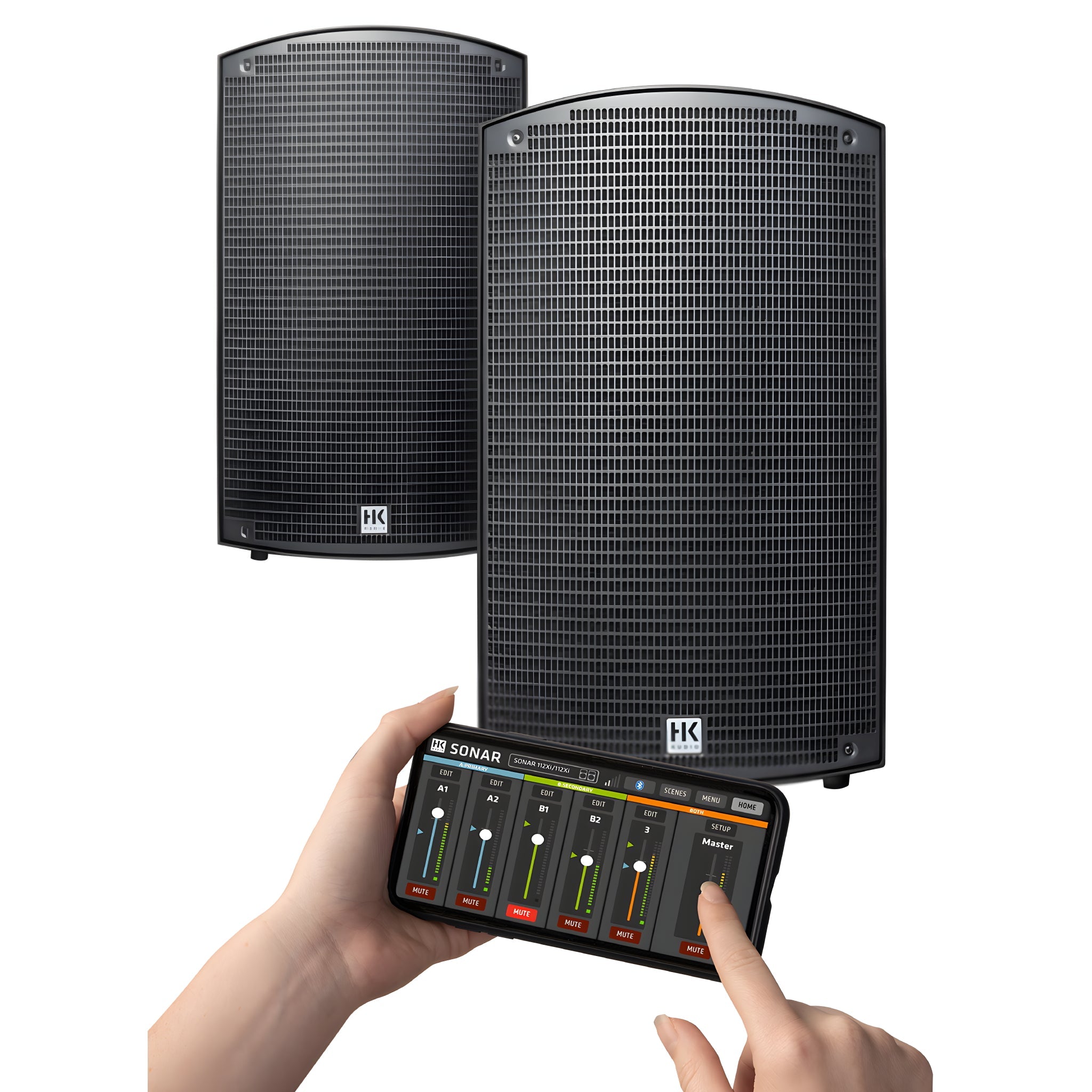

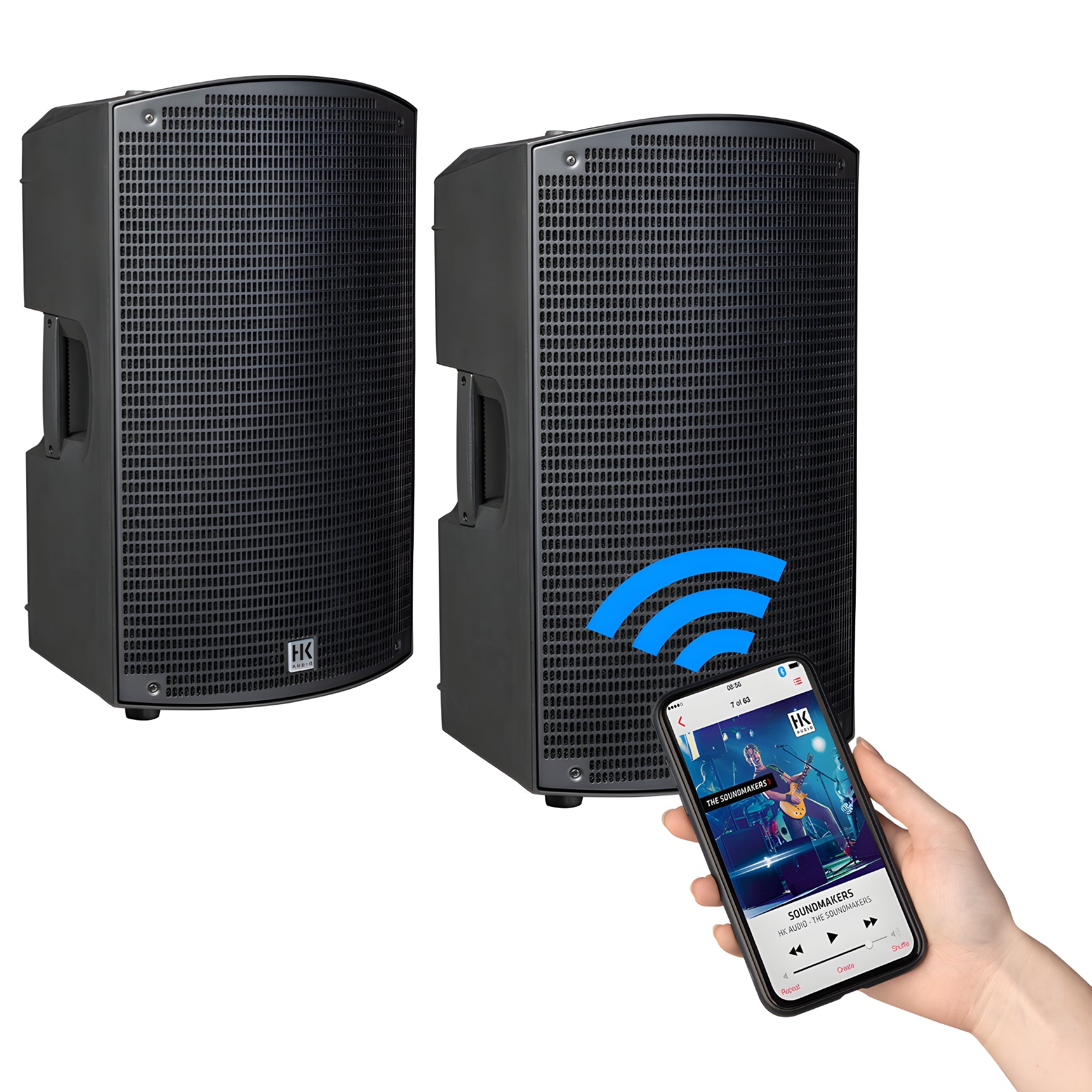

• Bluetooth 5.0 + TWS : Wireless stereo audio by pairing two SONAR Xi devices; control via the SONAR Remote app (iOS/Android).
• Installation and handling : 35 mm base tiltable 0°/–7.5° , 3 × M10 points , monitor angle 35° , 1 × SingleGrip handle .
• Construction : Low-resonance plastic enclosure; steel grille with black acoustic foam.

Product benefits

• True versatility : from main PA to monitor or satellite with sub in seconds thanks to built-in modes and filters.
• Fast and modern control : adjustments from the panel or the app (EQ per channel, low-cut , delay, levels).
• Current connectivity : Bluetooth 5.0 and TWS for wireless stereo sets between boxes.
• Agile deployment : lightweight format, pole tilt and M10 points to adapt to each event.

Use cases

• Main reinforcement for bands, DJs and events in small/medium venues.
• Stage monitor with dedicated preset and adjustable HPF on channels 1/2.
• 2.1 system with SONAR 115 Sub D using the subwoofer preset (Ext. Sub) .

Frequently Asked Questions

• Can I link two units for stereo? Yes, with Bluetooth TWS you get L/R without wiring between speakers.
• Does the Bluetooth channel share controls with the Aux input? Yes, CH3 handles both 3.5mm Aux and Bluetooth with a 3-band EQ .
• Can it be tilted on the pole? Yes, the 35mm base offers 0° and –7.5° positions.

Description for projects

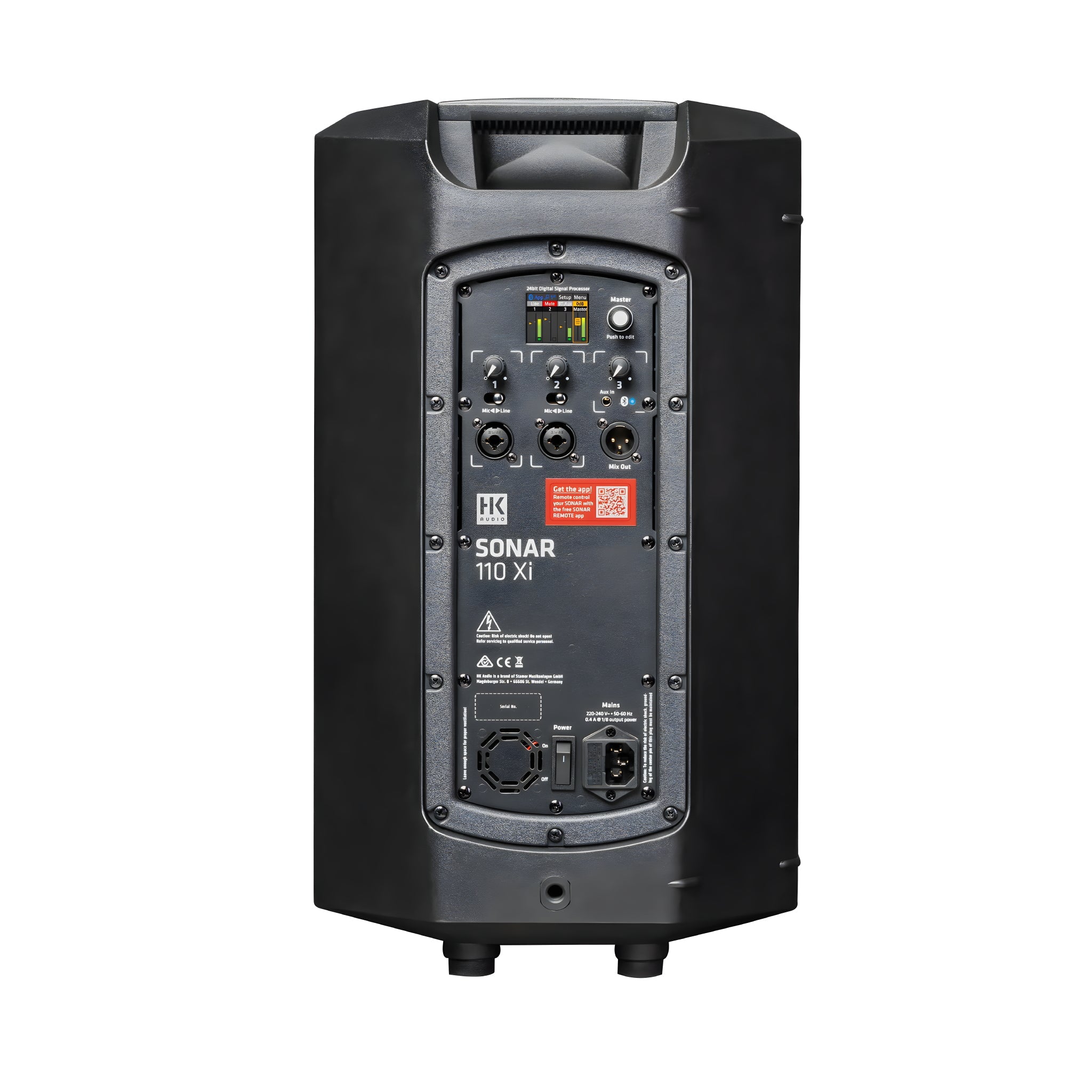

2-way active speaker (bass-reflex): LF 10" + HF 1" ; 800 W peak ; Max SPL peak 123 dB (126 dB calculated, half-space); 64 Hz–18 kHz (–6 dB) / 59 Hz–20 kHz (–10 dB) ; coverage 90° × 60° ; 24-bit DSP with Live/DJ/Monitor modes, Delay 0–10 m , Low-Cut , Output Pre/Post ; inputs 2 × XLR/Jack Mic/Line + 1 × 3.5 mm Aux/Bluetooth; XLR Mix Out output; Bluetooth 5.0 with TWS ; base 35 mm 0°/–7.5°; 3 × M10 ; monitor 35° ; dimensions 31 × 53.5 × 30 cm ; weight 11.5 kg ; plastic enclosure; metal grille with foam.
