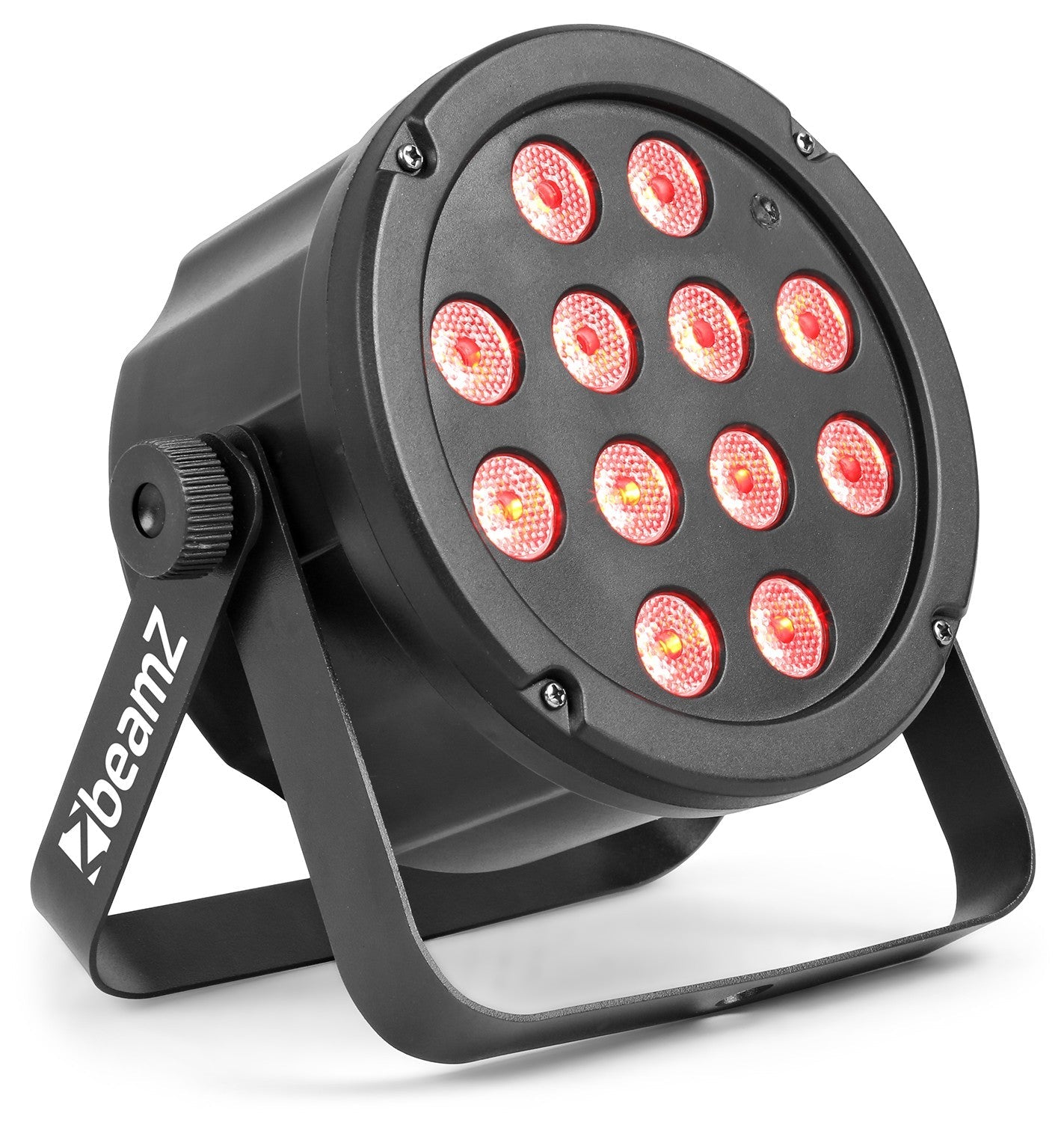

beamZ SlimPAR 35 - Flat LED PAR spotlight 12x3W RGB with DMX 3/4/7 channels and silent operation

beamZ SlimPAR 35 - Flat LED PAR spotlight 12x3W RGB with DMX 3/4/7 channels and silent operation

The beamZ SlimPAR 35 is a compact, flat LED PAR light designed to illuminate stages, walls, and dance floors with a uniform wash-like projection. It features twelve 3W RGB 3-in-1 LEDs for precise color mixing and smooth transitions. Its optics offer a 19° beam angle and a 37° field angle , with an illuminance of 3,711 lx at 1 m , providing remarkable performance for mobile events and fixed installations. Fanless operation and convection cooling ensure zero operating noise , perfect for environments where silence is paramount.

It can be used independently with internal programs and sound activation with adjustable sensitivity, or integrated into professional setups via DMX (3, 4, or 7 channels) . It features Master/Slave functionality for synchronizing multiple units, DMX input/output via 3-pin XLR , and a control panel with an LED display . An IR remote control is included for quick adjustments to colors, programs, and speed without physically touching the unit, facilitating on-the-fly changes during shows and events.

Main features

• Light source: 12 x 3W 3-in-1 RGB LEDs (integral color mixing).
• Optics: 19° beam and 37° field for wash-type coverage.
• Luminous efficacy: 3,711 lx @ 1 m .
• Modes: Automatic, Sound to Light (adjustable sensitivity), Master/Slave and DMX 3/4/7 channels .
• Strobe: adjustable frequency from 1–21 Hz .
• Control: IR remote control included and panel with LED display .

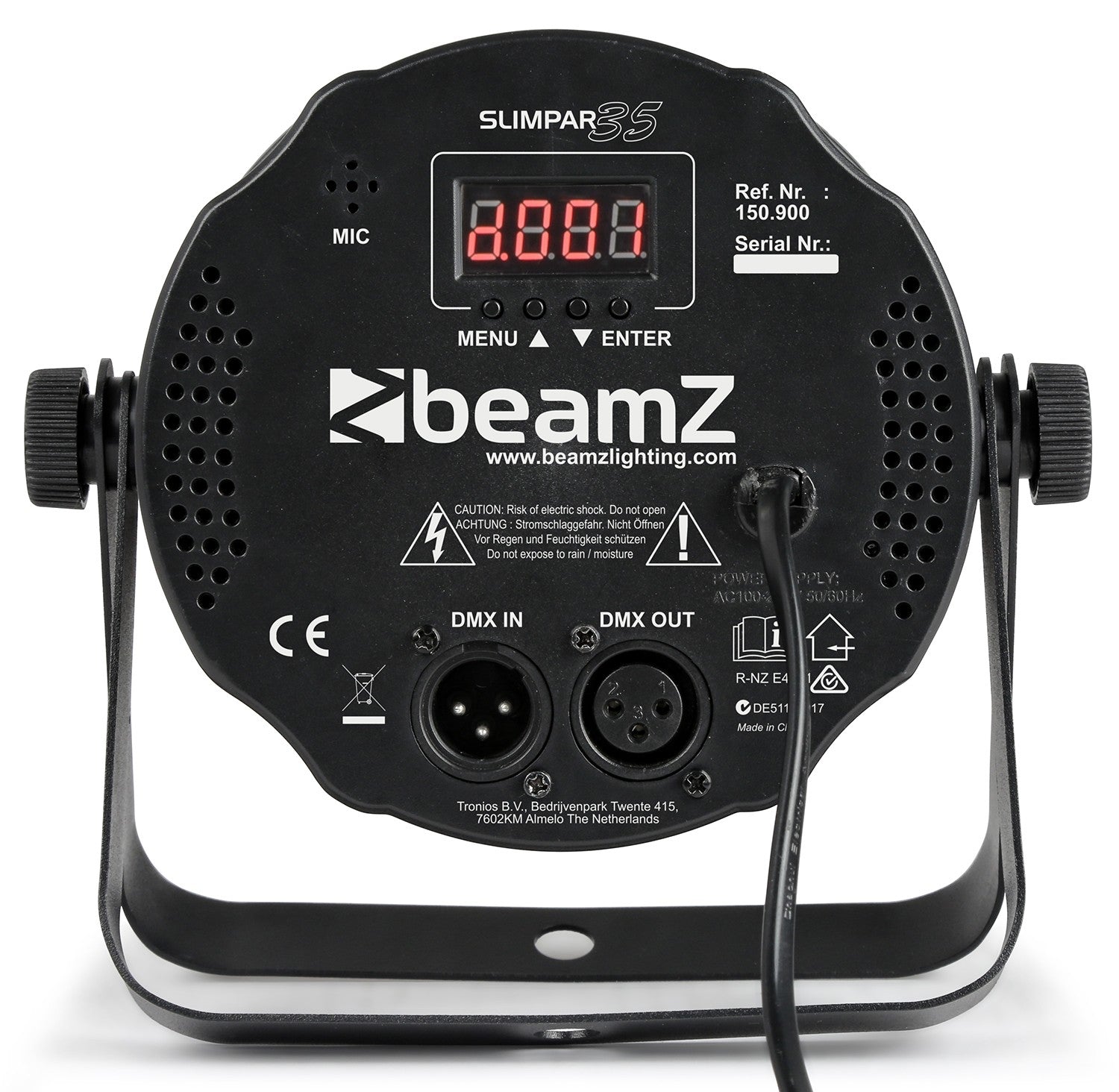

• DMX I/O: 3-pin XLR inputs/outputs.
• Silent: without fans (convection).
• Compact construction: 185 x 90 x 180 mm ; 0.8 kg ; black housing ( IP20 ).
• Power supply: 100–240 V AC, 50/60 Hz; consumption 0.22–0.18 A.

Product benefits

• Absolute silence for corporate events, recordings and performances with open microphones.
• Total flexibility : use it in standalone mode , sound and light control , or DMX depending on the complexity of the show.
• Vibrant and uniform colors thanks to the 3-in-1 RGB 12 LED matrix.
• Quick assembly and immediate control with the IR remote and integrated display.
• Scalable with Master/Slave function for synchronized effects without programming.

Use cases

• Mobile DJ and social events : perimeter uplighting, dance floors, photocalls.
• Performances and schools : small stages, school theatres, rehearsals.
• Fixed facilities : clubs, bowling alleys, bars and leisure centers.
• Retail and exhibitions : splashes of color in corners, showrooms and stands.

Frequently Asked Questions

• Does it include a remote control? Yes, it has an IR remote control for controlling programs, speed, and colors.
• Does it make noise when it's running? No. Cooling is by convection and it doesn't use fans.
• Can I control it via DMX? Yes, it supports 3, 4, or 7 DMX channels and a 3-pin XLR connection.
• Can it be used outdoors? No. IP20 rating for indoor use.
• What is the strobe frequency? Adjustable between 1 and 21 Hz .
• Does it need ventilation space? Yes, leave at least 50 cm free around the light.

DMX control summary (channel map)

• 3 channels: R, G, B (0–255).
• 4 channels: Master Dimmer, Strobe, Color Macros, Sound Mode.
• 7 channels: Master Dimmer, Strobe, Red, Green, Blue, Color Macros, Sound Mode.

Installation and operation tips

• Location: Mount the projector in a well-ventilated indoor location with secure mounting; add secondary safety features .
• Uplighting: Position 0.5–1.5 m away from the wall for a homogeneous color bath with a 19° beam angle.
• Silent scenes: take advantage of the absence of a fan in theaters, conferences and streaming.
• Without open DMX terminations: use a 120 Ω terminator on the last device in the chain.

Project description

Flat LED PAR spotlight for indoor use, reference 150.900: 12 x 3W RGB 3-in-1 LEDs; 19° beam angle, 37° field angle; 3,711 lx @ 1 m illuminance; 1–21 Hz strobe; Auto, Sound, Master/Slave and DMX modes; 3/4/7 DMX channels; 3-pin XLR DMX connection; IR remote and LED display panel control; 100–240 V~ 50/60 Hz power supply; 0.22–0.18 A consumption; fanless convection cooling; IP20; dimensions 185 x 90 x 180 mm; weight 0.8 kg; black color.
