Triton Blue SHOW-REC-1024 - TRITON-BLUE Space 1024 DMX ARTNET RECORDER + CONSOLE

1,024-channel DMX recorder and player with ArtNET. SHOW-REC-1024 Triton Blue

• DMX and ArtNET Node recorder with wireless function
• 1,024 input and output channels (2 universes)
• Real-time DMX recording and playback via DMX or WiFi (built-in WiFi access point)
• 14 direct memories with up to 20 hours of playback that can be stored on the included SD card
• Splitter-type signal amplifier

• The SHOW-REC-1024 is a multifunctional DMX recorder that can record and playback DMX and ArNET signals in real time.
• It can work as a DMX recorder, ArtNet node, 2 in 1 DMX merger (HTP/LTP/Override/Backup), 1 in 2 out DMX splitter and as a single 24 channel console.
• The SHOW-REC-1024 as a recorder has 14 direct access memory buttons and each memory can record up to 20 hours of show time.
• The recording mode can be selected in time and step with dimmer and speed adjustable by potentiometer.
• Integrates a Wi-Fi access point for ArtNet input/output and operations via Android and iOS applications (TouchOSC)
• The unit can operate in three different modes: BRIDGE, RECORD, and PLAY. In BRIDGE mode, the unit functions as a signal converter; from this mode, it can be switched to Splitter or Merge mode.
  • In BRIDGE mode the device works as a signal converter from this mode it can be switched to a Splitter or Merge mode.
  • In SPLTTER mode the equipment has three different options to distribute the incoming signals
    • "IN1/2>OUT1/2": The inputs [DMX IN 1] and [DMX IN 2] distribute the signals to the outputs [DMX OUT 1] and [DMX OUT 2] respectively.
    • "IN1>OUT1 and 2": The [DMX IN 1] input distributes the signals to the [DMX OUT 1] and [DMX OUT 2] outputs.
    • "IN2>OUT1&2": The [DMX IN 2] input distributes the signals to the [DMX OUT 1] and [DMX OUT 2] outputs.
    • In MERGE mode, the device has four different options for joining DMX signals and obtaining a new signal: HTP, LTP, Override and Backup.

• Characteristics
  • Supports ArtNET and DMX
  • 1,024 input and output channels
  • Real-time DMX recording and playback via DMX or WiFi
  • 14 memories with up to 20 hours of playback that can be stored on the included SD card
  • Playback can be done in loop mode or solo mode.
  • Allows playback via iPad, iPhone via TouchOSC
  • Amplifies the DMX signal as a splitter

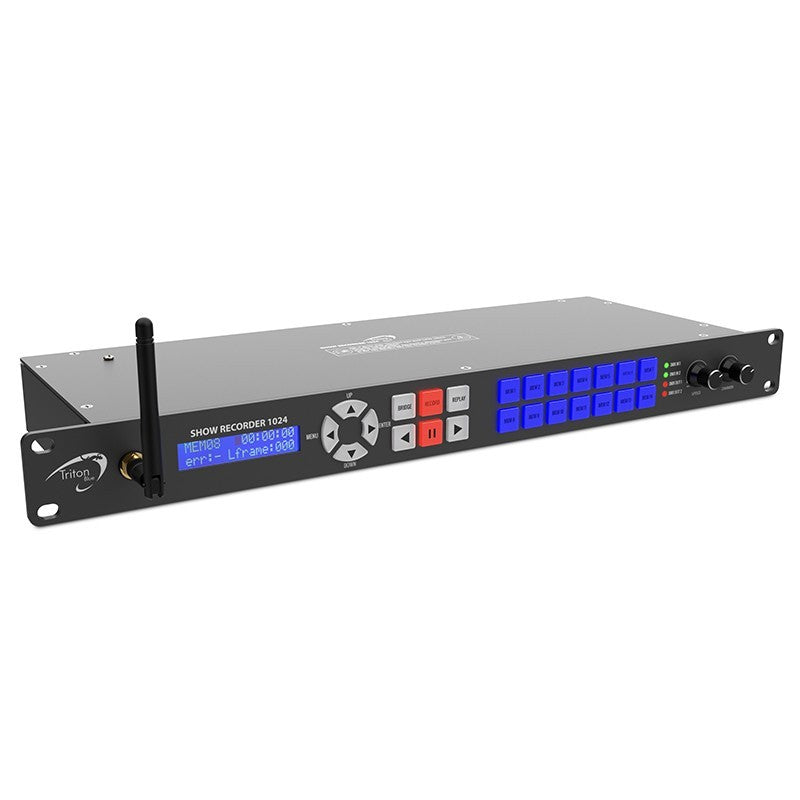

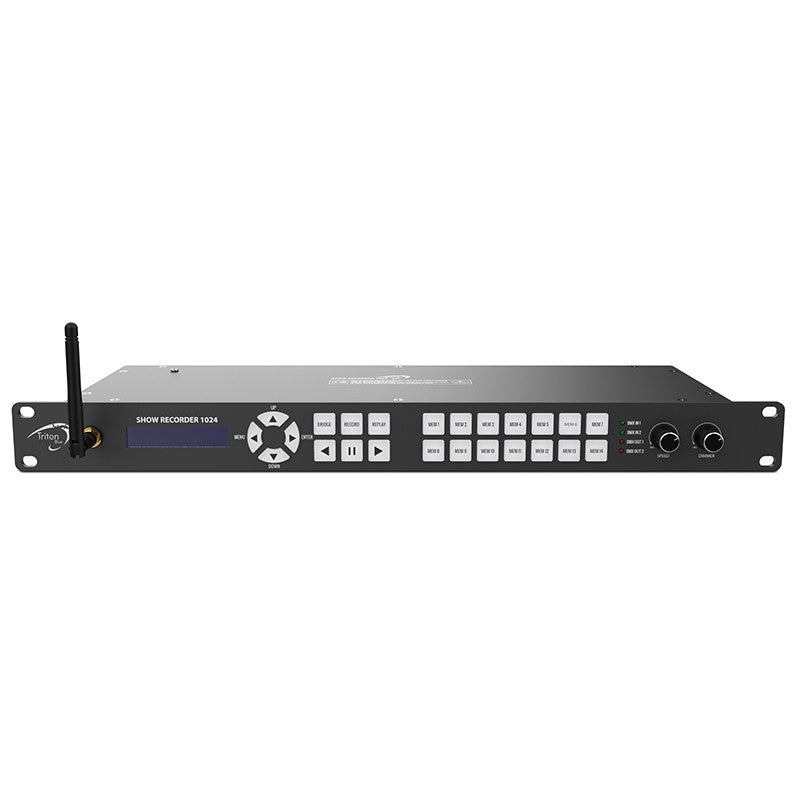

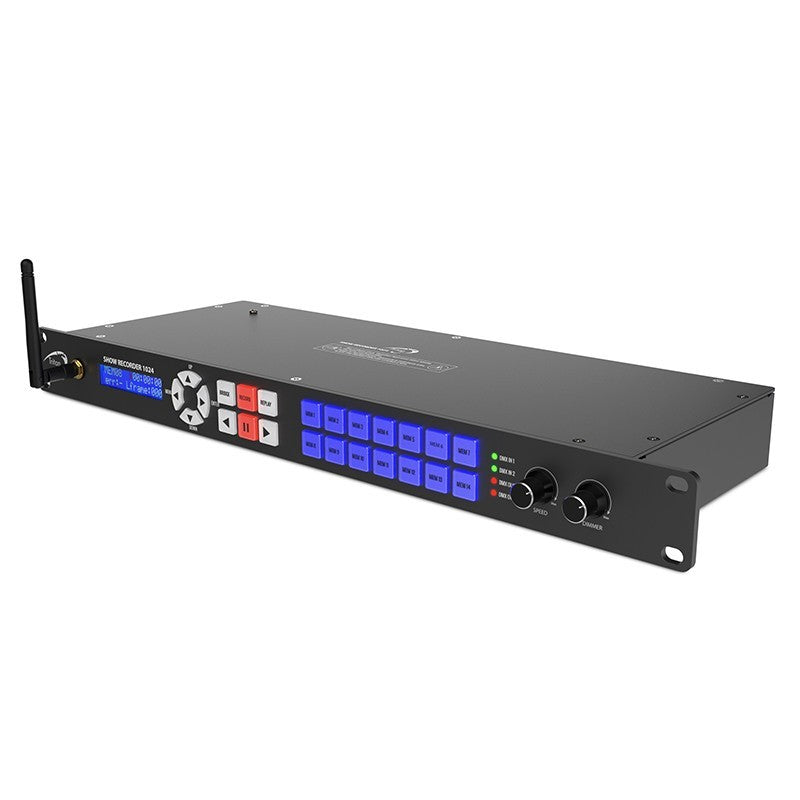

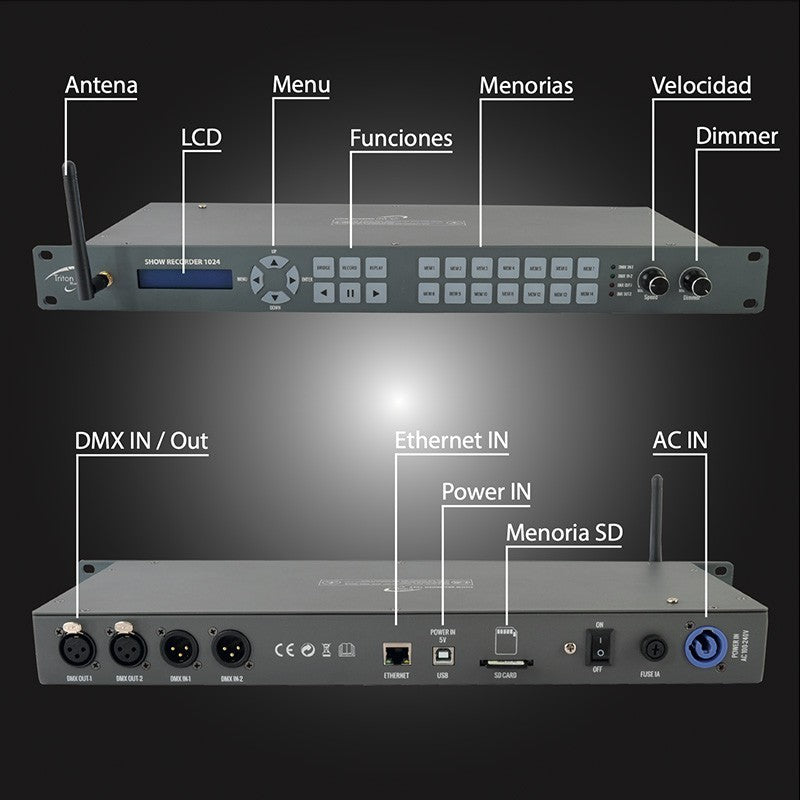

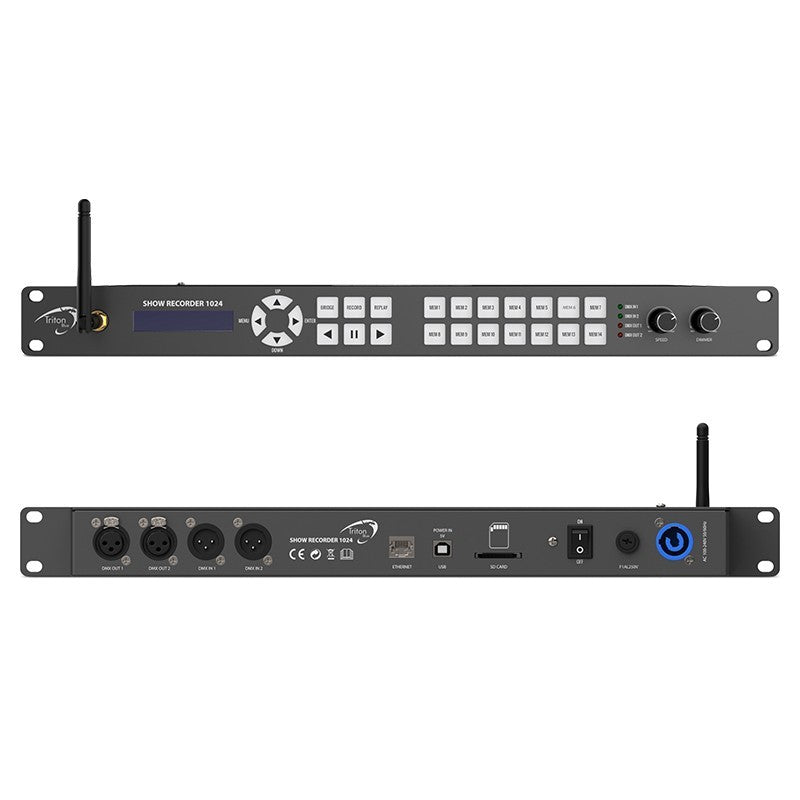

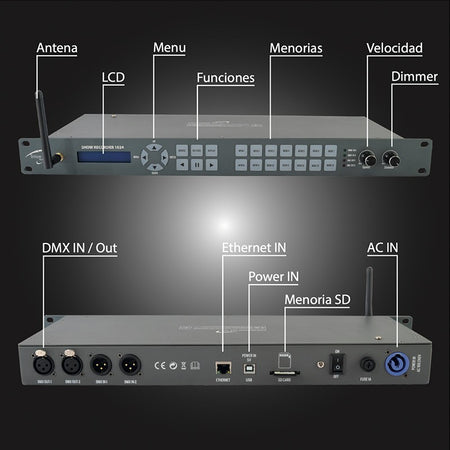

  • Front panel
    • Buttons to access the main menu
      • Backlit Menu Button
      • Backlit button for menu navigation "UP"
      • Backlit button for menu scrolling "DOWN"
      • Backlit button for OK in the "ENTER" menu
    • Backlit buttons for show control (record and playback functions) BRIDGE, RECORD, REPLAY
      • Forward Button
      • Back button
      • Pause button
    • 14 backlit pushbuttons for memory control
    • 2 Potentiometers for playback speed and dimmer control
    • 4 LED indicators for DMX input signal 1 and 2 in green and DMX output signal 1 and 2 in red

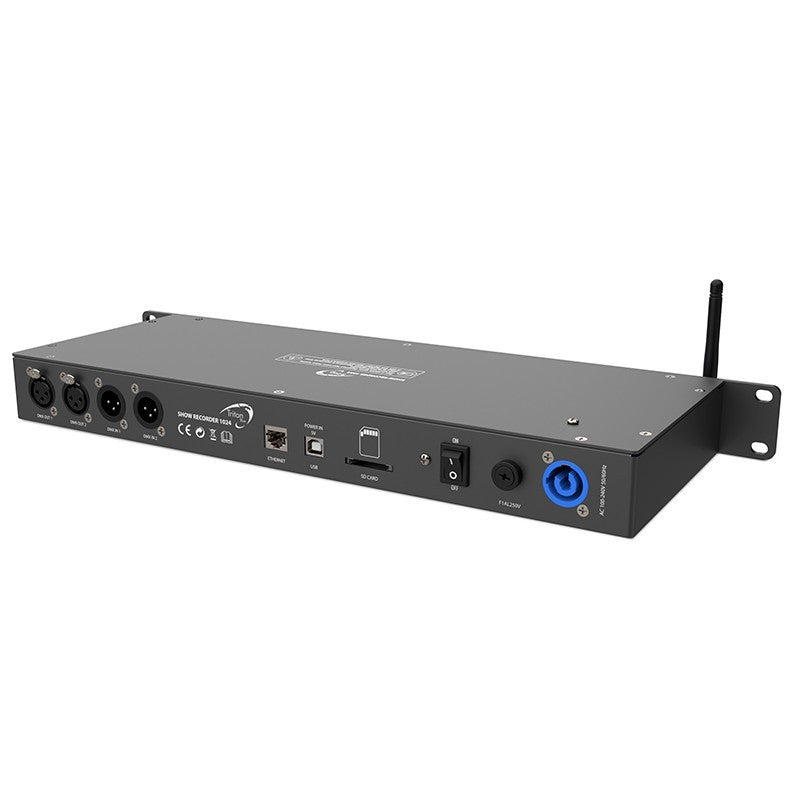

  • Rear panel
    • 2 x 3-pin XLR connectors for DMX signal outputs 1 and 2
    • 2 x 3-pin XLR connectors for DMX signal inputs 1 and 2
    • 1 network connector, RJ45 terminal for data input and output
    • 1 USB 2.0 type B connector for alternative voltage supply
    • 1 slot for inserting SD memory card (card included)
    • 1 SHOW-REC-1024 On/Off Switch
    • 1 Fuse holder with 5mm x 20mm 1A, 250V fast-blow fuse
    • 1 PowerCON type power input terminal

• Specs
  • Operating modes
    • Bridge (HTP, LTP, Override, Backup), Record, Replay
  • Backlit LCD display for viewing SHOW-REC-1024 parameters
  • Control: Buttons and display on the device, Android and iOS applications
  • Input connectors
    • Feeding
      • 1 PowerCON type main power connector
      • 1 USB 2.0 type B connector
    • DMX signal input: 2 3-pin XLR connectors
  • DMX output connectors: 2 x 3-pin XLR connectors
  • Preconfigured LAN IP address: 002.114.034.200
  • Preconfigured WLAN IP address: 002.000.000.001

• Feeding
  • Power input: AC 100-240V, 50/60Hz
  • Power consumption: 6 watts maximum

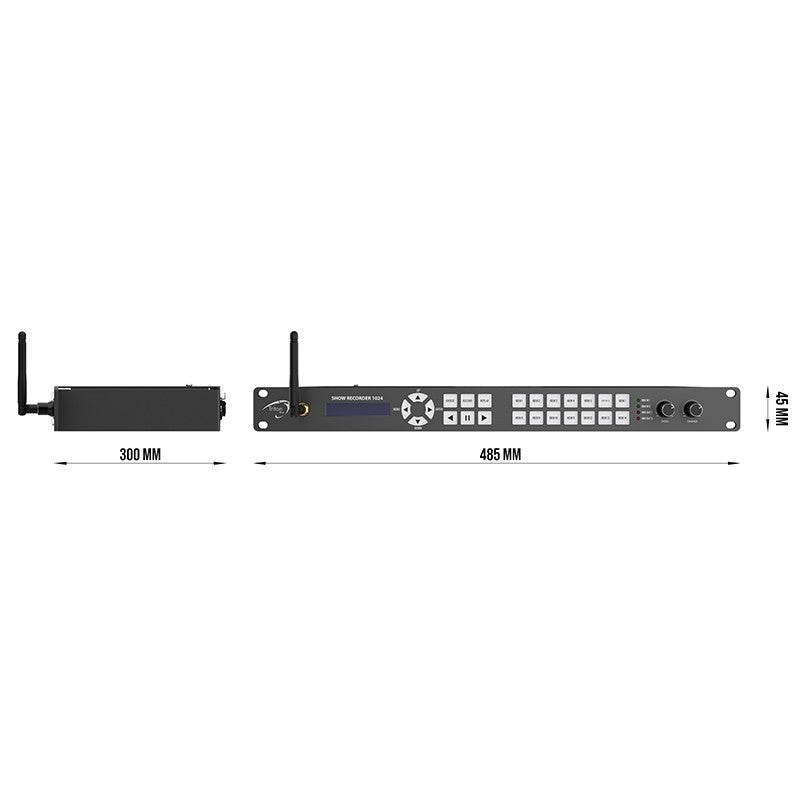

• Measurements and weight
  • For installation in 19" rack format, 1 unit high
  • Dimensions: 482 x 135 x 44 mm
  • Weight: 2.00 kg

• Environmental conditions
  • Temperature range: 0ºC to 40ºC
  • Relative humidity: 50% non-condensing

• Certificates
  • CE Certificate
  • RoHS

• Package contents
  • 1 Team SHOW-REC-1024
  • 1 Antenna for WIFI access
  • 1 Shuko / PowerCON power cable
  • 1 16G SD memory card
  • 1 Instruction manual

• Description for projects and tenders
  • 1,024-channel DMX recorder and player with ArtNET. Model SHOW-REC-1024 from the manufacturer Triton Blue. DMX and ArtNET Node recorder with wireless function, 1,024 input and output channels (2 universes). Real-time DMX recording and playback via DMX or WiFi (integrated WiFi access point). With 14 direct memories with up to 20 hours of playback that can be stored on the included SD card, including a splitter-type signal amplifier. Playback can be executed in loop or solo mode and always directly from the device itself or through an iPad, iPhone or Android system via TouchOSC. It has two potentiometers on the front panel for speed and dimmer control of the memories and 4 green LED indicators for DMX input signal 1 and 2 and DMX output signal 1 and 2 in red. 2 x 3-pin XLR connectors for DMX signal outputs 1 and 2. 2 x 3-pin XLR connectors for DMX signal inputs 1 and 2. 1 x network connector, RJ45 terminal for data input and output. 1 x USB 2.0 type B connector for alternative voltage supply. 1 x SD memory card slot (card included). 1 x SHOW-REC-1024 On/Off switch. 1 x Fuse holder with 5mm x 20mm 1A, 250V fast-blow fuse. 1 x PowerCON type power input terminal. Power input: AC 100-240V, 50/60Hz. With a power consumption of: 6 watts maximum. For installation in a 19" rack format, 1 unit high, with dimensions: 482 x 135 x 44 mm and a weight of: 2.00 kg. Includes 1 antenna for Wi-Fi access, 1 1.5 m shucko-powercon power cable.
