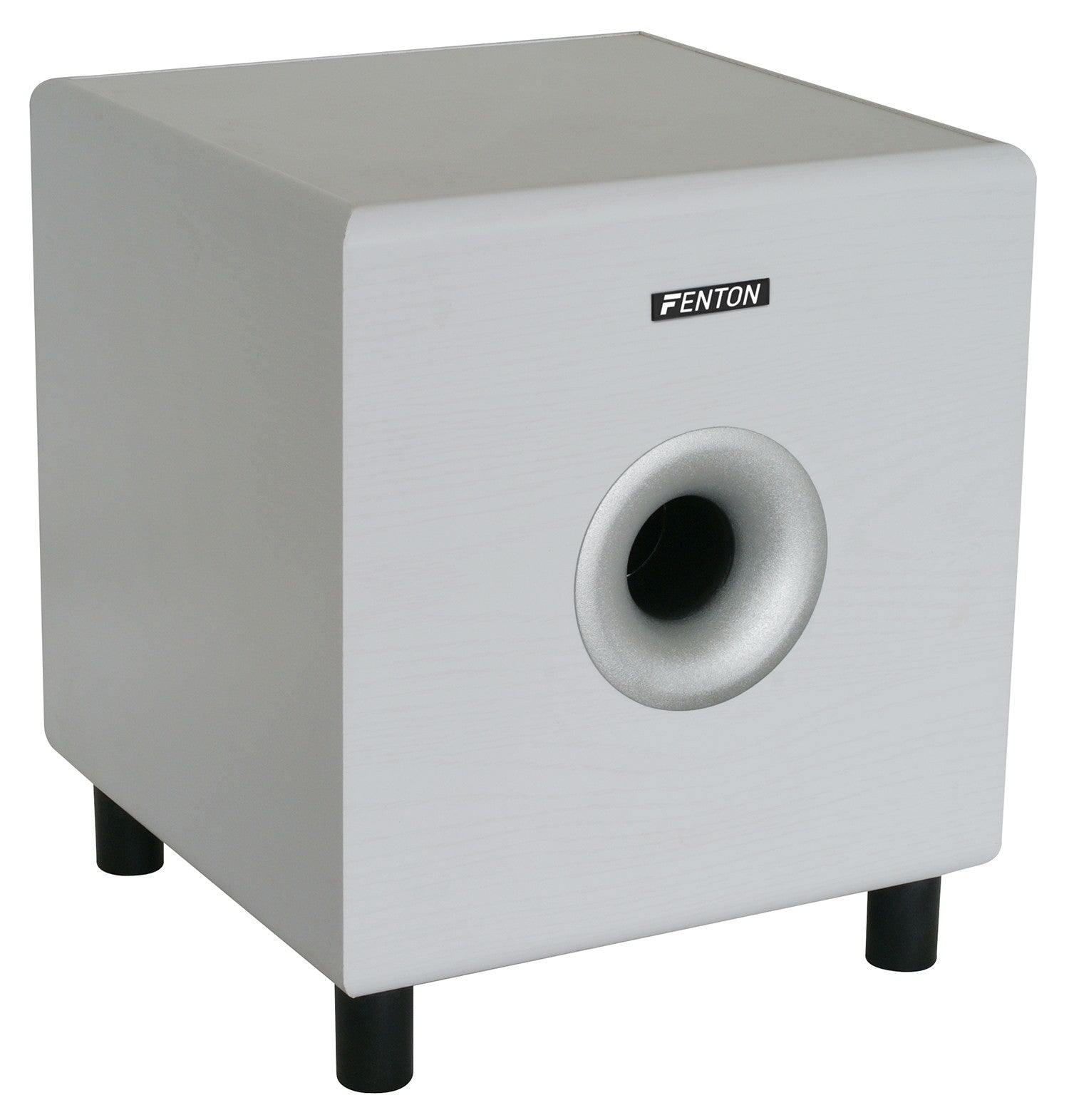

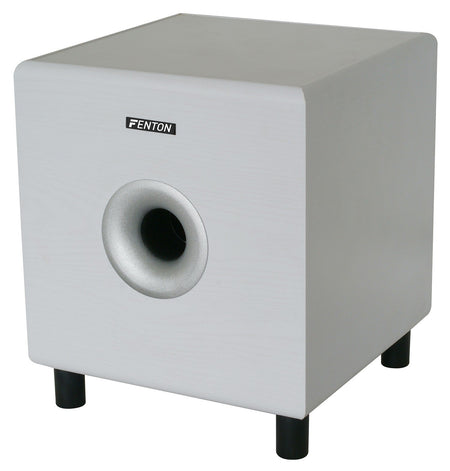

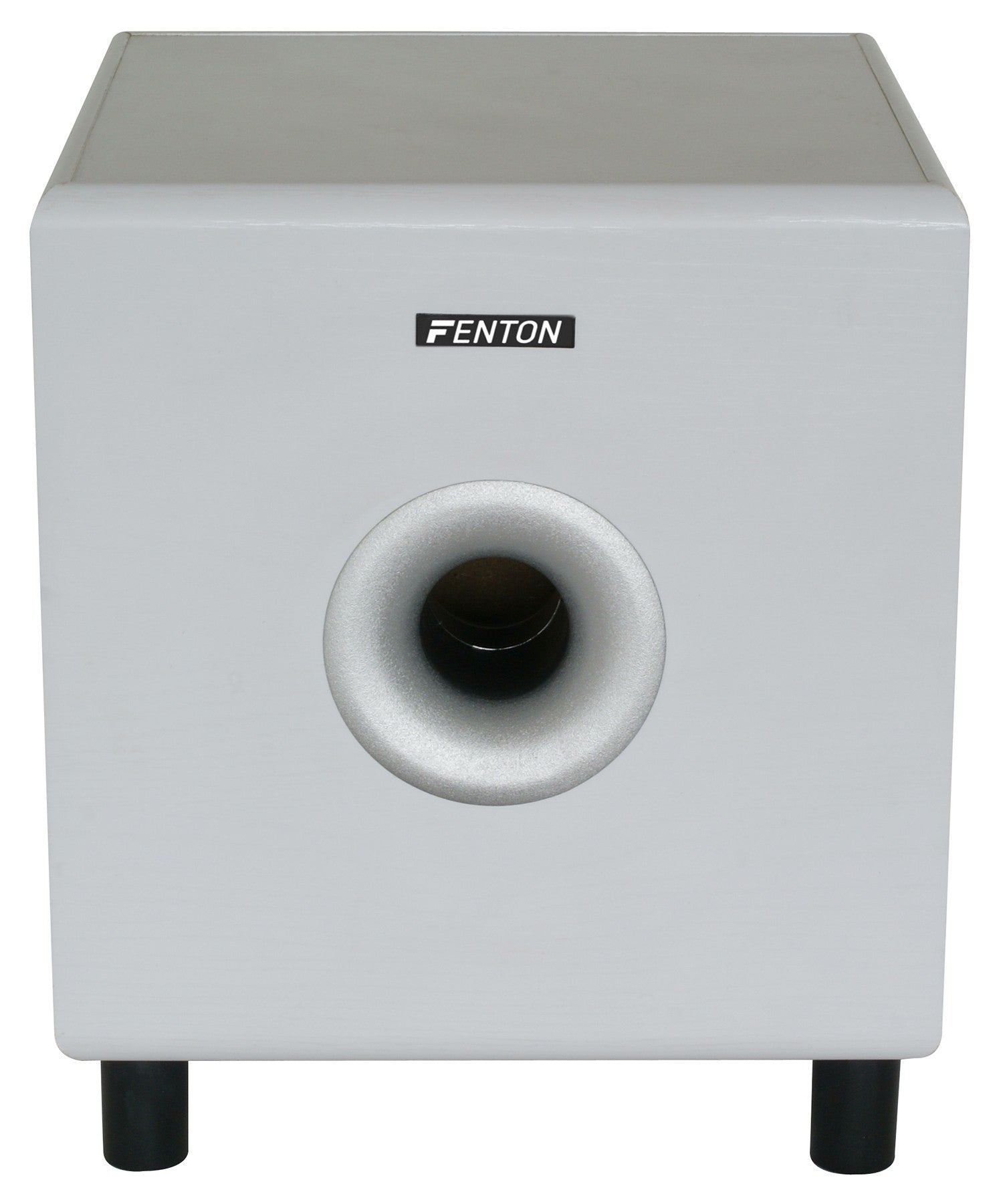

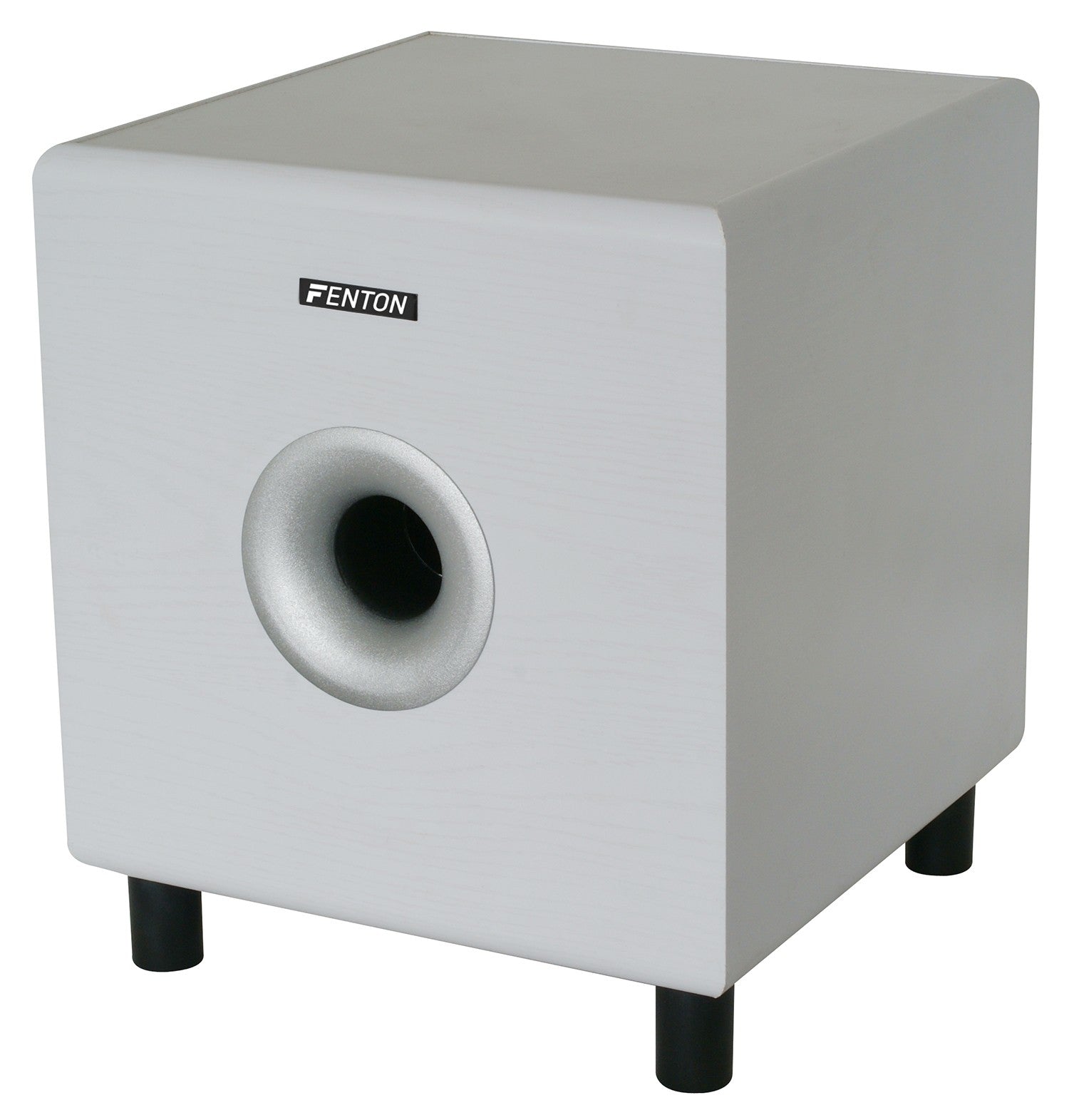

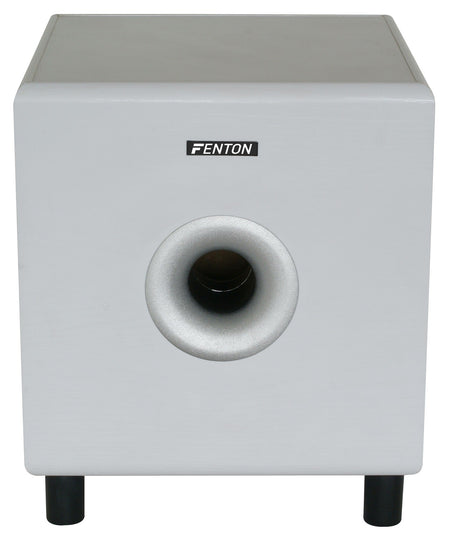

Fenton SHFS08W - 8" White Active Subwoofer with Down-Firing Design

Fenton SHFS08W - 8" White Active Subwoofer with Down-Firing Design

Discover a new dimension in your home audio experience with the Fenton SHFS08W , an 8-inch active subwoofer meticulously designed to complement and enhance the performance of your Hi-Fi or Home Cinema system. This device is more than just another speaker; it's responsible for adding body, depth, and realism to your favorite movies, TV shows, and music, filling the room with rich, immersive bass that you feel as much as you hear. Its elegant white finish allows it to blend seamlessly into any modern décor, remaining visually unobtrusive while completely transforming the room's soundscape.

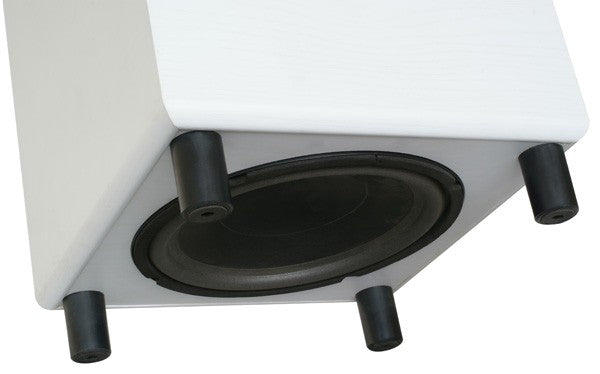

The engineering behind the SHFS08W is distinguished by its "Down-Firing" configuration. Unlike traditional front-firing subwoofers, this model projects sound waves directly onto the floor. This technique utilizes the room's surface area to disperse low frequencies omnidirectionally and evenly, achieving a more natural resonance and eliminating acoustic dead spots. Furthermore, it features a rear-ported bass reflex enclosure design that optimizes airflow, reducing distortion and allowing the system to reach a maximum output of 200W with remarkable clarity.

Versatility is one of its strengths. Thanks to its adjustable crossover and advanced connectivity options, this subwoofer frees your main speakers from the heavy burden of reproducing the deepest bass. This not only enhances the bass response but also allows your satellite or bookshelf speakers to focus on the mids and highs, resulting in a much cleaner, more detailed, and transparent overall sound.

Main features

The Fenton SHFS08W is equipped with audiophile-level technology adapted for home use, guaranteeing total control over your sound:

• Power and performance: Active system with an integrated amplifier that drives a 20cm (8") woofer up to a maximum power of 200W, enough to fill medium-to-large-sized living rooms and lounges.
• Adjustable crossover frequency: It incorporates a rear dial that allows you to select the exact frequency range you want the subwoofer to reproduce (between 50Hz and 150Hz), ensuring a smooth transition without overlap with the rest of your speakers.
• Switchable phase control: Dedicated switch to adjust the phase to 0° or 180°. This is vital for synchronizing the woofer's movement with your other speakers, preventing sound waves from canceling each other out and ensuring that the bass reaches your ears with maximum impact.
• Dual connectivity: It features standard stereo RCA line inputs for modern receivers, but also includes high-level inputs (screw terminals). This means you can connect it directly to the speaker outputs of older amplifiers that don't have a dedicated subwoofer output.
• Automatic power-on function: The system automatically detects when there is an incoming audio signal to power on and enters standby mode when not in use, saving energy without you having to touch a button.

Benefits for your sound system

Integrating the Fenton SHFS08W into your existing setup radically transforms your listening experience. By delegating the lowest frequencies (below 150Hz) to this specialist, you gain a significantly wider dynamic range . Dialogue in movies becomes more intelligible, and music acquires a solid rhythmic foundation. The down-firing design is especially beneficial on hardwood or parquet floors, where the floor's structure itself helps to warmly amplify the low frequencies, creating that "home theater" feeling where explosions and special effects make the room vibrate.

Use cases

• Home Cinema: Ideal for 5.1 or 2.1 setups where that physical impact is needed in action scenes, roaring engines, or epic soundtracks.
• Hi-Fi Stereo Systems: Perfect to accompany bookshelf speakers that lack bass response, providing the necessary body for genres such as jazz, electronica or rock.
• Designer living rooms: Thanks to its minimalist white aesthetic and compact size, it is the perfect solution for those who want great sound without filling the room with bulky black equipment.
• Vintage amplifier upgrade: Its "high impedance" connection capability allows you to revive old stereo amplifiers by adding modern bass without the need for auxiliary equipment.

Frequently Asked Questions

Do I need an external amplifier for this subwoofer?
No, it's an active subwoofer, which means it already has its own built-in amplifier. You just need to plug it into a power outlet and send it the audio signal from your main source or amplifier.

Where is the best place to put this subwoofer?
Because the bass frequencies are omnidirectional, you have flexibility. However, thanks to its down-firing design, it works excellently when placed near a wall or in a corner, which will naturally enhance the bass response. Make sure the rubber feet are firmly planted on the floor.

How do I connect it if my amplifier doesn't have a "Sub Out" or "LFE" output?
The Fenton SHFS08W solves this problem with its high-level inputs. You can run standard speaker wires from the same outputs on your amplifier that go to your main speakers and connect them to the subwoofer's screw inputs. The subwoofer will then take the audio signal from there without drawing power from your amplifier.

Project description

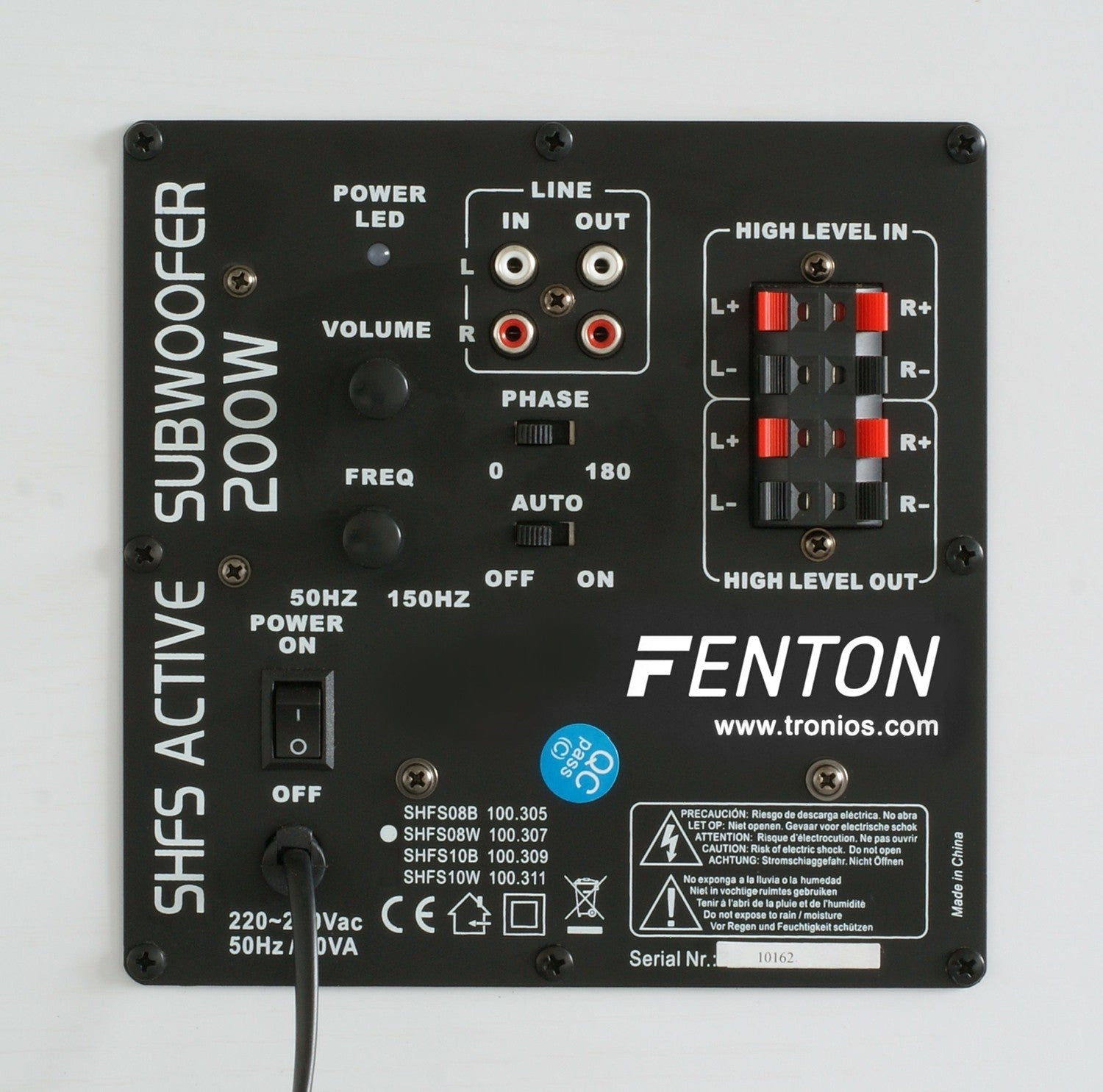

This 8-inch active subwoofer features a down-firing design and a low-resonance bass reflex enclosure in a white finish. It incorporates internal amplification with a maximum power of 200W and a frequency response of 22Hz to 200Hz with an impedance of 4 ohms. The rear panel includes a rotary volume control, a phase selector (0°/180°), and an adjustable crossover filter between 50Hz and 150Hz. It offers versatile connectivity via RCA line inputs and outputs, as well as high-level input/output terminals for integration with amplifiers lacking a dedicated output. Its compact dimensions of 300 x 300 x 350 mm and weight of 8.95 kg make it ideal for residential installations and multimedia systems.
