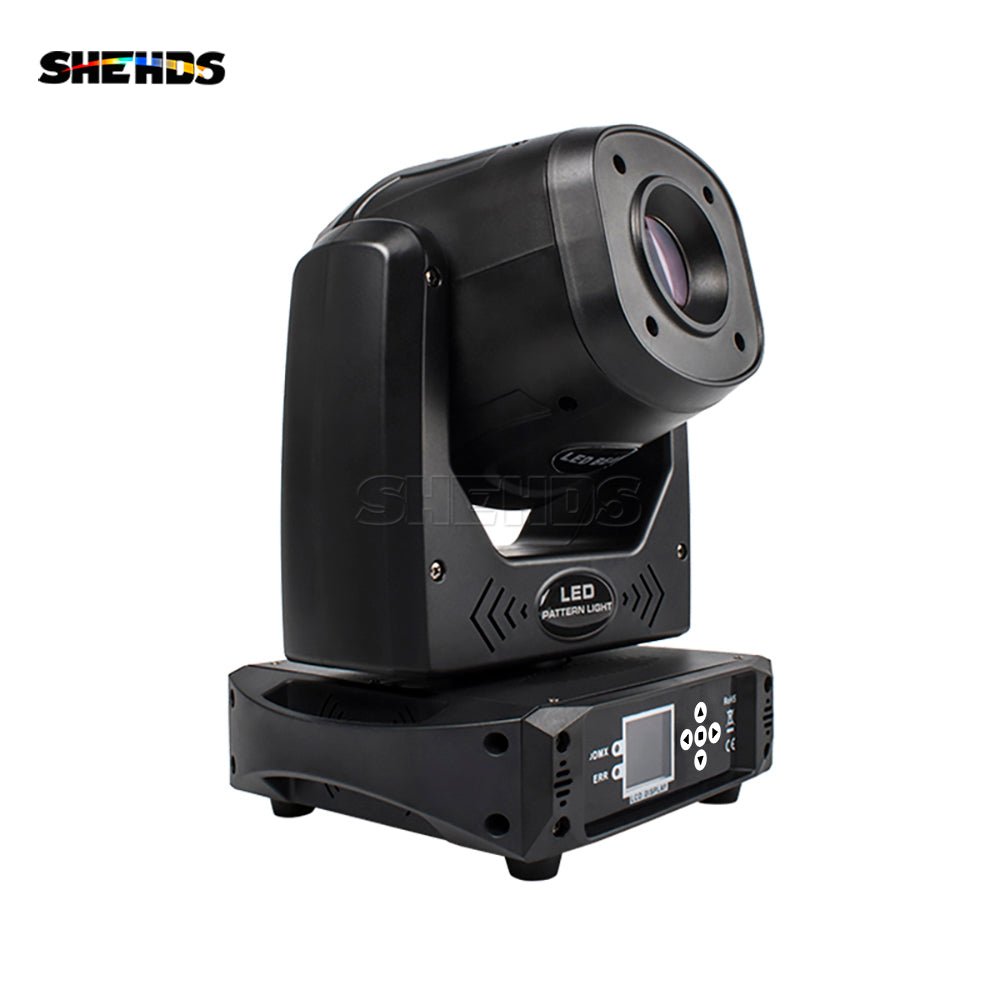

SHEHDS SpMH100W - 100W LED Moving Head Spot with 6 Prisms and Gobo

SHEHDS SpMH100W LED Moving Spot – 100 W with 6 Prisms and Gobo

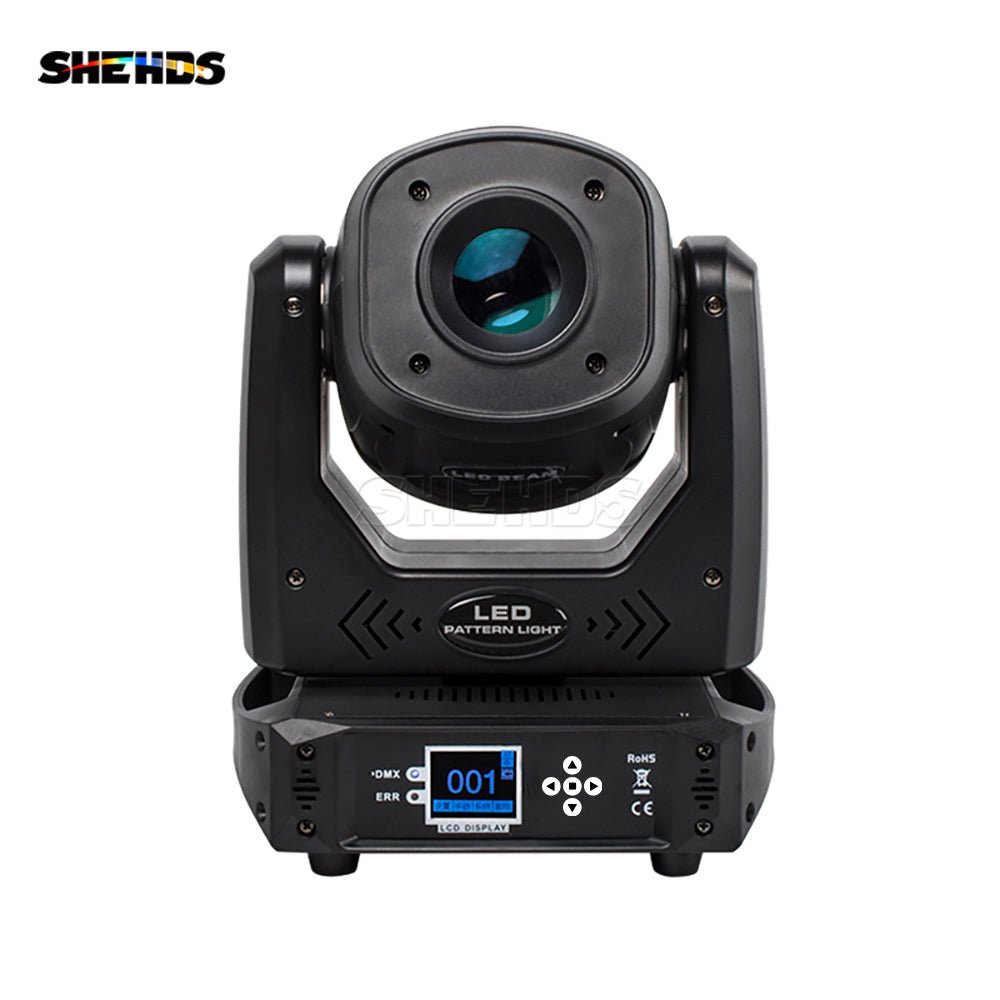

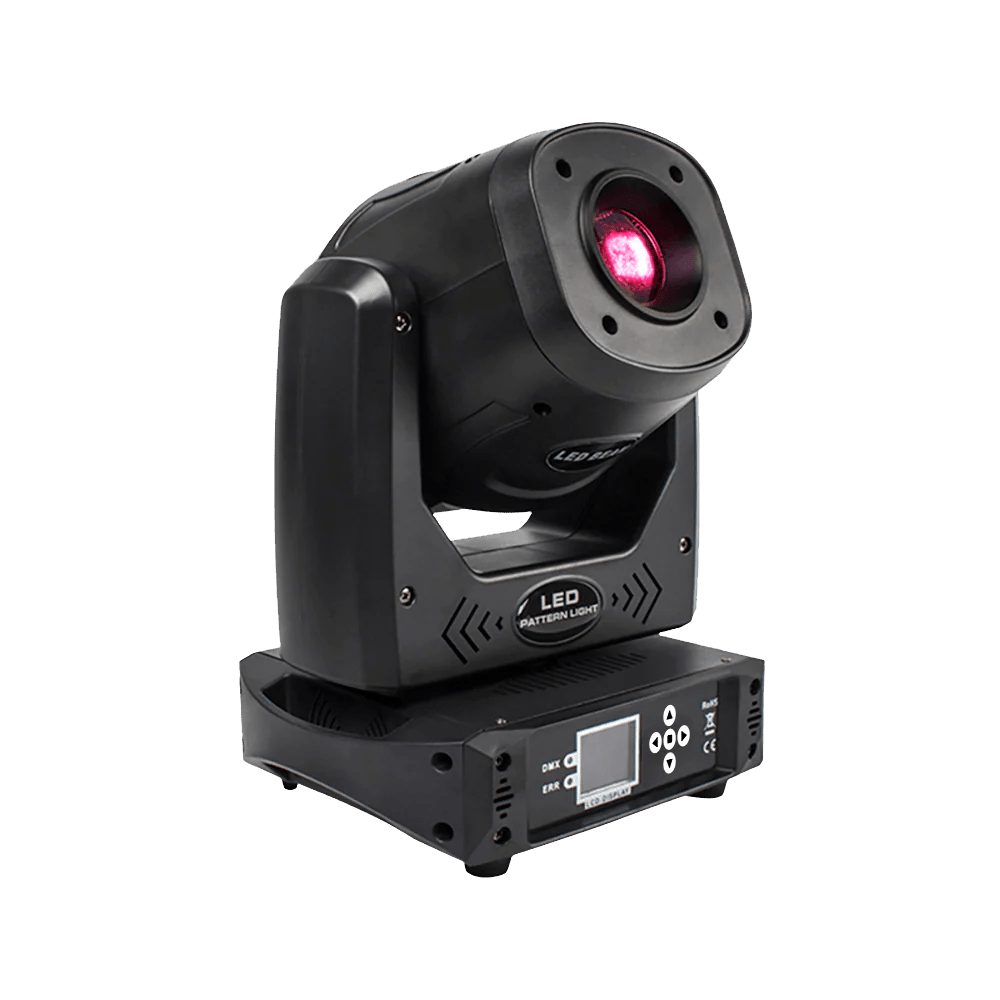

The SHEHDS SpMH100W is a professional 100W moving head light designed for DJs, clubs, and indoor events. It features a 25° fixed lens and 15–20° adjustable beam for intense beam effects, a 7-color color wheel plus white, and dual gobos (7 dynamic + 6 static, 2 glass). Its 6-facet circular prism adds layers of refraction that elevate the visual impact. It includes electronic focus, 0–16 Hz strobing, and DMX512 control in 10 or 13-channel modes, all managed from its LCD screen. With 540° Pan and 200° Tilt movements, its aluminum alloy construction and convection cooling ensure reliability and durability.

Main features

• LED power: 100 W
• Lens and beam: 25° fixed; variable beam 15–20°
• Color wheel: 7 colors + white (half-color)
• Gobos: 7 dynamic + 6 static (2 glass)
• Prism: 6-sided circular rotating
• Focus: linear electronic near–far
• Strobe: 0–16 Hz
• Pan/Tilt: 540°/200°, 8–16 bit
• DMX512: 10/13 channels; LCD panel and RDM supported
• Cooling: fanless air convection
• Housing: high-strength aluminum alloy

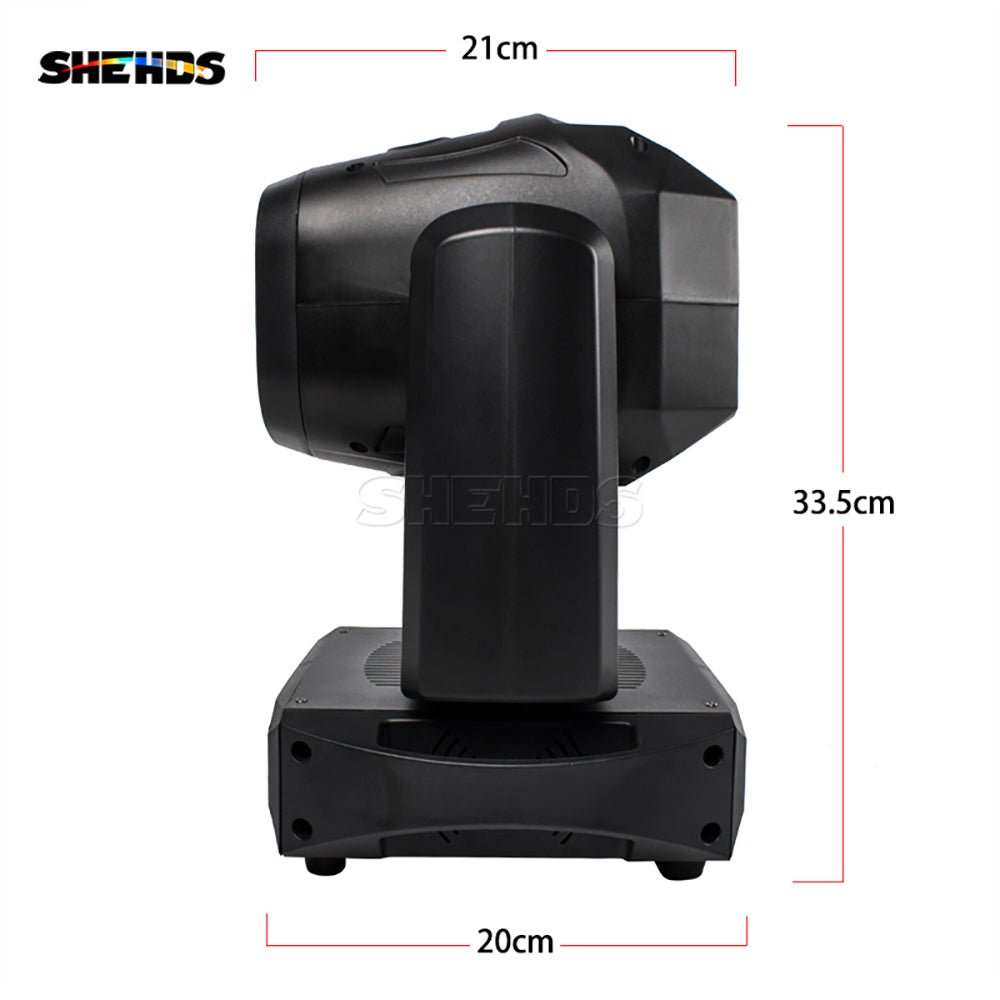

• Dimensions: 25 × 20 × 35 cm
• Net weight: 6.1 kg
• Protection: IP20 for indoor use

Product benefits

• Dynamic effects: 6-facet prism and interchangeable gobos for impressive shows.
• Total control: electronic focus and strobe for precise transitions.
• Chromatic versatility: color wheel with half-color and glass gobo options.
• Silent operation: passive cooling prevents annoying live noises.

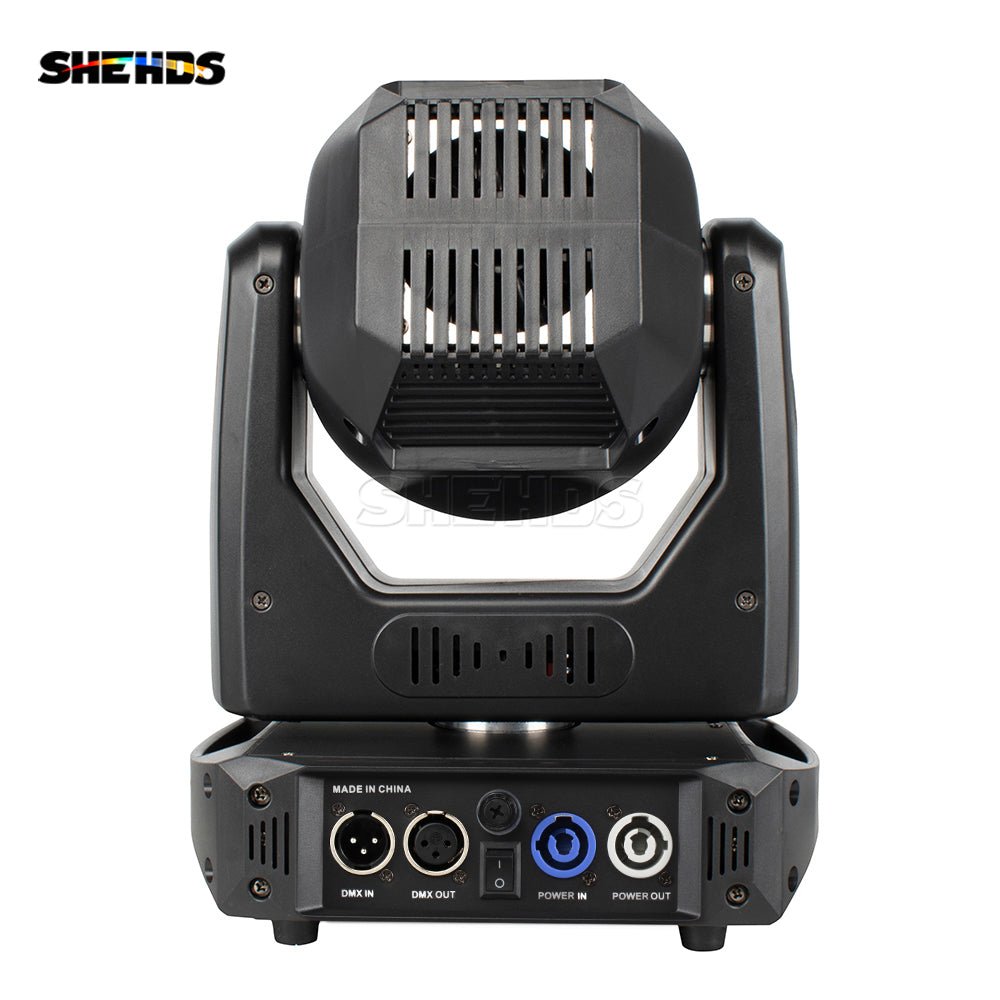

• Agile installation: universal power supply and standard XLR/PowerCON connections.

Use cases

• Discos and nightclubs
• Concerts and corporate events
• Theater and dance productions
• Wedding receptions and private celebrations
• Event halls and theme bars

Frequently Asked Questions

• How do I change gobos and prisms? Using dedicated DMX channels or the built-in LCD menu.
• Does it require maintenance? No; its passive convection design eliminates the need for fans.
• Can I link multiple units? Yes; it supports serial DMX and PowerCON in/out.
• Is it suitable for outdoor use? No; IP20 protection rating, for indoor use only.

Description for projects

100W LED moving head light with 6-facet prism and double gobo (7 dynamic + 6 static), 7+1 color wheel, 25° lens and 15–20° beam, electronic focus, strobe 0–16 Hz, Pan/Tilt 540°/200°, DMX512 10/13 ch, LCD, AC 100–240 V, 25×20×35 cm, 6.1 kg.
