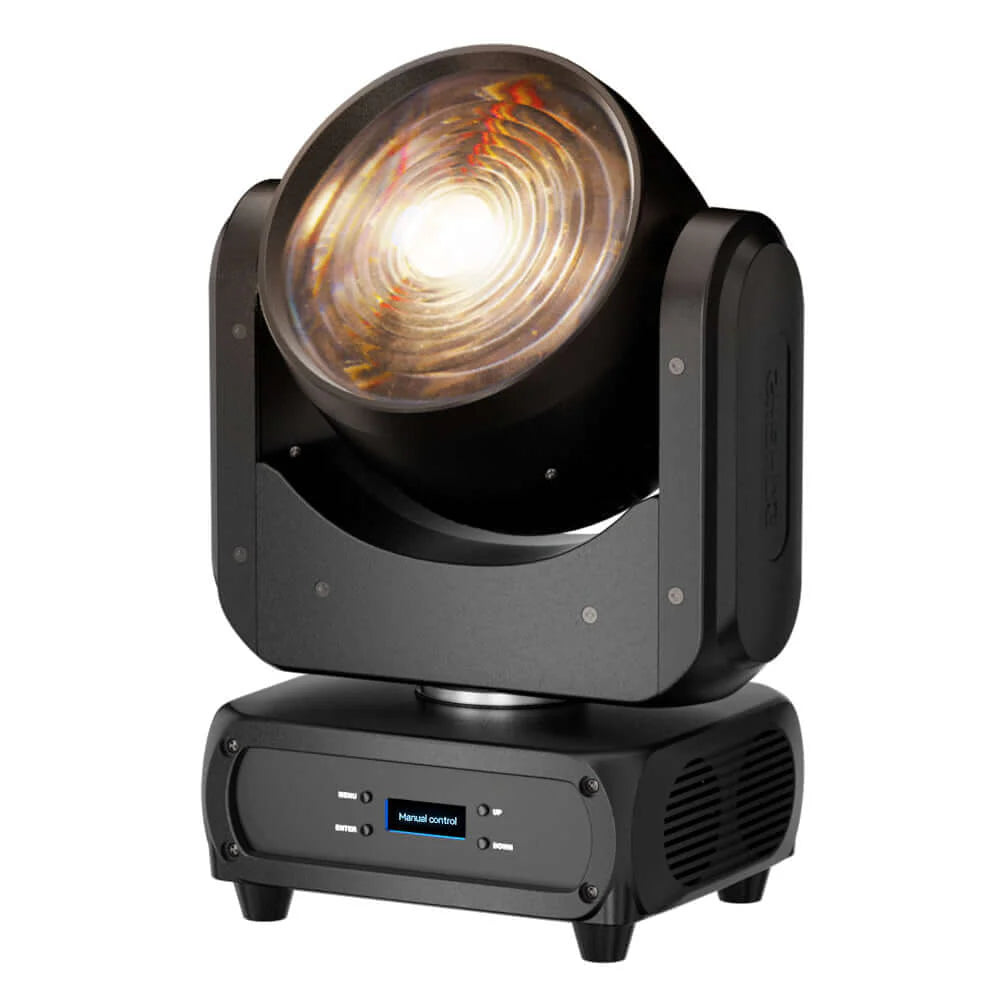

SHEHDS SMH120WWC - 120W RGBW + Cool/Warm White LED Wash Moving Light CTO

SHEHDS SMH120WWC 120W RGBW + Cool/Warm White LED Wash Moving Spotlight

The SHEHDS SMH120WWC LED moving head integrates a powerful dual system: 140 W of cool/warm white (CTO) and 120 W of RGBW LEDs, offering high saturation and faithful color reproduction. With a 0–100% 16-bit mechanical dimmer and DMX512 control, it allows smooth transitions between warm and cool whites, as well as intense RGBW palettes. Its adjustable beam (15° in white, 25° in RGBW), 0–25 Hz strobing and 540°/210° pan/tilt movement guarantee full stage coverage. Ideal for churches, weddings and events requiring high-precision wall washing and dynamic effects.

Main features

• Dual light: 140W bicolor CTO (cool/warm white) + 120W RGBW
• Dimmer: 0–100% mechanical, 16-bit resolution
• Beam lux: 65,300 Lux @ 1 m (CTO) / 11,580 Lux @ 2 m (RGBW)
• Beam angle: 15° (CTO) / 25° (RGBW)
• Strobe: 0–25 Hz
• Pan/Tilt: 540° / 200° (CTO) or 210° (RGBW), standard/speed control
• DMX512 control: 20 channels (CTO) / 16 channels (RGBW), 3-pin XLR input/output
• Power supply: PowerCON in/out, 100–240 V AC, 50/60 Hz
• Cooling: Passive dissipation in aluminum housing
• LED lifespan: ≥20,000 hours
• Protection: IP20 (indoor), working temperature –20 °C to +40 °C

Product benefits

• Total color control: Combines tunable white and intense RGBW colors for maximum versatility.
• Smooth Transitions: 16-bit dimmer for seamless fades without banding.
• Dynamic effects: Fast strobing and wide pan/tilt movement for impressive shows.
• Professional reliability: High-power LEDs with robust housing and fanless heat dissipation.
• Flexible installation: PowerCON in/out and standard DMX protocol for multi-unit chains.

Use cases

• Main lights and washes in churches and religious ceremonies.
• Presentations and ambiance at weddings and banquets.
• Concert venues, theaters and auditoriums.
• Audiovisual productions and video filming.
• Corporate shows and business events.

Frequently Asked Questions

• Can I synchronize multiple heads? Yes, using DMX512 in master-slave mode.
• Do the fans require maintenance? No; they use passive cooling with no moving parts.
• How do I switch between CTO and RGBW? Using dedicated DMX parameters or via the onboard display and buttons.
• What is the maximum power consumption? 260 W combined for both LED systems.

Description for projects

120 W RGBW + 140 W bicolor CTO LED moving head, 16 bit dimmer, beam 15/25 °, strobe 0–25 Hz, pan/tilt 540 °/210 °, DMX512 16/20 ch, PowerCON, AC 100–240 V, IP20.
