Patchwork Wall Wash LED SHEHDS NPOWW1818F 18×18W RGBWA+UV with Recirculating Ventilation

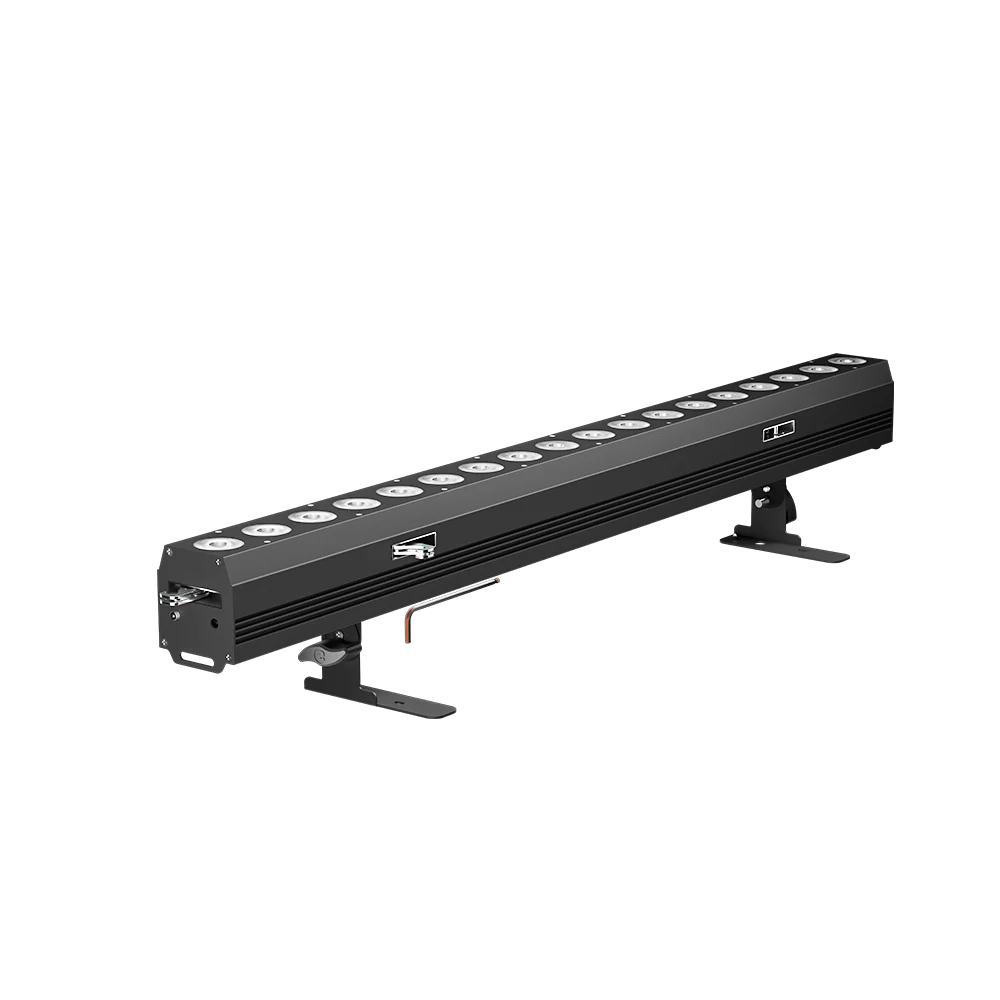

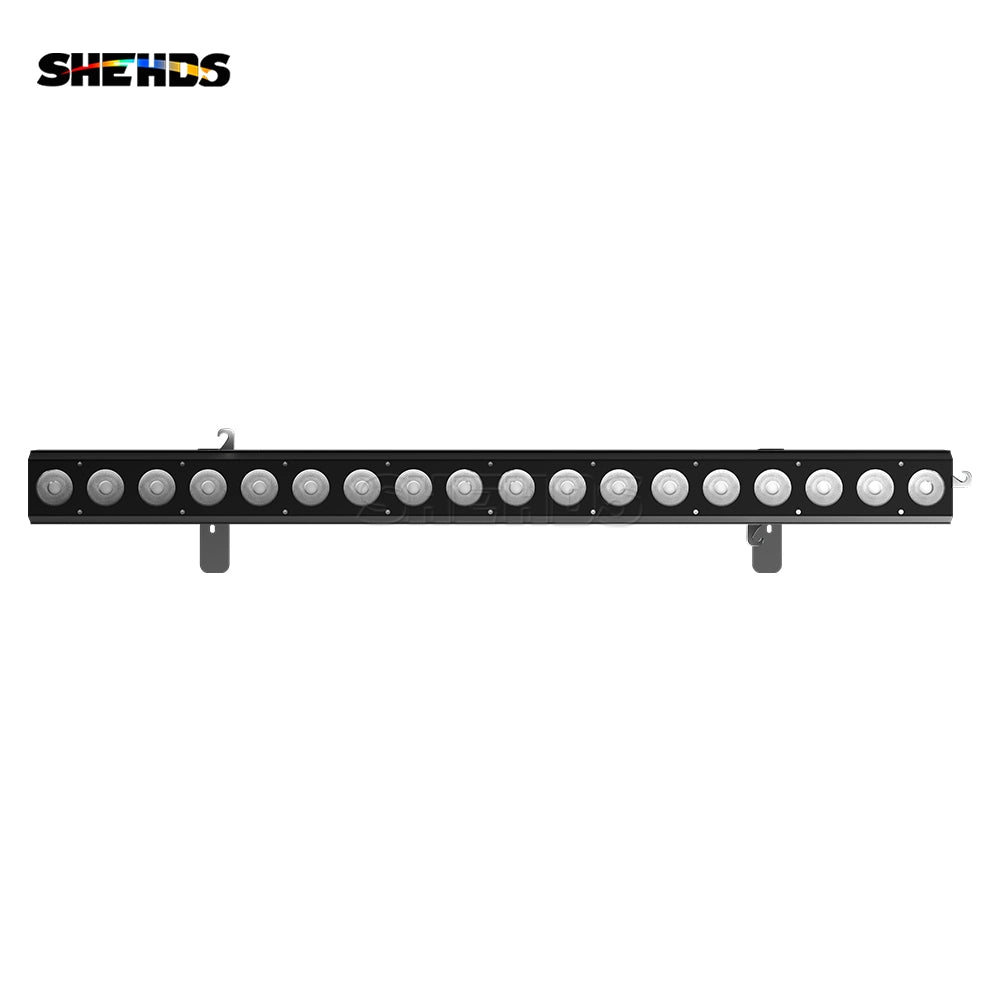

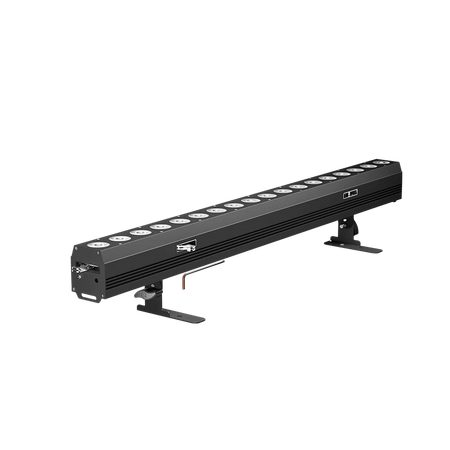

The SHEHDS NPOWW1818F LED Patchwork Wall Wash offers a modular, free-splicing design that allows multiple units to be linked together to cover walls and large surfaces with a narrow, 25° beam angle. It features 18 x 18W LEDs in a 6-in-1 configuration (RGBWA+UV) and a 0–100% mechanical dimmer with 16-bit resolution for smooth transitions. Its innovative recirculating ventilation circuit dissipates heat without the need for fans, ensuring absolute silence and a long lifespan, ideal for architectural lighting, clubs, bars, and indoor event venues.

Main features

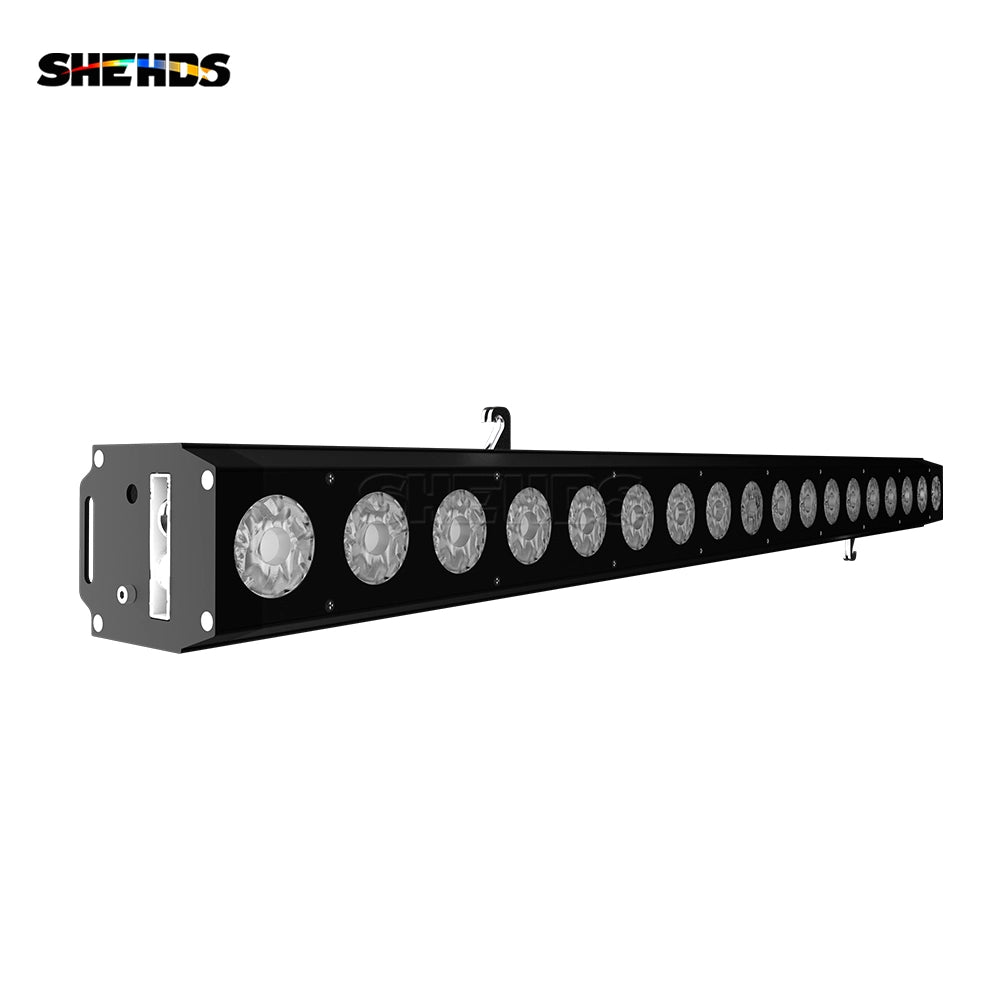

• 18 x 18W RGBWA+UV (6-in-1) LEDs for precise color mixing
• Mechanical dimmer 0 – 100% with 16-bit resolution
• Beam lux: 3,264 lux at 2 m
• Narrow 25° beam angle for defined lines
• Variable stroboscope from 0 – 25 Hz

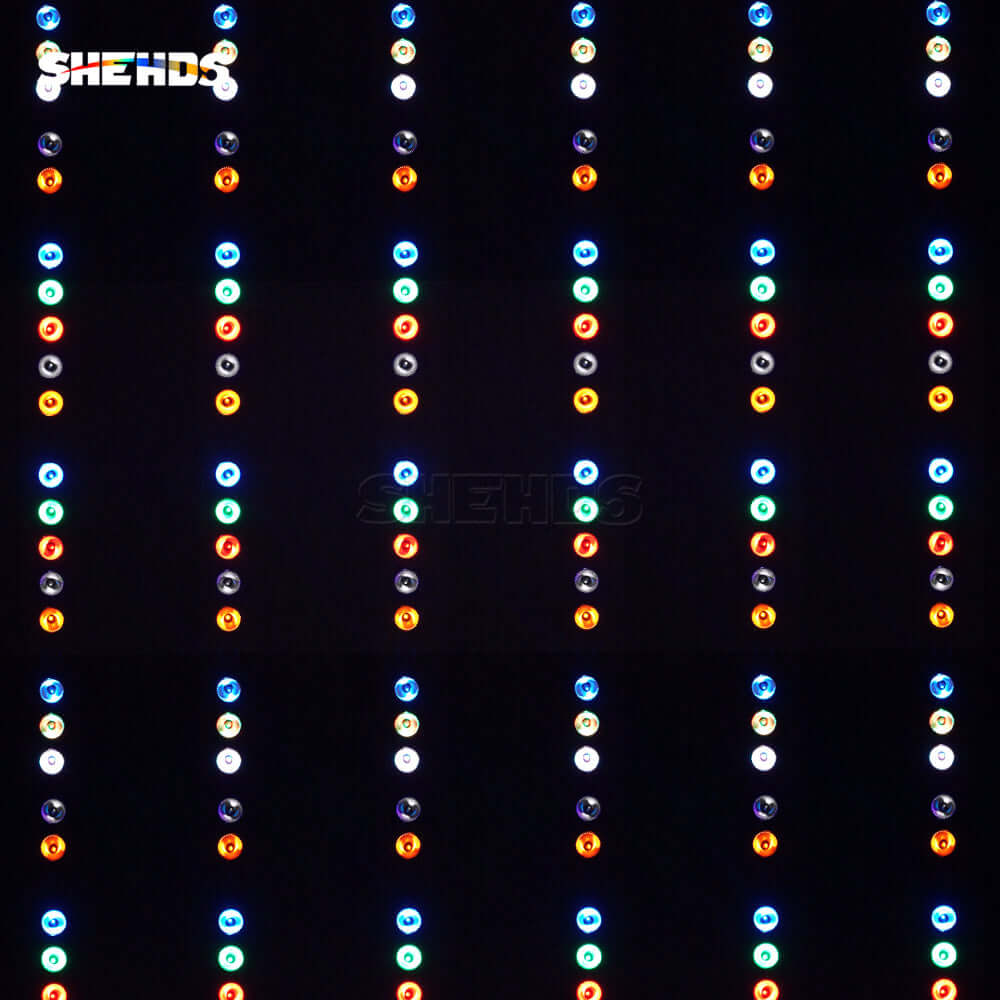

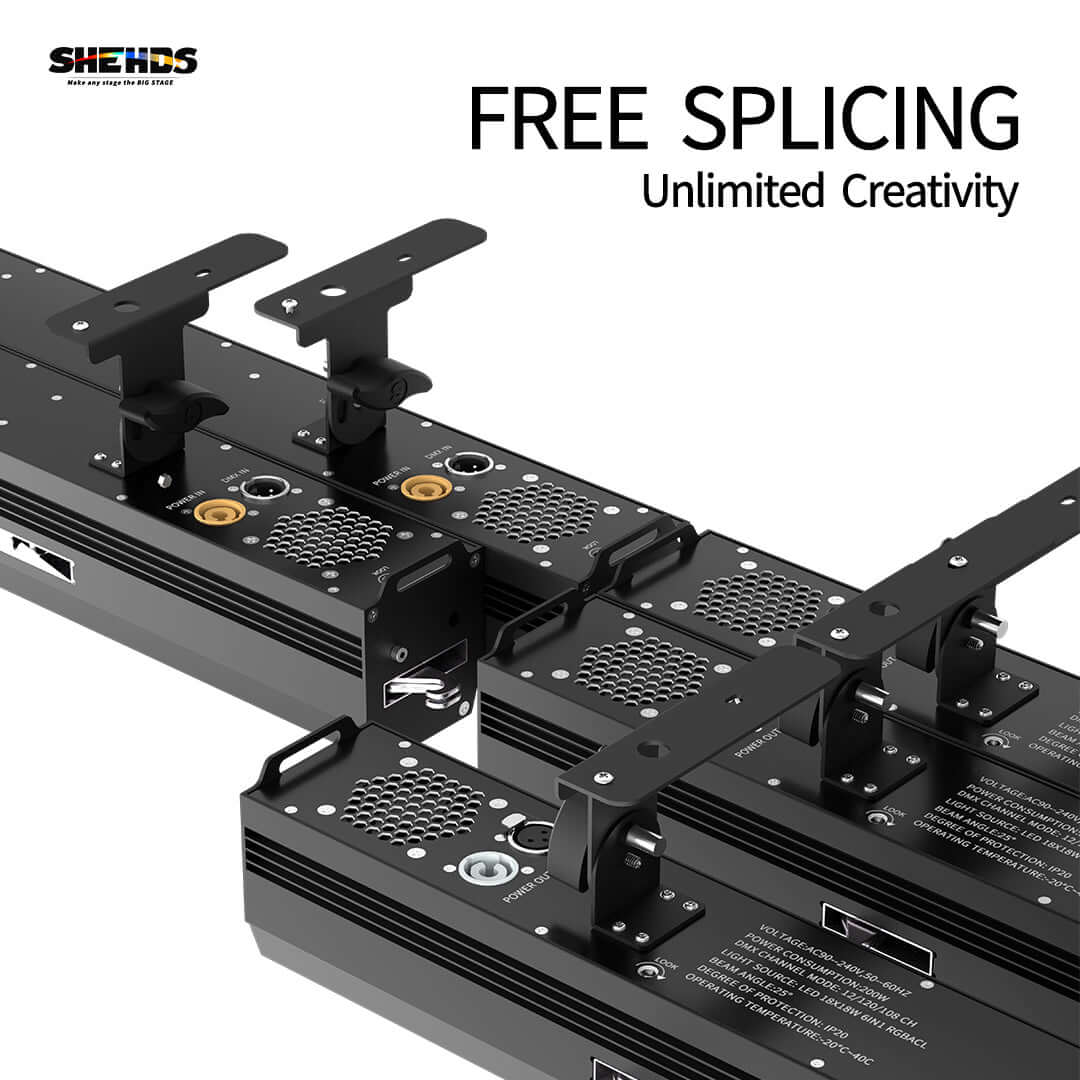

• “Free-splicing” mode: perfect linking of multiple units without shadows
• Passive recirculating ventilation, without fans
• DMX512 control on 12, 108 or 120 channels

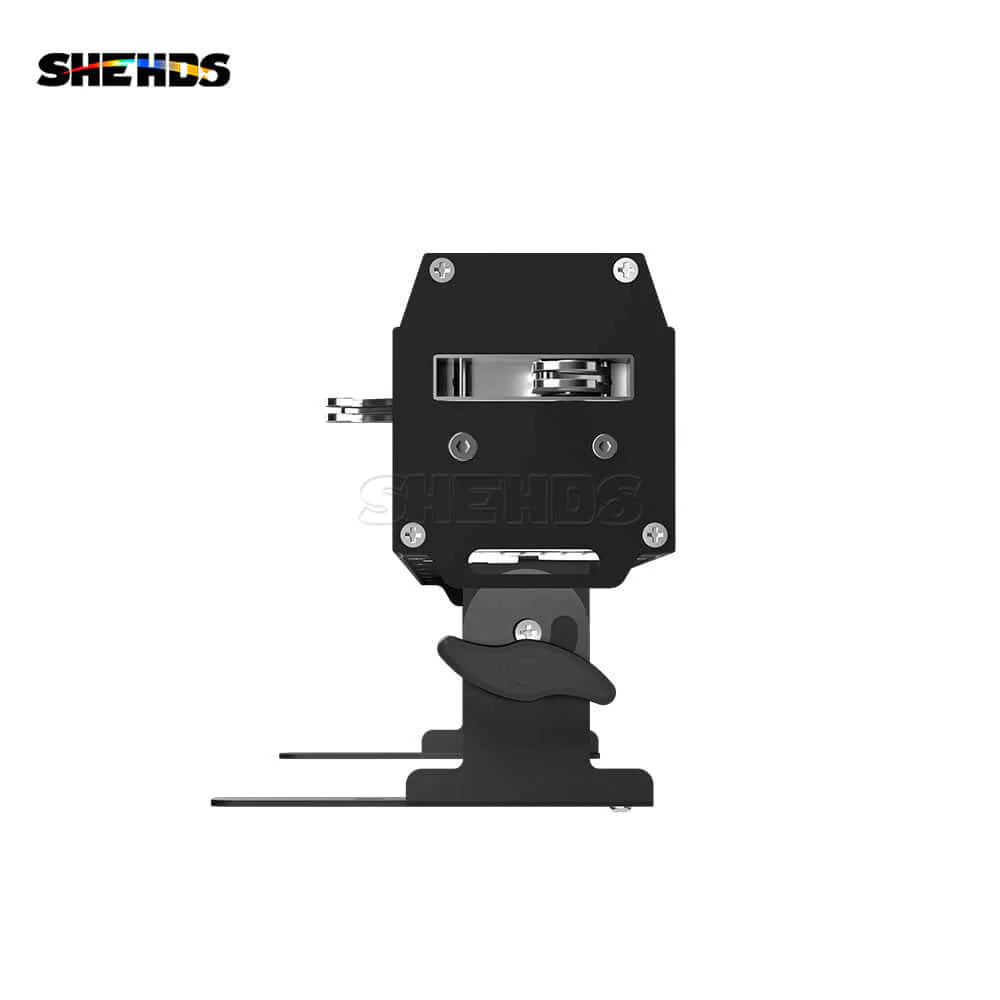

• DMX In/Out interface and Neutrik PowerCON connector
• Electrical protection against overcurrent and overvoltage
• IP20 protection rating for indoor use
• Material: die-cast aluminum housing

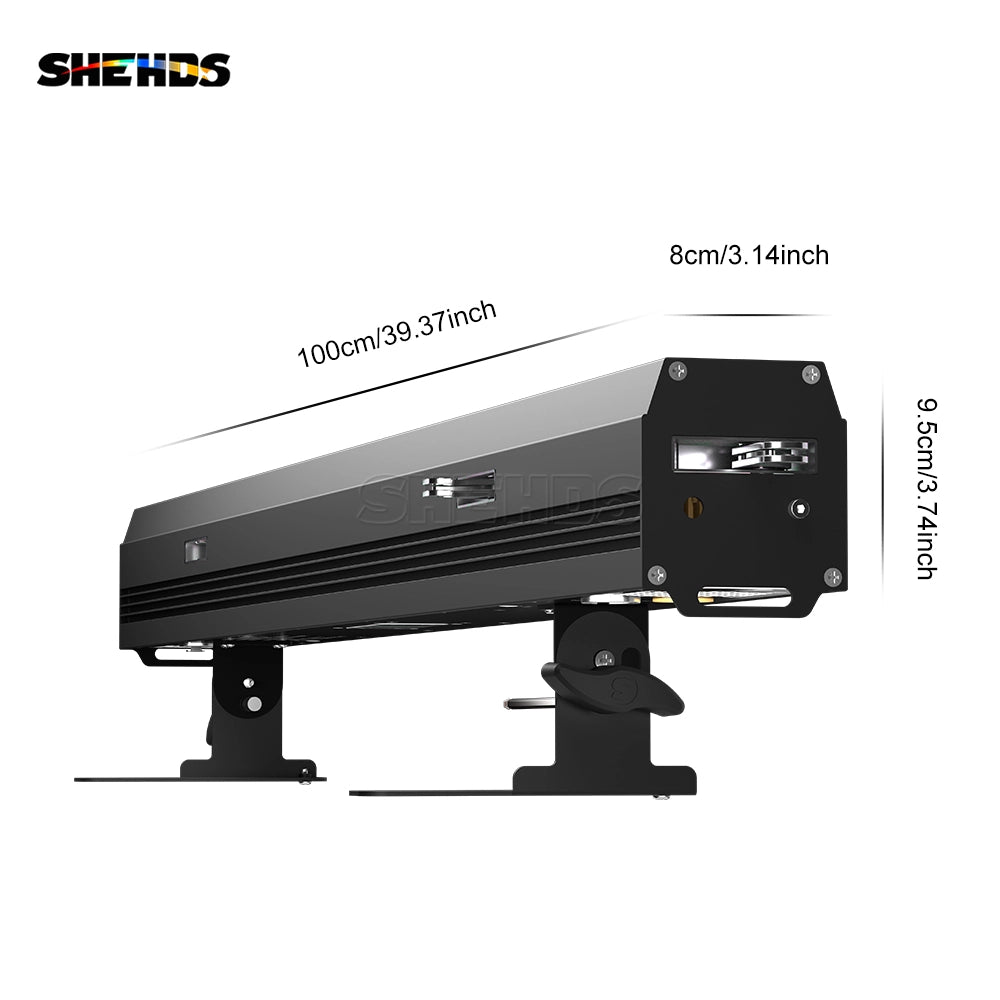

• Dimensions: 100 cm × 8 cm × 9.5 cm
• Net weight: 5.3 kg

Product benefits

• Continuous installation: “free-splicing” modular design with no dark lines between effects.
• Total silence: passive recirculating ventilation that eliminates fan noise.
• High Definition: 25° narrow beam and high light output to highlight architectural details.
• Professional control: 16-bit dimmer resolution and multiple DMX modes for advanced programming.

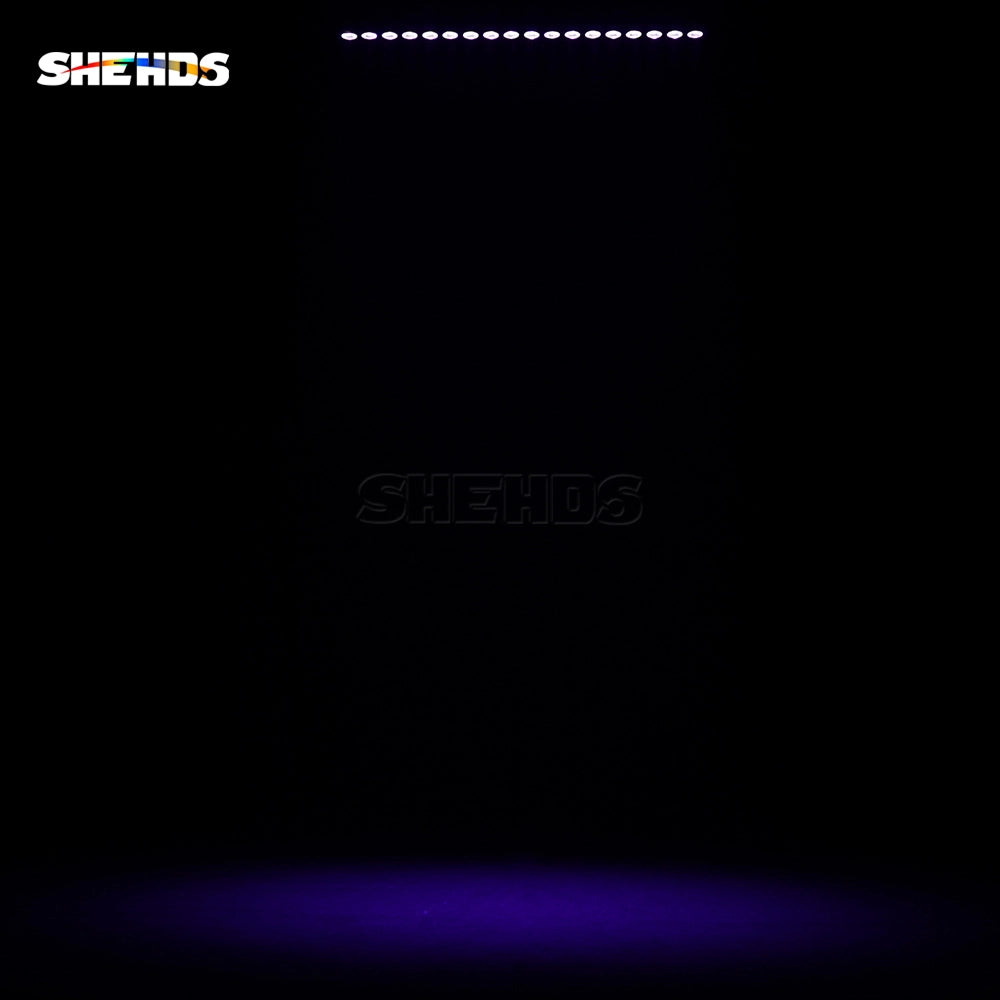

• Chromatic versatility: UV channel integration for fluorescent effects and amber for warm whites.

Use cases

• Linear lighting of walls and facades in galleries and museums.

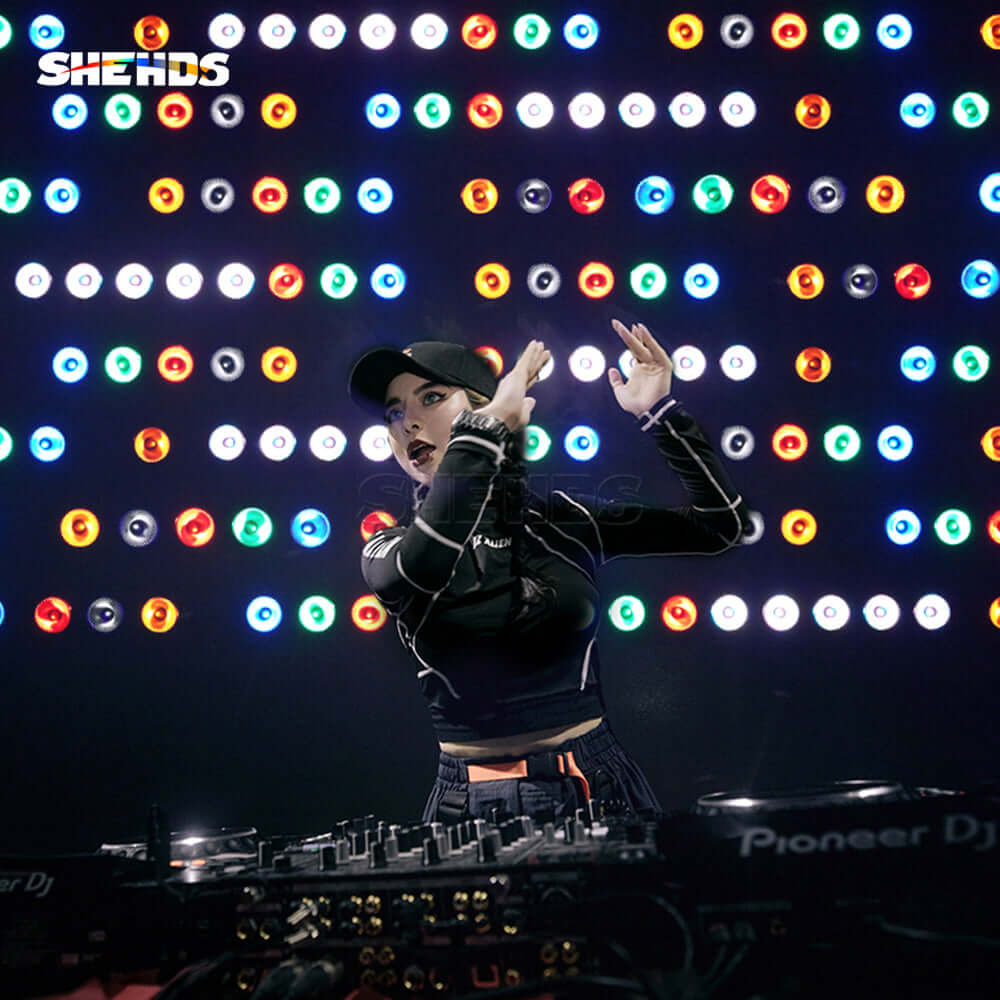

• Wash DJ bars, clubs and theater stages.
• Design of hallways and passageways in hotels.
• Highlighting architectural details in event halls.
• Constant lighting projects in TV and film studios.

Frequently Asked Questions

• How do you link multiple units? Using integrated quick connectors for a continuous, shadow-free chain.
• Is a fan necessary? No; the recirculating ventilation system dissipates heat quietly.
• What height does the beam cover? At a 25° angle, at 2 m it projects a strip approximately 0.9 m wide.
• Can I use it outdoors? No; its IP20 rating limits it to indoor spaces.

Operating modes

• DMX512: 12/108/120 channels compatible depending on control level.
• Automatic: Predefined switch and strobe macros.
• Master-Slave: chain synchronization without console.
• Sound: Activation of effects to the rhythm of the music.

Description for projects

Modular aluminum LED Wall Washer, 18×18 W RGBWA+UV, 16-bit dimmer 0 – 100%, 25° beam, beam lux 3 264 lux@2 m, passive recirculating ventilation, DMX512 (12/108/120 CH), continuous free-splicing, AC 100–240 V.
