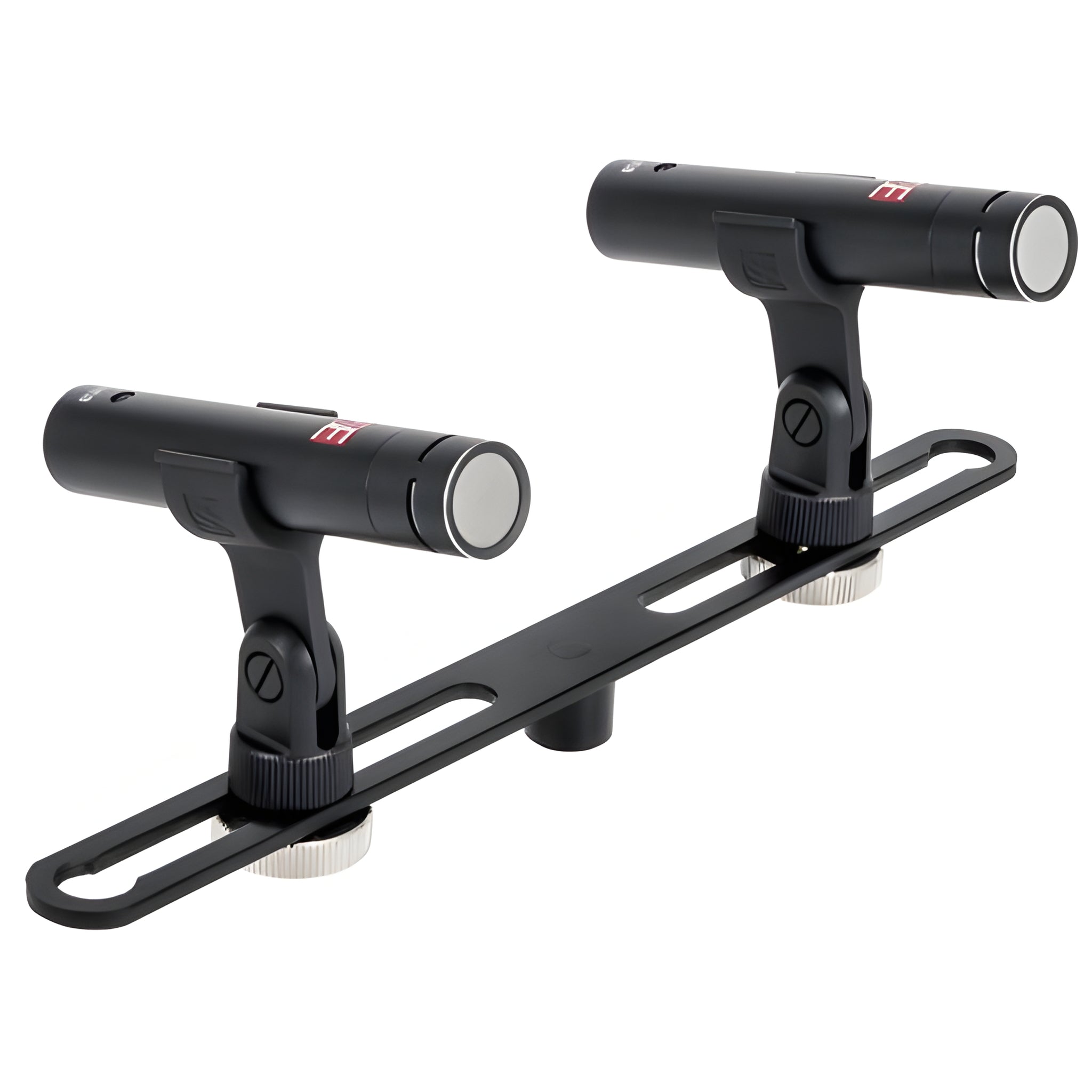

sE Electronics SE8 (Pair) - Small Diaphragm Condenser Microphone

sE Electronics SE8 (Pair) – Small Diaphragm Condenser Microphone

The factory-matched pair of sE8 small-diaphragm condenser microphones is designed to deliver crystal-clear, balanced pickup in a wide range of studio and live applications, from acoustic guitars and pianos to drum overheads and backing vocals. With a handcrafted, gold-plated ½" True Condenser capsule, it delivers a linear frequency response of 20 Hz to 20 kHz and a low self-noise level of just 13 dB(A) .

Main features

• Handcrafted ½″ True Condenser Capsule: Handcrafted Gold/Mylar diaphragm for maximum precision and durability.
• Polar Pattern: Cardioid for sharp focus on the source and excellent off-axis rejection.
• Frequency response: 20 Hz – 20 kHz, covering the entire audible spectrum without coloration.
• Sensitivity: 25 mV/Pa (–32 dBV) for detailed pickups, from whispers to powerful signals.
• Maximum SPL: 139 / 149 / 159 dB (0 / 10 / 20 dB pad) with no appreciable distortion (0.5% THD @ 1 kHz).
• Equivalent noise level: 13 dB(A) for clean recordings without unwanted artifacts.
• Dynamic range: 126 / 136 / 146 dB with –10 / –20 dB pads.
• Low-cut filters: 80 Hz / 160 Hz, –6 dB/octave, switchable to eliminate rumble and vibrations.
• Attenuation pads: –10 dB / –20 dB switchable to control high sound pressure sources.
• Output impedance: 110 Ω; recommended load > 1 kΩ.
• Phantom power: 48 V according to IEC 61938; consumption 2.7 mA per capsule.
• Connectivity: 3-pin male XLR connector for professional integration.
• Dimensions: Ø 23 mm × 120 mm; Weight: 141 g per microphone.
• Included accessories: Two sE8 microphones, two stand clips with threaded adapter, two foam windscreens, stereo bar and metal case.

Product benefits

• Balanced and transparent sound: Ideal for capturing the dynamics and character of each source.
• Low distortion at high SPL: Allows you to get close to amplifiers and percussion with clarity.
• Robust construction: Heavy duty metal body and high-grip clips.
• Plug & Play Setup: Factory paired and ready for immediate stereo setup.

Use cases

• Recordings of acoustic guitars in studio and live.
• Picking up choirs and strings in stereo configurations.
• Overheads and room mics for drums and percussion.
• Environments for audiovisual and broadcast productions.

Frequently Asked Questions

• Do they require phantom power? Yes, they require 48V phantom power for their internal preamplifier.
• How do I activate the low-cut or pad? Use the switches on the body of each microphone.
• Can I use them separately? Yes, each unit works independently.
• Do they include a matched pair certificate? Yes, they guarantee phase and frequency response matching.

Description for projects

Pair of sE8 condenser microphones with ½″ True Condenser capsule, cardioid pattern, 20 Hz–20 kHz, sensitivity 25 mV/Pa, maximum SPL 159 dB, noise 13 dB(A), filters 80/160 Hz, pads –10/–20 dB, impedance 110 Ω, phantom 48 V, XLR, Ø 23×120 mm, 141 gc/u; includes clips, foams, stereo bar and metal case.
