Triton Blue 17HS0019-15K - High Precision NEMA 17 Stepper Motor

Triton Blue 17HS0019-15K - High Precision NEMA 17 Stepper Motor

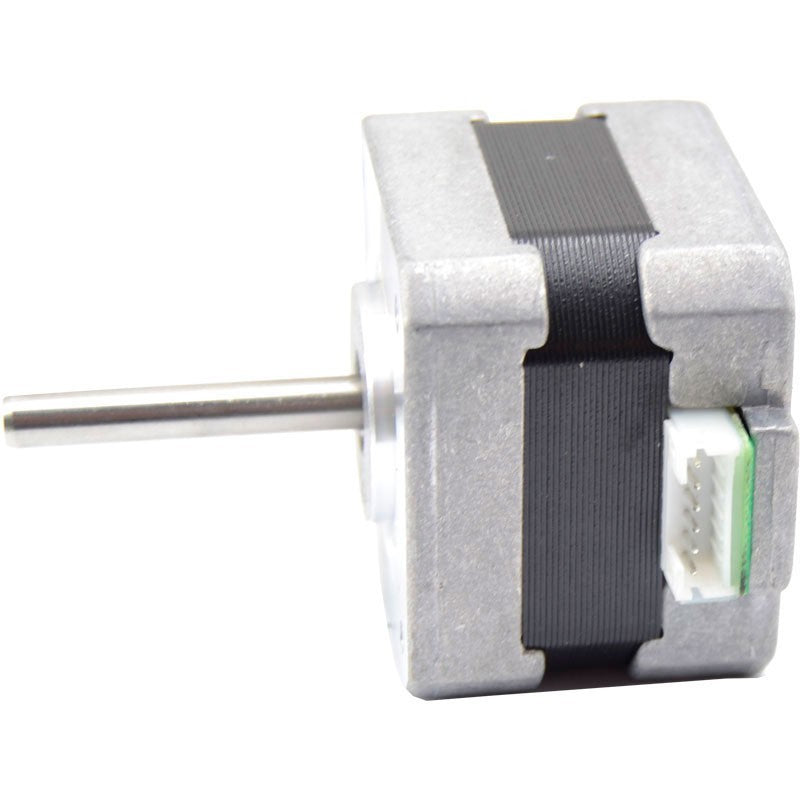

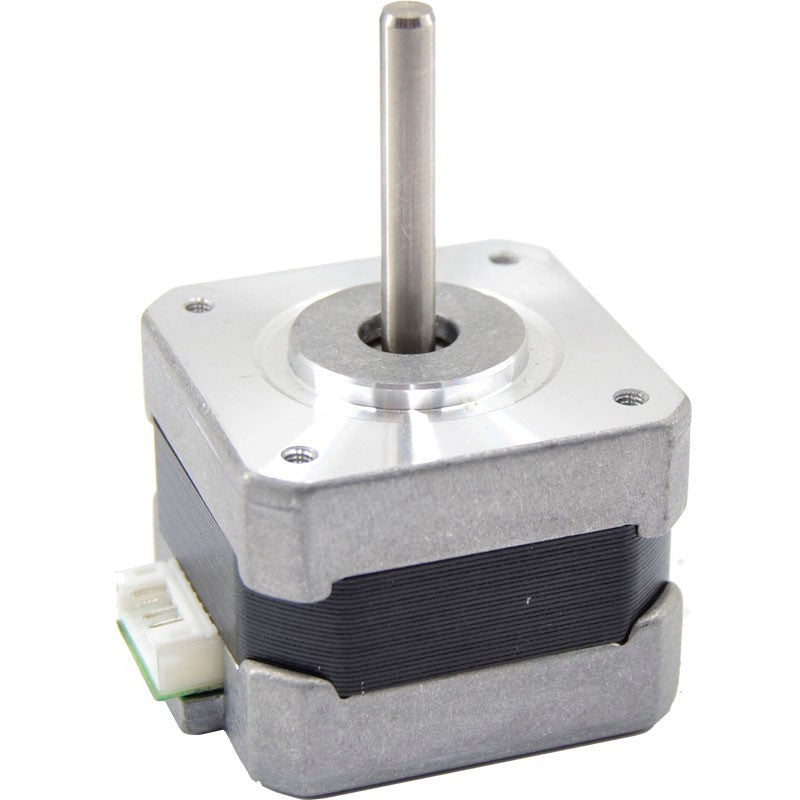

The Triton Blue S020152059 , model 17HS0019-15K , is a high-performance bipolar hybrid stepper motor designed to provide precise and reliable motion control in a wide range of applications. This component is a genuine Triton Blue replacement part, guaranteeing identical compatibility and quality to the original factory part, making it the ideal solution for maintenance and repairs.

This motor conforms to the NEMA 17 standard, featuring a 42 x 42 mm faceplate, making it a versatile and easily integrated option for a variety of designs. With a step angle of 1.8 degrees (200 steps per revolution), it provides precise positioning and smooth, repeatable movements, essential for equipment requiring maximum accuracy.

Thanks to its robust design and optimized technical specifications, such as a nominal current of 0.4 A per phase and an operating voltage of 14 V, this motor offers excellent holding torque in a compact format. It is the fundamental component for the pan and tilt mechanisms in professional moving heads, ensuring smooth, vibration-free movement.

Main features

• Original Triton Blue Replacement Part: Guarantees perfect compatibility and identical performance to the original factory component, ensuring a reliable and long-lasting repair.
• NEMA 17 Standard: Its format with a 42 x 42 mm faceplate facilitates its mounting and integration into a wide variety of industrial and commercial equipment.
• High Precision: It offers a step angle of 1.8°, which translates to 200 steps per complete revolution, allowing for extremely precise motion control.
• Stable Performance: Designed to operate at a low current of 0.4 A per phase, ensuring reduced heat generation and greater energy efficiency.
• Hybrid Bipolar Construction: Combines the advantages of permanent magnet and variable reluctance motors, offering greater torque, speed and resolution in a compact size.
• Standardized shaft: Equipped with a 5mm diameter shaft, compatible with a wide range of pulleys, couplers and gears.

Product benefits

The 17HS0019-15K stepper motor is designed for professionals and technicians who demand reliability and precision. As a genuine Triton Blue replacement part, it eliminates any uncertainty about compatibility or performance, allowing for a quick and safe replacement. Its high motion resolution is crucial for applications where every fraction of a degree counts, such as choreographed lighting effects or high-definition 3D printing.

The efficiency of its 4-wire bipolar design not only simplifies the connection to the drivers but also maximizes available torque. This makes it a robust choice for tasks demanding strength and stability, ensuring a long service life even under heavy use.

Use cases

This motor is extremely versatile and is used in a variety of equipment that requires precise motion control:

• Professional Lighting Equipment: It is the ideal replacement part for Pan and Tilt movements in moving heads from recognized brands such as Triton Blue, Elation, ADJ, Terbly and Ayrton.
• 3D Printers and CNC: Widely used for X, Y, and Z axis movement in small and medium-sized 3D printers and CNC routers, where precision is critical.
• Robotics and Automation: Perfect for robotics projects, robotic arms, and industrial automation systems that require accurate and repeatable positioning.
• Industrial Machinery: It is integrated into labeling equipment, pick-and-place machines, and other manufacturing devices that rely on precise actuators.

Frequently Asked Questions

What does it mean for a motor to be NEMA 17?
NEMA is a standard established by the U.S. National Electrical Manufacturers Association. The number "17" refers to the dimensions of the motor's front mounting plate, which is 1.7 x 1.7 inches (approximately 42 x 42 mm). It does not define electrical characteristics, but it does guarantee mechanical compatibility for mounting.

Is this motor bipolar or unipolar?
The 17HS0019-15K model is a bipolar motor. These motors typically have four wires and offer higher holding torque compared to unipolar motors of the same size.

How do I know if this motor is compatible with my moving head?
This motor is a genuine replacement part for many Triton Blue models and is compatible with a wide range of equipment from brands such as Elation, ADJ, Terbly, and Ayrton. The best way to be sure is to check the model number (17HS0019-15K) on the motor you need to replace or consult your equipment's service manual.

What type of controller (driver) do I need for this motor?
You will need a bipolar stepper motor driver that can supply a current of at least 0.4 A per phase. Common drivers such as the A4988 or DRV8825 are perfectly compatible and widely used in industry.

Project description

Two-phase bipolar hybrid stepper motor, NEMA 17 standard, with a 42x42 mm faceplate. Step angle of 1.8 degrees (200 steps/revolution). Rated current of 0.4 A per phase and operating voltage of 14 V. Phase resistance of approximately 30 ohms. Shaft diameter of 5 mm. 4-wire configuration for connection to a bipolar driver. Holding torque of approximately 26-28 N·cm. Used as a replacement part in professional lighting equipment and industrial machinery.
