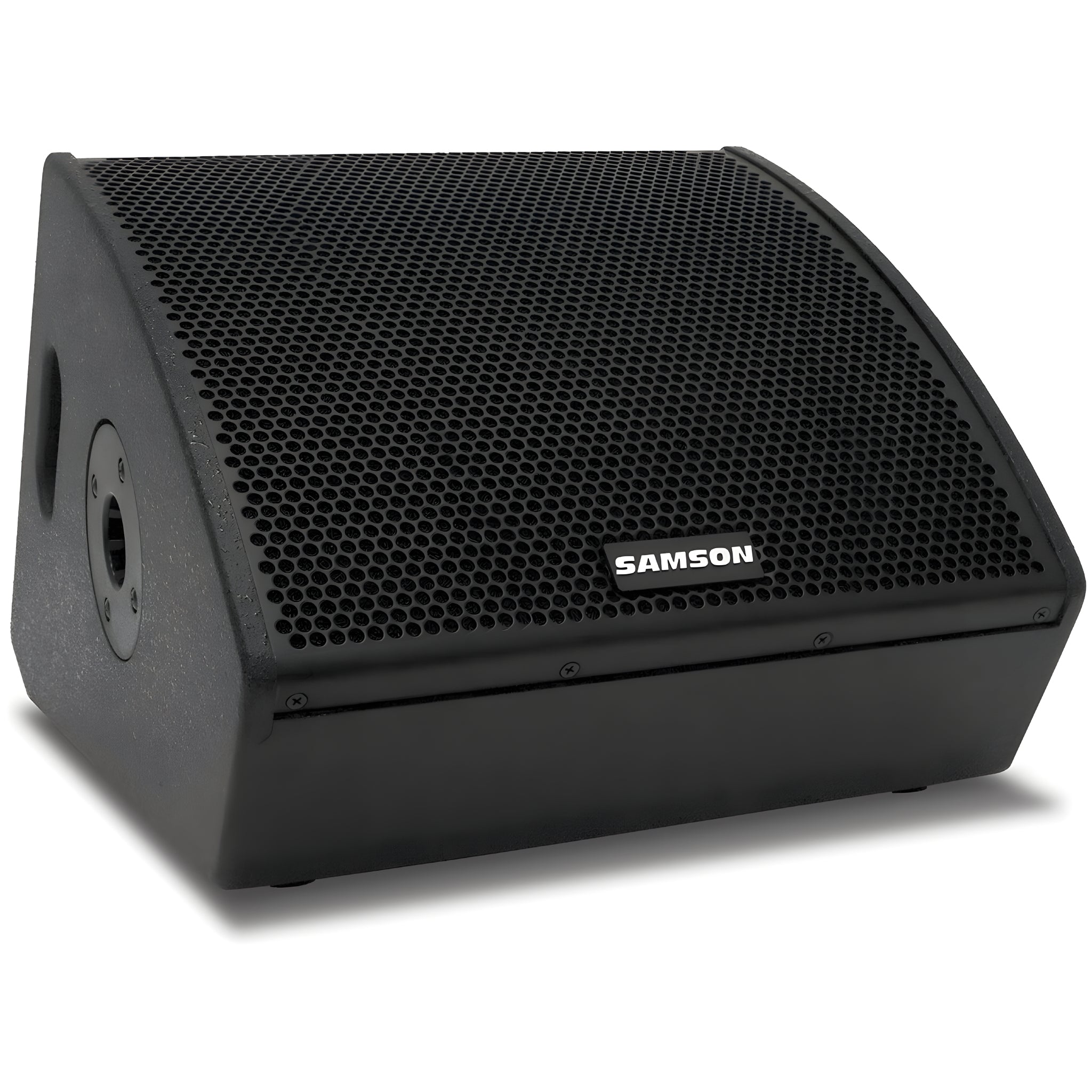

Samson RSXM12A - 12" + 1" Active Stage Monitor (800W Powered Wedge)

Samson RSXM12A - 12" + 1" Active Stage Monitor (800W Powered Wedge)

The Samson RSXM12A is a 2-way active floor monitor designed to deliver clear, powerful reference on demanding stages. Its 12" woofer combined with a 1" high-frequency driver in a coaxial design provides even coverage and great intelligibility of vocals and instruments. It incorporates Class D amplification with 800 W (peak) , 56 Hz to 20 kHz response (-3 dB) and a maximum SPL of 126 dB (peak at 1 m) , figures that place it as a solid solution for clubs, bars, restaurants and DJ booth monitoring , as well as for keyboardists and electronic drummers.

Its rear panel simplifies workflow with a combo XLR/6.35mm jack input , balanced XLR link output , volume potentiometer , and FOH/Monitor switch that optimizes EQ depending on whether it is used as a wedge or on a tripod. The wooden enclosure with a textured black finish, perforated steel grille , and two side handles ensure durability and comfortable transport. It includes a 35mm (1 3/8") socket for tripod mounting when the source needs to be elevated.

Main features

• Format: 2-way active stage monitor (wedge) with coaxial design.
• Transduction: 12" woofer + 1" HF motor.
• Amplification: Class D, 800 W peak power.
• Response and Pressure: 56 Hz–20 kHz (-3 dB); Max SPL 126 dB (peak at 1 m).
• Coverage: 70° x 70° for even dispersion on stage.
• Controls: Master volume, FOH/Monitor switch , signal/limit indicators and power.
• Connectivity: XLR/6.35 mm Jack combo input (balanced) and XLR link output for chaining boxes.
• Construction: Wooden enclosure with perforated steel grille and textured black finish.
• Mounting: 35mm (1 3/8") socket for tripod; also use as a ground wedge.
• Transport: two integrated side handles.
• Dimensions and weight: 35.6 × 39.3 × 39.1 cm (H × W × D); 14.4 kg.

Product benefits

• Clarity in mix and vocals: The coaxial design and 70° x 70° coverage help maintain a consistent reference across different musician positions.
• True versatility: The FOH/Monitor switch allows use as a floor monitor or as a main box on a tripod without having to reconfigure the system.
• Efficient power: Class D amplification delivers high levels with lower weight and consumption.
• Tour-ready: wood construction, metal grille and side handles for heavy-duty use.
• Easy installation: single combo input and link output for hassle-free system growth.

Use cases

• Stage monitor for vocalists, guitarists, keyboardists or electronic drummers.
• DJ booth as a dedicated monitor in small spaces.
• Small events as a main speaker (FOH) on a tripod in presentations, bars and restaurants.

Frequently Asked Questions

• Can it be mounted on a tripod? Yes, it has a standard 35 mm (1 3/8") socket.
• Can I link multiple monitors? Yes, you can daisy-chain additional units using the XLR link output .
• What is the FOH/Monitor switch for? It adjusts the internal equalization to optimize response when used as a floor wedge (Monitor) or overhead speaker (FOH).
• Is it bi-amplified? Yes, it features a two-way active configuration with an electronic crossover; the platform employs Class D amplification for each channel.

Connectivity and control

• Input: XLR/6.35 mm Jack combo for balanced or unbalanced signals.
• Output: Balanced XLR for signal link to another unit.
• Controls: Master volume potentiometer; Signal/Limit and Power indicators.

Construction and portability

• Wooden enclosure with textured black paint and perforated steel grille to protect components.
• Two side handles for easy loading and transport.
• Compact format (35.6 × 39.3 × 39.1 cm) that makes better use of space on stage or in DJ booths.

Description for projects

2-way active stage monitor with coaxial design; 12" woofer and 1" HF driver; 800 W (peak) Class D amplification; 56 Hz–20 kHz (-3 dB) frequency response; 126 dB max. SPL (peak at 1 m); 70° × 70° coverage; 3.0 kHz electronic crossover (12 dB/oct); XLR/6.35 mm combo input; XLR link output; volume control and FOH/Monitor switch; 35 mm speaker driver; wooden enclosure with steel grille; dimensions 35.6 × 39.3 × 39.1 cm; weight 14.4 kg; black.
