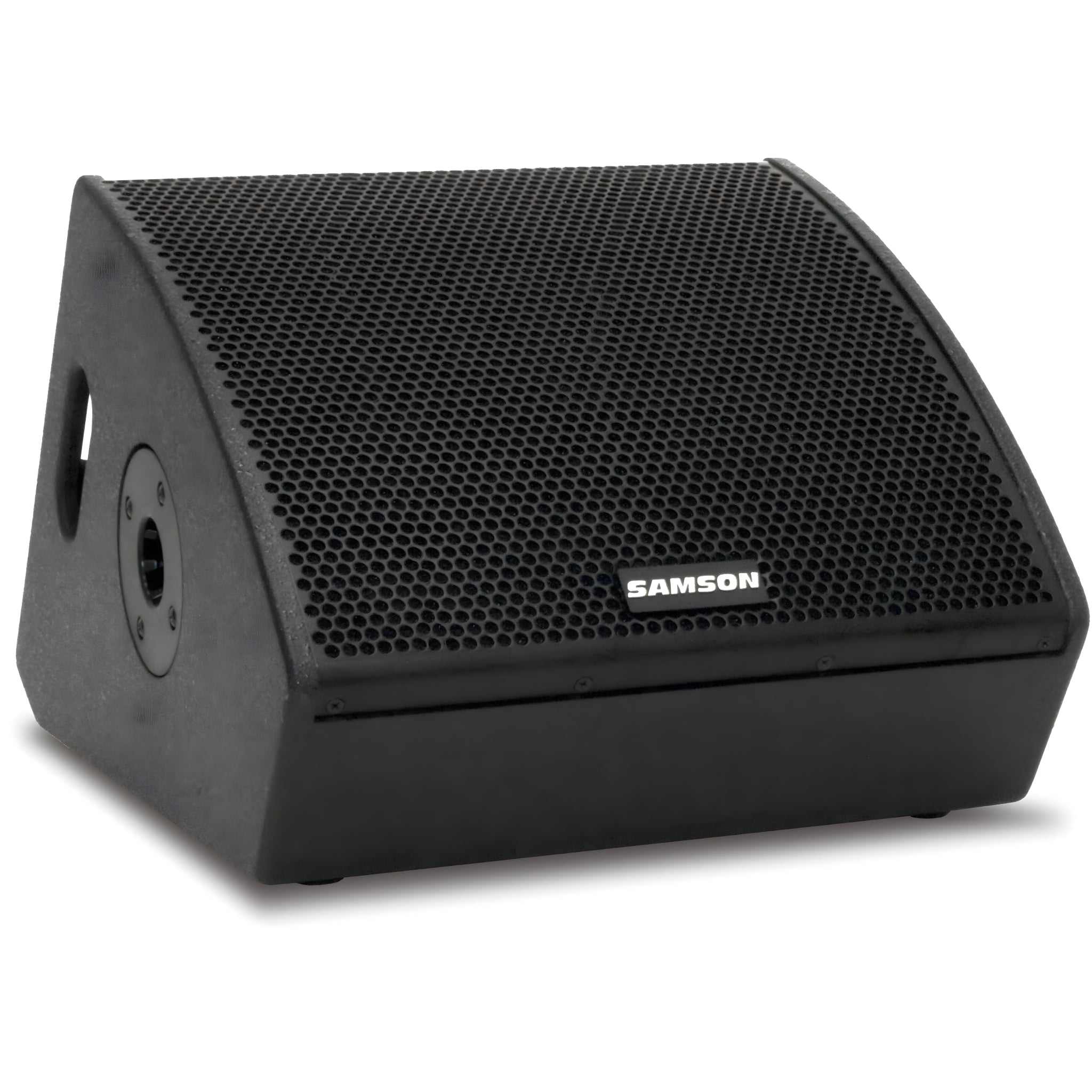

Samson RSXM10A - 10" + 1" Active Stage Monitor (800W Powered Wedge)

Samson RSXM10A - 10" + 1" Active Stage Monitor (800W Powered Wedge)

The Samson RSXM10A is a coaxial, 2-way active floor monitor that combines portability with clear sound reference on compact stages. Its 10" (25.4 cm) woofer and 1" (2.54 cm) tweeter driver , powered by bi-amped Class D amplification (350 W RMS LF + 50 W RMS HF, 800 W peak ), deliver a maximum SPL of 125 dB at 1 m with 70° × 70° coverage and 60 Hz to 20 kHz (-3 dB) response . It's a solid choice for small clubs, bars, restaurants , and DJ booth monitoring , as well as for keyboardists or electronic drummers looking for a compact, hard-hitting wedge .

The rear panel features a combo XLR/6.35mm jack input for Mic/Line signals, a Link XLR output for linking speakers, a volume control , and a FOH/Monitor switch that adjusts the internal equalization depending on whether it is used as a floor monitor or as a main speaker on a tripod. The wooden construction with perforated steel grille and side handles makes it easy to transport and withstands intensive use on tour. It incorporates a standard 35mm (1 3/8") socket for tripod mounting and a maximum consumption of 350 W.

Main features

• Format: 2-way active stage monitor (wedge) with coaxial design.
• Transducers: 10" (25.4 cm) woofer with 2" (51 mm) voice coil + 1" (2.54 cm) HF driver.
• Amplification: Bi-amplified Class D: 350 W RMS (LF) + 50 W RMS (HF); 800 W peak.
• Acoustic performance: 60 Hz–20 kHz (-3 dB); 125 dB SPL max. (peak @1 m); 70° × 70° coverage.
• Electronic crossover: 12 dB/oct at 3.5 kHz .
• Controls and modes: Master volume and FOH/Monitor switch for two EQ curves.
• Connectivity: XLR/6.35 mm Jack combo input (balanced) + balanced Link XLR output .
• Construction: Wooden enclosure, powder-coated steel grille and integrated side handles .
• Mounting: 35mm tripod socket ; use as a ground wedge .
• Dimensions and weight: 36.25 × 35.06 × 32.70 cm (L × W × H); 12.55 kg .
• Power supply: 3-pole IEC connector; max. consumption 350 W; fuse T6.3AL (110–120 V) / T3.15AL (220–240 V).

Product benefits

• Clear reference in tight spaces: Its coaxial design maintains phase coherence and clarity of vocals and instruments in the musician or DJ's work area.
• True versatility of use: the FOH/Monitor switch adapts the response for floor or tripod mounting without reconfiguring the system.
• High performance with lower weight: Class D amplification offers high headroom with energy efficiency.
• Ready for everyday use: wooden enclosure, metal grille, and double handles for comfortable carrying and durability.
• Easy setup and integration: Mic/Line combo input and Link output to expand your system in seconds.

Use cases

• Stage monitoring for vocalists, guitarists, keyboardists, or electronic drummers in small and medium-sized venues.
• DJ booth as a dedicated monitor in small spaces.
• Light-duty sound reinforcement (FOH) on a tripod for presentations, bars, restaurants, or corporate events with limited capacity.

Frequently Asked Questions

• Can it be mounted on a tripod? Yes, it has a standard 35mm socket .
• Can I chain multiple units together? Yes, you can send the signal to another speaker using the Link XLR output .
• Is it bi-amplified? Yes, it features separate amplification for the bass (350 W RMS) and treble (50 W RMS) with an electronic crossover .

Description for projects

2-way active monitor, coaxial design; 10" (25.4 cm) woofer, 2" (51 mm) voice coil, 1" HF driver; Class D amplification 350 W RMS (LF) + 50 W RMS (HF), 800 W peak; 60 Hz–20 kHz response (-3 dB); max. SPL 125 dB @1 m; 70° × 70° coverage; 12 dB/oct crossover at 3.5 kHz; balanced XLR/Jack 6.35 mm combo input; Link XLR output; FOH/Monitor switch; IEC connector; max. consumption 350 W; 35 mm speaker cabinet; wooden enclosure with steel grille; dimensions 36.25 × 35.06 × 32.70 cm; weight 12.55 kg; black.
