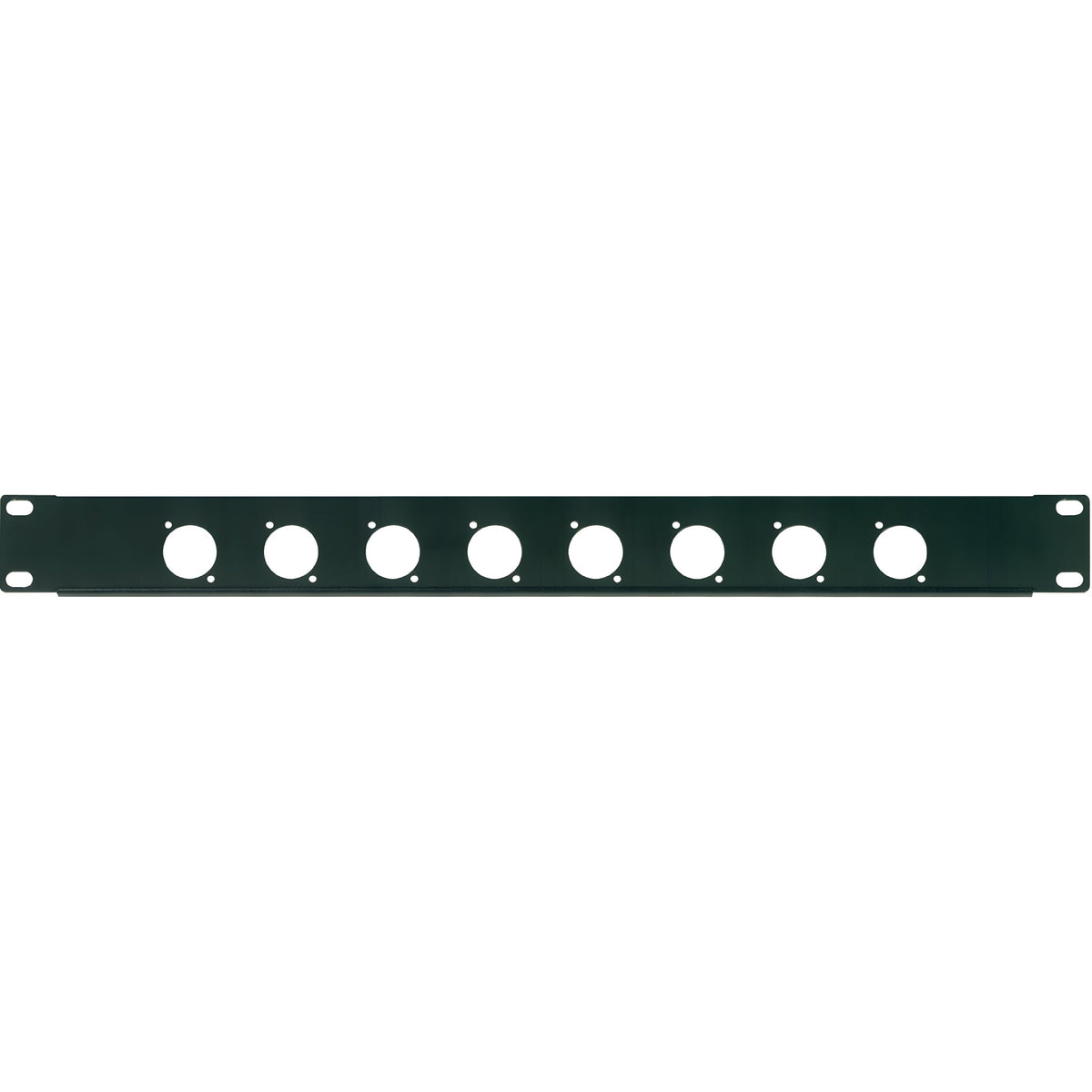

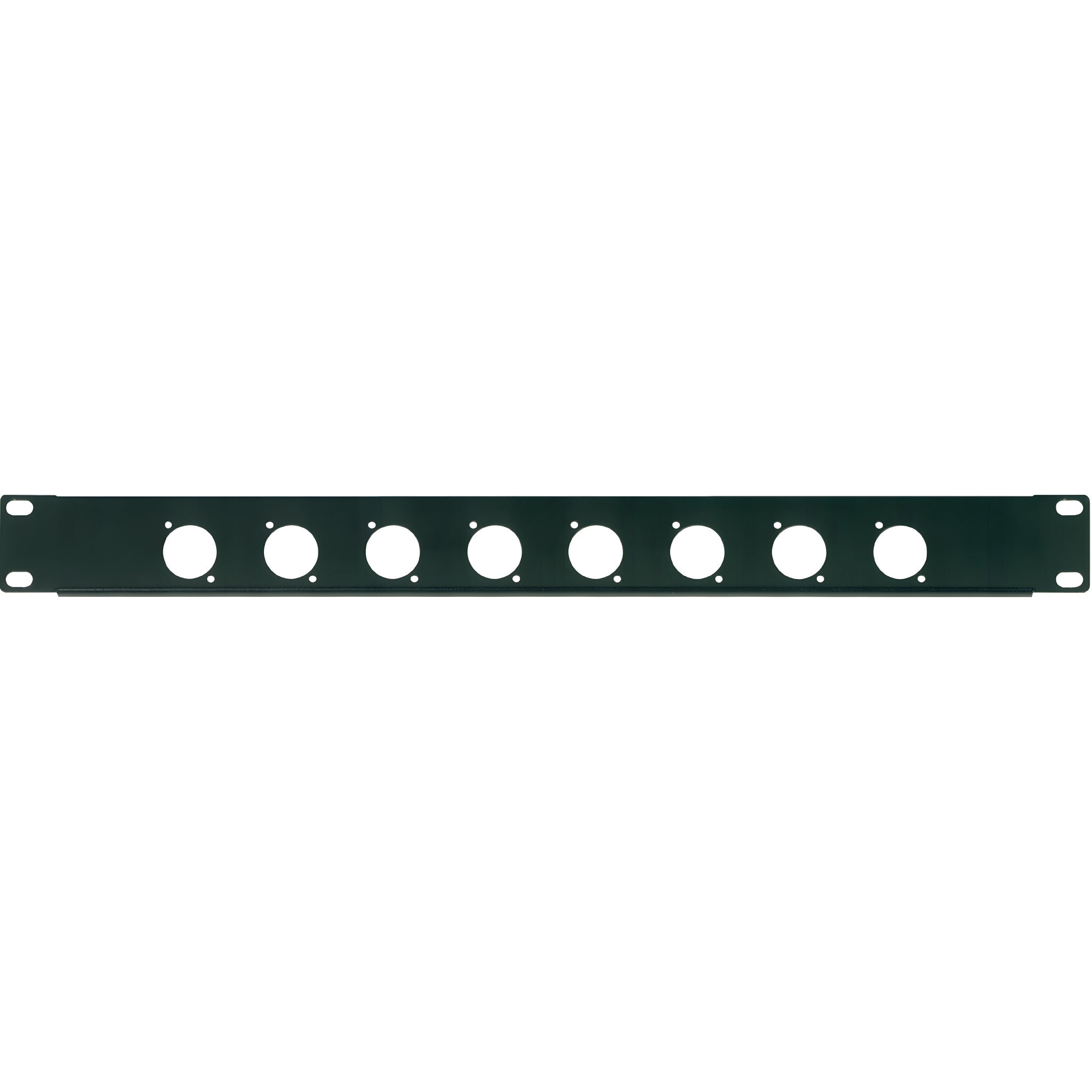

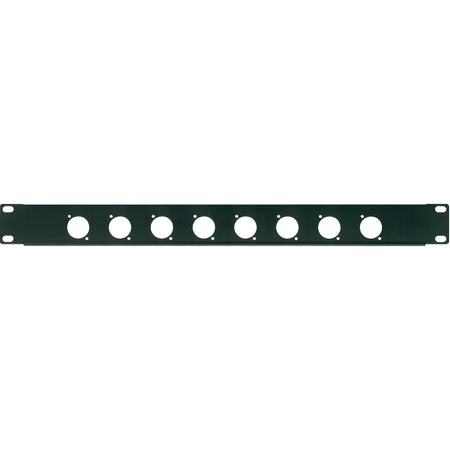

PROEL RK8N - 19" 1U Rack Panel with 8 XLR and Speakon Connector Holes
The PROEL RK8N is an indispensable professional solution for sound engineers, installers, and technicians looking to maintain order and efficiency in their audio setups. This machined blanking plate is specifically designed to mount in any standard 19-inch rack, occupying only one rack unit (1U). Its robust construction and precise finish make it the ideal base for creating custom patch panels, allowing you to centralize audio, data, or power inputs and outputs at a single, easily accessible point.
Made from high-strength metal, the RK8N offers exceptional durability, capable of withstanding the demands of live touring and intensive use in recording studios. The panel features eight pre-cut 24mm diameter holes , the universal standard known as "D-format." This ensures full compatibility not only with XLR and Speakon connectors, but also with a wide variety of modern interfaces such as PowerCON, EtherCON, chassis BNC, and 6.3mm D-type jacks. Thanks to this design, you can say goodbye to the tangle of cables at the back of your equipment, protecting internal connections and facilitating quick and clean setup.
Main features
-
Universal Compatibility: Designed with 8 x 24mm holes, suitable for the vast majority of standard chassis connectors on the market (Neutrik D series type).
-
Robust Construction: Made of solid metal with a black finish that provides resistance against bumps and scratches, while maintaining a professional aesthetic.
-
Standard Format: Exact dimensions for 19-inch racks with a height of 1 unit (1U), ensuring a perfect fit in flight cases and server cabinets.
-
Precision Machining: The cuts are clean and free of burrs, facilitating the installation of connectors using screws or rivets without complications.
-
Configuration Versatility: Allows you to mix different types of connectors (e.g., 4 XLR input, 2 XLR output, and 2 Speakon) on the same panel according to your needs.
Benefits for the user
-
Professional Organization: Transform a messy rack into a clean, labeled system where every connection is exactly where you need it.
-
Equipment Protection: By centralizing the connections on the front panel, you avoid constant wear and tear on the rear connectors of your expensive amplifiers or processors.
-
Time Saving: Makes setup and takedown easier at live events, as you won't have to search for ports in the dark at the back of the rack.
-
Total Flexibility: Being an empty panel, you have absolute freedom to design the exact signal flow that your project requires.
Use cases
-
Recording Studios: To create input patch bays that connect the recording rooms directly to the preamps in the control room.
-
Amplifier Racks: Ideal for bringing the Speakon outputs of the amplifiers to the front, facilitating quick connection of the speakers.
-
Fixed Installations: In theaters, auditoriums or conference rooms where a clean access point for microphones and auxiliary lines is required.
-
In-Ear Systems: To centralize the signal inputs of wireless transmitters in monitoring racks.
Frequently Asked Questions
-
Does the panel come with the connectors included?
No, the PROEL RK8N is the perforated metal busbar. The connectors (XLR, Speakon, etc.) are purchased separately so you can customize it to your liking.
-
What type of screws do I need to attach the connectors?
Depending on the connector, M3 screws with nuts or 3.2 mm rivets are generally used.
-
Are the holes compatible with RJ45 network connectors?
Yes, as long as you use RJ45 connectors with a "D-type" chassis-format housing (such as EtherCON), they will fit perfectly into the 24 mm holes.
-
Is it compatible with any rack?
Yes, it is fully compatible with any standard 19-inch rack, whether it's a studio rack, an installation rack, or a flight case for transport.
Project description
19-inch rack-mount patch panel, 1U height. Constructed of heavy-duty metal with a black finish. Features eight 24mm diameter mounting holes compatible with standard D-shaped chassis connectors (XLR, Speakon, PowerCON, etc.). Standard dimensions: 483mm wide (19") x 44mm high (1U). Designed for integrating audio, video, and data systems into technical cabinets.
