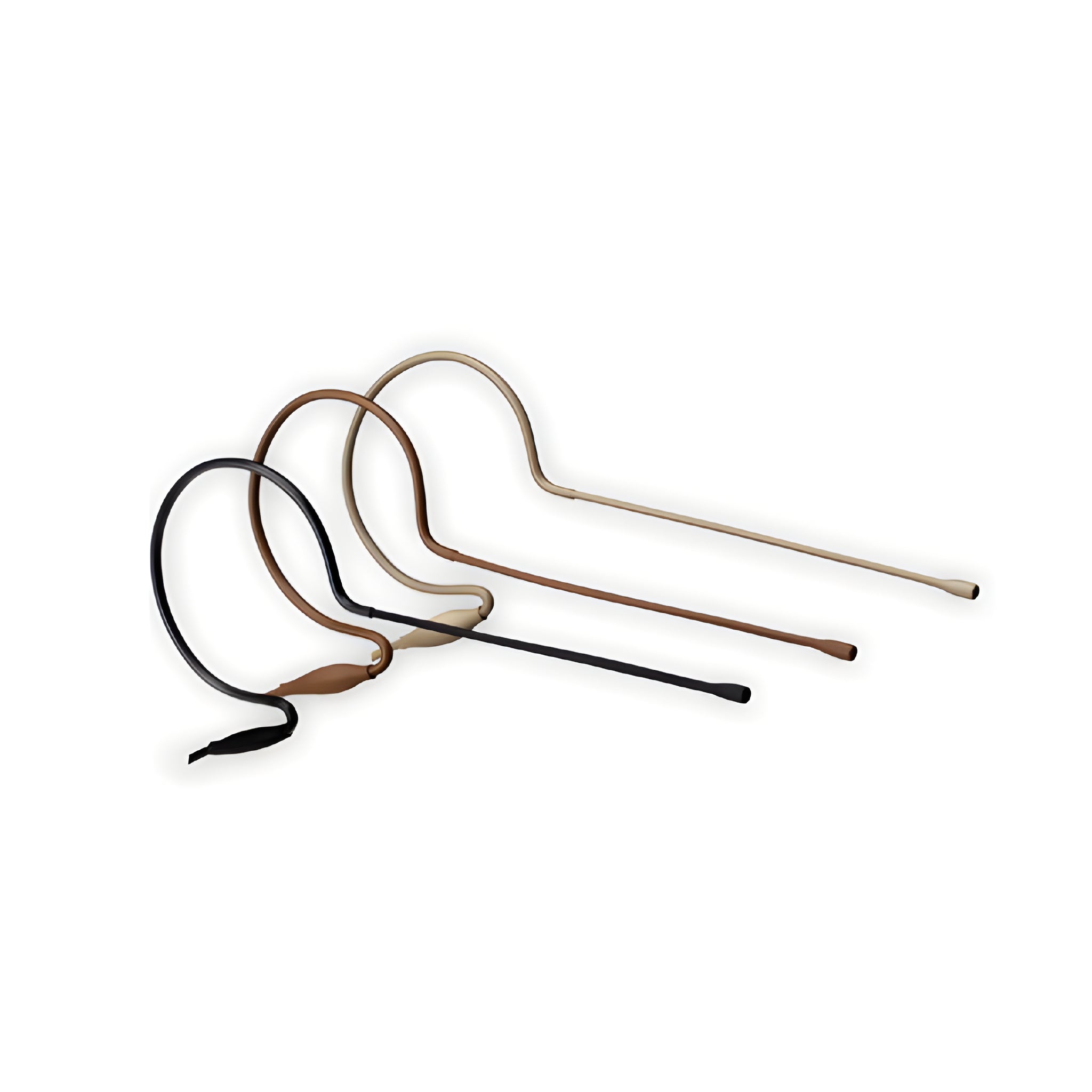

Electro-Voice RE97TX BLACK - Ultra-Compact Omnidirectional Headset Microphone (TA4F, One Ear)

Electro-Voice RE97TX BLACK - Ultra-Compact Omnidirectional Headset Microphone (TA4F, One Ear)

The Electro-Voice RE97TX BLACK is an ultra-low-profile , single-ear , back-electret condenser headset microphone designed for spoken word use in theater, corporate AV, worship, and fixed installations. Its omnidirectional polar pattern delivers consistent , natural pickup even when the performer turns their head. It works with EV/Telex bodypacks via a TA4F connector and can be used wired using the included TXA (TA4→XLR) adapter. The black finish and ultra-slim boom maximize on-stage discretion.

It delivers a 50 Hz to 15 kHz response with 4 mV/Pa sensitivity (≈ −48 dBV) , 32 dBA equivalent noise floor, and 93 dB dynamic range. It handles levels over 125 dB SPL before clipping. It requires +5 V DC bias from the bodypack (< 500 µA consumption) and features 3 kΩ output impedance. Its capsule and boom arm fit within a maximum diameter of 3.05 mm , incorporates a 1.22 m shielded cable , and weighs only 17 g , facilitating long sessions in total comfort.

Main features

• Ultra-compact and discreet: slim boom and black finish for minimal visual presence.
• Stable hold on one ear: reversible left/right design with malleable temples.
• Natural pickup: omnidirectional pattern without proximity effect, ideal for spoken word.
• Professional connectivity: TA4F for EV/Telex bodypacks; wired use with TXA (optional).
• Technical performance: 50–15,000 Hz; −48 dBV ; >125 dB SPL; 32 dBA noise; 93 dB dynamic range.
• Lightweight construction: weight 17 g ; cable 1.22 m ; max. diameter 3.05 mm .

Product benefits

• Clear and consistent voice: natural and homogeneous timbre in head movements.
• Comfort and freedom: Lightweight design that stays in place without fatigue.
• Easy deployment: direct compatibility with EV/Telex beltpacks and XLR option with the TXA.

Compatibility and connection

• Bodypacks: EV/Telex wiring with standard TA4F connector from the brand.
• Wired use: with TXA adapter (TA4→XLR) and phantom power from the mixer.
• Placement: reversible boom for left or right ear .

Use cases

• Theater and musical: clear dialogue with minimal visibility.
• Conference and education: hands-free presentations and classes.
• Places of worship and events: high intelligibility in voices and readings.

Frequently Asked Questions

• Is it dynamic? No. It's a back-electret condenser and requires +5 V DC from the bodypack (or TXA for XLR).
• Does it include accessories? It comes with a windscreen , a mounting clip , and a bag .
• Are there other colors? Also available in beige (depending on region).

Description for projects

Electro-Voice RE97TX BLACK Headset Microphone; back-electret condenser capsule; omnidirectional pattern; 50–15,000 Hz ; sensitivity 4 mV/Pa (≈ −48 dBV) ; noise 32 dBA ; dynamic range 93 dB ; max. SPL >125 dB ; output 3 kΩ ; power +5 V DC (<500 µA); TA4F connector; max. diameter 3.05 mm ; cable 1.22 m ; weight 17 g ; optional wired use with TXA .
