OQAN QWM-4 863-865 MHZ - Home UHF Wireless System
Couldn't load pickup availability
If you have any questions about this product, we can assist you by filling out the contact form
Ask an expert

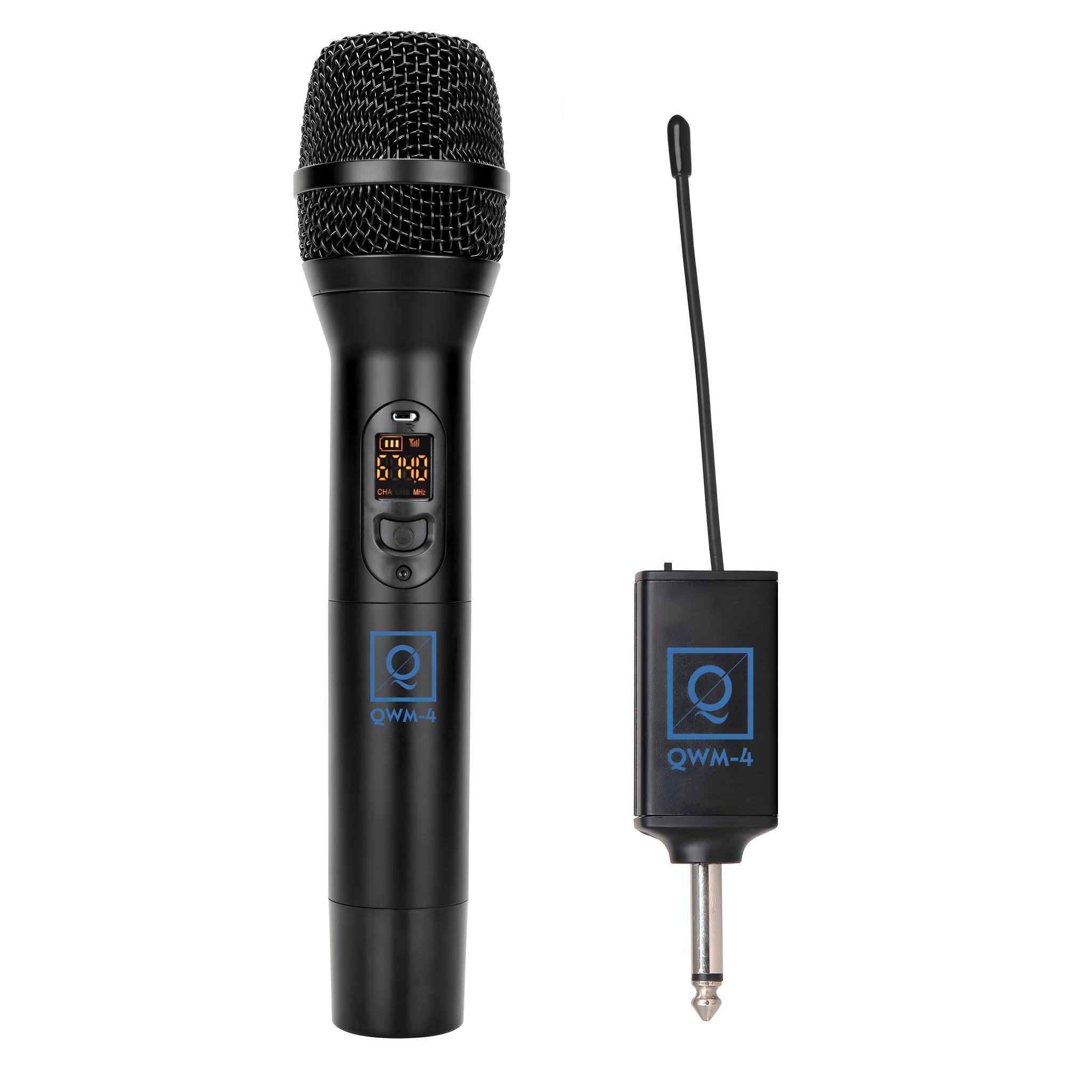

WIRELESS SYSTEM: HANDHELD UHF wireless system for home use. Perfect for home karaoke, teachers, conferences, etc. Consisting of a handheld microphone transmitter and a receiver with a 1/4'' jack output. Range 40/50 m. Receiver battery life: approximately 4 h. Frequency range 863-865 MHz. The handheld transmitter works with two 1.5V AA batteries. The receiver is charged with any phone charger using a 5V mini USB port.
• 1. Frequency: UHF
• 2. Output impedance: 600 Ω
• 3. Power:
The transmitter: AA 1.5V x 2 pieces.
The receiver: 3.7V or external power supply
• 4. The transmitter: 1 pcs.
• 5. The receiver: 1 pcs.
• 6. Working range: about 25-50 meters
Receiver parameter:
• Frequency range: 863~865 MHz, 470~494 MHz.
• Channels: 4 or 48
• Frequency range: 500 K
• Response: 50 Hz ~ 18 KHz
• RF Production: High-performance integrated IC
• RF bandwidth: 50 MHz
• Signal-to-noise ratio: > 105 dB (peak weight)
• Dynamic range: > 100 dB
• Distortion: < 1.0% @ 1 KHz
• Use temperature: -18 ~ 50 ºC
• Working range: 50 m
• Receiver mode: High-performance integrated IC
• Sensitivity: > - 105 dB
• Display: LED
• Audio output: 1 mixed, unbalanced output (6.35mm jack)
• Transmitter parameters:
• RF Accuracy: ± 5ppm < 10 KHz
• Nominal frequency offset: 25 KHz
• Harmonics: < - 45 dB / c
• Output power: > 10 dB / m
• Display: LED
• Current consumption: < 150 mA at 3 V.
• Power supply: 2 AA 1.5V batteries
