Triton Blue Q-SPOT200 (Orion S200) - 200W LED Moving Head Spot with LED Ring and 15° Beam Angle (Electronic Focus)

Triton Blue Q-SPOT200 (Orion S200) - 200W LED Spot Moving Head with LED Ring and 15° Beam (Electronic Focus)

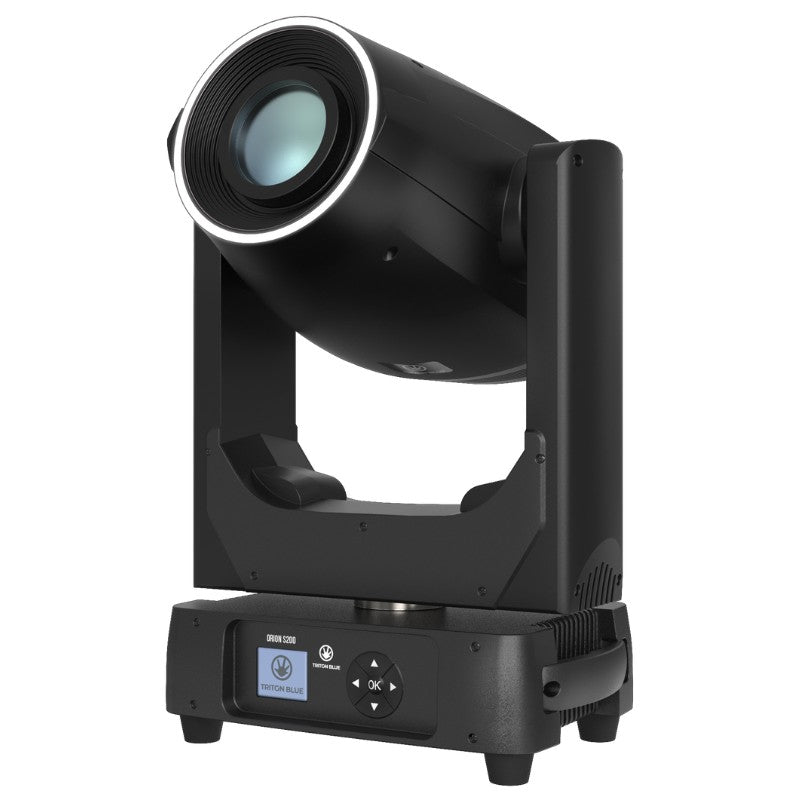

The Triton Blue Q-SPOT200 , also known as the Orion S200 , is a 200W Spot moving head that combines a high-power white LED source with a 43-diode RGB LED Ring to generate immersive effects. Its high-resolution optics offer a 15° beam spread with electronic focus , and a professional effects package with a color wheel (8 + white) , two gobo wheels (8 fixed + 7 rotating), a 4-facet circular prism and a frost filter for transitions to wash. Flicker-free management ensures flicker-free operation on TV and camera.

In terms of control and connectivity, it supports DMX-512 with 18 or 23 channels , master-slave and standalone modes, 0–100% electronic dimmer with strobing up to 25 fps , and automatic PAN/TILT repositioning . Its high-resolution stepper motors provide PAN 540° and TILT 270° with 8/16-bit control for smooth and precise movements. The local interface integrates an LCD screen with 4 push buttons for addressing and diagnostic utilities (times, temperature, software version).

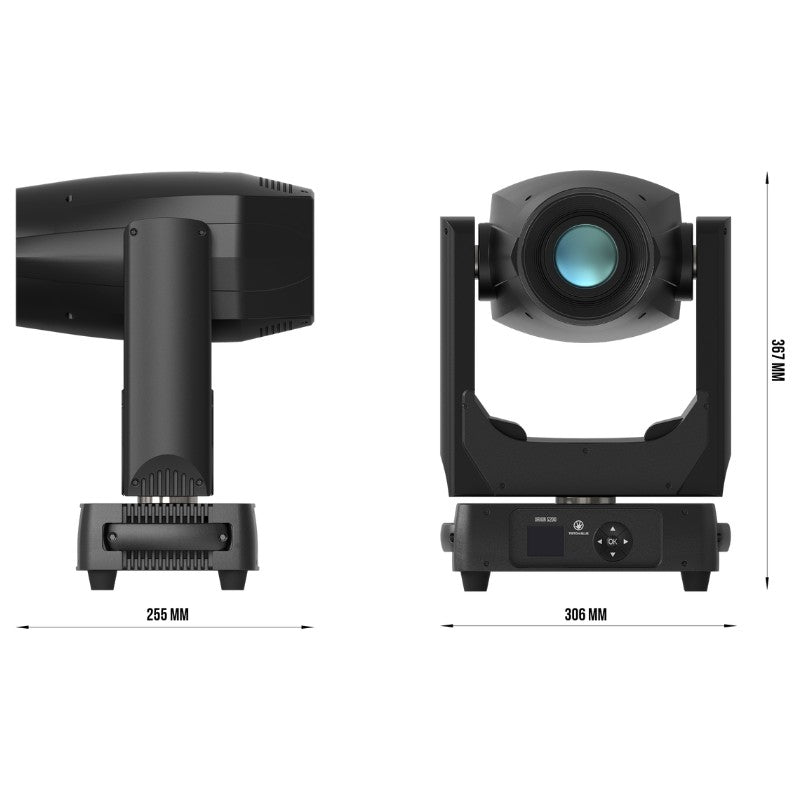

For electrical integration, it operates between 100–240 V AC (50/60 Hz), maximum consumption 250 W and fuse F5A/250 V , with PowerCON IN/OUT and XLR 3-pin IN/OUT for DMX signal. With black finish , IP20 protection degree , dimensions 306 × 183 × 367 mm and weight 8.8 kg , it is a compact, robust unit ready for rental and fixed installation.

Main features

• Source : 200 W white LED, 8,500 K , flicker-free management.

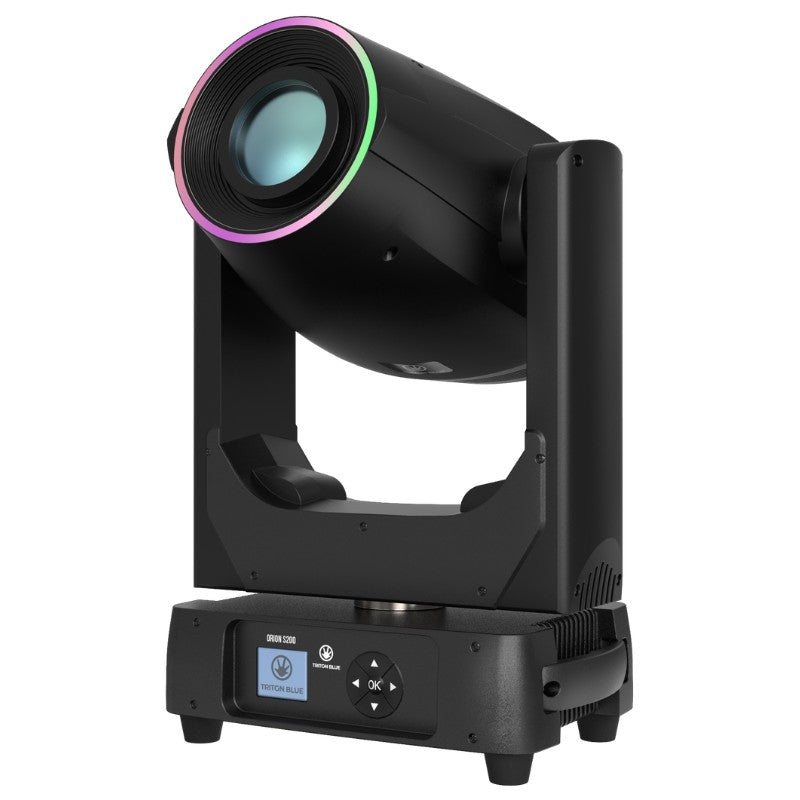

• LED Ring : 43 0.12W RGB LEDs for perimeter effects.
• Optics : 15° beam with electronic focus ; tempered lenses with anti-reflective coating.
• Color : 8-color wheel + white ; frost filter for wash effect.
• Gobos : 2 wheels ( 8 fixed + 7 rotating ); gobo size 20 mm (18 mm max. image area).
• Prism : 4-sided circular with bidirectional rotation.
• Movement : PAN 540° , TILT 270° , 8/16 bits, automatic repositioning.
• Control : DMX-512 with 18/23 channels , master-slave and stand-alone modes.
• Dimmer/Strobe : 0–100% ; 1–25 flashes/s (white or color).
• Interface : LCD with 4 buttons; address and utility menus.

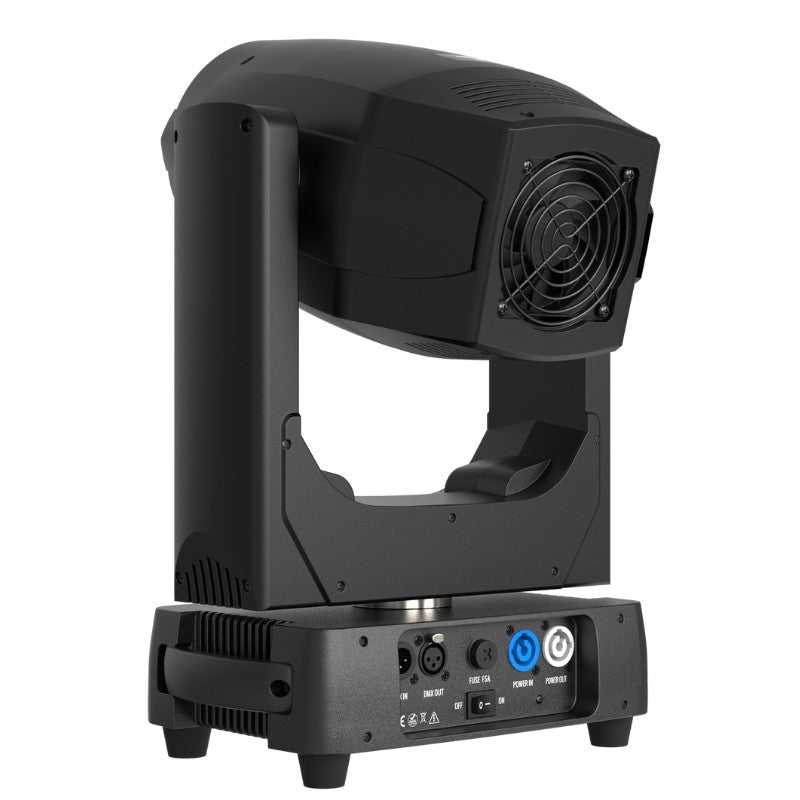

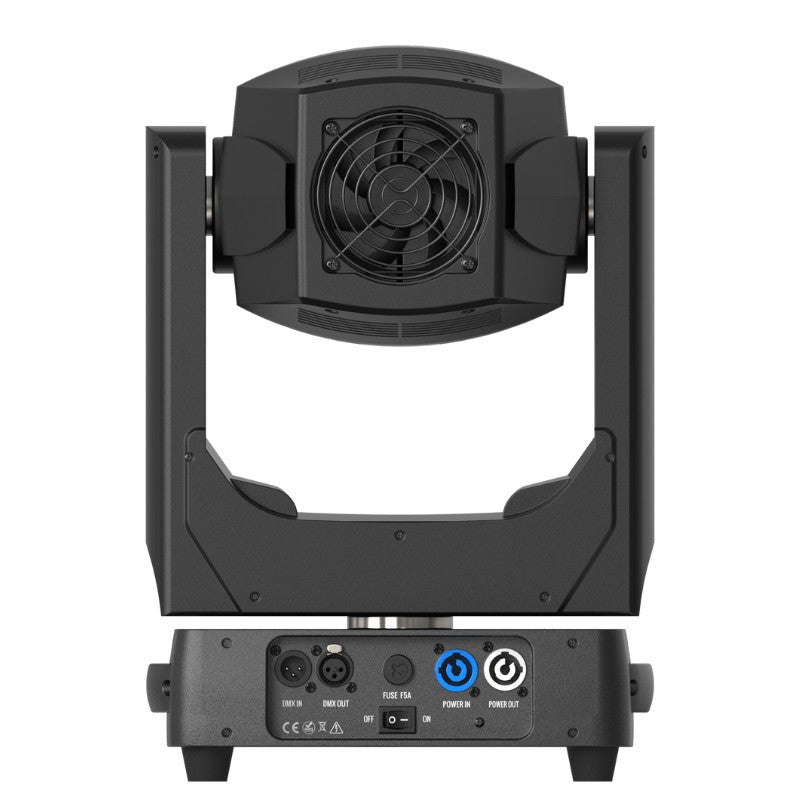

• Connections : PowerCON IN/OUT (16 A) and 3-pin XLR IN/OUT for DMX.
• Construction : metal chassis, ABS PC V0 covers, IP20 , thermal protection.

Product benefits

• Unlimited creativity : combine a color wheel, double gobo wheel, prism, and LED ring for a wide variety of looks from a single projector.
• Precise Motion : 8/16-bit control and automatic repositioning for smooth transitions and reliable tracking .
• Professional workflow : fast local addressing, 18/23 DMX modes, fine dimmer and wide-range strobe.
• Easy integration : standard connectivity (PowerCON/XLR 3 pin) and compact form factor for easy rigging and transport.
• On-camera use : flicker-free management suitable for TV and video.

Use cases

• Events and Tours : Combined gobo and ring effects for accents, aerials, and dynamic backgrounds.
• Clubs and venues : high-impact looks with quick color changes and strobing.
• Theater and set : electronic focus, frost, and fine control for flicker-free camera shots and scenes.

Frequently Asked Questions

• How many DMX channels does it have? Two modes: 18 or 23 channels.
• Does it have a prism? Yes, a 4-sided circular prism with bidirectional rotation.
• Can it be used as a wash? Yes, the frost filter softens the beam for a uniform wash.
• Does it include omega claws? Two omega supports are supplied; the claws must be purchased separately.

Description for projects

LED Spot Moving Head 200 W ( 8,500 K ) with 43 × RGB LED Ring ; 15° beam with electronic focus; 8 color wheel + white ; gobos: 8 fixed + 7 rotating (gobo Ø 20 mm, image 18 mm); bidirectional 4-facet prism ; dimmer 0–100 % , stroboscope 1–25 f/s ; PAN 540° , TILT 270° movement, 8/16-bit and automatic repositioning; DMX-512 control 18/23 channels , standalone and master-slave modes; power supply 100–240 V AC , 250 W max. , F5A/250 V ; connectors PowerCON IN/OUT , XLR 3-pin IN/OUT ; IP20 ; dimensions 306 × 183 × 367 mm ; weight 8.8 kg .
