Triton Blue Orion B200 - 200W LED BEAM Moving Head with LED Ring and 2.5° Beam (Electronic Focus)

Triton Blue Q-BEAM200 (Orion B200) - 200W BEAM LED Moving Head with LED Ring and 2.5° Beam (Electronic Focus)

The Triton Blue Q-BEAM200 , also known as the Orion B200 , is a professional BEAM moving head that combines a 200W white LED ( 9,500K color temperature) with a 43-diode RGB Ring LED to create high-impact perimeter effects. Its high-resolution optical system, with a 152mm front lens, generates an extremely sharp 2.5° beam, and electronic focus allows beam definition to be adjusted according to distance and application. Flicker-free management ensures flicker-free operation on camera for television and streaming .

In colorimetry and effects, it incorporates a 13-color + white wheel , a 14-fixed gobo wheel , a frost filter for transitions to wash and two circular prisms (8 and 16 faces) with bidirectional rotation and the possibility of superimposing to expand the beam and cover large surfaces with spectacular patterns. Movement is precise and fluid thanks to high-resolution stepper motors with PAN 540° , TILT 270° and 8/16-bit control, as well as automatic axis repositioning .

For integration and control, the Q-BEAM200 operates via DMX-512 with 19 or 24 channels (selectable modes), as well as master-slave and standalone modes. It features a 0–100% electronic dimmer and 1–25 fps strobe (white or color). Connections include 3-pin XLR IN/OUT and PowerCON IN/OUT (16 A) . Its chassis combines a metal structure with ABS-PC V0, IP20 covers , and maintains a compact format of 306 × 183 × 433 mm and weighs 11.6 kg , optimized for rental and fixed installation.

Main features

• 2.5° BEAM optics with electronic focus and 152mm lens for maximum intensity.
• Source : White LED 200 W , 9,500 K ; LED Ring : 43 × RGB (0.12 W).
• Color and gobos : 13-color wheel + white ; 14-fixed gobo wheel; frost filter .
• Prisms : 8 and 16 faces, bidirectional rotation, individual or combined use.
• Movement : PAN 540° , TILT 270° , 8/16 bit resolution, auto repositioning .
• Control : DMX-512 with 19/24 channels , master-slave and stand-alone modes.
• Dimmer/Strobe : 0–100%; stroboscope 1–25 f/s (white or color).

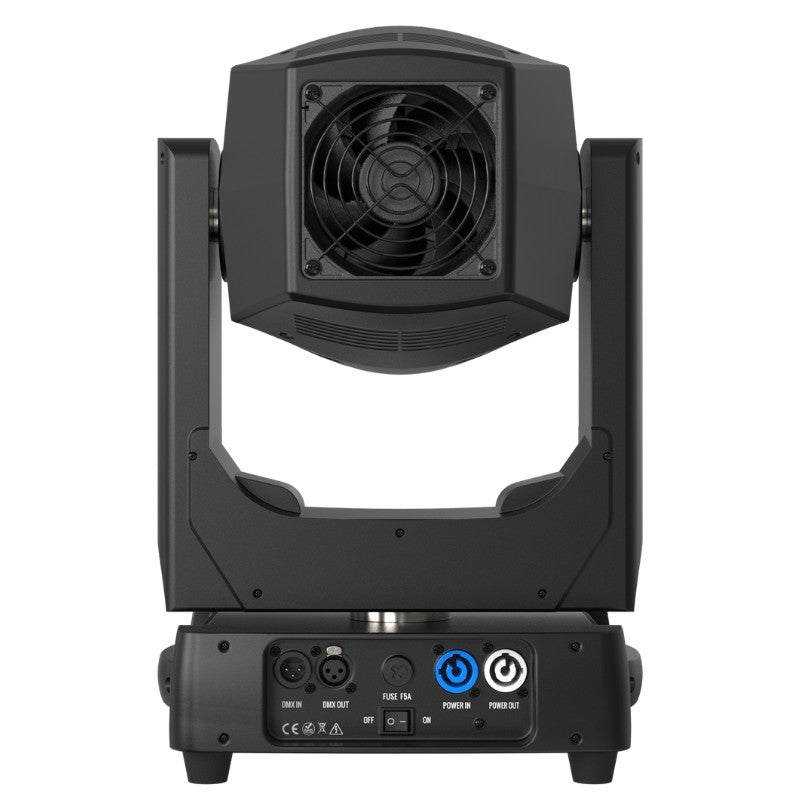

• Connectivity : XLR 3 pin IN/OUT (DMX) and PowerCON 16 A IN/OUT .
• Construction : Metal chassis + ABS-PC V0, IP20 , over temperature protection.
• Power supply : 100–240 V AC , 50/60 Hz; max. power 250 W ; fuse F5A/250 V.

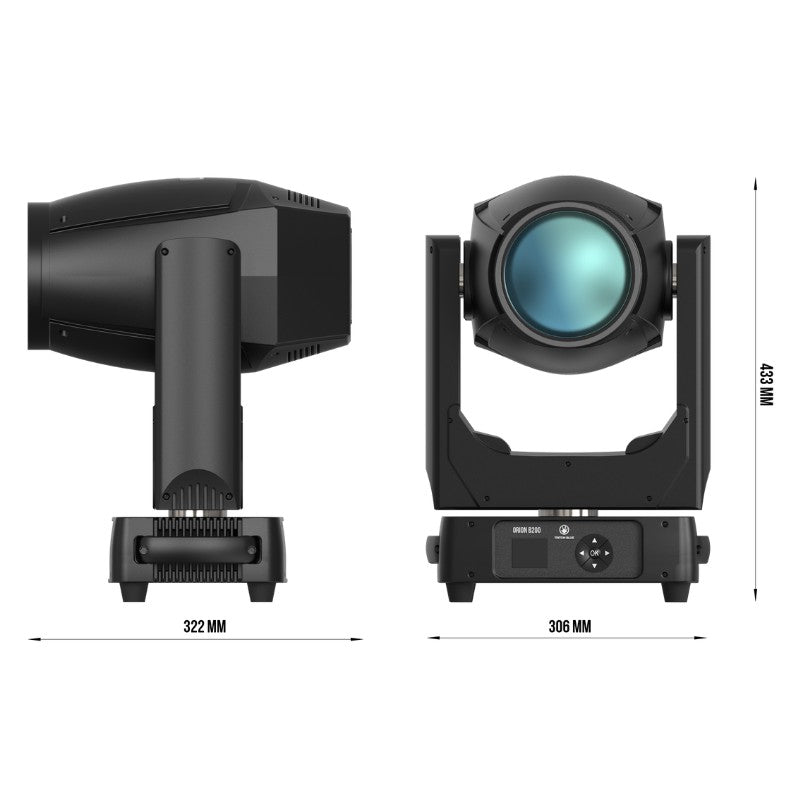

• Lightweight design : 306 × 183 × 433 mm and 11.6 kg ; includes 2 omega plugs , PowerCON-Schuko cable , and manual.

Product benefits

• Immediate visual impact : 2.5° beam with high definition, expandable with prisms (8/16) and gobos for powerful aerial effects.
• Expanded Creativity : Perimeter RGB LED Ring , 13 colors , 14 gobos and frost to transition from hard beam to soft textures.
• Flexible programming : two DMX maps (19/24), fast strobe and linear dimmer that adapt to shows of different complexity.
• Professional workflow : local LCD control, auto-repositioning and flicker-free electronics suitable for TVs.
• Agile installation : compact size, PowerCON in chain and quarter-turn omegas included.

Use cases

• Tours and festivals : long-range beams , fans with overlapping prisms, and high-contrast looks.
• Clubs and venues : fast-paced effects with a color wheel and strobe in musical synchronization.
• Television and streaming : Flicker-free operation and fine control of focus and color.

Frequently Asked Questions

• How many DMX channels does it use? Two configurations: 19 or 24 channels selectable from the menu.
• Can prisms be combined? Yes, 8- and 16 -facet prisms can be layered for magnified effects.
• Does it include clamps? 2 omega clamps are supplied; clamps/clamps are purchased separately.
• Is it suitable for TV? Yes, flicker-free management prevents flickering on camera.

Optional accessories

• Flightcase model Q-F00001 recommended for frequent transport and storage.
• DMX and power supply cables in different lengths.

Description for projects

BEAM LED 200 W ( 9,500 K ) moving head with 2.5° beam and electronic focus ; 13 color + white wheel, 14 fixed gobos , frost ; 8 and 16 -facet prisms with bidirectional rotation and overlapping; PAN 540° , TILT 270° movement, 8/16 bits and auto-repositioning; DMX-512 19/24 channels , master-slave and standalone modes; dimmer 0–100 %, strobe 1–25 fps; connectors 3-pin XLR IN/OUT and PowerCON 16 A IN/OUT ; power supply 100–240 V AC , 250 W max. , fuse F5A/250 V ; IP20 ; dimensions 306 × 183 × 433 mm ; weight 11.6 kg ; Includes 2 omegas, PowerCON-Schuko cable and manual.
