XVive PX - 3-Channel Personal Mixer System and Headphone Amplifier

XVIVE PX – 3-Channel Personal Mixer System and Headphone Amplifier

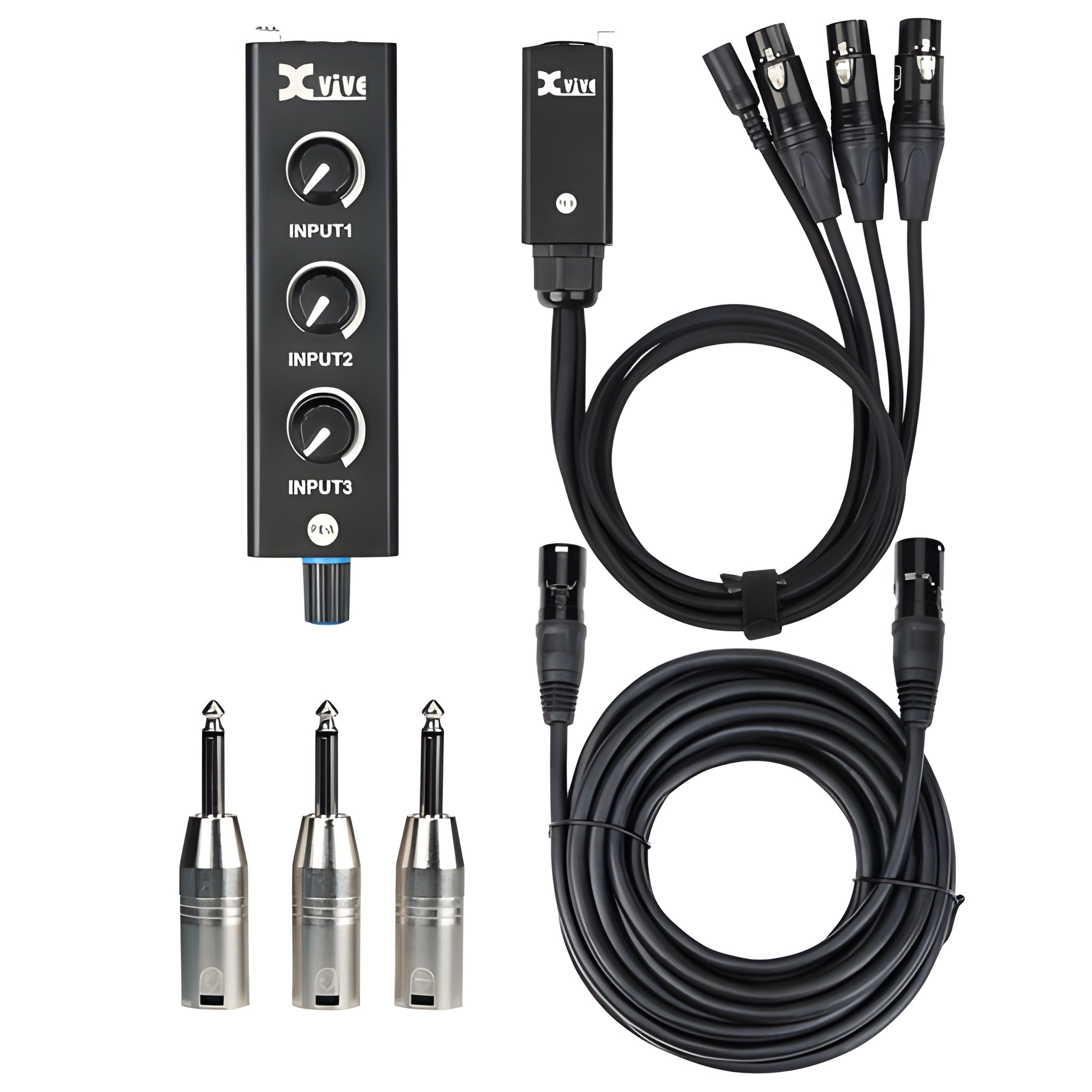

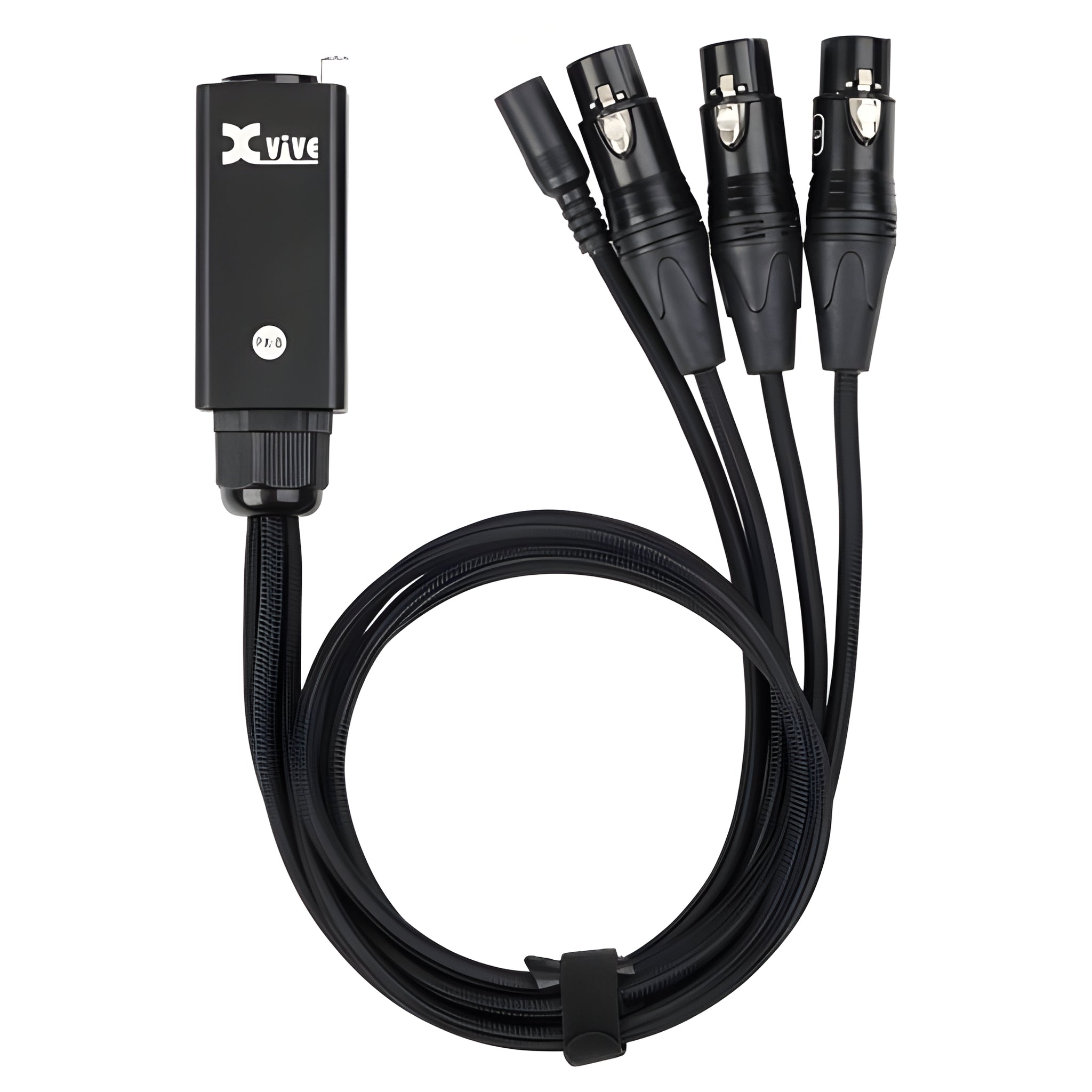

The XVIVE PX is an ultra-compact in-ear monitoring system that integrates a three-channel mixer and headphone amplifier into a lightweight beltpack. It receives up to three submixes from your mixer via the PX-B snake, transmitting digital audio and PoE power over a single Cat 5 Ethernet cable up to 60 m (198 ft) without signal degradation. With three independent level faders and adjustable panning via internal DIP switches, you can create your own mix in real time and send it to your in-ear monitors or headphones, ensuring clarity and absolute control during live performance, rehearsal, or recording.

Main features

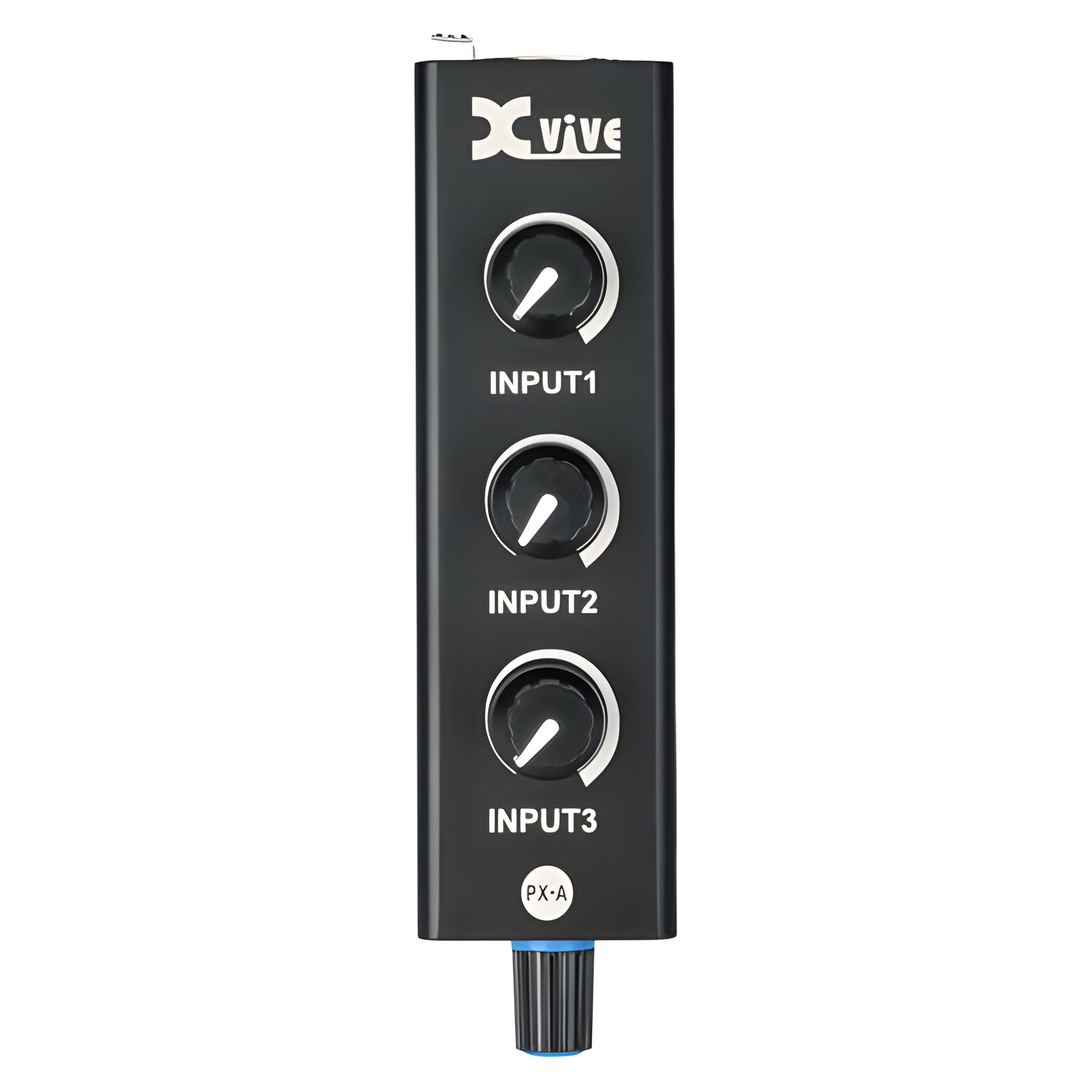

• 3-Channel Mixing: Three dedicated level controls for instantly adjusting volumes.
• Flexible Panning: Internal DIP switches allow each channel to be assigned to left, center or right.
• PoE and Digital Audio Transmission: A single Cat 5 cable sends three channels of uncompressed audio and 9V DC/2A to power the device.

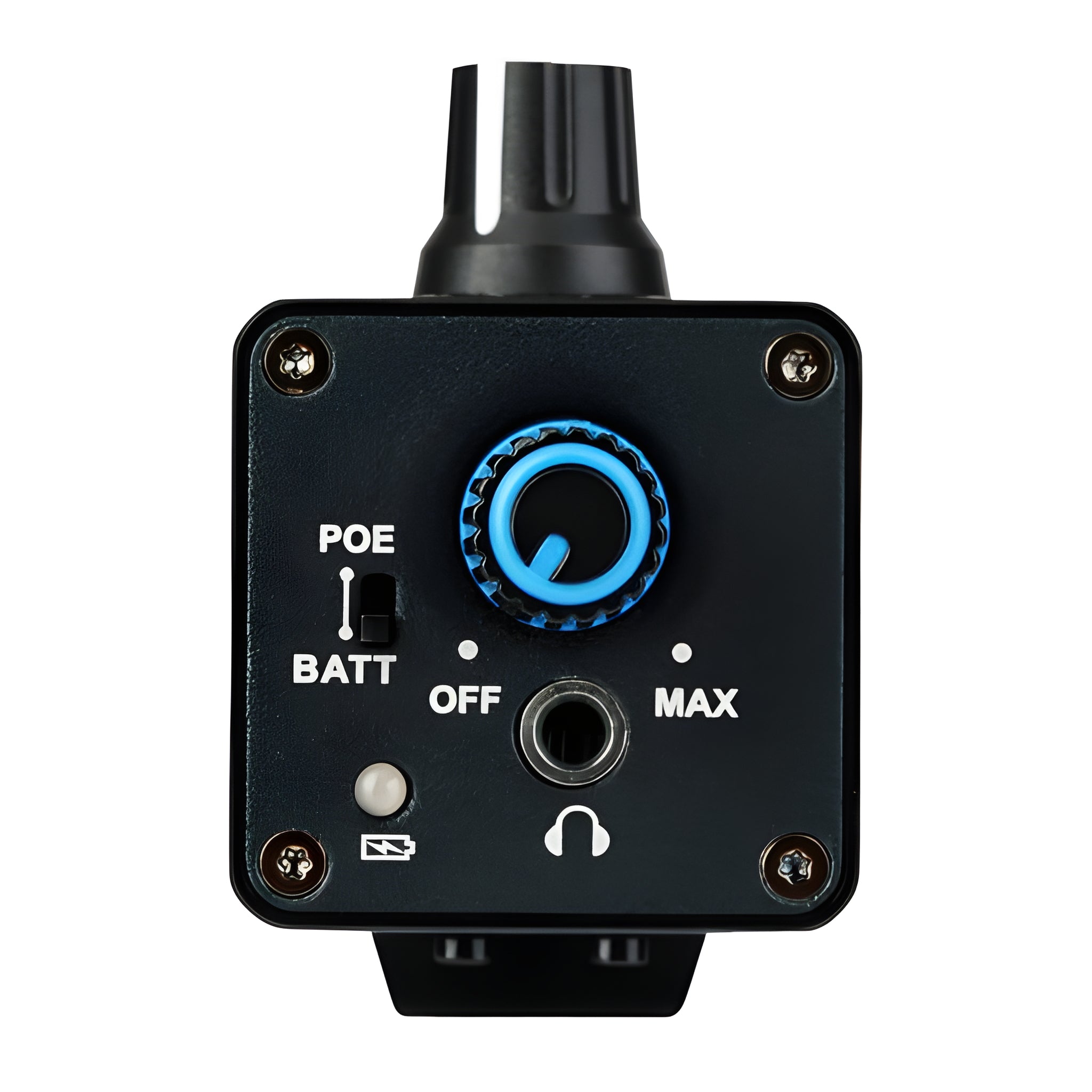

• Headphone output: 3.5 mm stereo jack with up to 2 × 150 mW at 16 Ω, for powerful and detailed listening.
• Dual power: Works with PoE or two AAA batteries for up to 5 hours of battery life.

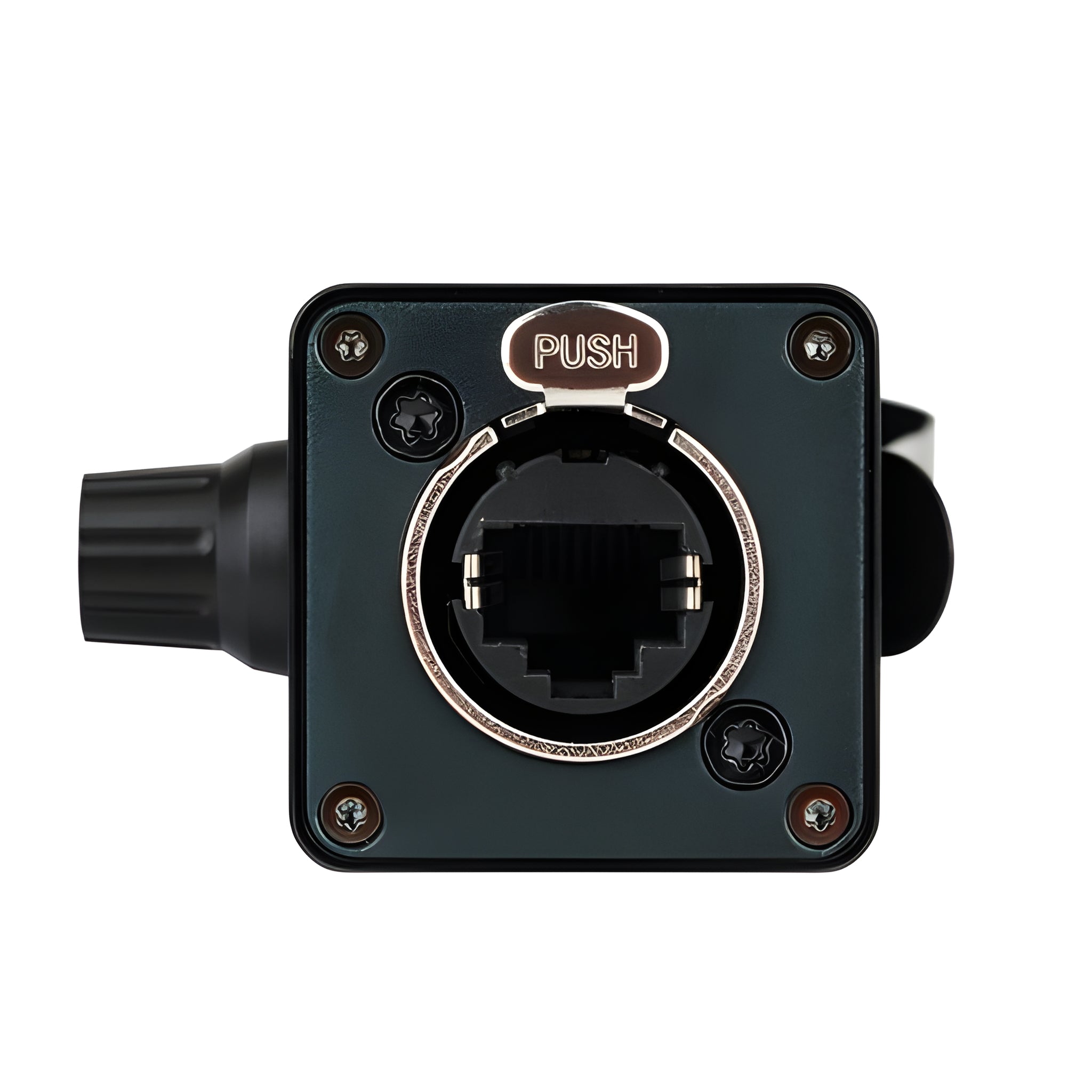

• Professional connectors: EtherCON with bayonet lock and balanced XLR for maximum reliability on the fly.
• Rugged Housing: Compacted metal withstands the rigors of touring and daily use.

User benefits

• Complete control of your personal mix without depending on the monitor engineer.
• Clear, noise-free audio thanks to digital transmission and PoE.
• Portability and quick setup with a single cable and power supply.
• Flexibility for touring and studios by combining PoE and batteries in a single device.

Use cases

• Monitoring vocalists and instrumentalists at concerts and festivals.
• Band rehearsals and studio recordings where each musician requires a customized mix.
• Fixed installations in theaters and rehearsal rooms with clean, professional wiring.
• Classes and workshops where each participant needs to adjust their own balance.

Frequently Asked Questions

• How do I set up panning?

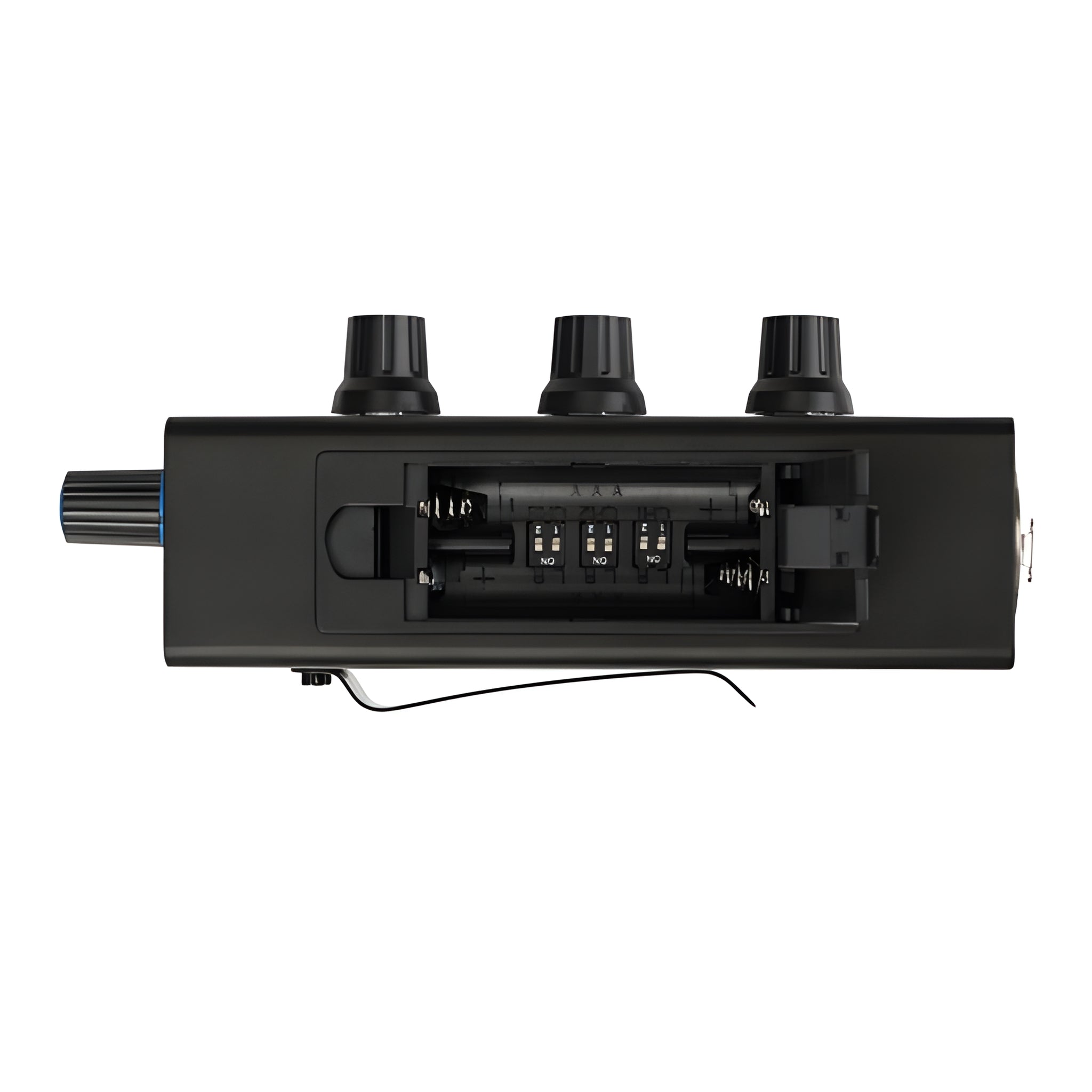

  Open the battery compartment and adjust the DIP switches to assign each channel to L/C/R as desired.
• What is the maximum length of Ethernet cable I can use?
  Up to 60 m without loss of quality; shielded cable with EtherCON connectors is recommended.
• What happens if PoE is missing?
  The PX detects the absence of PoE and automatically switches to AAA battery power.

Description for projects

3-channel personal mixer-amplifier with level and DIP panning potentiometers, digital transmission and PoE (9 V/2 A) over Cat 5, 3.5 mm headphone output (2 x 150 mW @ 16 Ω), PoE or 2 x AAA power supply (~5 h), EtherCON compr., metal housing.
