Avalanche-proof doors made of reinforced aluminium, specially designed to guarantee maximum safety and resistance when separating spaces.
Safe and controlled access in restricted areas is achieved by installing ATV-08 gates on the barrier lines, facilitating control and maintenance work only for authorized persons. Their design allows for the placement of two padlocks to block access. They are provided with two wheels for transport.

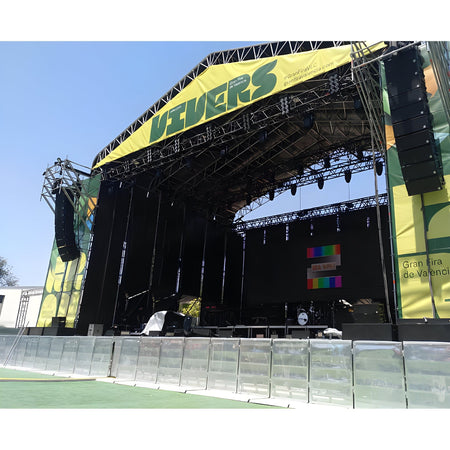

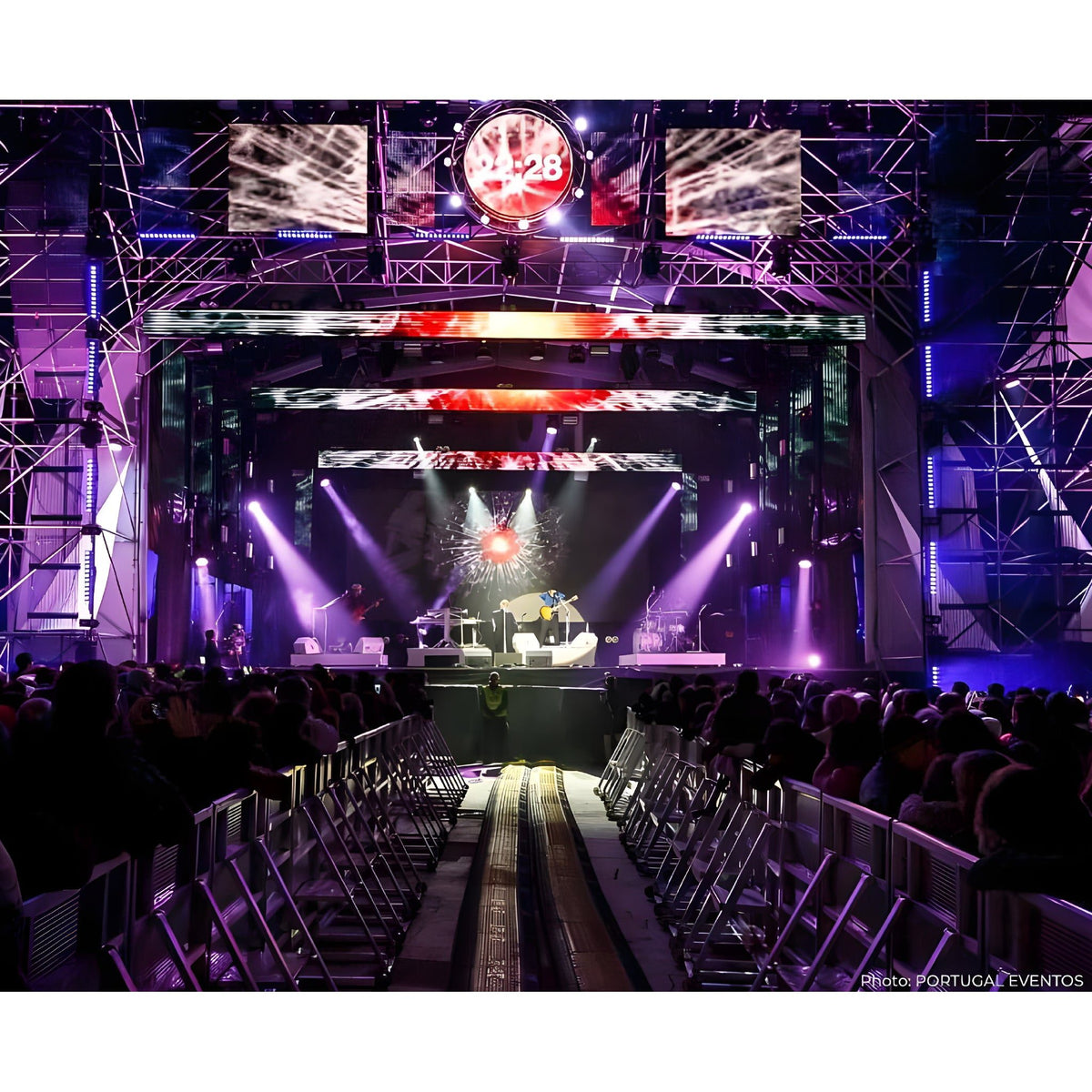

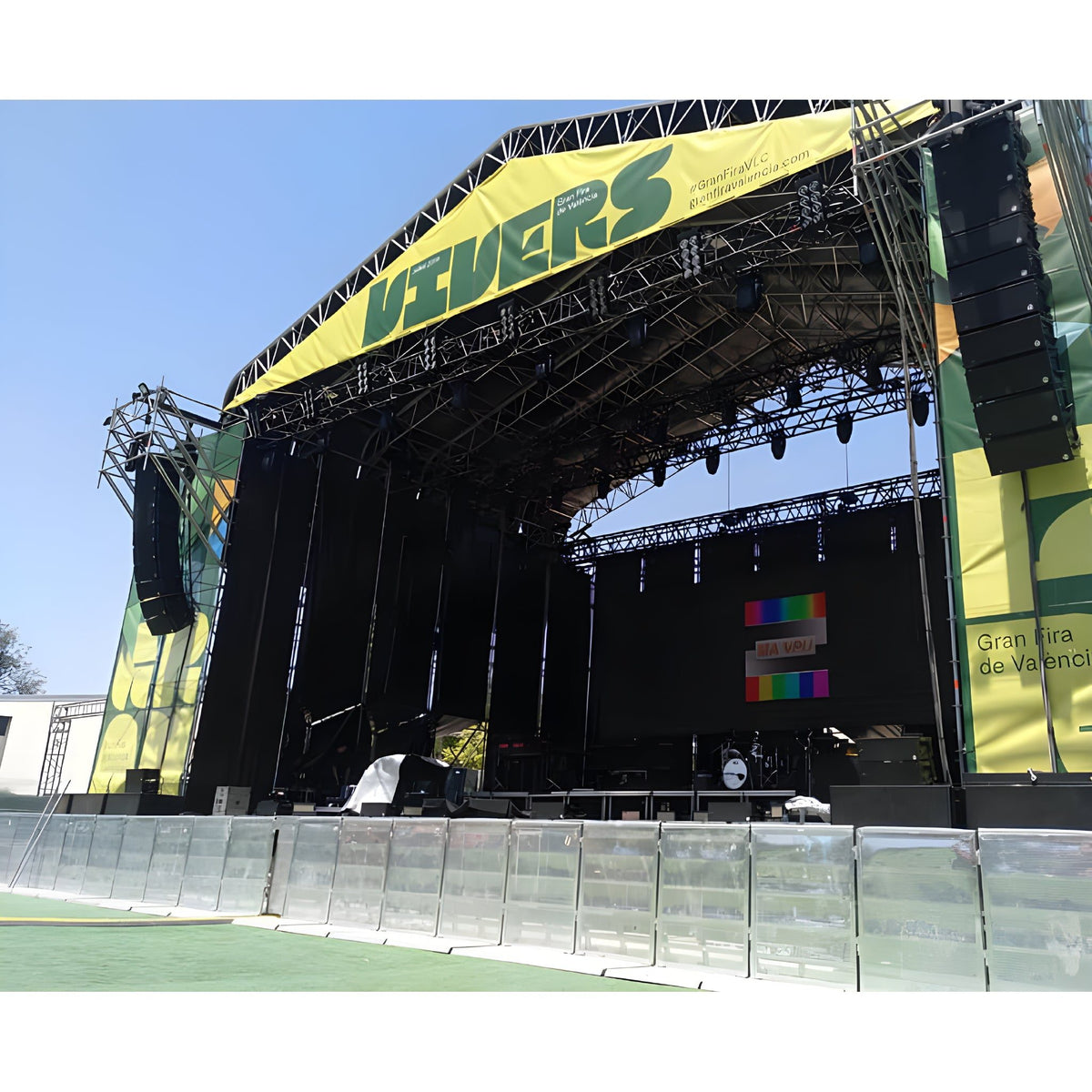

Our ATV panic barriers and gates, quick and easy to assemble, are certified according to European Standard EN 13200-3:2005 (Spectators' facilities, Part 3: Requirements for separation elements). They are essential elements for any type of event where security is paramount (concerts, rallies, presentations, parades, sporting events, etc.).
| SPECS | ATV-08 |
| Measures: | 100 x 135 x 128.5 cm |
| Folded Measurements: | 113 x 13 x 138 cm |
| Net Weight: | 43 kg |
| Wheels: | Ø 100 mm |
| Material: | Aluminum |
| Alloy: | EN-AW 6082 T6 |
| Certification | EN 13200-3 standard |
Our three models of avalanche barriers (barrier, gate and cable barrier) offer a safe work area for technicians, authorized personnel and security personnel, while ensuring the safety and comfort of the audience.
Thanks to the combination of these three elements, we can configure spaces restricted to traffic with complete safety.
Connection
GUIL anti-panic fences are specially designed for quick and easy assembly, guaranteeing maximum safety and resistance.
The union of the barriers-doors is carried out by means of quick connect bolts (male-female type) which allow possible unevenness to be overcome, thus allowing their placement on irregular surfaces.
The connection between barriers provides a maximum safety and resistance to the entire assembly without the need to use any type of tool.
Design and manufacturing
Fences with gate design are built with a High strength perforated aluminum plate which performs three functions: lightening the weight of the barrier without sacrificing safety, allowing sound to pass through and ensuring visibility through them.
ATV doors are designed with round profiles to prevent damage and ensure the safety of attendees at all times. No sharp edges.
As these are barriers Made entirely of aluminum , We avoid oxidation problems , guaranteeing greater durability than steel options and significantly reducing their weight.
Ramp
In addition, Its base has a ramp design (does not have a stepped edge) and It is covered with fluted aluminum plate to prevent possible trips and slips.
Transport and storage
In order to facilitate their transport and subsequent placement at the workplace, the lower part of the avalanche gates is equipped with two reinforced wheels of Ø 100 mm which allow the door to be handled as if it were a wheelbarrow.
Our avalanche fences They fold completely by means of a hinge-type system, which makes it easy to transport and store. As they are completely compact modules, there is no possibility of losing their components, making them the ideal complement for any temporary assembly.
Container and transport cart
Our practical avalanche fences can be transported and stored in special containers Ref. CTO-ATV, designed to accommodate up to 8 units. These containers can be stacked, thus reducing the storage space of the barriers. We manufacture a set of wheels with brake Ref. CTR-03, which converts containers into practical transport carts.
