Dynacord POWERMATE 502 - 5-Channel Powered Mixer

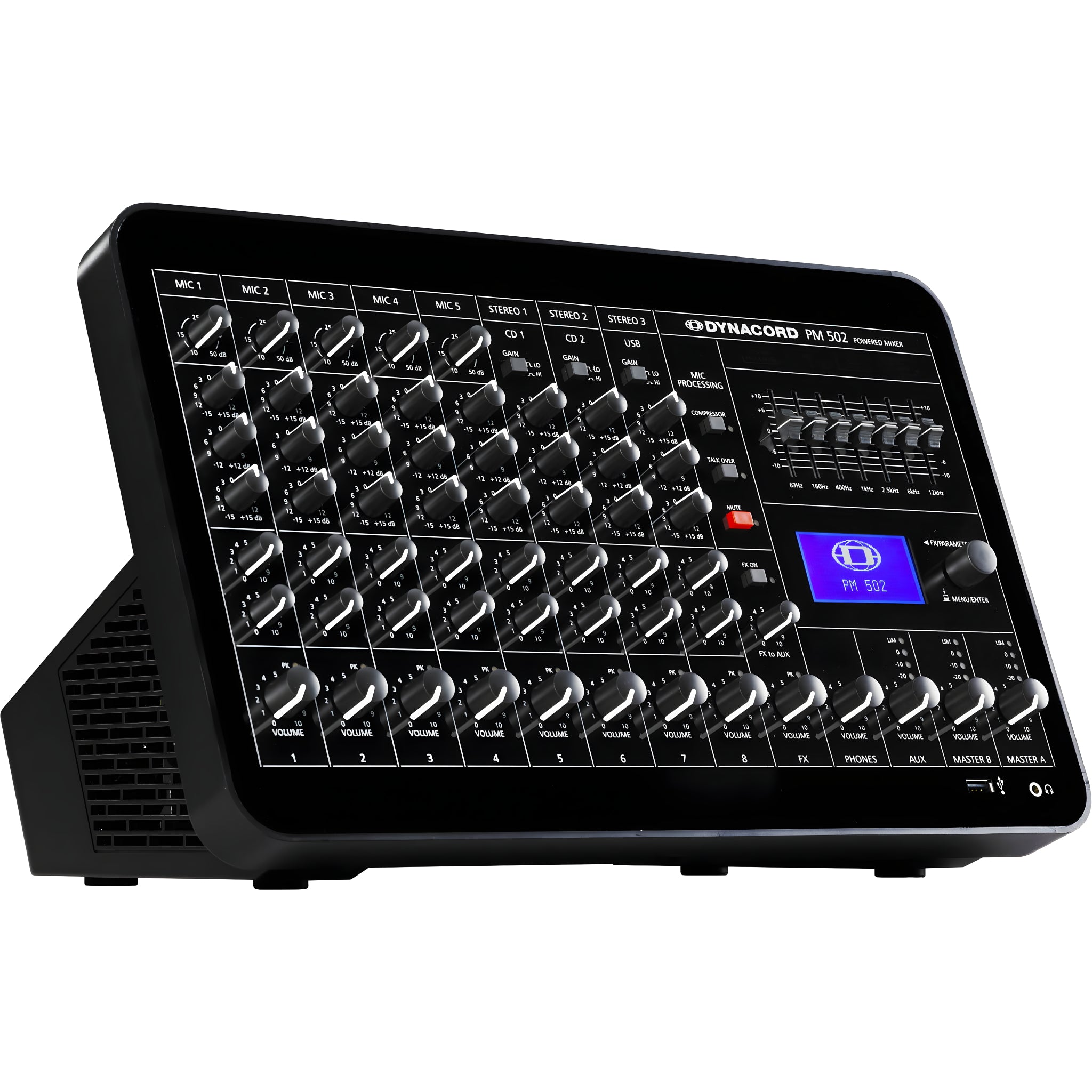

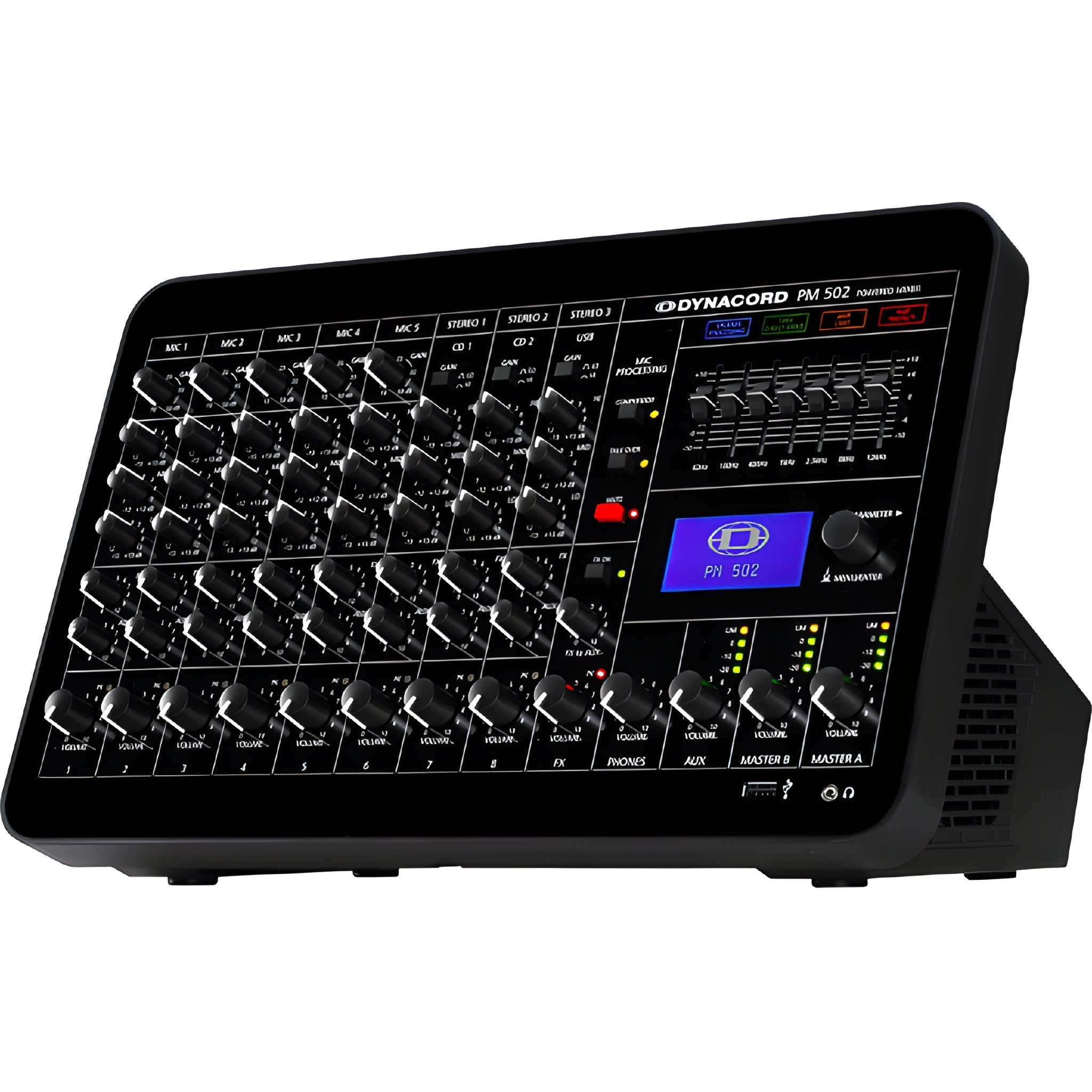

Dynacord PowerMate 502 – 5-Channel Powered Mixer

The Dynacord PowerMate 502 is a compact and versatile console that combines a 5-channel Mic/Line mixer with an integrated Class D amplifier, ideal for small-format environments such as cafes, meeting rooms or home studios. It incorporates a compressor/limiter and Talk-Over function on the microphone channels, selectable 48V phantom power, MP3/WAV file playback via USB and a 2 in/2 out 24-bit digital audio interface with 32/44.1/48 kHz sampling. Its 48-bit effects processor offers 32 editable presets, while each of the three Master outputs features a 7-band graphic EQ and a Delay on Master B of up to 150 ms (≈ 50 m) for room alignment.

Main features

• Input Channels: 5 Mic/Line with compressor/limiter and Talk-Over, + 3 stereo channels (Jack, RCA, USB)
• Integrated player: MP3/WAV via USB Type A front-panel.
• Digital interface: 2 in/2 out USB 24 bit, 32/44.1/48 kHz.
• Effects processor: 48-bit DSP with 32 editable presets.
• Master EQ: 7-band graphic on each Master output.
• Delay Master B: Up to 150 ms (≈ 50 m) for zone synchronization.
• Amplification: Class D, 2x450 W RMS at 4 Ω; 100 V Direct Drive option; 180 W maximum power consumption at 4 Ω
• Outputs: 3 Master balanced (XLR/TRS), 100 V line output, RCA recording output.
• Protections: Overvoltage, Back EMF, Short Circuit, Overload, Overheating.
• Format: 7U rack mountable with optional RMK-502 kit.
• Screen: LCD 128×64 px.
• Dimensions: 245 x 395 x 241.2 mm; rack: 310.3 x 483 x 177 mm; weight: 4.9 kg.

Product benefits

• All-in-one solution: Includes mixer, DSP processing, USB player and amplifier.
• Simplify installations: Automatic talk-over and compressor for microphones without additional equipment.
• Sound Quality: 48-bit internal processing and graphic EQ on outputs.
• Portability: Lightweight (4.9 kg) and compact, with racking option.
• Flexibility: Delay on Master B to synchronize multiple PA zones.

Use cases

• PA for cafes, restaurants and small spaces.
• Corporate AV installations requiring an integrated USB player.
• Small tours and performances where combined mixing and amplification are required.
• PA and announcement broadcast applications with Talk-Over.

Frequently Asked Questions

• Can I record via USB? Yes, it supports MP3/WAV playback from a USB flash drive.
• How do I activate Talk-Over? Using the dedicated selector on the Master panel.
• Do I need a rack kit? Yes, for 7U rack mounting use the optional RMK-502.
• What type of delay does it include? Up to 150 ms delay on Master B, adjustable in ms increments.

Description for projects

5-channel self-powered Mic/Line mixer with compressor/limiter and Talk-Over, 3 stereo channels, MP3/WAV USB, DSP 48-bit FX, 7-band Master EQ, 150 ms delay, 2×450 W Class D amplifier, 7 U rack, 245×395×241 mm, 4.9 kg.
