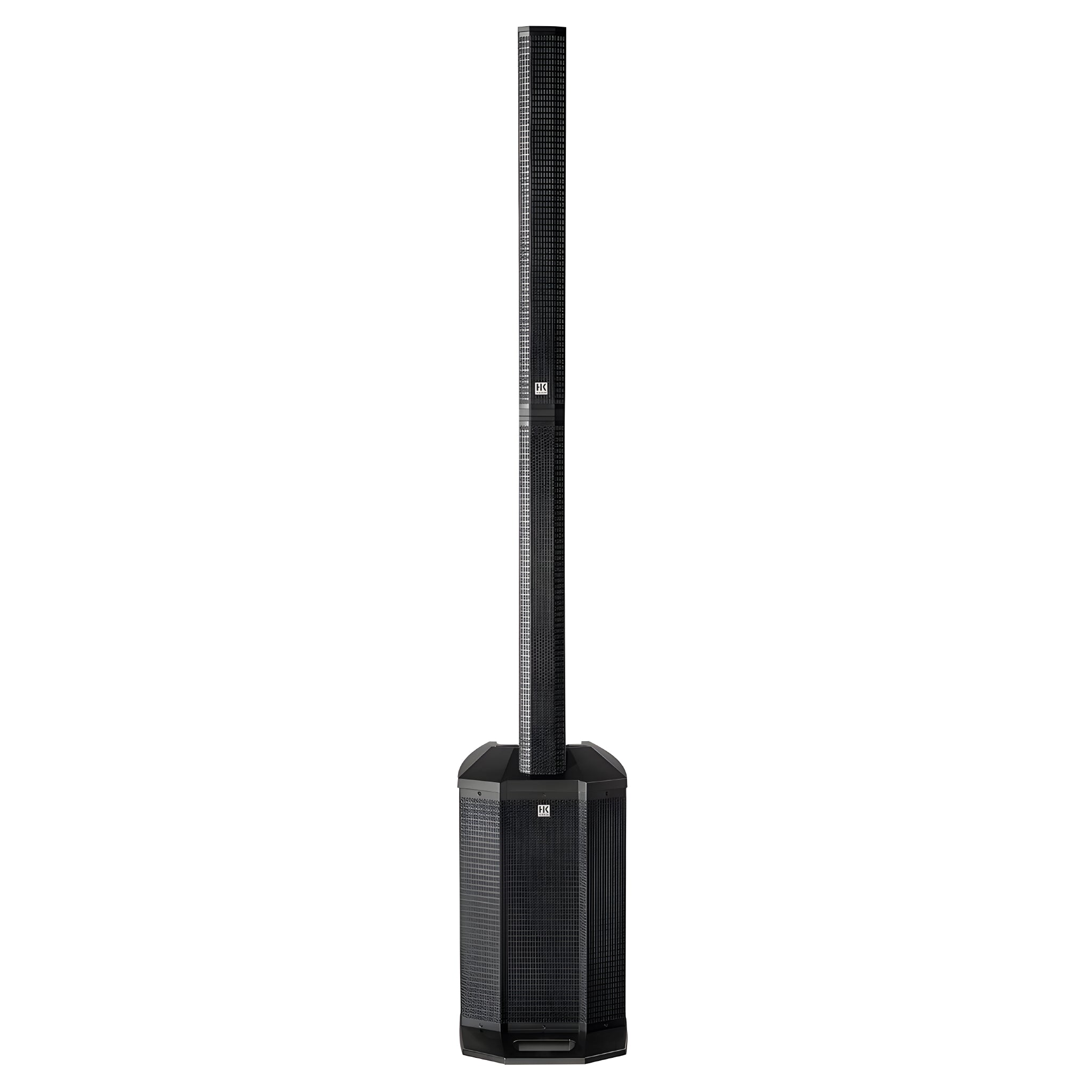

HK Audio POLAR 10 - Compact 3-Way Powered Column System

HK Audio POLAR 10 – 3-Way Active Column System with Bluetooth 5.0

HK Audio POLAR 10 is a 3-way floorstanding PA system that combines a 10” (25.4 cm) long-throw subwoofer with a mid/high frequency stack consisting of 6 x 3” (7.6 cm) speakers and a 1” (2.5 cm) compression driver with a constant directivity horn. Its Class D amplification delivers 2,000 W peak power with a maximum SPL of 126 dB and wide coverage of 120° × 30° , delivering a homogeneous sound with great dynamic range for live music, DJs, presentations and corporate events.

The system integrates a 4-channel mixer with 2 combo XLR/Jack microphone/line inputs, 1 instrument input (6.3 mm Jack) and 1 auxiliary input (stereo RCA), as well as an XLR “Mix Out” output. It incorporates Bluetooth 5.0 to send music from mobile devices. Its 24-bit DSP offers operating modes (Music, Voice, DJ), master EQ with semi-parametric mids, system delay and 5 user presets accessible via an LCD screen. Constructed of birch plywood and ABS , it assembles in seconds and is delivered with a padded cover for the subwoofer and a carrying bag for the column . Total assembled height: 213 cm . System weight: 26.9 kg .

Main features

• 3-way active column system (subwoofer + midrange and treble module).
• Peak power: 2,000 W with class D amplification.
• Transducer configuration: 1 × 10” (25.4 cm) subwoofer; 6 × 3” (7.6 cm) column + 1” (2.5 cm) compression driver with CD horn.
• Max SPL (calculated peak): 126 dB; Frequency response (−10 dB): 38 Hz – 20 kHz.
• Coverage: 120° (H) × 30° (V) for wide and controlled projection.
• 24-bit DSP with Music/Voice/DJ modes, system delay, master EQ with semi-parametric mids, and 5 user presets.
• Integrated 4-channel mixer with LCD display.
• Connectivity: 2 × XLR/Jack combo Mic/Line, 1 × Jack 6.3 mm Instrument, 1 × Aux (stereo RCA), 1 × Mix Out (XLR), Bluetooth 5.0.
• Robust construction: multi-layer birch and ABS enclosure.
• Included accessories: subwoofer case and column bag.
• Total assembled height: 213 cm; system weight: 26.9 kg.

Product benefits

• Clear, consistent sound: The combination of a 1” motor and six 3” drivers ensures clear voice and music with even coverage.
• Power and control: 2,000 W peak, 126 dB maximum SPL, and 24-bit DSP to adapt the system to each space and application.
• Easy assembly and transport: modular format that assembles in seconds and comes with a protective bag and case.
• Complete connections: mic/line, instrument and auxiliary inputs, mix output and Bluetooth 5.0 streaming.
• Convenient setup: Music/Voice/DJ modes, master EQ and user presets savable from the LCD screen.

Use cases

• Corporate events, conferences, and presentations requiring quick setup and extensive coverage.
• DJ and acoustic band performances in venues, terraces, and medium-capacity venues.
• Voice and instrument reinforcement at school events, houses of worship, and cultural centers.

Frequently Asked Questions

• Can I play music from my phone? Yes, using built-in Bluetooth 5.0.
• Does it have an output to send the mix to other equipment? Yes, an XLR “Mix Out” output.
• Can settings be saved? Yes, there are 5 user presets for recalling common configurations.

Description for projects

3-way active floorstander system with 1 × 10” (25.4 cm) subwoofer and 6 × 3” (7.6 cm) floorstanders + 1” driver; 2,000 W peak power, max. SPL 126 dB, 38 Hz–20 kHz response, 120° × 30° coverage; 4-channel mixer, 24-bit DSP with 5 presets, Music/Voice/DJ modes, delay and master EQ; 2 × Mic/Line (XLR/Jack), 1 × Instrument (6.3 mm Jack), 1 × Aux (RCA), Mix Out (XLR) inputs, Bluetooth 5.0; height 213 cm; weight 26.9 kg; birch/ABS enclosure; includes subwoofer case and floorstander bag.
