Power Dynamics PMP240 - Professional 240W 6-Zone Mixer Amplifier with Multimedia Module

Power Dynamics PMP240 - Professional 240W 6-Zone Mixer Amplifier with Multimedia Module

The Power Dynamics PMP240 is an all-in-one professional audio solution designed to deliver exceptional performance and unmatched reliability in public address and background music installations. With a powerful 240W output and the ability to independently manage up to six speaker zones, this mixer amplifier is the perfect choice for a wide range of commercial and industrial applications, including retail stores, schools, offices, factories, hospitals, and restaurants. Its versatile design allows for the transmission of both crisp background music and clear, prioritized announcements and voice messages.

This system stands out for its incredible flexibility, being compatible with 70V/100V line-level speaker systems as well as conventional low-impedance speakers (4-16 ohms). It incorporates a comprehensive multimedia module that allows audio playback from various sources, including a USB player, Bluetooth 5.0 streaming, and internet radio, accessible via Wi-Fi or RJ45 network cable using the Legacy Player app. This modern connectivity ensures you'll always have the music or information you need at your fingertips.

Main features

• Power and Zone Control: It offers a total power of 240W, distributed across 6 speaker zones. Each zone has its own 6-step attenuator, allowing precise and independent volume control for each area.

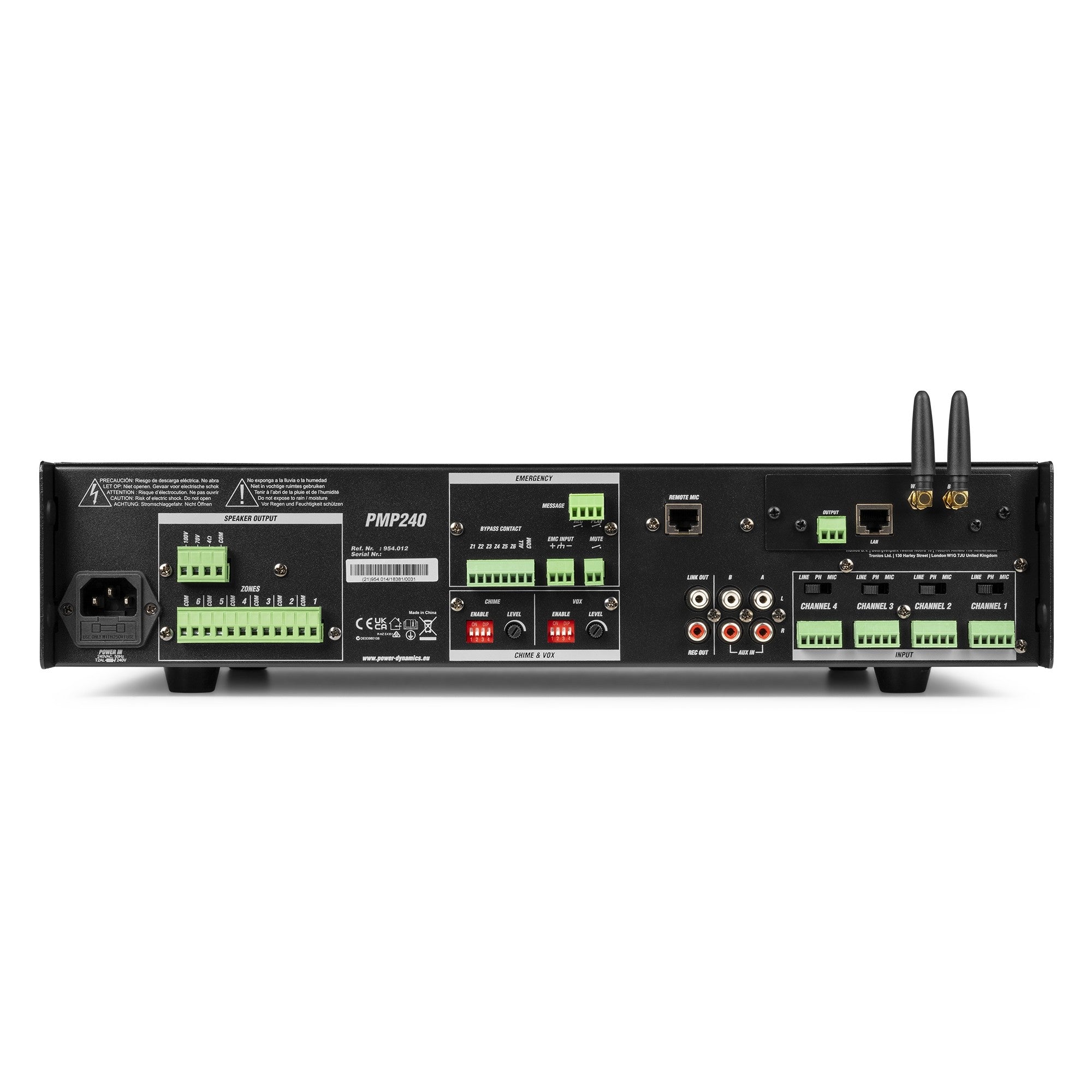

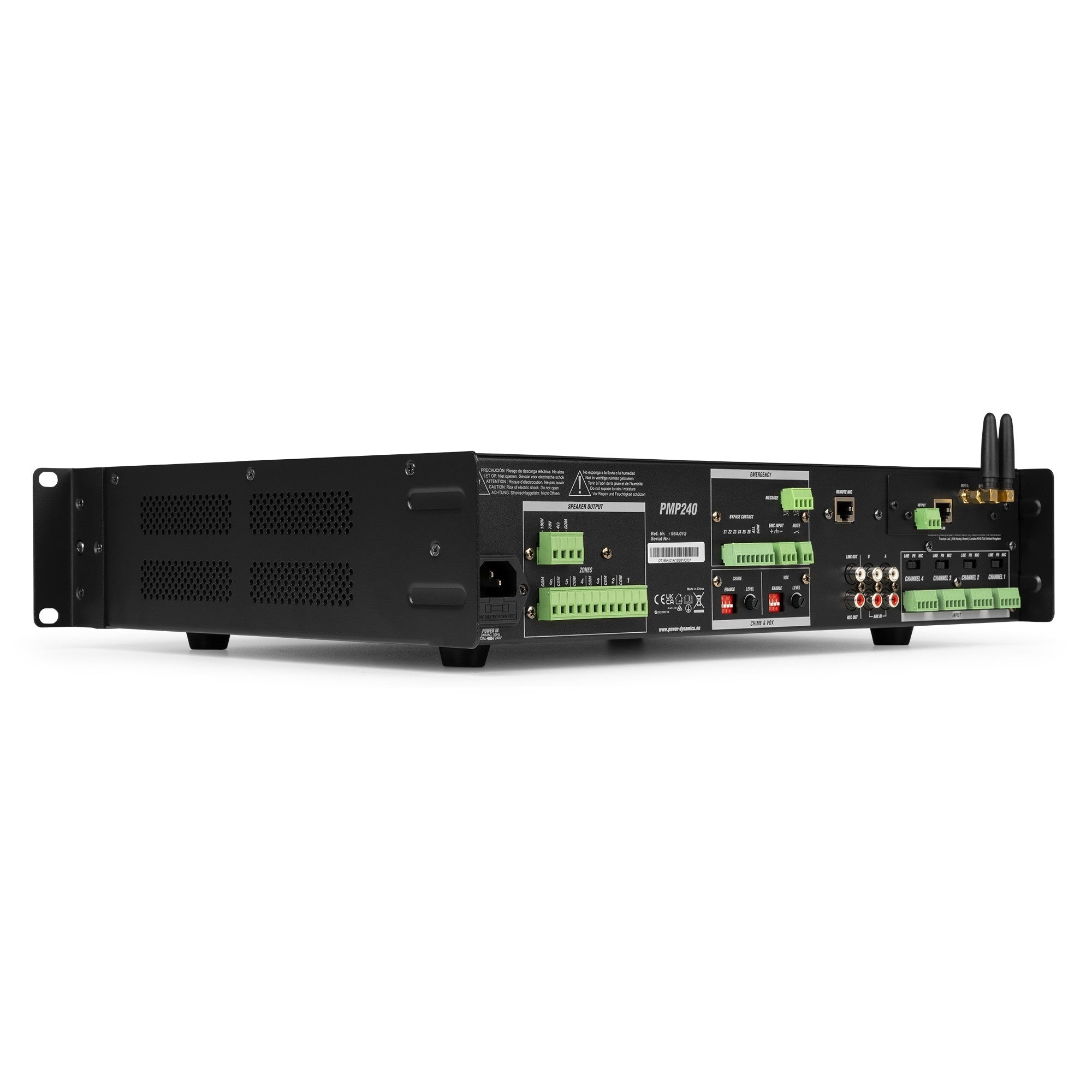

• Professional Connectivity: Equipped with four combo Microphone/Line inputs with Euroblock terminals, two stereo RCA auxiliary inputs and one RJ45 input for remote microphones, providing a wide range of options for connecting audio sources.

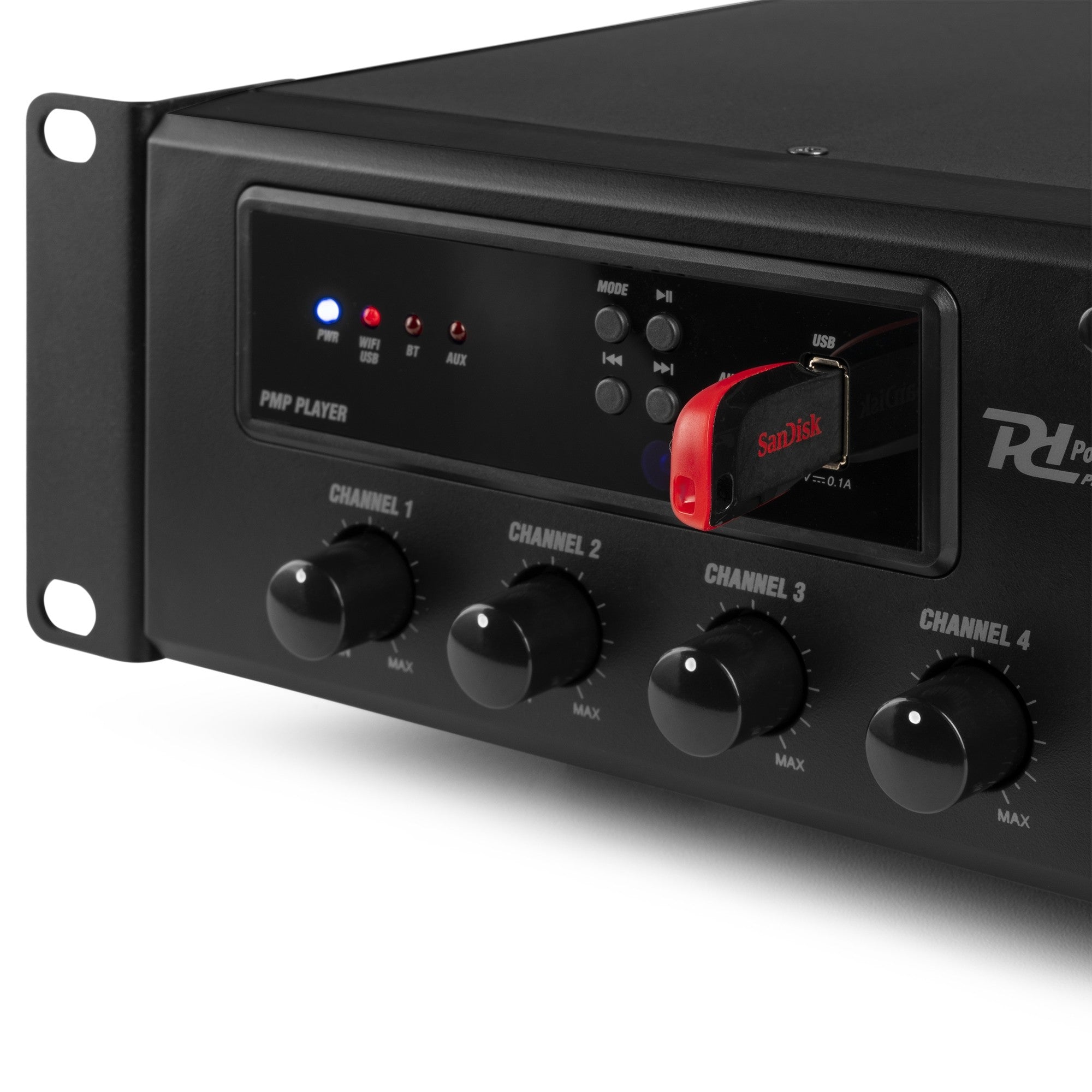

• Integrated Multimedia Module: Includes an advanced multimedia player with USB port, Bluetooth 5.0 receiver for wireless streaming from mobile phones or tablets, and internet radio access via WiFi or Ethernet.
• Priority and Security: It features three priority modes, VOX (voice activation) on microphone input 1, and an EMC input for connection to fire alarm systems, ensuring that evacuation messages override all other sources. It also includes a pre-alert chime (ding-dong) and a selectable evacuation siren.
• Superior Sound Quality: Features bass and treble tone controls that allow you to adjust the sound to the room's characteristics. It also offers 48V phantom power on the microphone inputs for use with professional condenser microphones.
• Robust and Reliable Design: Built with an advanced protection system that safeguards the equipment against overcurrent, overload, and overheating. Its dual form factor allows for installation in a standard 19-inch (2U) rack or use as a desktop unit.

Product benefits

• Comprehensive Solution: Combines the functions of amplifier, mixer, audio player and zone controller in a single device, simplifying installation, saving space and reducing system complexity.
• Maximum Installation Flexibility: Its compatibility with high and low impedance speakers makes it adaptable to virtually any sound system project, whether new or an upgrade of an existing system.

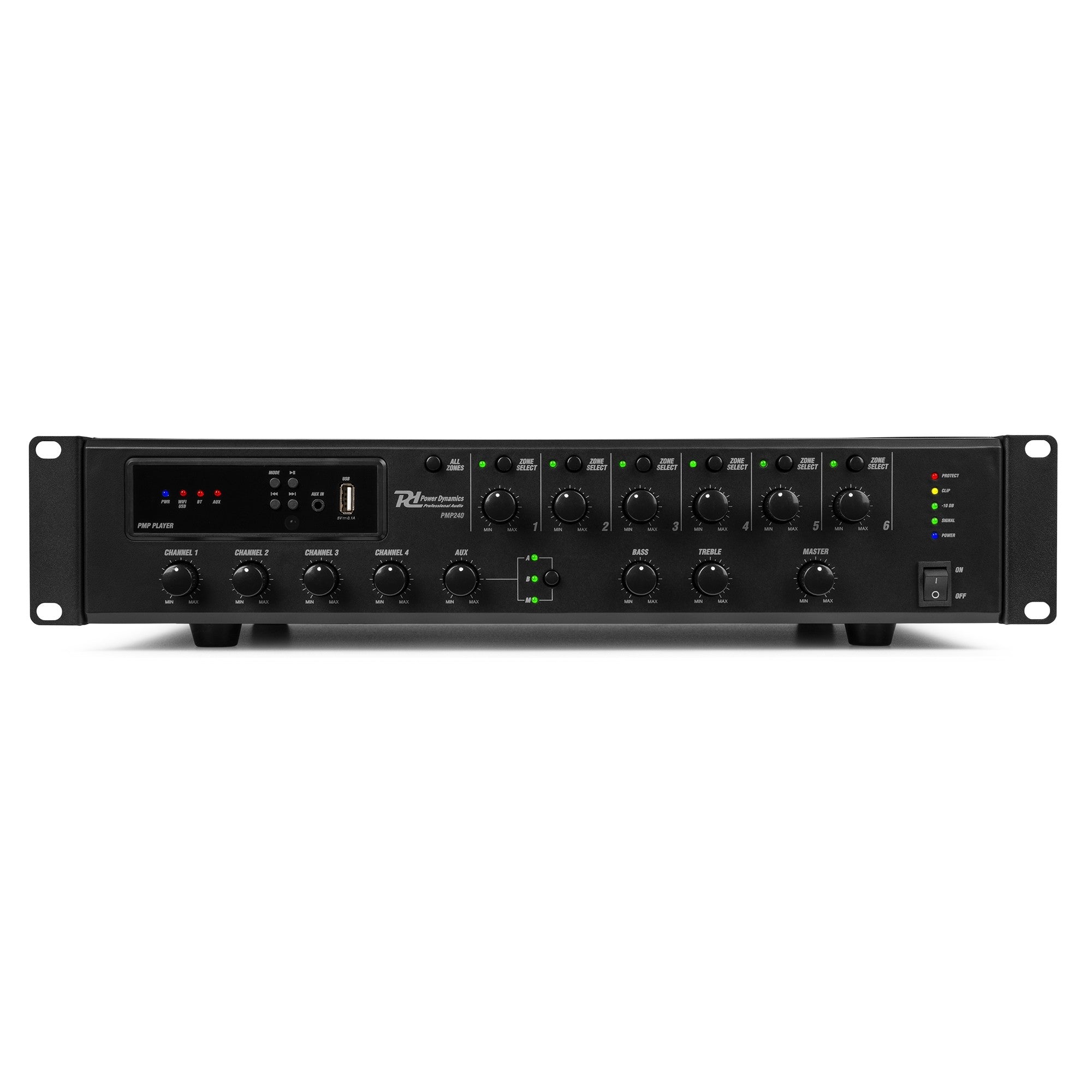

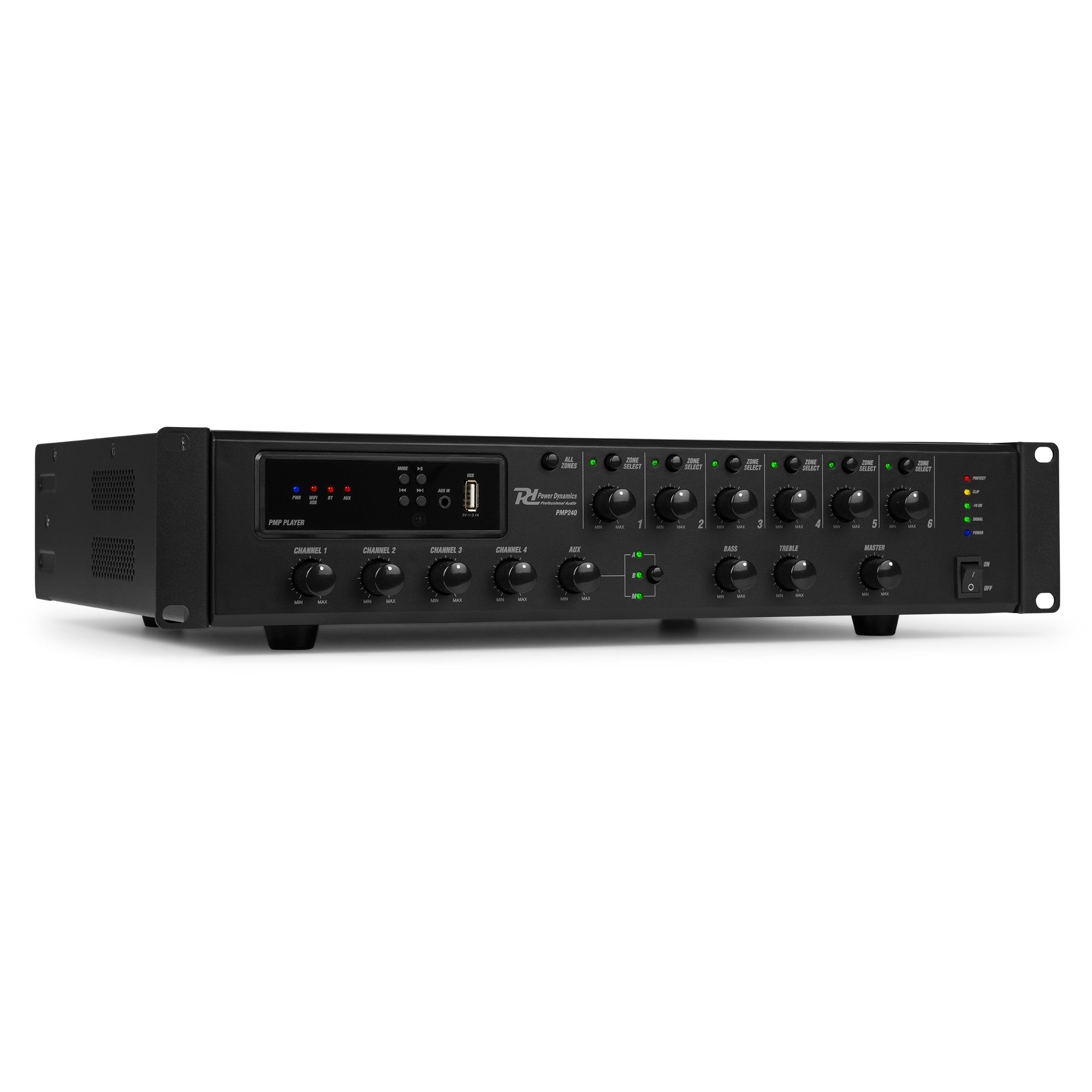

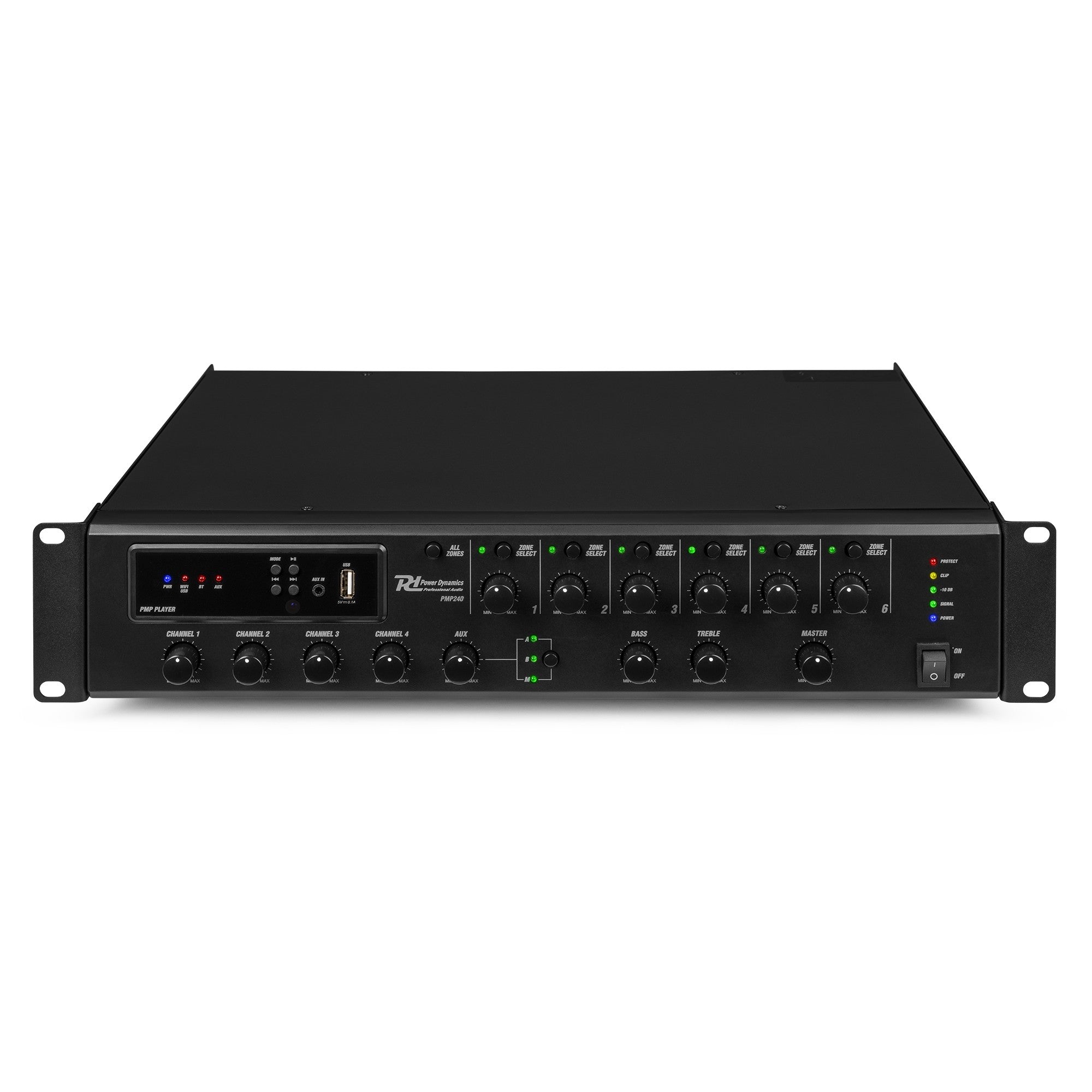

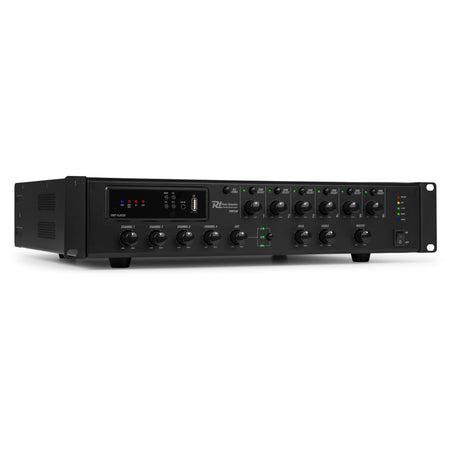

• Simple and Intuitive Operation: Despite its large number of functions, its front panel is designed for clear and direct handling, facilitating daily control of the audio system.
• Clear and Secure Communications: Advanced priority features and emergency input ensure that important announcements and evacuation alerts are always heard clearly, a crucial aspect for safety in public spaces.
• Reliability for Continuous Use: Designed to operate continuously in demanding environments, ensuring a long lifespan and consistent performance.

Use cases

The Power Dynamics PMP240 is the ideal tool for audio management in multiple scenarios:

• Shops and Supermarkets: To create a pleasant atmosphere with background music while promotional announcements or staff notices are broadcast, adjusting the volume by section.
• Schools and Universities: For broadcasting announcements via public address system, class change bells, and music in common areas such as courtyards or cafeterias.
• Offices and Corporate Buildings: For background music in receptions and rest areas, as well as for calls and general announcements.
• Industrial Buildings and Warehouses: For internal communication, dissemination of security alerts and music to improve the work environment.
• Hospitality (Restaurants, Hotels): To manage different musical environments in the dining room, terrace or lobby, and to make calls to customers or staff.

Frequently Asked Questions

Can I control the volume of each of the 6 zones independently?
Yes, the PMP240 is equipped with 6-step attenuators on the front panel, one for each zone, allowing you to adjust the volume of each area individually.

What type of speakers can I connect to the amplifier?
You can connect both 100V or 70V line speakers, ideal for long distances and multiple speakers in parallel, as well as conventional low impedance speakers (4, 8 or 16 ohms).

How does internet radio work?
Internet radio is managed through the "Legacy Player" application. For this to work, the amplifier must be connected to your local network, either via Ethernet cable (RJ45) or Wi-Fi.

Is it possible to connect a professional condenser microphone?
Yes, the microphone inputs have switchable +48V phantom power, which is necessary for the operation of condenser microphones.

Is the equipment protected against overheating?
Yes, the amplifier incorporates a complete protection system that acts against overheating, overcurrent and overload, ensuring safe and reliable operation.

Project description

240W mixer amplifier for commercial installations. It offers outputs for 70V and 100V lines and low-impedance speakers (4-16 Ohms). It allows for the management of 6 speaker zones with individual 6-step volume attenuators. It features 4 microphone/line inputs with Euroblock connectors, 48V phantom power, and VOX control, 2 AUX inputs with RCA connectors, and 1 RJ45 input for a remote microphone. It integrates a multimedia module with a USB player, Bluetooth 5.0 receiver, and internet radio (via Wi-Fi or Ethernet). It includes 3 priority modes, an EMC emergency input, a pre-alert chime, and an evacuation siren. It has bass and treble tone controls. It includes overcurrent, overload, and thermal protection systems. It is designed for 19-inch (2U) rack mounting or desktop use.
