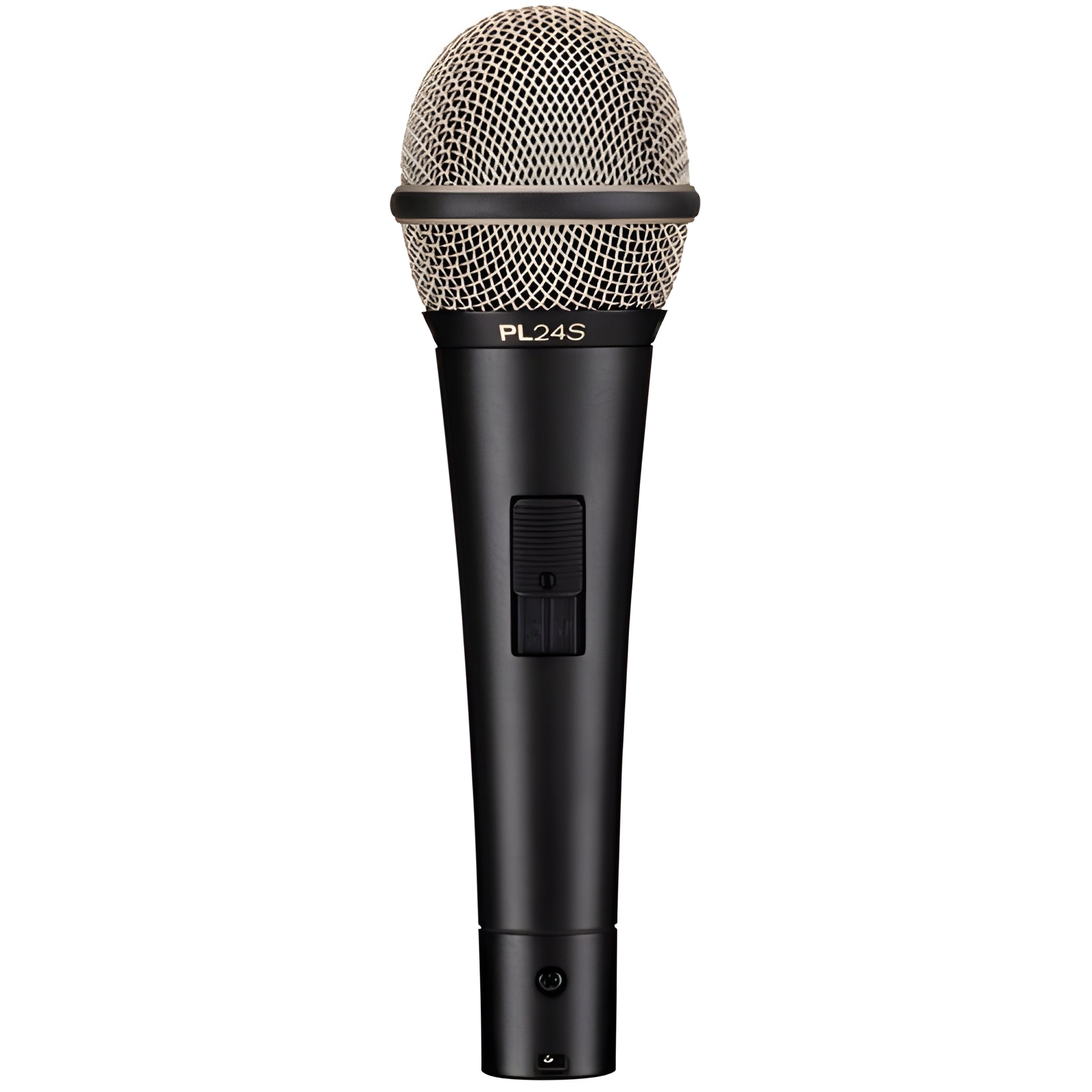

Electro-Voice PL24S - Supercardioid dynamic vocal microphone with on/off switch and low handling noise
The Electro-Voice PL24S is a PL series dynamic vocal microphone with a supercardioid pattern and silent on/off switch , designed for live performance, rental, and house of worship spaces. Its balanced response ( 80 Hz–16 kHz ) and neodymium magnet structure deliver a clear, articulate voice with good output level, while the suspended capsule reduces handling noise . The fine-mesh Memraflex grille resists dents, and the zinc die-cast chassis with a satin black finish is ready for heavy-duty use. With 600 Ω impedance , 2.2 mV/Pa sensitivity , and 3-pin XLR connection, the PL24S offers immediate integration into any professional system. Includes a microphone clip with Euro-thread insert and a carrying case .
Main features
- Supercardioid for high isolation of nearby sources and increased gain before feedback.
- Integrated on/off switch for direct user control on stage.
- Neodymium magnet and balanced response (80 Hz–16 kHz): clear and present voice without extreme equalization.
- Suspended capsule and Memraflex grille : low operating noise and high impact resistance.
- Touring construction : zamak body with satin black finish .
- Professional specifications : 2.2 mV/Pa , 600 Ω , XLR , >140 dB SPL (high level handling), weight 294 g , length 184 mm , head Ø 53 mm .
Product benefits
- Clear and controlled voice in dense mixes thanks to its directivity and tonal contour.
- Simple operation : the performer can mute/unmute the microphone from the switch itself.
- Cleaner mixes : less PA and stage leakage due to its narrow pattern.
- Reliability for touring and rentals: robust chassis, elastic grille and low operating noise.
Use cases
- Live solo singers and choirs .
- Presentations , events, and worship spaces with multiple speakers.
- Rental/backline companies that require a robust and consistent vocalist with control at the mic itself.
Frequently Asked Questions
- Does it need power? No. It's a passive dynamic microphone.
- What's included in the box? Clamp/holder with European thread insert and soft pouch .
- What is the polarity? Positive pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3.
Description for projects
Electro-Voice PL24S supercardioid dynamic vocal microphone; response 80 Hz–16 kHz ; open-circuit voltage 2.2 mV/Pa (1 kHz); impedance 600 Ω (balanced low-Z); 3-pin XLR connector (polarity: pin 2 positive ); suspended capsule with low handling noise ; Memraflex grille; neodymium magnet ; integrated on/off switch ; die-cast zinc housing with satin black finish ; dimensions 184 mm (length) × Ø 53 mm (head) / Ø stem ≈ 23.6 mm ; weight 294 g ; SPL handling > 140 dB ; includes clip with Euro insert and pouch.
- Type Studio & computer recording
- Vendor ELECTRO-VOICE
- SKU PL24S-648248
