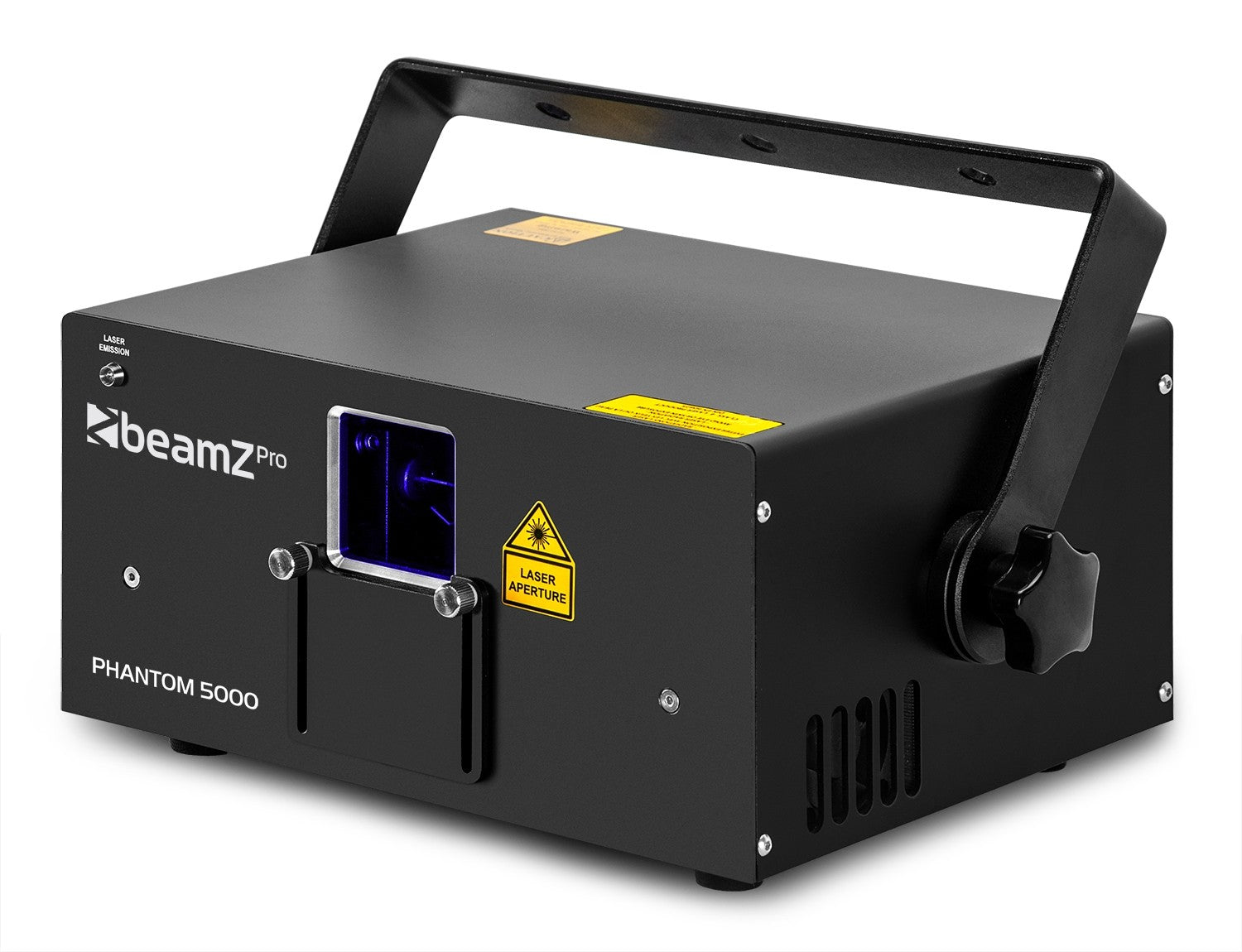

beamZ Pro Phantom 5000 - High Power RGB Pure Diode Laser
The beamZ Pro Phantom 5000 is a professional performance laser system designed to deliver extraordinary visual impact at any event. With a compact design and a guaranteed 5W output, this laser is an indispensable tool for high-level productions. Its core technology is based on a pure diode system and analog RGB modulation, allowing it to generate a virtually infinite color palette with smooth blends, seamless transitions, and vibrant hues that conventional TTL lasers cannot achieve.
Equipped with a high-speed optical scanner capable of 30,000 points per second (30kpps @ 8°), the Phantom 5000 projects graphics, animations, and complex patterns with exceptional clarity and smoothness, free from flicker. Its wide maximum scan angle of 60 degrees allows it to cover large areas, filling any space with stunning beam shows and detailed projections. Power is distributed across three high-quality LED sources: a 1300mW intense red, a 1500mW bright green, and a 2200mW deep blue, ensuring perfect color balance and luminous white.
Versatility is key to the Phantom 5000's design. It offers multiple control options to suit any production environment. Through the ILDA (DB25) connector, lighting designers can use professional software to create and project custom logos, text, and animations. For seamless integration with existing lighting systems, it features DMX control in 12- or 23-channel modes, allowing precise management of patterns, colors, and movements from a console. Furthermore, its standalone modes (automatic or sound-activated), along with pre-programmed shows, offer a plug-and-play solution for quick and effective use. Its robust construction, combined with professional connectors such as Powercon for reliable power and 3-pin DMX, makes it ideal for both permanent installations and rental and touring companies.
Main features
-
Guaranteed Output Power: 5W of total power for stunning visual performance in medium to large-sized venues.
-
RGB Analog Modulation: Allows the mixing of colors to create an extended color range and extremely smooth color transitions.
-
Pure Diode Sources: 1300mW Red Laser (638nm), 1500mW Green Laser (525nm) and 2200mW Blue Laser (455nm) for vivid and saturated colors.
-
High-Speed Scanner: 30kpps @ 8° scanner system that guarantees crisp, smooth, and distortion-free graphic projections.
-
Versatile Professional Control: Full ILDA compatibility for software control and DMX (12 or 23 channels) for integration with lighting consoles.
-
Autonomous Modes: Includes automatic and music-based operating modes with pre-programmed shows for easy setup.
-

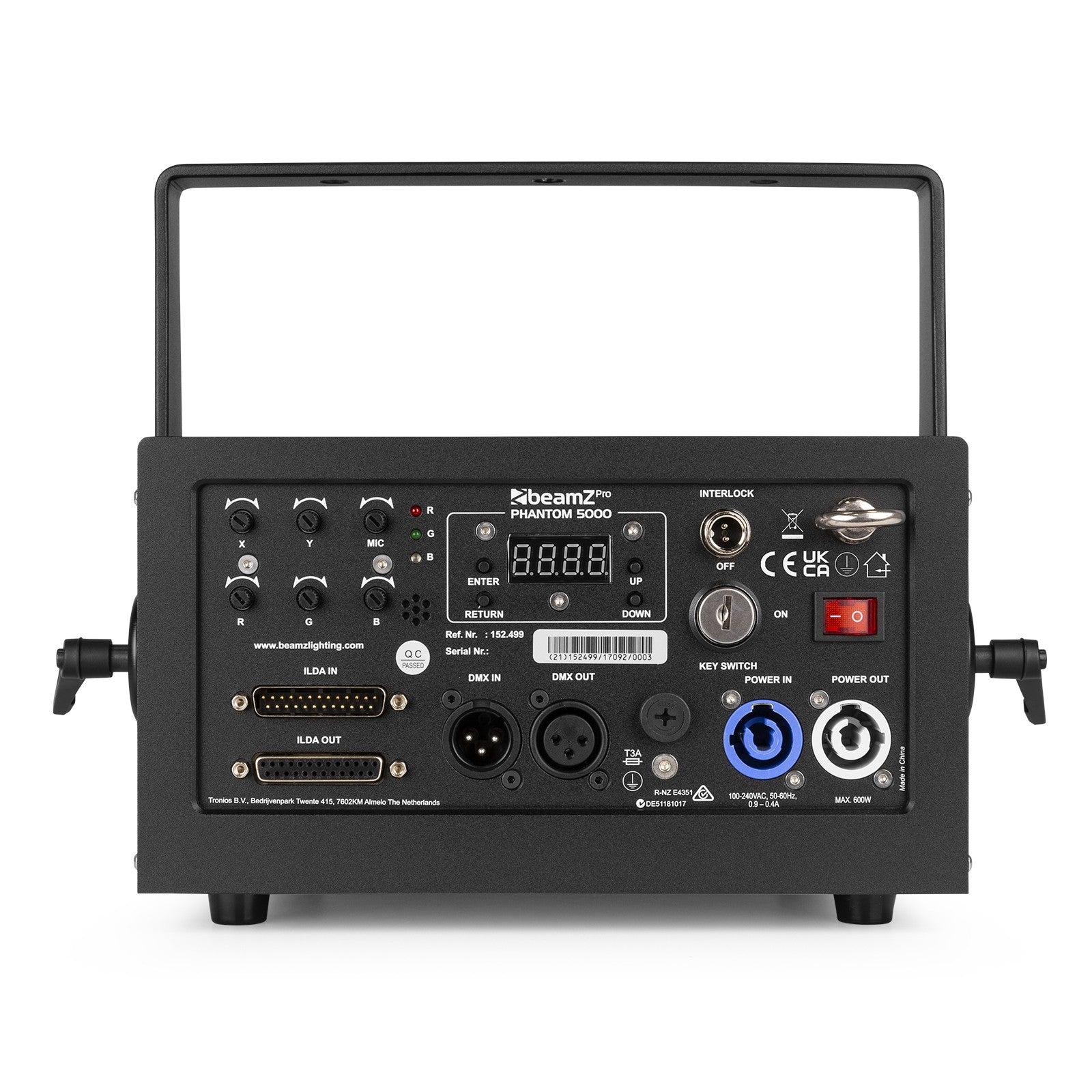

Professional Connectivity: Equipped with DMX (3-pin XLR), ILDA (DB25) and Powercon inputs and outputs for a secure and reliable connection.
-
Master/Slave Functionality: Allows synchronization of multiple units to create coordinated and complex lighting shows.
-
Integrated Control Panel: LED display and control panel for quick manual configuration of modes and settings.
Benefits for lighting and entertainment professionals
-
Superior Visual Quality: The combination of pure diodes, analog modulation and a fast scanner results in visually stunning shows, with rich colors and accurate graphics that will captivate any audience.
-
Creativity Without Limits: Control through ILDA opens a world of possibilities for creating custom content, from brand logos at corporate events to complex animations at concerts.
-
Maximum Operational Flexibility: It adapts to any need, whether as a software-controlled centerpiece, an integrated effect in a DMX show, or as a standalone unit for smaller events.
-
Easy Integration: The use of industry-standard connectors (XLR, ILDA, Powercon) ensures full compatibility with existing professional equipment, simplifying assembly.
-
Reliability and Safety: Built to withstand the demands of professional use, it includes essential safety features such as the Interlock connector for safe operation.
Use cases
-
Discos and Clubs: Creation of aerial beam shows and projection of visuals onto surfaces to energize the dance floor.
-
Concerts and Festivals: As a dynamic element in stage lighting design, synchronized with the music for greater impact.
-
Corporate Events and Marketing: Projection of company logos, product names and personalized messages in high definition.
-
Multimedia Productions: Integration into mapping projects and audiovisual shows that require high-precision graphic projections.
-
Rental Companies and Mobile DJs: A high-end, powerful and transportable lighting solution to offer a premium service at all types of events.
Frequently Asked Questions
- What is analog modulation and why is it important?
- Analog modulation allows the intensity of each color laser (red, green, and blue) to be varied gradually. This enables the mixing of the three colors in different proportions to create millions of distinct shades and smooth gradients, unlike TTL lasers which can only turn each color on or off, drastically limiting the color palette.
- Do I need special software to use this laser?
- To fully utilize its graphic potential (creating logos, animations, or custom text), ILDA-compatible software such as Pangolin QuickShow or similar is required. However, to use pre-programmed patterns, control it from a lighting console, or use it to the beat of music, no additional software is needed.
- What does "30kpps @ 8°" mean?
- "kpps" stands for "kilo dots per second" and indicates the speed at which the scanner's mirrors can move to draw an image. 30,000 dots per second is a high speed that allows complex figures to be drawn smoothly and without flicker. The "@ 8°" refers to the ILDA standard scanning angle at which this speed is measured, ensuring consistent performance.
- Is it a safe team for the public?
- This is a Class 4 laser, the most powerful, and must be handled and installed exclusively by qualified personnel who strictly follow all safety regulations. This includes maintaining safe distances from the public, avoiding direct exposure to the beam, and using the safety interlock system.
Project description
Professional show laser with a pure RGB diode system and a guaranteed total output power of 5W. Laser sources: Red (1300mW @ 638nm), Green (1500mW @ 525nm), and Blue (2200mW @ 455nm), with analog color modulation. It is equipped with an optical scanner system capable of 30,000 points per second (30kpps) at 8° and a maximum scan angle of 60°. Control options include ILDA (DB25 connector), DMX512 (12 or 23 channel modes via 3-pin XLR), and standalone operation (automatic and sound-activated) with integrated shows. It features master/slave functionality and XY axis inversion. Power connections are Powercon type (input/output). It operates on a 100-240VAC 50/60Hz power supply. Its dimensions are 252 x 247 x 148 mm (without stand) and it weighs 6.8 kg.
