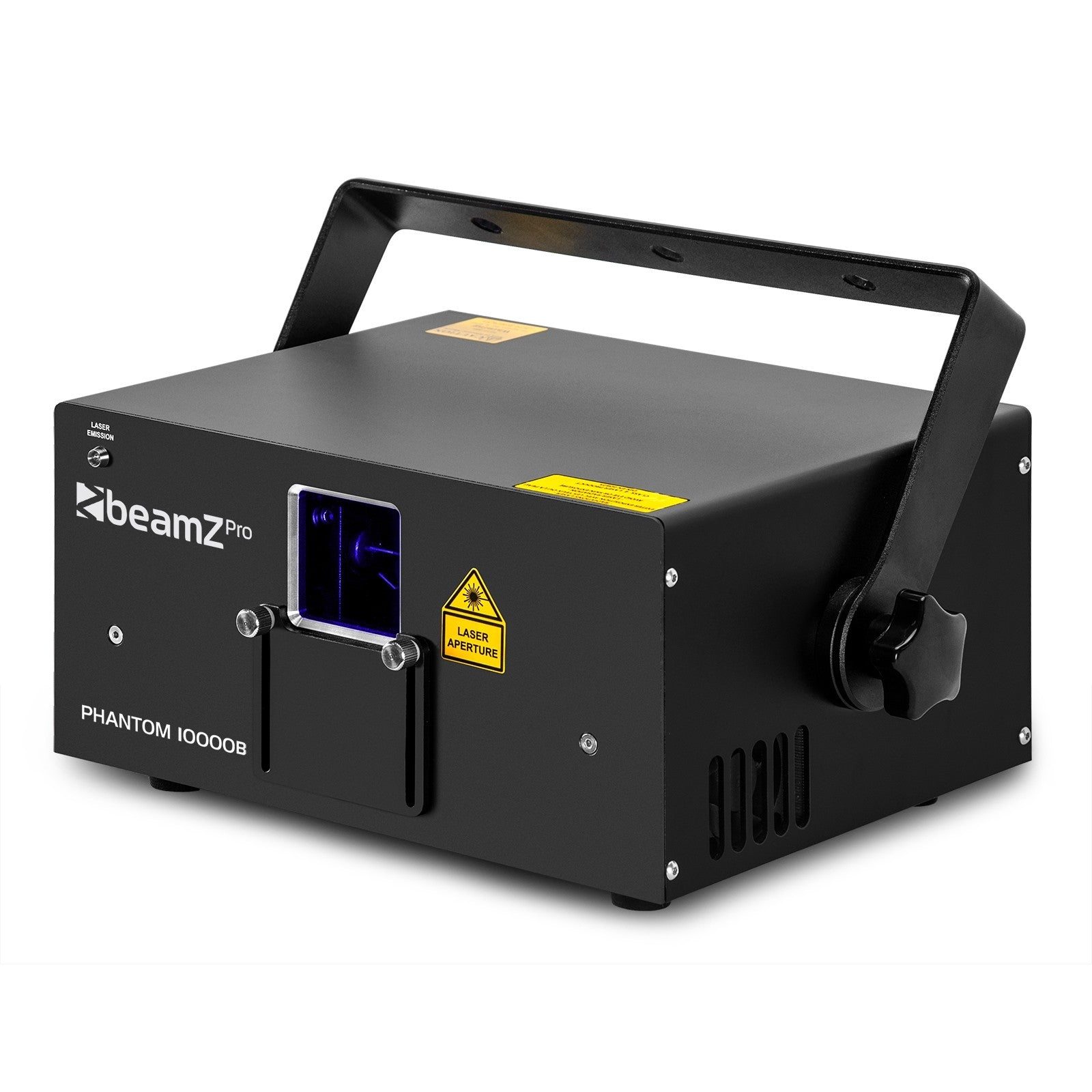

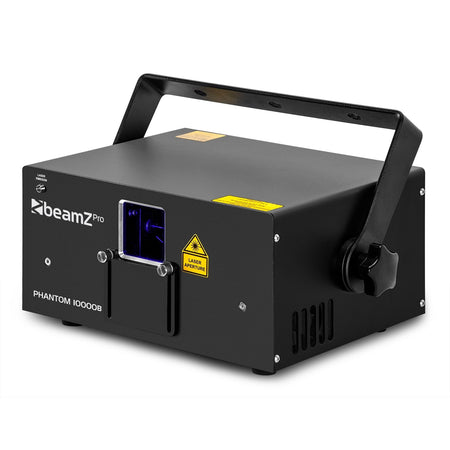

beamZ Pro Phantom 10000B - 10W Pure RGB Diode Laser with Analog Modulation and Waterproof Hard Flight Case
The beamZ Pro Phantom 10000B is a professional 10W pure RGB diode laser designed for high-end applications: from clubs and mobile discos to fixed installations, festivals, multimedia projects, and high-precision graphic projection. It is part of the renowned Phantom series , characterized by its compact design , robust housing, and stable power output, making it a reliable tool for rental companies, integrators, and laser lighting technicians.
The system combines three high-power LED modules : 2700mW red @ 638nm, 2700mW green @ 525nm, and 4600mW blue @ 455nm , providing a bright beam and a very wide color gamut. Thanks to analog RGB modulation , the Phantom 10000B offers smooth color transitions, precise mixing, and thousands of intermediate shades, far exceeding the capabilities of TTL modulation. Its high-speed scanning system (30kpps @ 8°) and a maximum scanning angle of 60° enable the projection of everything from simple geometric shapes to complex logos, text, and graphics with exceptional definition.
In terms of control, the laser can operate in standalone mode using pre-programmed shows, synchronized to music with an internal microphone, or integrated into advanced productions via DMX (12 or 23 channels) and ILDA (DB25 connector) . The front panel with LED display simplifies the configuration of modes, DMX channels, audio sensitivity, and other parameters without requiring a computer. It also features a safety interlock , Powercon in/out connectors, and comes standard in a rigid, waterproof PP flight case , ready for on-the-go transport.
Main features
-
Pure RGB diode laser 10W: 10,000 mW total output laser system based on high reliability diode modules.
-
Power per color: Red 2700mW @ 638nm , Green 2700mW @ 525nm and Blue 4600mW @ 455nm , a balanced combination for intense white and saturated colors.
-
RGB analog modulation: allows smooth color fade and a very wide color palette, ideal for complex laser show and graphic design.
-
Fast scanning system: 30kpps @ 8° optical scanner with a maximum angle of 60° , prepared for beam effects and graphic projections.
-
X/Y Inversion: X and Y axis size inversion function to adapt and correct figures according to the mounting position or projection surface.
-
DMX and stand-alone control: DMX and stand-alone modes, with pre-programmed shows , automatic function and sound-to-light mode with music activation.
-
Advanced DMX modes: selection of 12 or 23 DMX channels , allowing for basic to highly detailed control over color, shapes, size, position, and speed.
-
Master/Slave: ability to synchronize multiple units in master/slave mode to create multi-laser configurations without the need to program each device individually.
-

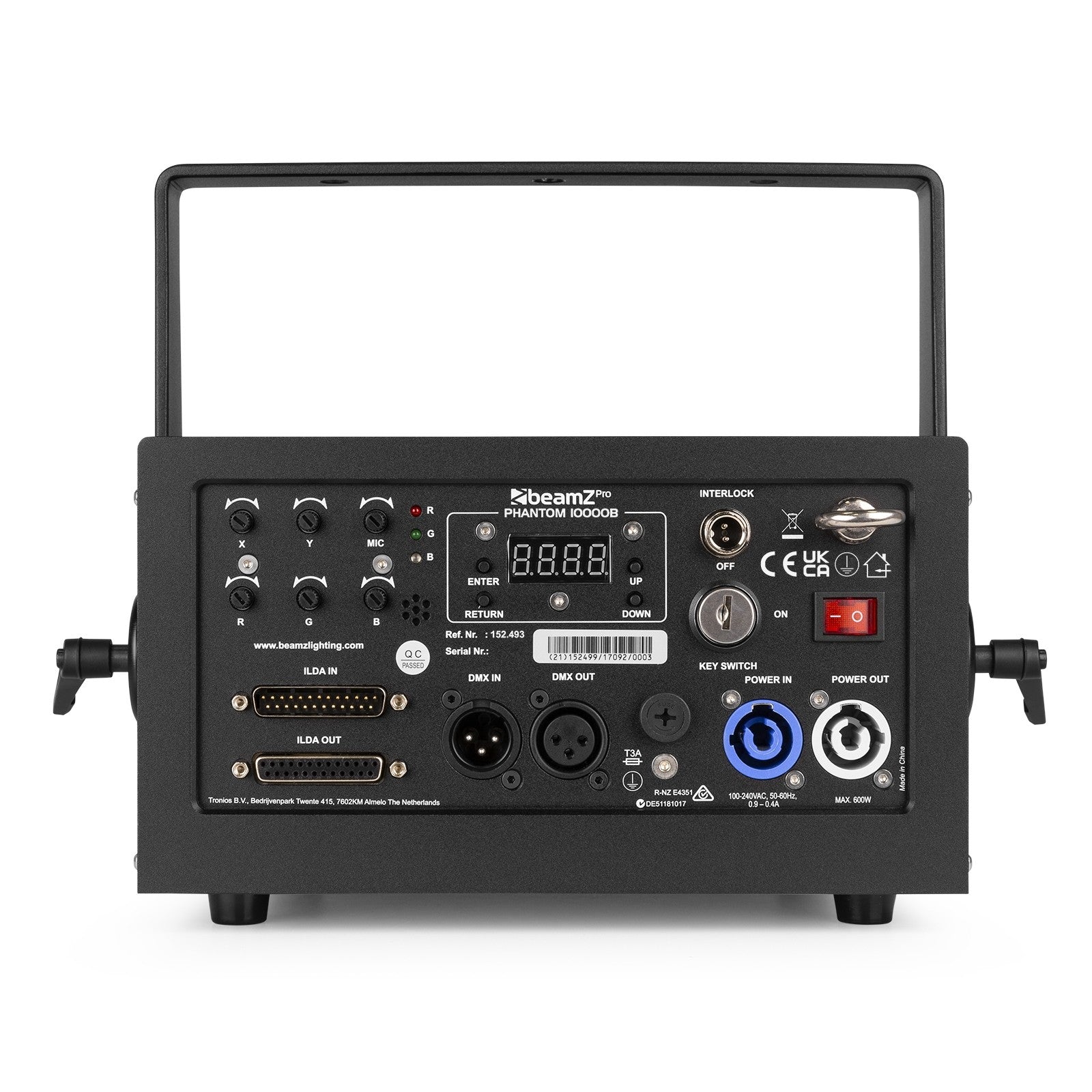

Professional connectivity: DMX in/out via 3-pin XLR and ILDA in/out with DB25 connector for control via compatible laser software.
-
Control panel: LED display and navigation buttons for selecting modes, DMX addresses, audio settings, geometry, etc.
-
Safety systems: interlock and locking functions according to regulations, essential in high-power lasers.
-
Professional power supply: Powercon in/out connectors to link power between several devices (within the recommended limits).
-
Robust and compact housing: black design, approximate dimensions 340 x 247 x 148 mm and weight 12 kg , optimized for touring and installation.
-

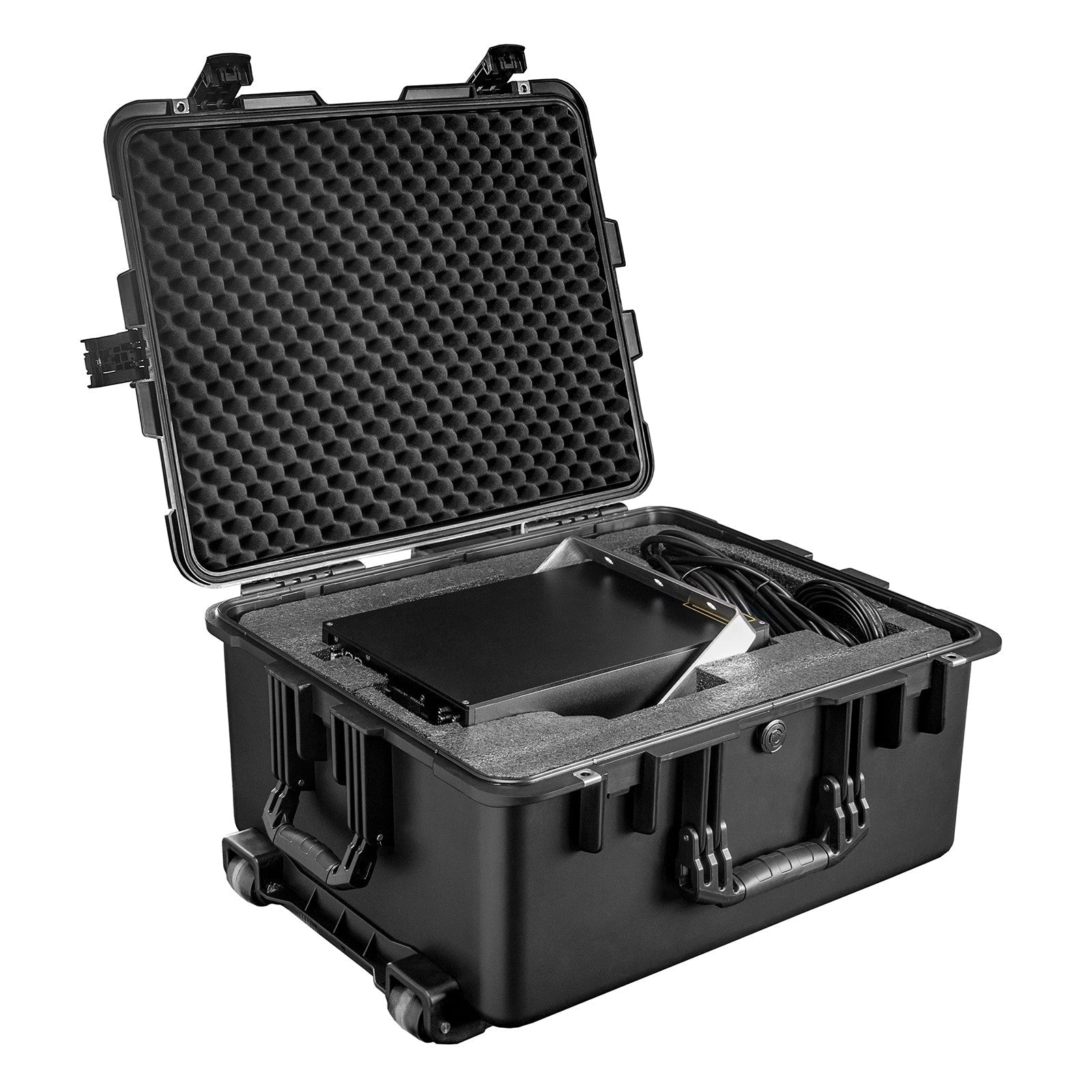

Flight case included: Supplied with a rigid, waterproof PP flight case , custom-designed to protect the laser during transport and storage.
-
Universal power supply: operates between 100–240 V AC, 50/60 Hz , suitable for international use.
Product benefits
The Phantom 10000B stands out not only for its power, but also for its versatility and beam quality, geared towards the professional market. It's a high-end solution for rental companies, clubs, festivals, and production companies that need a reliable laser capable of handling everything from entertainment events to mapping and branding projects.
-
Professional-level color and brightness: the combination of high-power diodes and analog modulation allows for very vivid colors, balanced whites, and smooth gradients, resulting in more attractive and accurate shows.
-
Maximum creative flexibility: with ILDA control it is possible to design custom shapes, texts, logos and graphics, while DMX and standalone modes streamline events where complex programming is not required.
-
Ready for touring and intensive rental: the rigid waterproof flight case and robust housing protect the unit during transport, reducing breakdowns and maintenance costs.
-
Quick integration into existing rigs: Standard 3-pin XLR connectors for DMX and Powercon for power make integration with the rest of the stage lighting easy.
-
Time savings in setup: pre-programmed shows , sound mode and DMX control allow you to adapt the laser to different types of gigs without having to redo the entire show each time.
-
Valuable for branding and corporate events: the ability to project precise graphics and text makes it a very useful tool for logos, messages, and brand image elements.
-
Multipurpose use: the range of applications covers fixed installation, mobile disco, multimedia projects, controlled outdoor areas and graphics projection , with a single piece of equipment capable of covering very different needs.
Use cases
-
Fixed installations in clubs and discos: as the main room laser or part of a multi-laser system for choreographed shows.
-
Rental and production companies: high-end equipment for tours, corporate events, festivals and large-scale shows.
-
Multimedia projects and mapping: use in combination with video, projection and other effects to create immersive experiences and complex graphics.
-
Concerts and live performances: visual enhancement of bands, DJs and live shows with beam effects and aerial figures.
-
Corporate events and branding: projection of logos, texts and graphics on facades, cycloramas or prepared surfaces.
-
Outdoor applications (controlled): outdoor laser shows, always respecting current regulations, safety distances and exclusion zones for the public.
Frequently Asked Questions
What do I need to control the Phantom 10000B via ILDA?
To control it via ILDA , a compatible ILDA interface and laser control software (not included) are required from a computer. This system allows for the design and reproduction of custom graphics, text, and shows with much greater precision than DMX alone.
Can I use the laser with DMX only and without a computer?
Yes. The Phantom 10000B can operate in DMX mode with 12 or 23 channels , offers pre-configured internal programs , and automatic and music-activated modes. This allows it to be used at events with a simpler setup without sacrificing spectacular effects.
Is it suitable for outdoor use?
The laser can be used in outdoor applications provided it is installed under suitable conditions (protected from rain, dust, and humidity) and that all applicable regulations and safety recommendations for high-power lasers are followed. It is important that its installation and operation be carried out by qualified personnel.
Does it include the flight case?
Yes. The Phantom 10000B comes with a custom-designed , waterproof, rigid PP flight case , making it easy to transport safely and store the equipment when not in use.
What type of security does it incorporate?
The device includes an interlock and front panel control, and meets standard safety requirements for lasers of this power. Always follow the manufacturer's manual and local regulations, avoiding direct projection towards the public or unauthorized areas.
Safety and usage recommendations
The Phantom 10000B is a high-power laser intended for professional use . It must be installed, adjusted, and operated by personnel trained in laser safety, following the manufacturer's instructions and applicable regulations in each country. It is essential to plan projection areas, distances to the audience, beam height, and potential reflections to ensure safe operation at all times.
Project description
Professional beamZ Pro Phantom 10000B laser with pure RGB 10W diode (Red 2700mW @ 638nm, Green 2700mW @ 525nm, Blue 4600mW @ 455nm), with analog modulation , 30kpps @ 8° scanning system, 60° maximum scanning angle, X/Y inversion function, stand-alone, DMX (12/23 channels), master/slave, auto and sound modes, DMX in/out XLR 3 pin and ILDA in/out DB25 connectivity, control panel with LED display, safety interlock, Powercon in/out power connectors, compact black housing approximately 340 x 247 x 148 mm and 12 kg in weight, 100–240 V AC 50/60 Hz power supply, supplied with waterproof PP rigid flight case .
