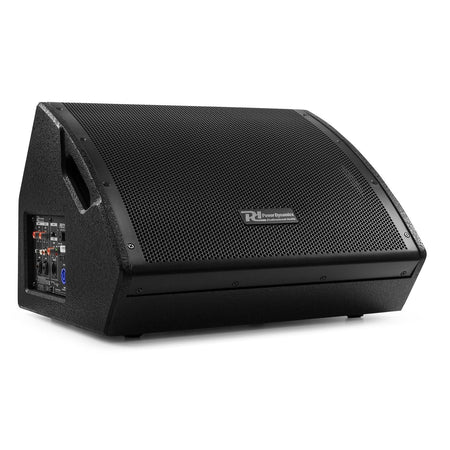

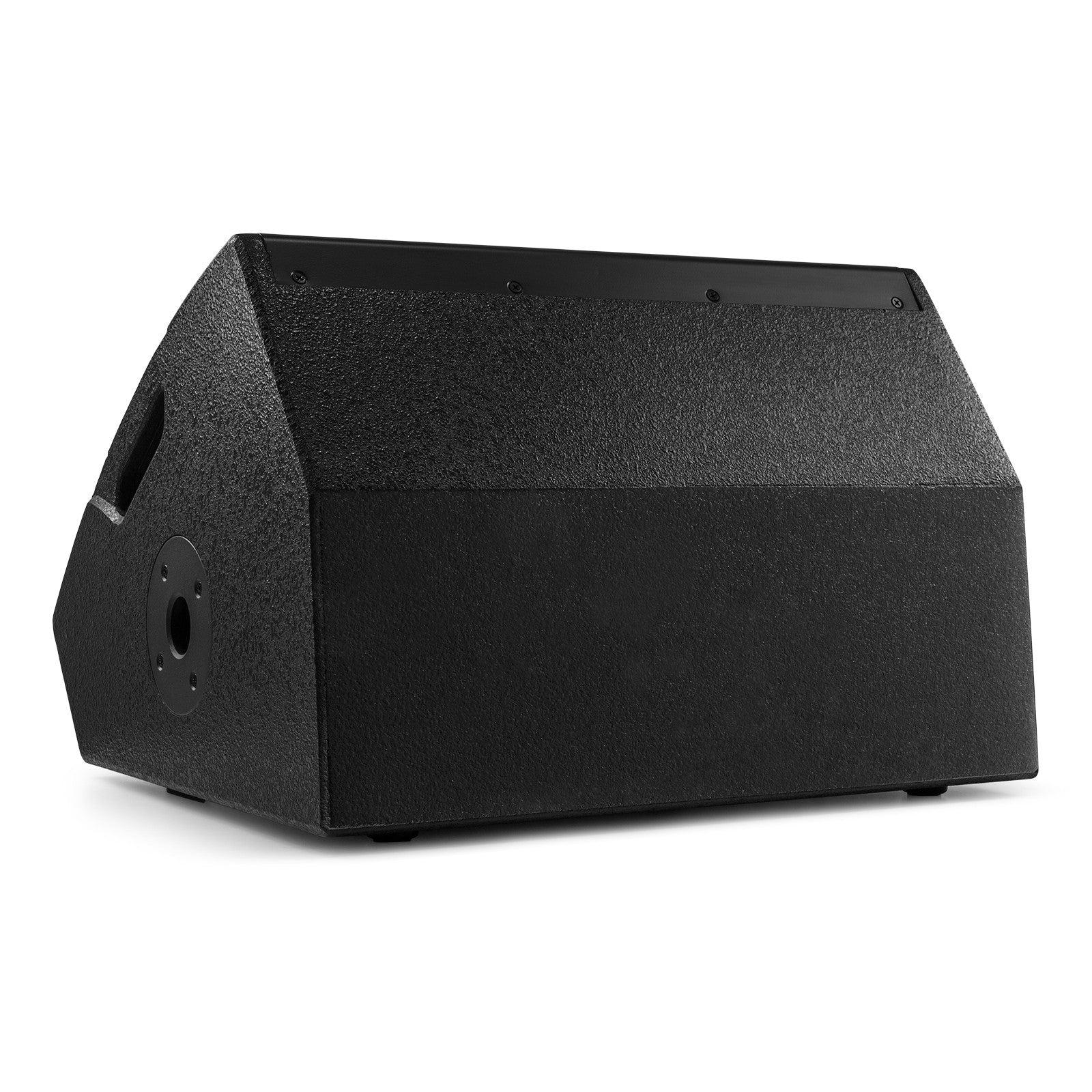

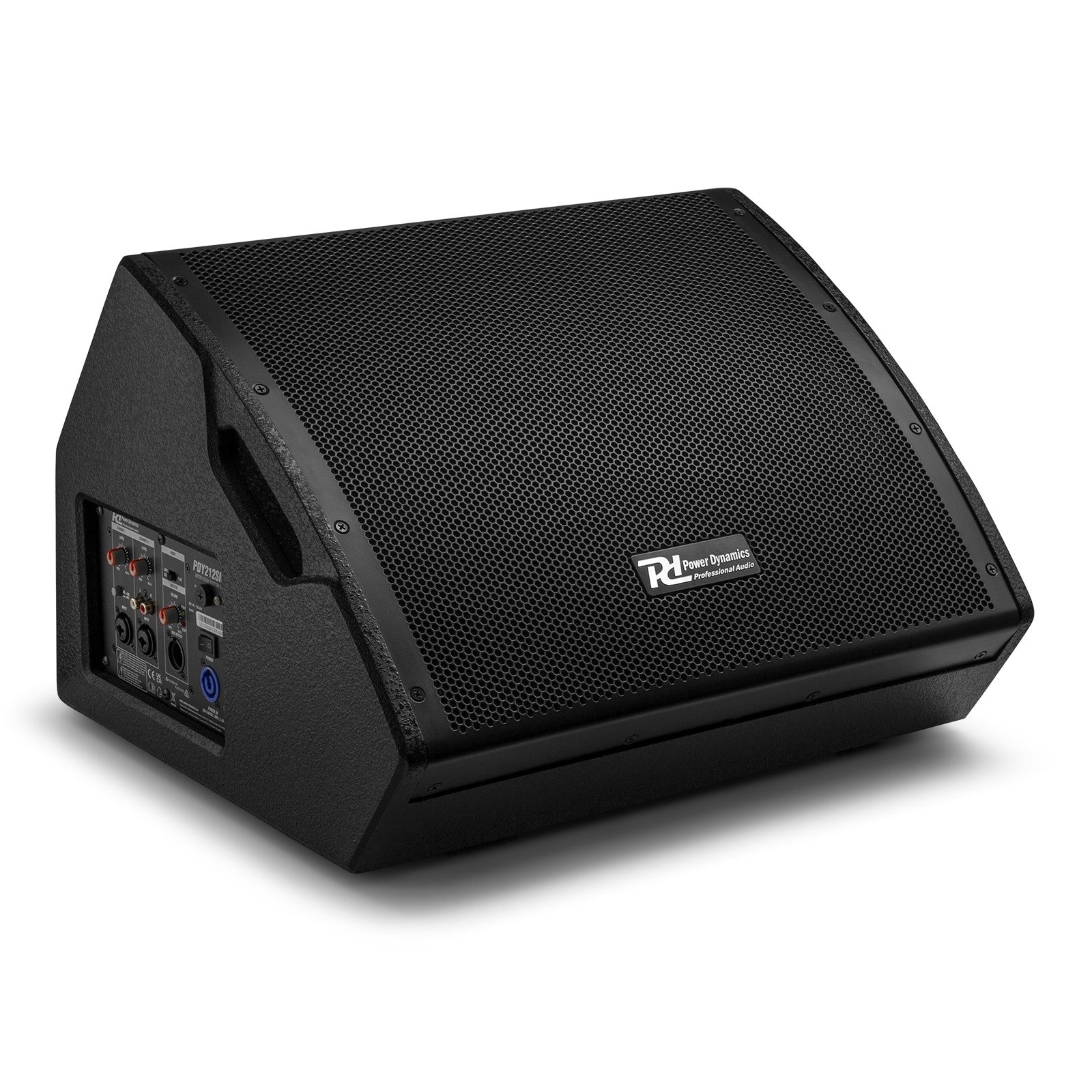

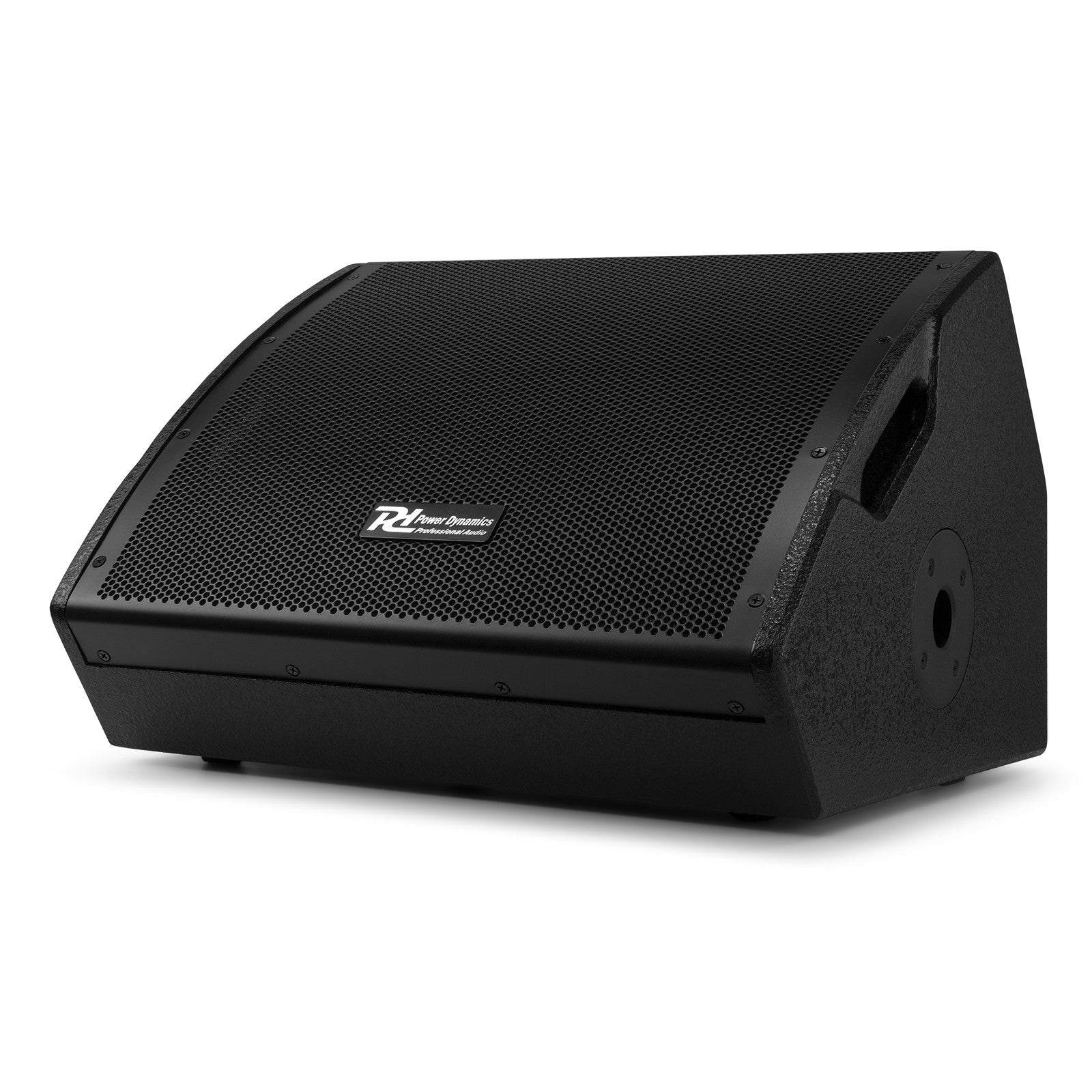

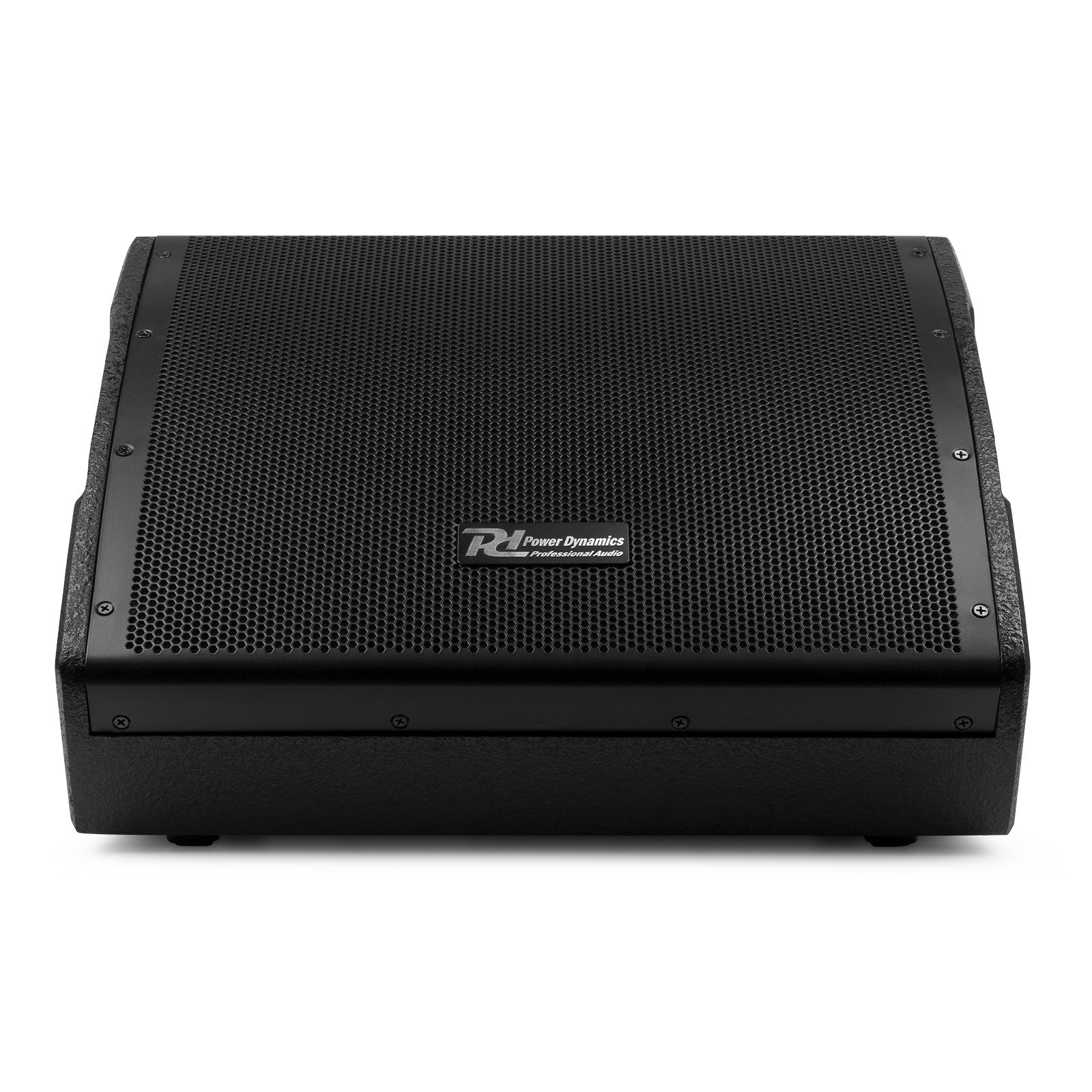

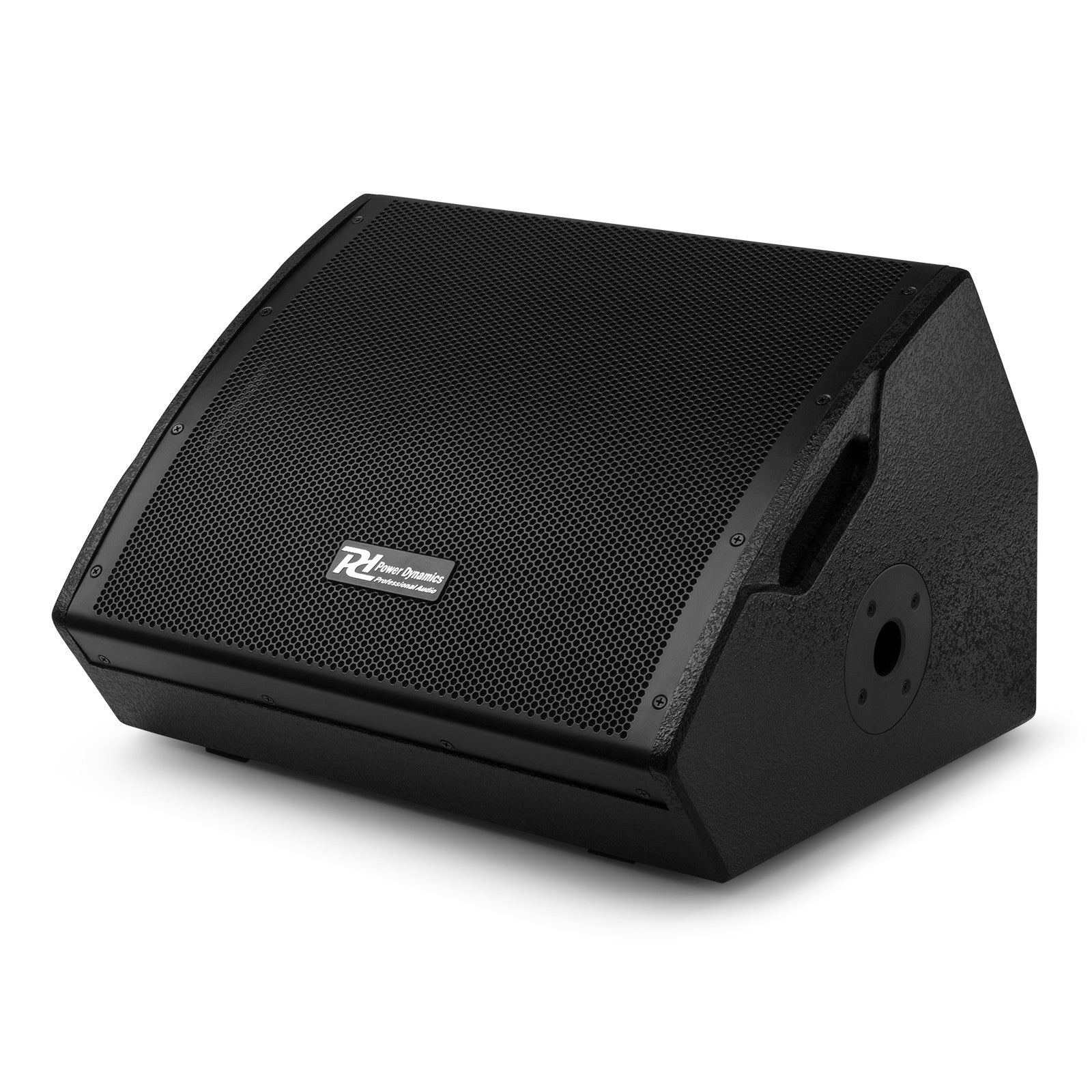

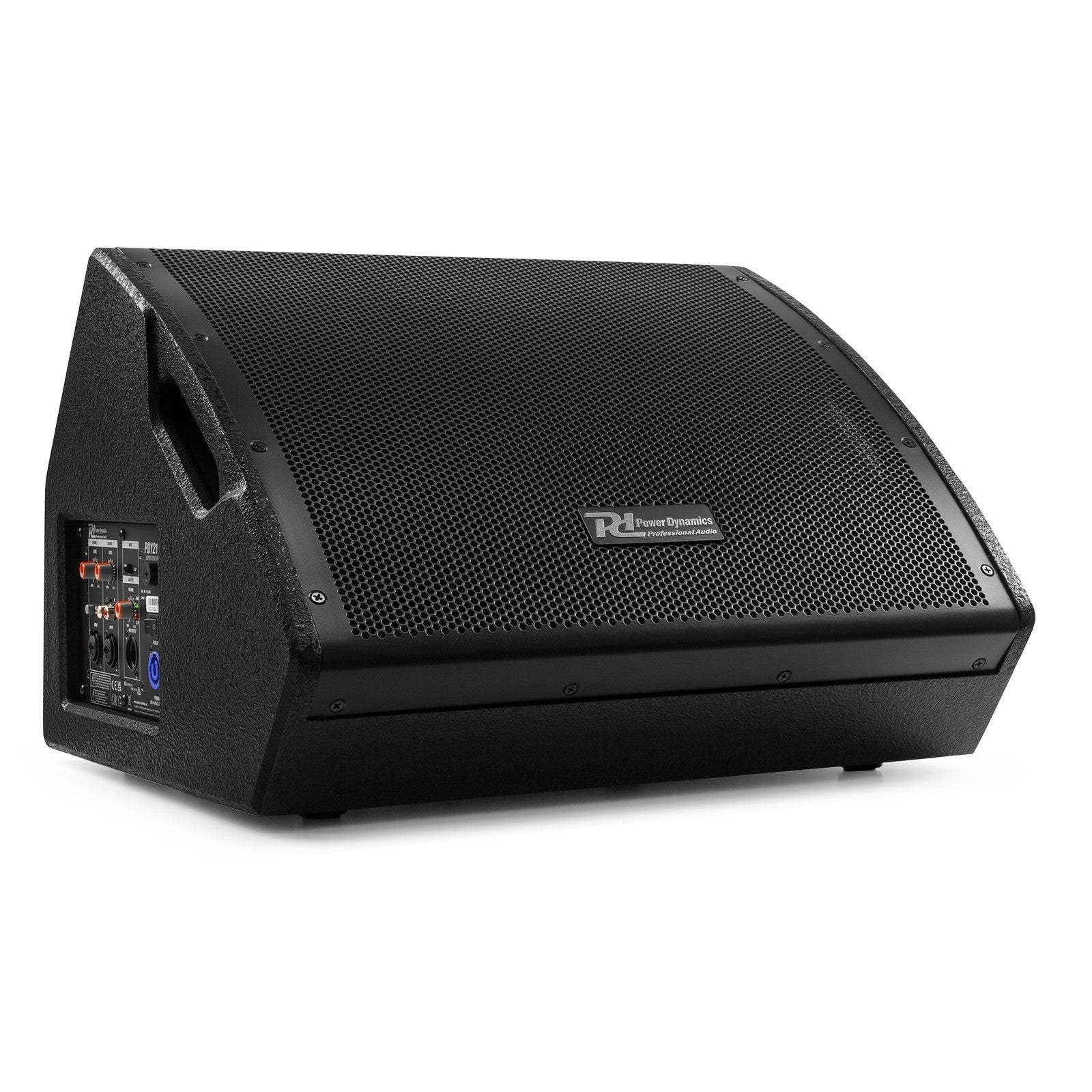

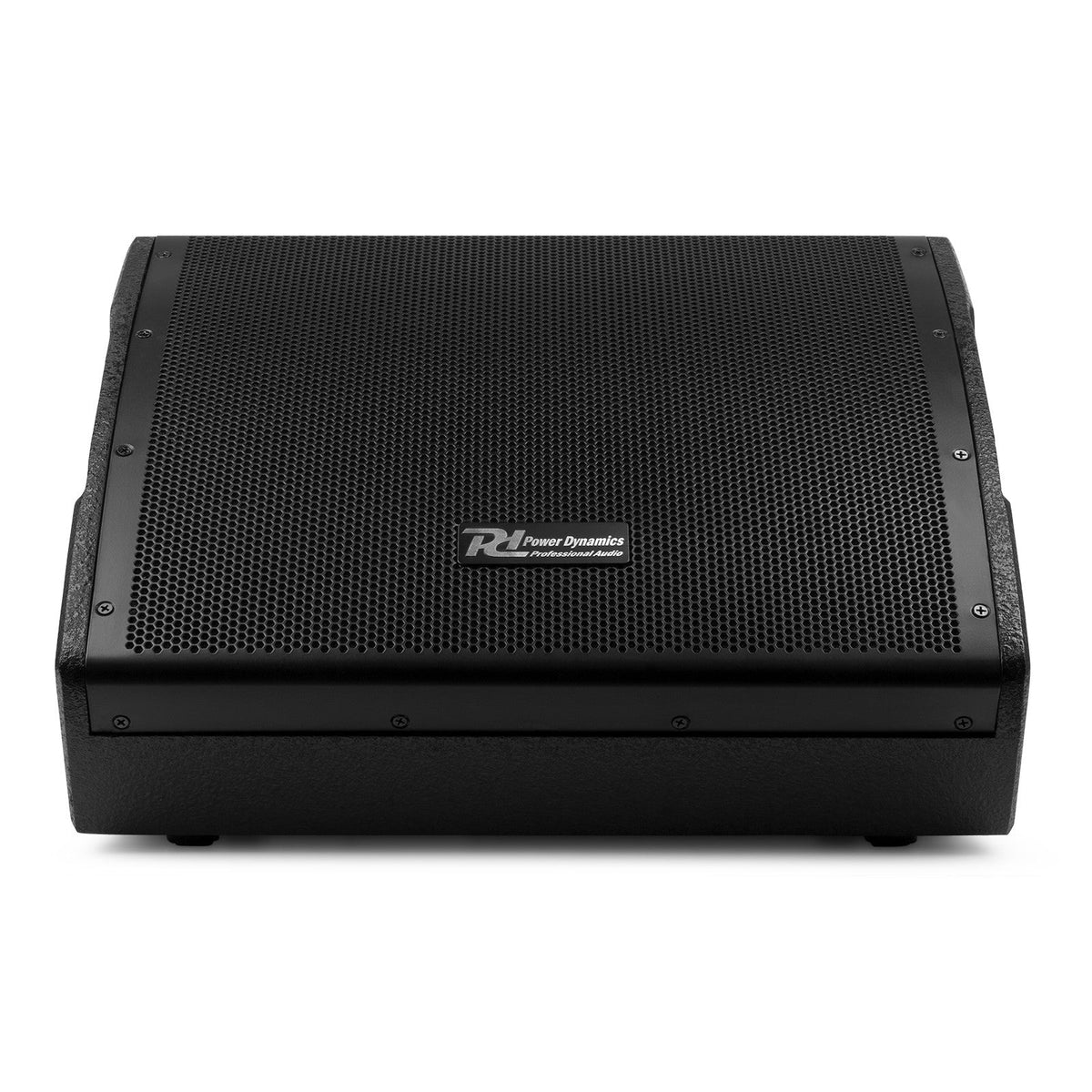

Power Dynamics PDY212SM - 12-Inch 700W Active Stage Monitor
The Power Dynamics PDY212SM is an active stage monitor designed for professionals seeking clear, powerful, and reliable sound in any situation. This high-quality, bi-amplified speaker delivers exceptional audio reproduction thanks to its intelligent design, combining a 12-inch woofer for punchy bass and a 1-inch titanium compression driver for crisp, defined highs. With a peak power of 700W, it's the perfect solution for musicians, DJs, and sound engineers who need a precise auditory reference on stage.
Its bi-amplified architecture is one of its key strengths: it uses a Class D amplifier for low frequencies, guaranteeing high efficiency and power with low weight, and a Class AB amplifier for high frequencies, renowned for its warmth and sonic fidelity. This combination ensures a balanced sound with low distortion, even at high volumes. Furthermore, it incorporates a digital signal limiter that protects the internal components from power spikes, ensuring a long lifespan and consistent performance. Its robust construction with an extra-durable finish and integrated side handles makes it easy to transport and prepares it for the demands of continuous use on tours or in fixed installations.
Main Features
-
Power and Clarity: It offers a maximum power of 700W (350W RMS) and a maximum sound pressure level (SPL) of 128 dB, ensuring that the sound is heard clearly in any environment.
-
Bi-Amplified Design: Combines a Class D amplifier for the 12" woofer and a Class AB amplifier for the tweeter, optimizing efficiency and sound quality across the entire frequency spectrum.
-

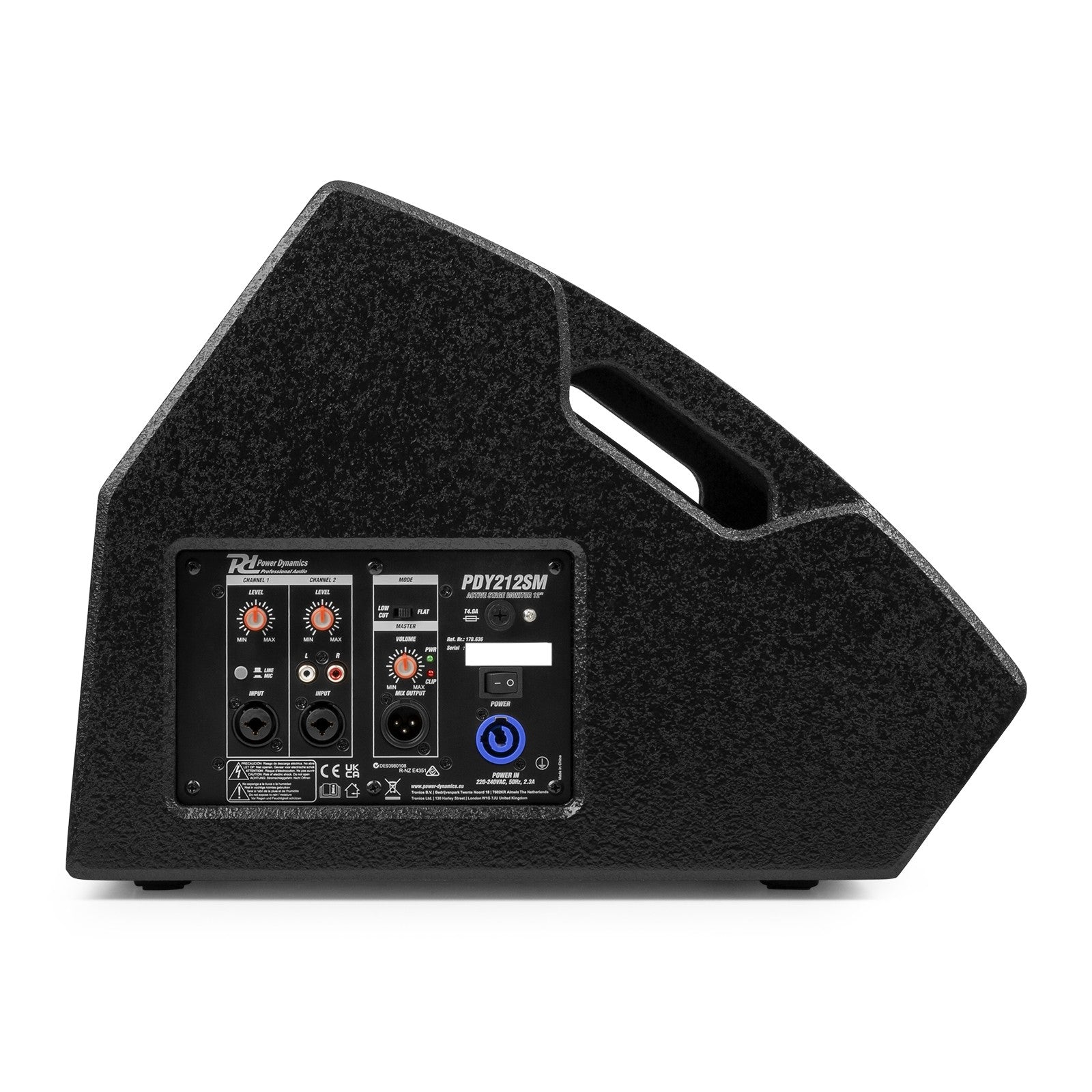

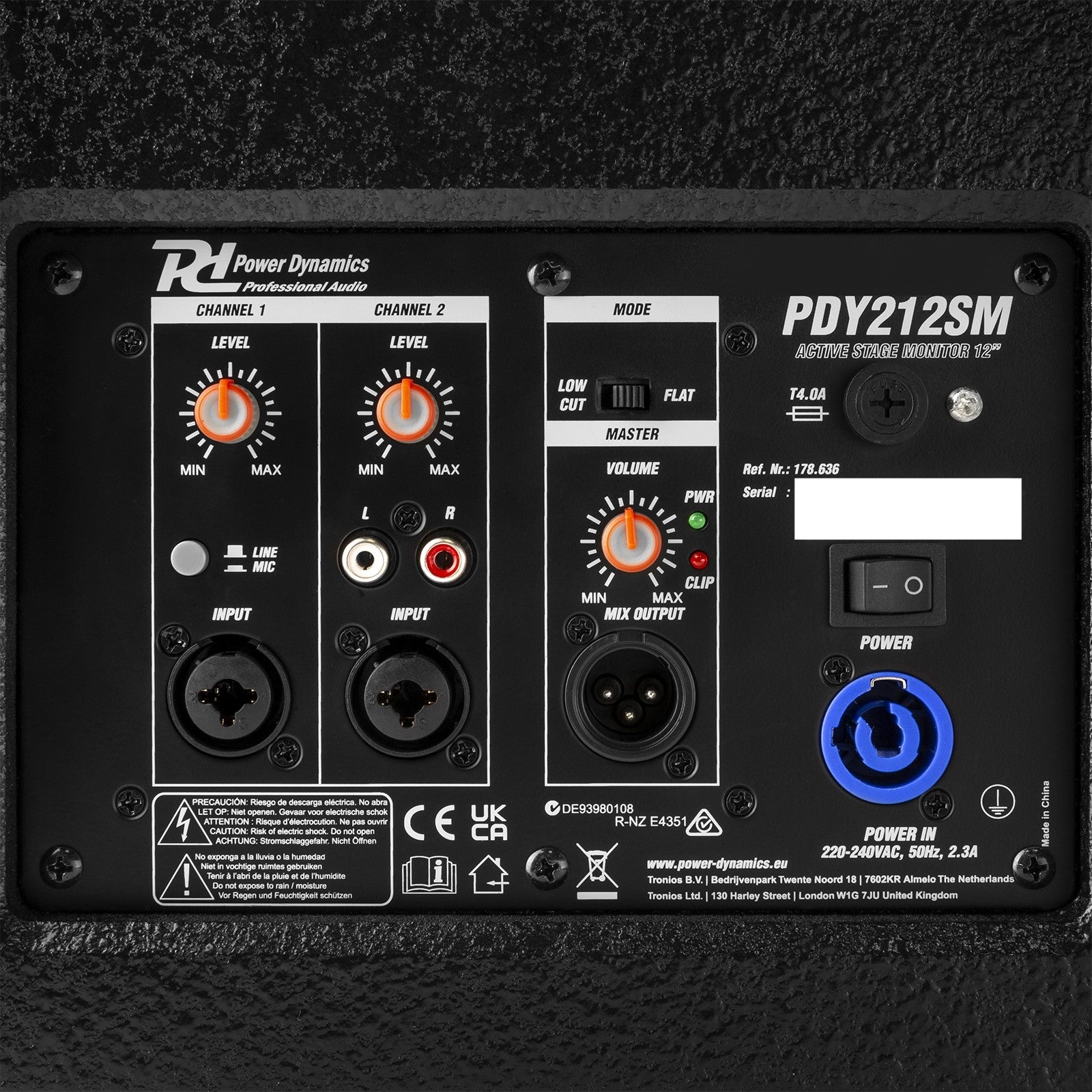

Integrated Mixer: Equipped with a two-channel mixer with independent line/microphone inputs (XLR, 6.3 mm jack and RCA), allowing you to connect various audio sources directly.
-
Advanced Protection: Includes a digital limiter to prevent distortion and protect the speaker, along with a delayed soft start system for added safety.
-
Robust Construction: Designed with a sturdy acoustic enclosure and durable finish, ready to withstand the rigors of live use and touring.
-
Professional Connectivity: It has an XLR (3-pin) output for easy linking to other active speakers or PA systems.
Benefits for the Musician and the Sound Technician
The PDY212SM is designed to make working on stage easier. Musicians and singers will get a clear and powerful audio reference that allows them to hear themselves perfectly, enhancing their performance. For sound engineers, its integrated mixer offers flexibility for quick setups, allowing them to connect a microphone or instrument directly without the need for an external mixing console. The reliability provided by the digital limiter and soft start ensures trouble-free operation during any event.
Use Cases
This monitor is extremely versatile and suitable for a wide variety of professional applications:
-
Floor Monitor: Its wedge-shaped design is perfect for placing on stage, providing direct and clear listening for artists.
-

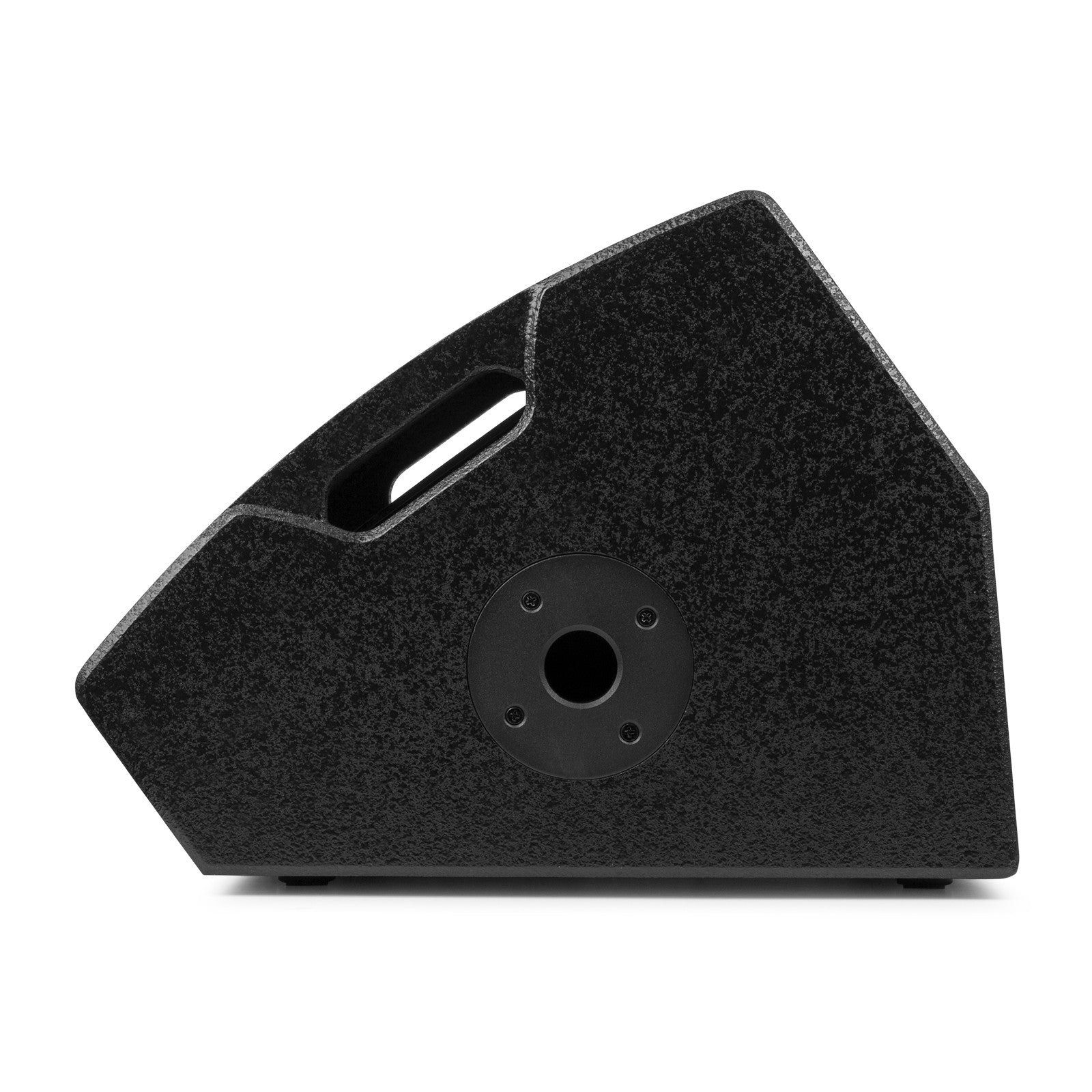

Compact PA System: Thanks to its 35mm tripod socket, it can be mounted on a stand and used as a main speaker at small events, conferences, bars or gyms.
-
Rehearsal Rooms: Its power and frequency response make it an ideal choice for bands to rehearse with high-quality sound.
-
Fixed Installations: Suitable for use in clubs, restaurants, auditoriums and places of worship that require reliable, high-performance sound reinforcement.
Frequently Asked Questions
Can I connect a microphone directly to this monitor?
Yes, you can connect a microphone directly using the XLR/6.3mm combo input on your integrated two-channel mixer.
Do I need an external amplifier for it to work?
No, the PDY212SM is an active speaker, which means it has its own built-in amplifiers. You just need to connect it to the power supply and your audio source.
What does it mean that it is "bi-amplified"?
This means the speaker has two separate amplifiers inside: one dedicated to powering the woofer (low frequencies) and another for the tweeter (high frequencies). This allows for more precise and efficient sound control, resulting in greater clarity and performance.
Is it possible to use it as a main speaker for a small audience?
Yes, thanks to its power, as it includes a pole mounting socket, it can be used as the main speaker on a standard stand for events in small and medium-sized venues.
Project description
This 2-way active stage monitor boasts a maximum power output of 700W (350W RMS). It features a 12-inch ferrite magnet woofer and a 1-inch titanium compression driver with a 1.4-inch voice coil. The system is bi-amplified, utilizing a Class D amplifier for low frequencies and a Class AB amplifier for high frequencies. It offers a frequency response of 40 Hz to 20,000 Hz and achieves a maximum SPL of 128 dB. An integrated 2-channel mixer with XLR, 6.3 mm jack, and RCA inputs is included, along with an XLR line output. A digital signal limiter and digital master volume control are also incorporated. Its dimensions are 455 x 340 x 505 mm, and it weighs 17.2 kg.
