Power Dynamics PDY212A - 12" Active Speaker with 700W, DSP and Bluetooth

Power Dynamics PDY212A - 12" Active Speaker with 700W, DSP and Bluetooth

The Power Dynamics PDY212A is a high-quality, professional active loudspeaker designed to deliver exceptional sound performance in a wide variety of applications. Part of the renowned PDY series, this 12-inch bi-amplified speaker combines robust power with superior audio clarity, providing a wide frequency response and balanced sound from any listening position. Its solid construction and advanced features make it the ideal and cost-effective solution for live sound reinforcement, permanent installations, and corporate events.

At the heart of the PDY212A lies a sophisticated bi-amplification system that utilizes the best of two technologies: a Class D amplifier to power the woofer, ensuring efficient and powerful bass reproduction, and a Class AB amplifier for the tweeter, delivering exceptional warmth and clarity in the high frequencies. This combination guarantees detailed, distortion-free audio, even at high volumes. Furthermore, its robust enclosure is constructed from plywood with an extra-durable finish, surpassing conventional plastic cabinets in both durability and acoustic response.

Main Features

• Superior Performance: 2-way active speaker with a 12-inch woofer and a 1-inch titanium compression driver, delivering a maximum power of 700W (350W RMS).
• Advanced Bi-Amplified System: Combines a Class D amplifier for bass and a Class AB amplifier for treble, achieving a perfect balance between efficiency, power and sound fidelity.
• Digital Sound Processor (DSP): Includes an integrated DSP with LCD screen and several presets (PA, Monitor, Sub, Speech) to instantly adapt the sound to different applications and acoustic environments.
• Bluetooth Wireless Connectivity: Enables high-quality audio streaming directly from any compatible smartphone, tablet, or computer, eliminating the need for cables.

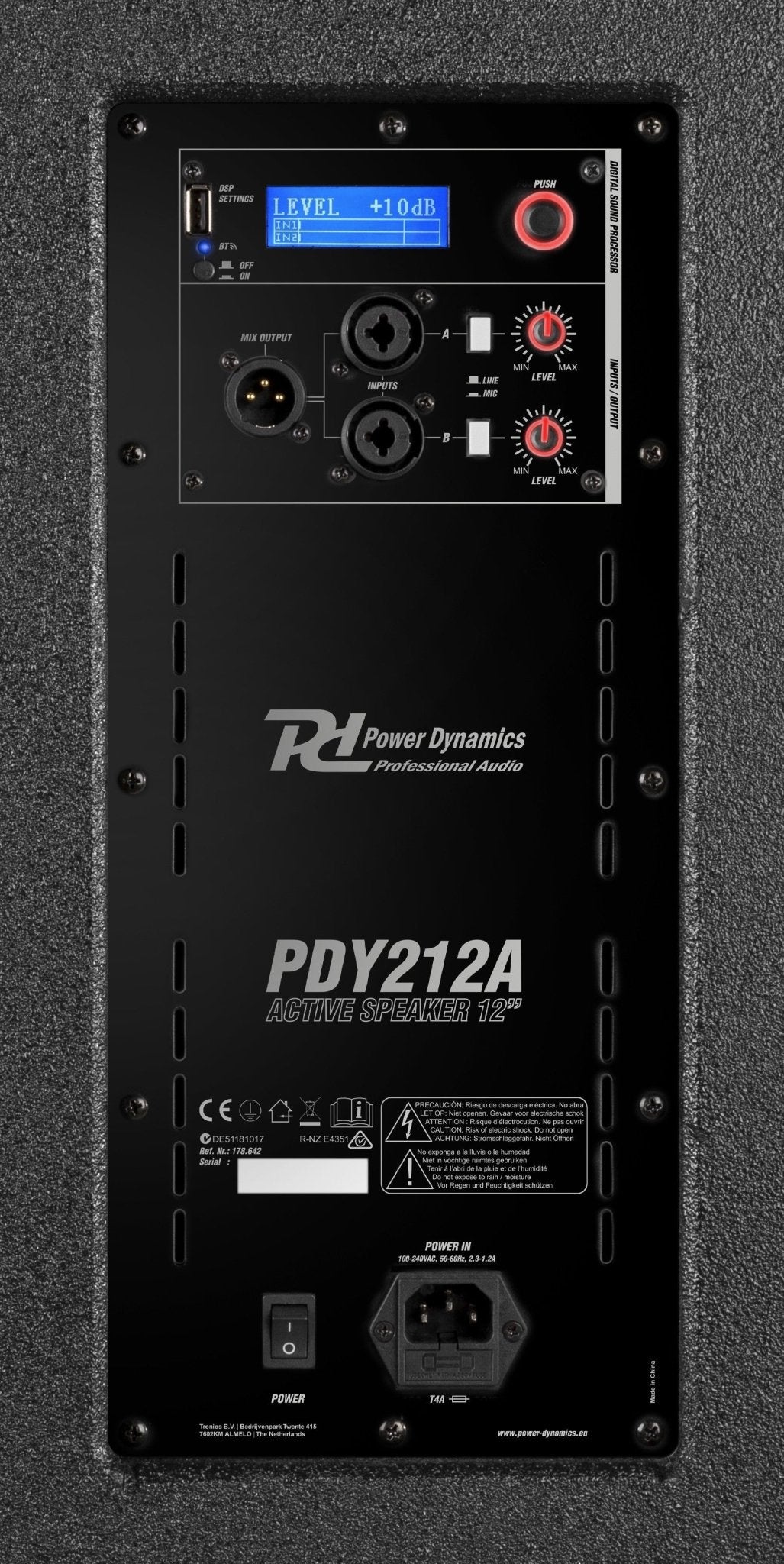

• Integrated Mixer: It has a 2-channel mixer with XLR/6.3 mm combo inputs, switchable between line and microphone level, and independent volume controls.
• Professional Construction: Made from plywood for superior acoustics and increased durability. Equipped with side handles, a 35mm socket for tripod mounting, and M8 fly points for permanent installations.
• Protection and Reliability: Incorporates a digital signal limiter and a soft start system to protect components and ensure a long service life.

Benefits for the Sound Professional

The Power Dynamics PDY212A is designed with the professional user in mind. Its exceptional sound quality, with a maximum SPL of 128 dB, ensures that every musical detail is heard clearly, from the deepest bass to the clearest treble. Flexibility is key: the integrated DSP allows you to optimize the audio at the touch of a button, while the two-channel mixer offers the ability to connect microphones and instruments directly—ideal for small-scale performances without the need for an external mixing console. Bluetooth connectivity adds an unprecedented level of convenience for wirelessly playing background music or backing tracks.

Use Cases

The PDY212A's versatility makes it perfect for a multitude of scenarios. It's an excellent choice as a main PA system in concert halls, clubs, pubs, and restaurants. For mobile DJs and rental companies, its ruggedness and portability make it a reliable and cost-effective solution. In fixed installations such as gyms, auditoriums, or houses of worship, its rigging points allow for clean and professional integration. It's also a powerful tool for presentations and conferences, where the DSP's "Speech" preset ensures maximum speech intelligibility.

Frequently Asked Questions

Can I connect a microphone directly to the speaker?
Yes, the speaker has a two-channel mixer with combo inputs (XLR/6.3mm Jack) that can be switched to microphone level, allowing you to connect a microphone directly and control its volume.

What presets does the DSP processor include?
The DSP comes with four factory presets designed to optimize the sound according to the application: PA (general use), Monitor (for use as a stage monitor), Sub (for use alongside a subwoofer), and Speech (for speech and voice).

Is it possible to mount this speaker on a tripod?
Yes, it is equipped with a standard 35mm socket at its base for secure and stable mounting on any conventional speaker tripod.

Does the Bluetooth connection allow pairing two speakers in stereo (TWS)?
No, the Bluetooth function is designed to receive a mono audio signal on a single speaker. For a stereo setup, the signal must be sent via cable from a mixing console or audio source with stereo outputs.

What material is the enclosure made of?
The enclosure is made of plywood, a material that offers superior acoustic properties and greater robustness compared to plastic speakers.

Project description

Two-way active speaker with 350W RMS and 700W peak power. It features a 12-inch woofer with a 3-inch voice coil and a 1-inch compression driver with a 1.4-inch voice coil. The bi-amplified system uses a Class D amplifier for low frequencies and a Class AB amplifier for high frequencies. Frequency response is 45 Hz to 20 kHz, and the maximum SPL is 128 dB. It includes a Digital Sound Processor (DSP) with four presets, Bluetooth connectivity, and a two-channel mixer with XLR and 6.3 mm jack inputs. Constructed of plywood, it has a 35 mm tripod socket and M8 mounting points.
