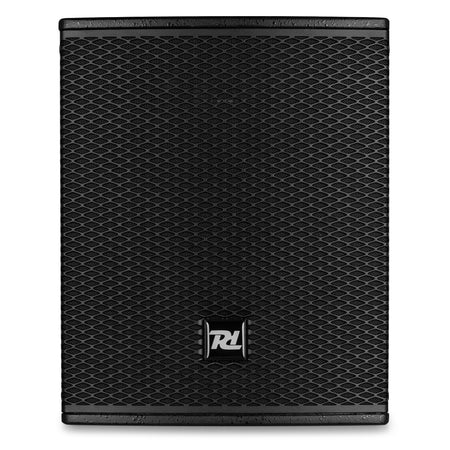

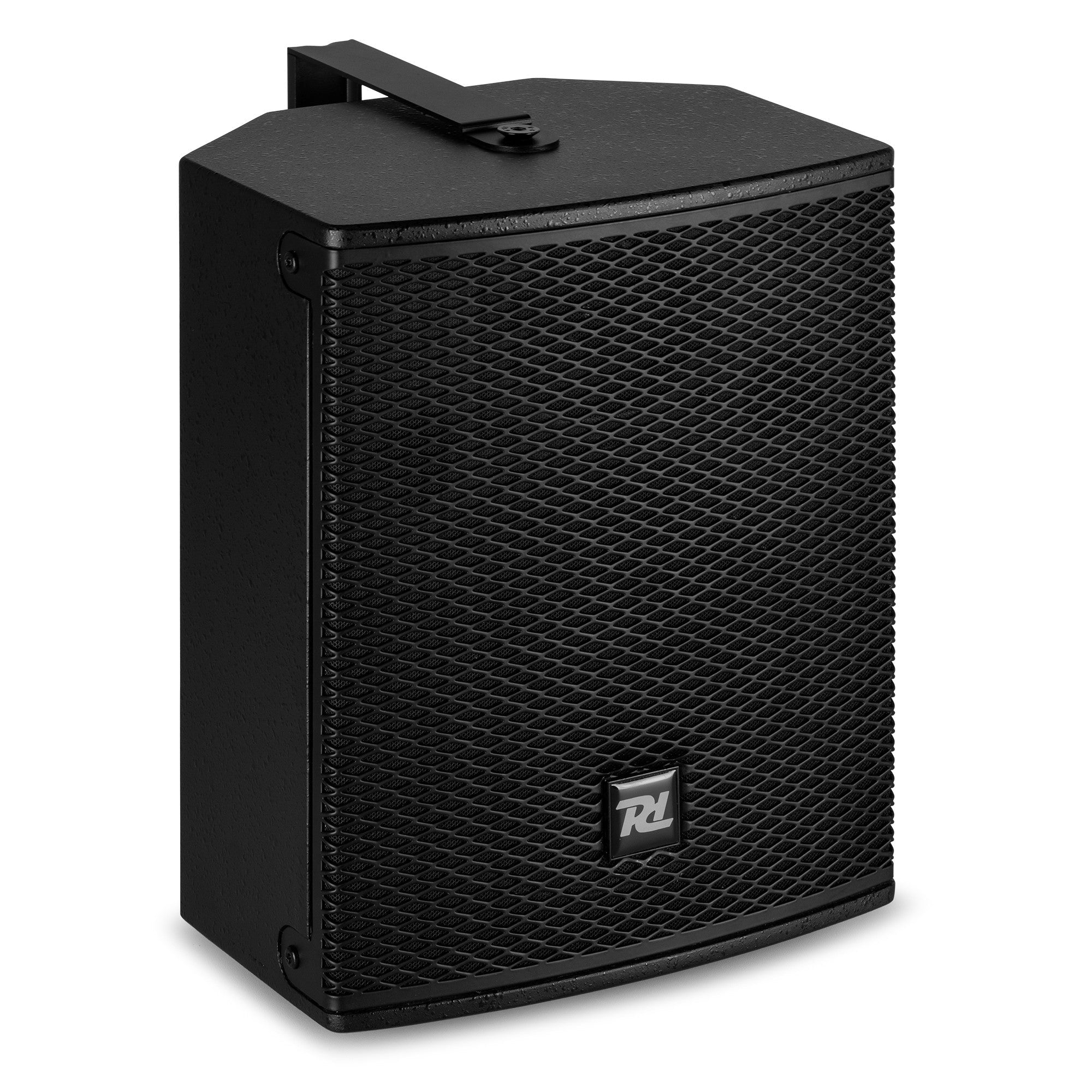

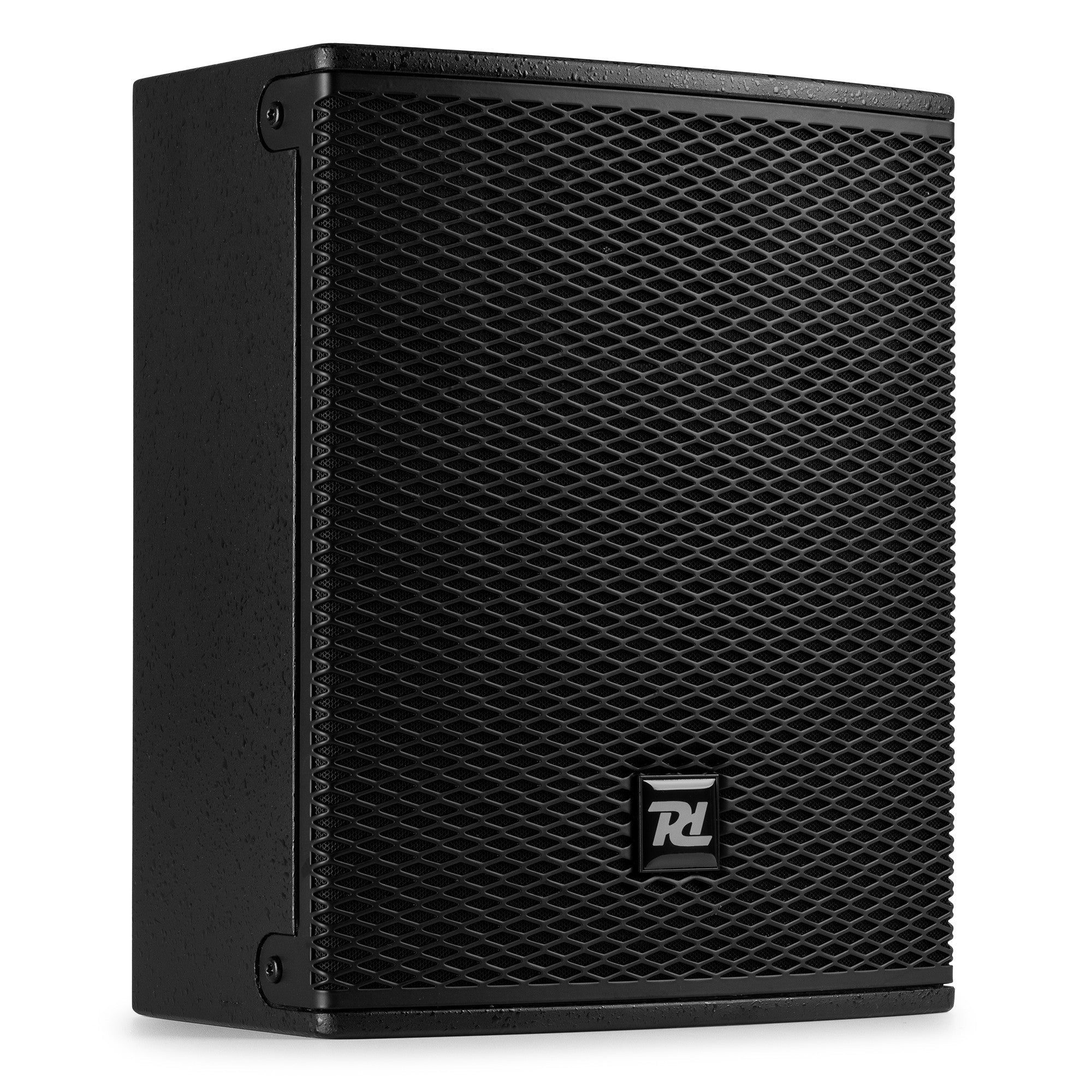

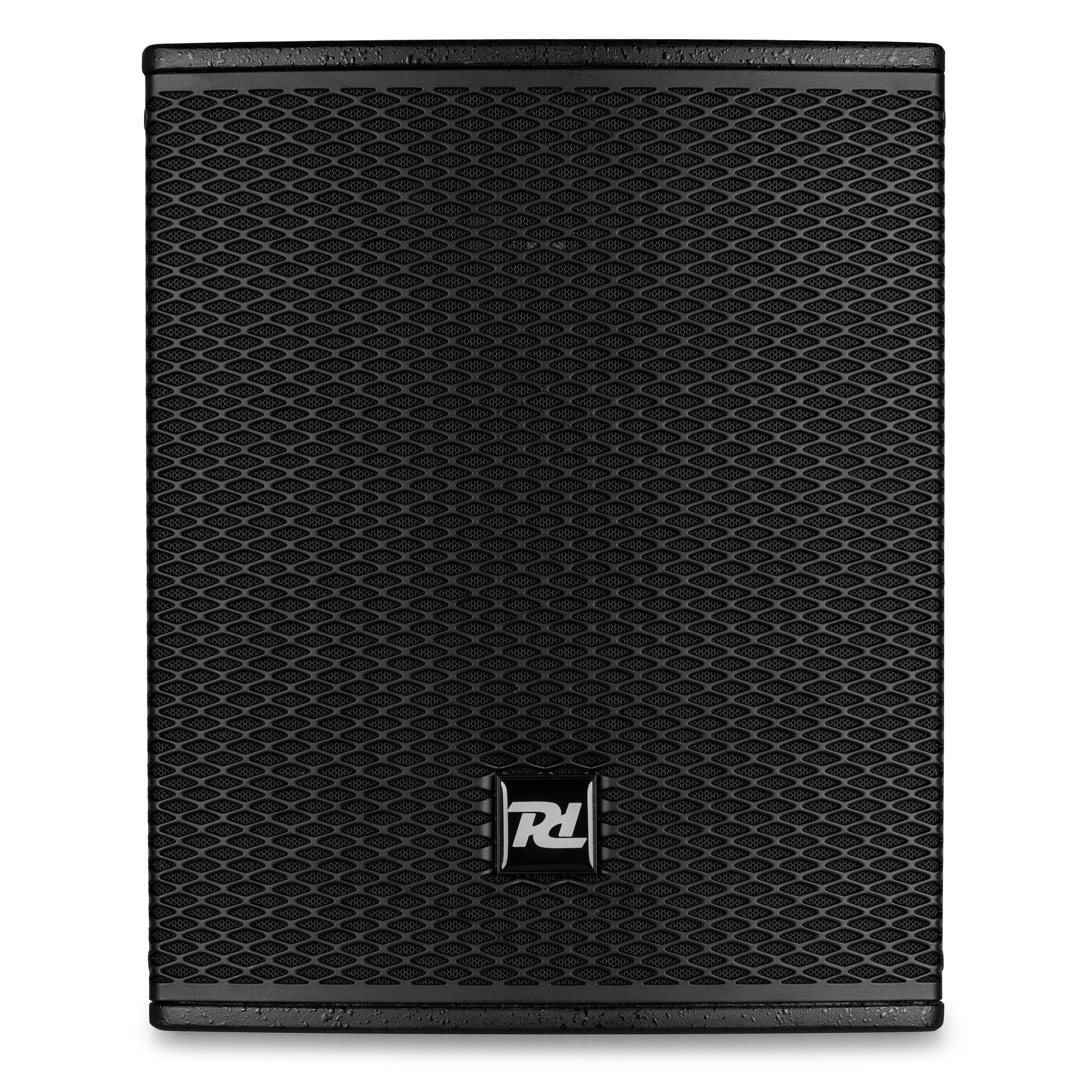

Power Dynamics PDW6B - 6.5" Passive Installation Speaker in Black
The Power Dynamics PDW6B is a passive, two-way, full-range speaker designed to deliver high-fidelity audio reproduction for both music and speech. Built with high-quality components, this speaker guarantees powerful, clear sound, capable of filling any space with exceptional acoustics. Its bass-reflex design, combining a 6.5-inch woofer and a 2.75-inch wide-dispersion dome tweeter, ensures deep bass response and clear, detailed highs.
The plywood enclosure, finished in a stylish textured black, not only lends a professional aesthetic but also ensures superior durability and controlled acoustic resonance. Thanks to its compact size and streamlined design, the PDW6B is the perfect solution for installations in space-constrained environments such as shops, bars, conference rooms, or home studios, without compromising sound quality. Its versatility is further enhanced by the inclusion of a metal wall bracket and suspension points, facilitating secure and flexible mounting.
Main features
-
2-way Bass-Reflex System: Optimized configuration with a bass port that enhances low-frequency response, providing a full and balanced sound.
-
Power and Performance: Capable of handling 150W RMS power and peaks of up to 300W, ideal for a wide range of sound applications.
-
Quality Components: Equipped with a 6.5-inch ferrite magnet woofer and a 2.75-inch dome tweeter for accurate reproduction across the entire sound spectrum.
-

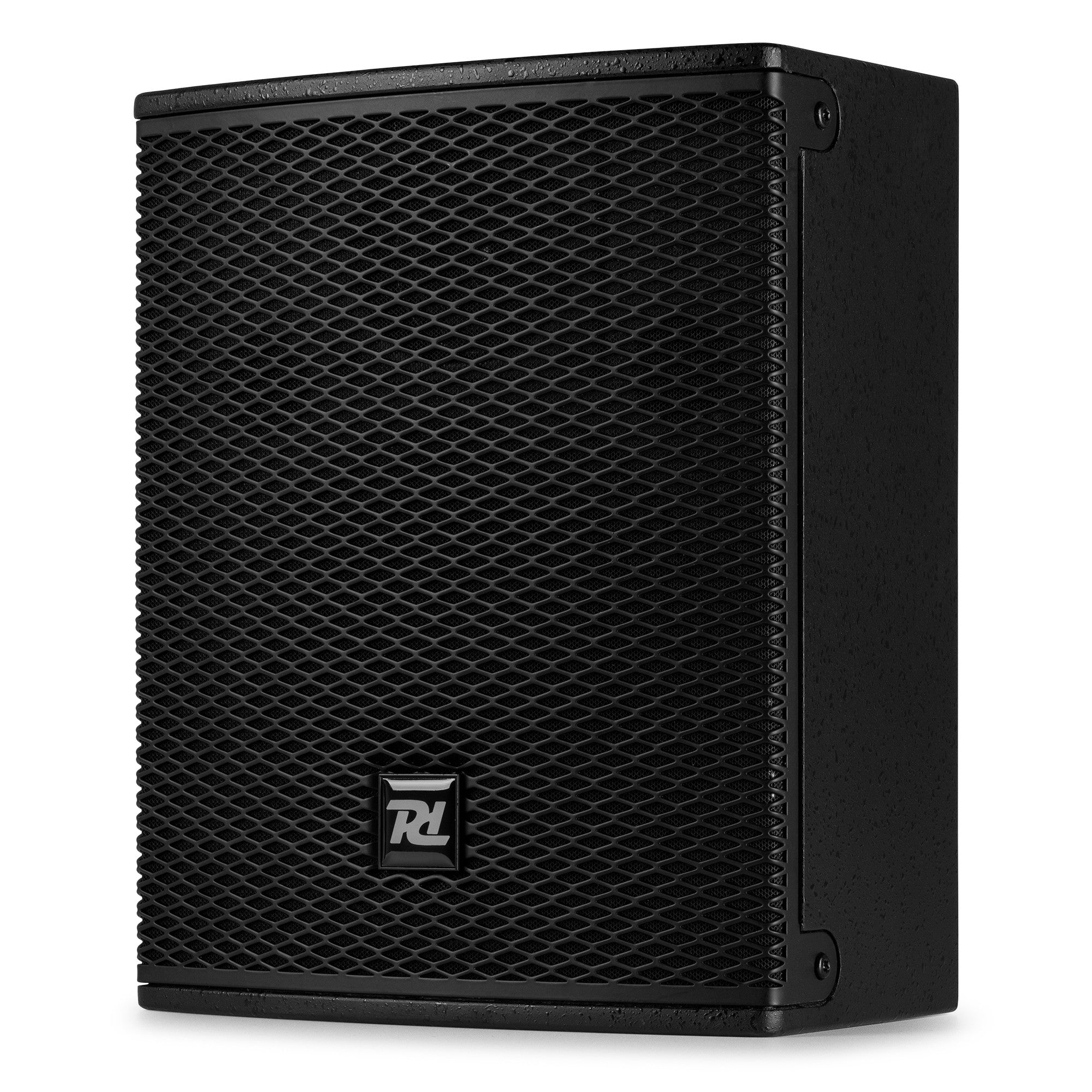

Robust Construction: Durable plywood casing with a professional textured black finish and a robust metal grille to protect internal components.
-

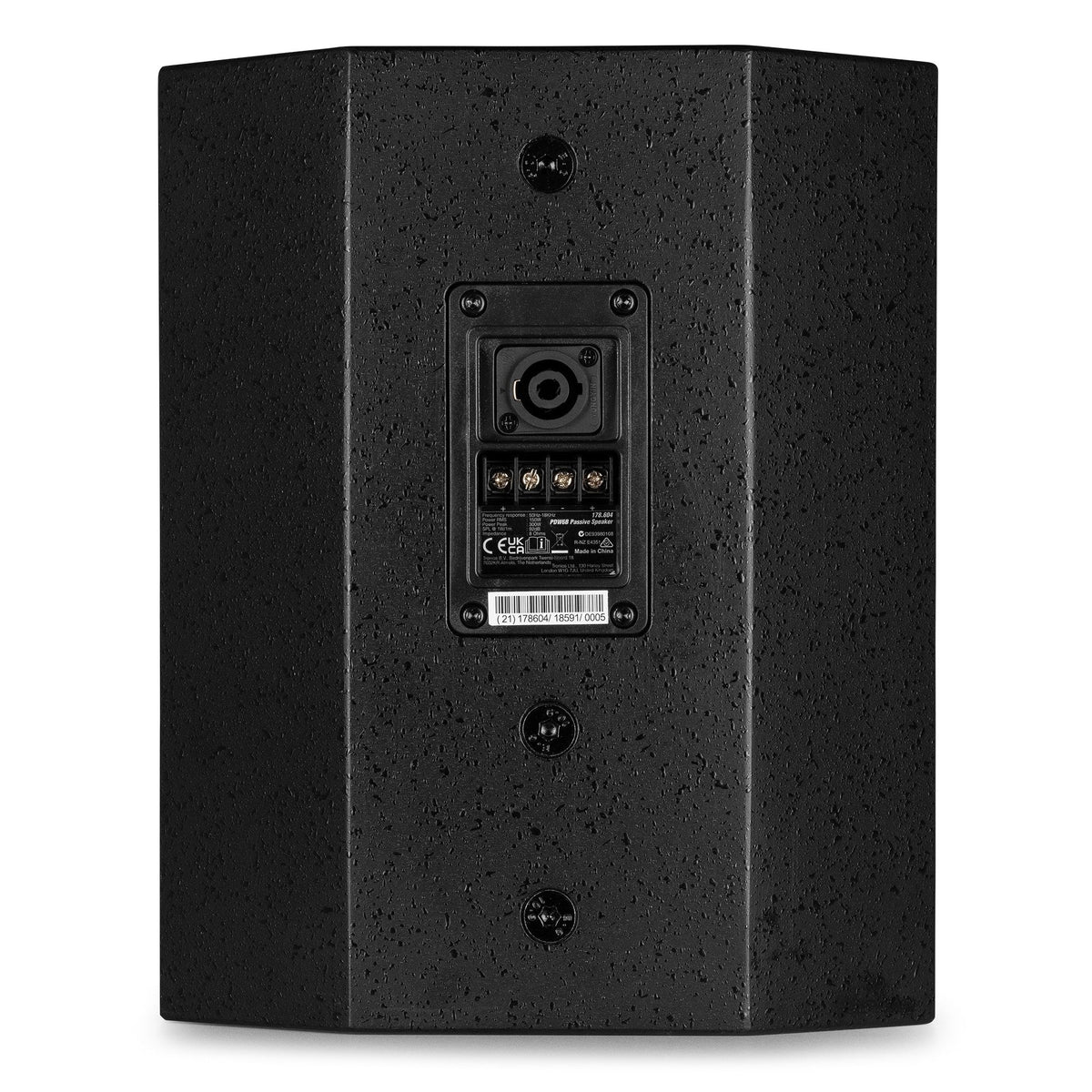

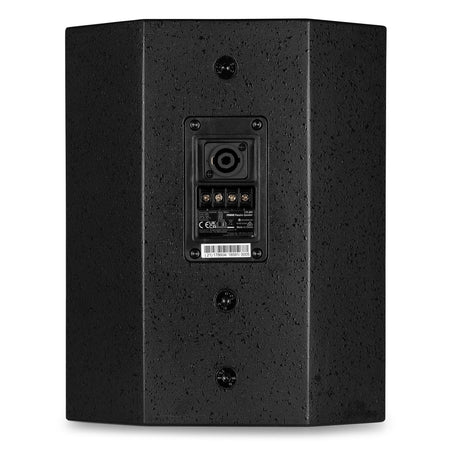

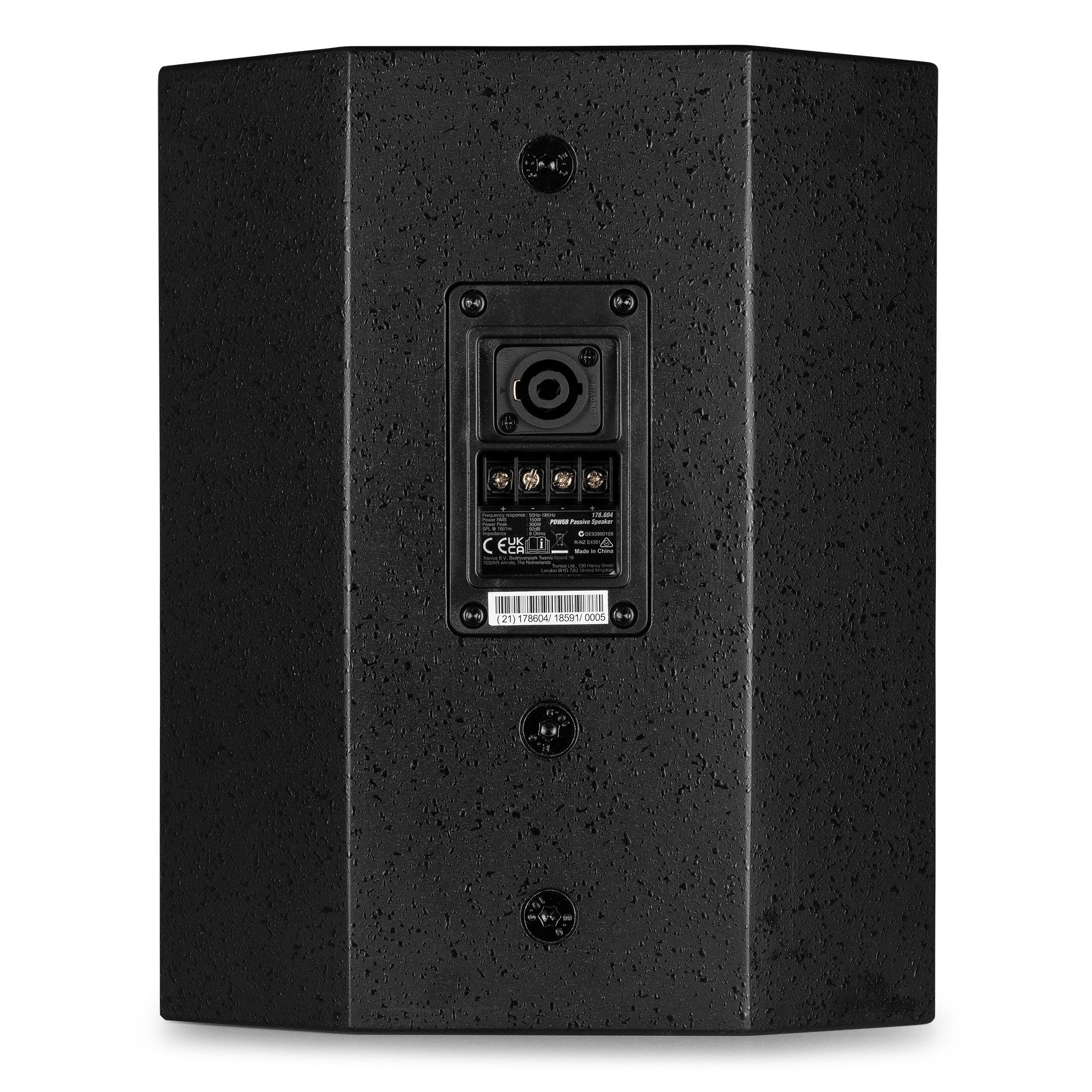

Flexible Connectivity: It has NL4 type input connectors and screw terminals, offering compatibility with different professional audio systems.
-

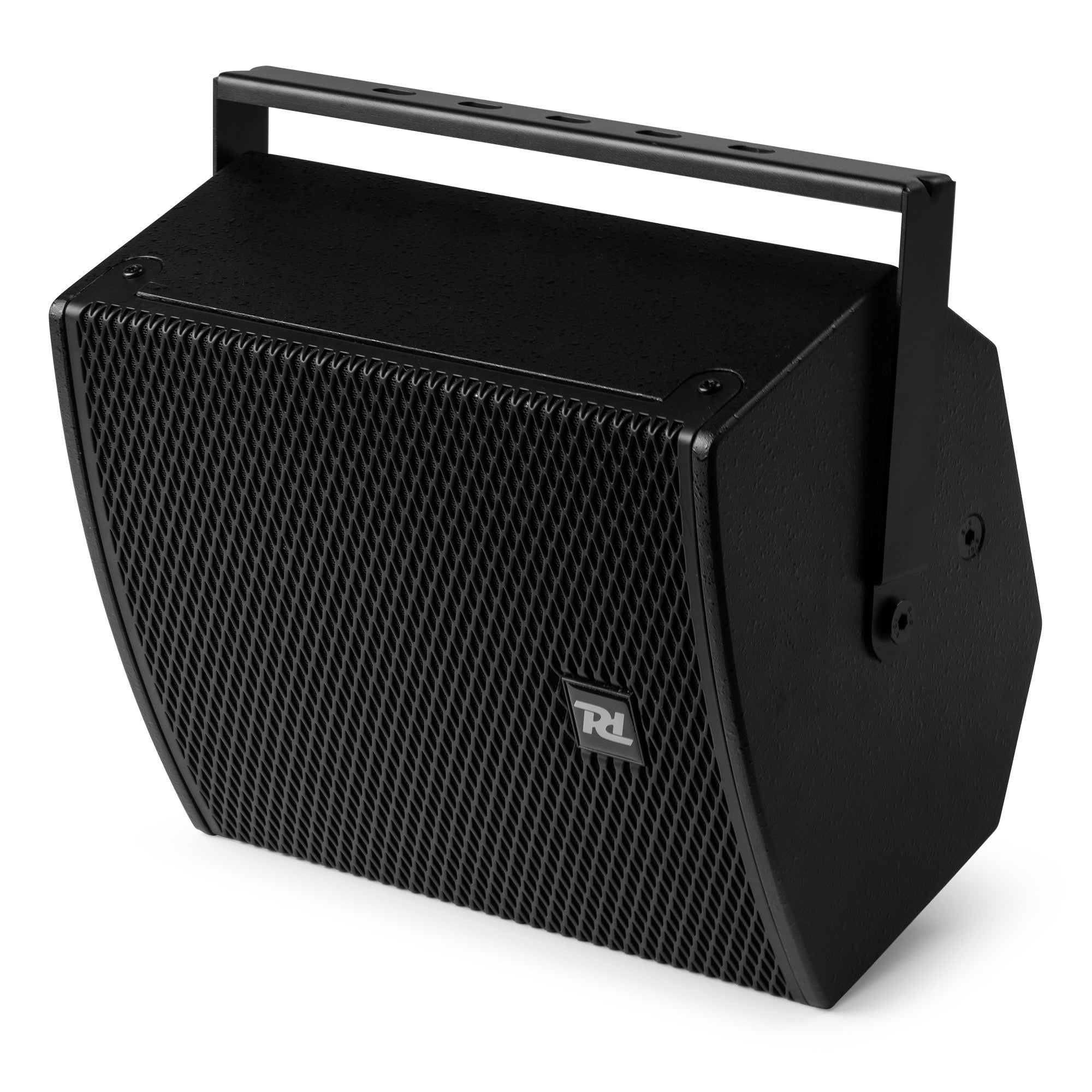

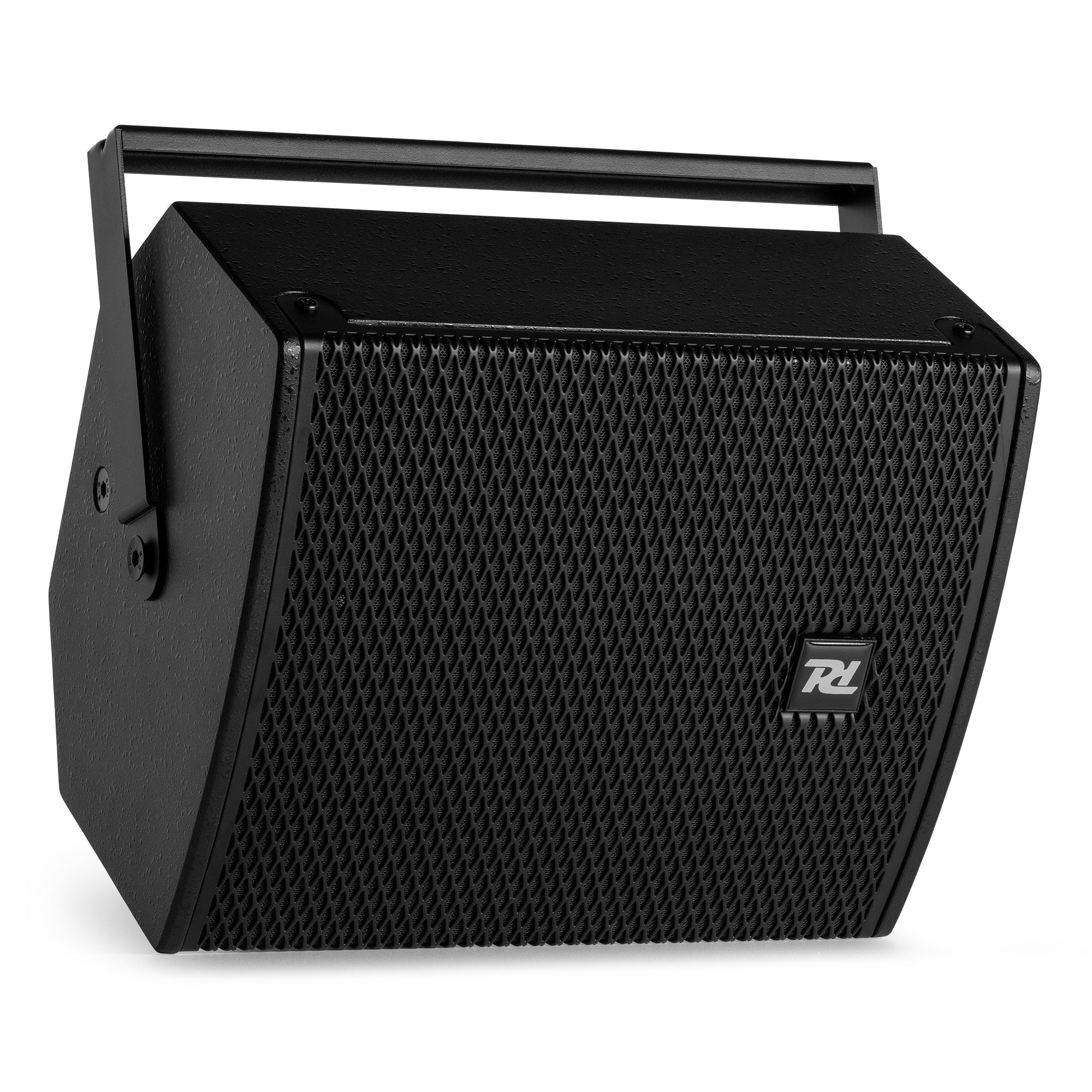

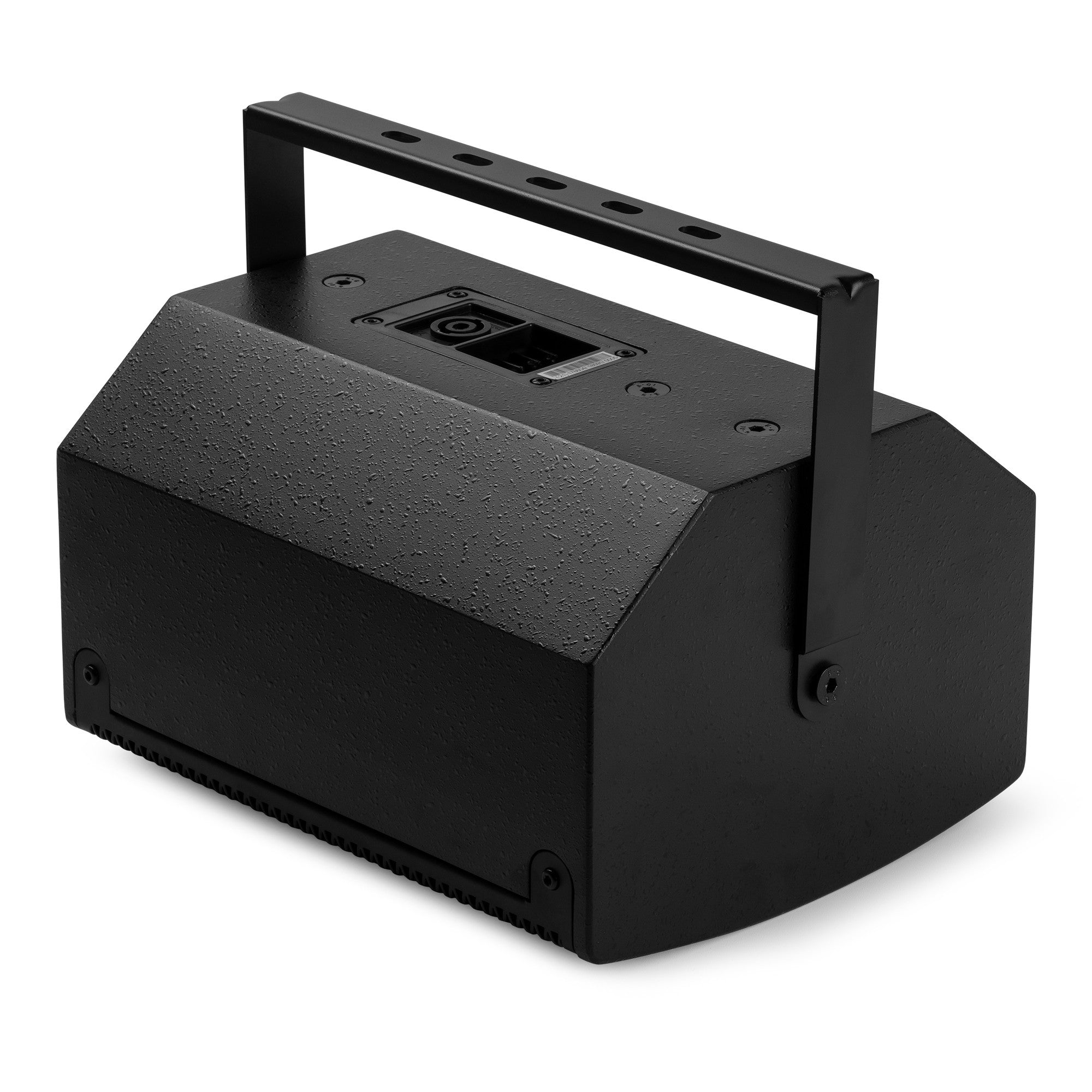

Versatile Installation: Includes a metal wall mounting bracket and integrated suspension points that allow for multiple placement options.
-
Integrated Passive Filter: The internal crossover efficiently divides frequencies between the woofer and tweeter, ensuring a smooth transition and optimal sound clarity.
Product benefits
The PDW6B loudspeaker is designed for system integrators, business owners, and audio enthusiasts seeking a reliable, aesthetically pleasing, and high-performance sound solution. Its ability to reproduce both background music and speech with exceptional clarity makes it an outstandingly versatile choice. Durable construction ensures a long lifespan, even in commercial environments with continuous use, while its ease of installation saves time and effort. The combination of a compact design and powerful sound output delivers a professional audio solution that blends discreetly into any décor.
Use cases
- Background music and sound reinforcement in restaurants, cafes, shops and hotels.
- Public address and announcement systems in offices, educational centers or waiting rooms.
- As a monitor speaker in home or project recording studios.
- Sound reinforcement for presentations and conferences in meeting rooms and small auditoriums.
- Distributed sound installations in commercial or residential spaces.
Frequently Asked Questions
Is this speaker active or passive?
It is a passive speaker, which means it needs to be connected to an external power amplifier to function.
Is it sold individually or in pairs?
The Power Dynamics PDW6B is supplied individually, allowing you to purchase the exact number of speakers your project requires.
What type of input connections does it use?
It offers two input connection options: a standard NL4 connector and screw terminals, providing flexibility for installation.
Does the wall mount come included?

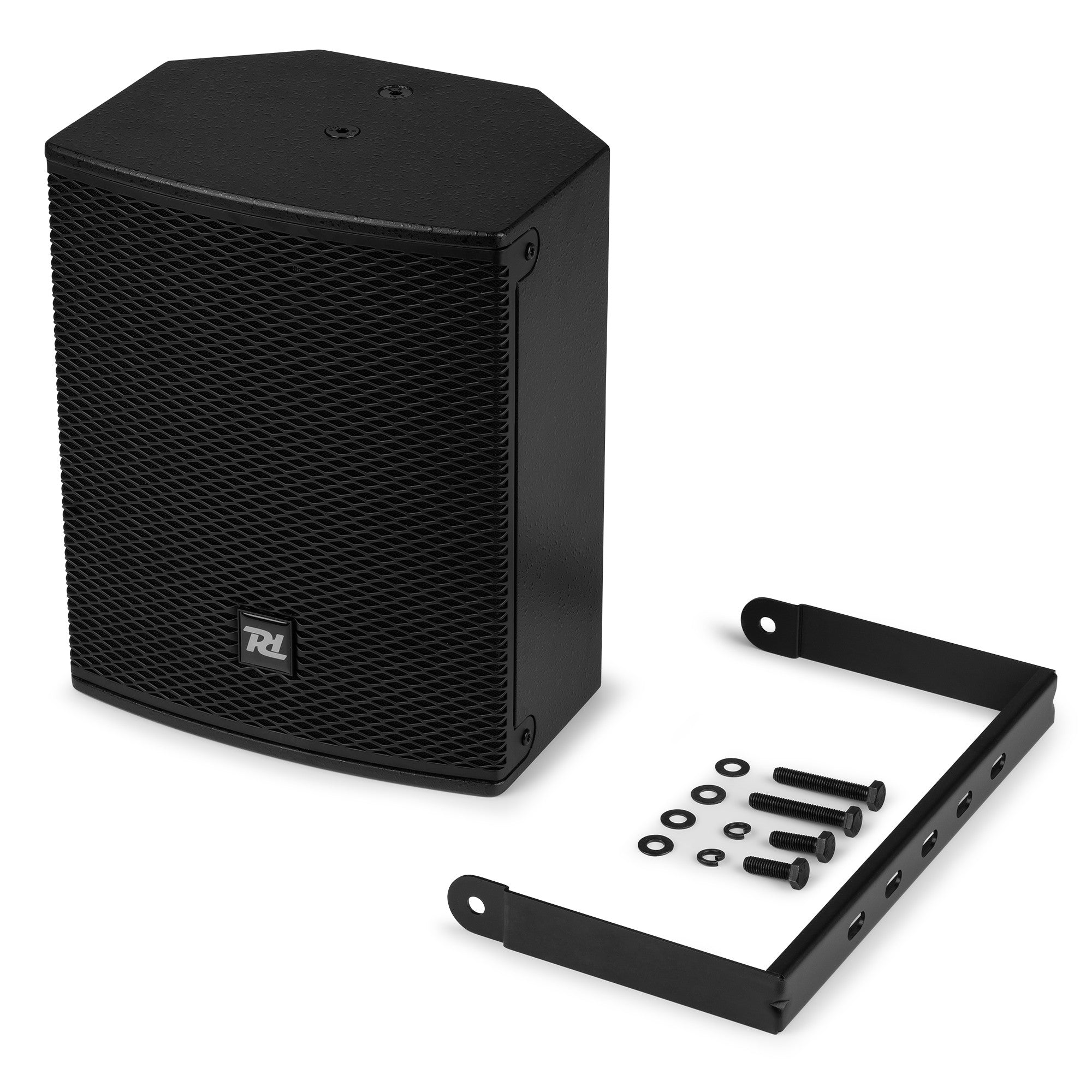

Yes, each speaker includes a heavy-duty metal mounting bracket for secure and easy wall installation.
Is it suitable for outdoor use?
This speaker has an IP20 rating, which means it is designed exclusively for indoor use and should not be exposed to the elements or moisture.
Project description
Passive 2-way speaker with bass-reflex design. It features a 6.5-inch ferrite magnet woofer and a 2.75-inch dome tweeter. It delivers 150W RMS and 300W peak power, with a nominal impedance of 8 ohms. The frequency response is 50Hz to 18,000Hz, with a sensitivity of 92dB (SPL @ 1W/1m) and a crossover frequency of 2.7kHz. The sound dispersion is 80° x 60°. The cabinet is constructed of plywood with a textured black finish and a metal grille. Input connections are NL4 and screw terminals. Dimensions: 185 x 242 x 295 mm. Weight: 4.85 kg. Includes a wall mount.
