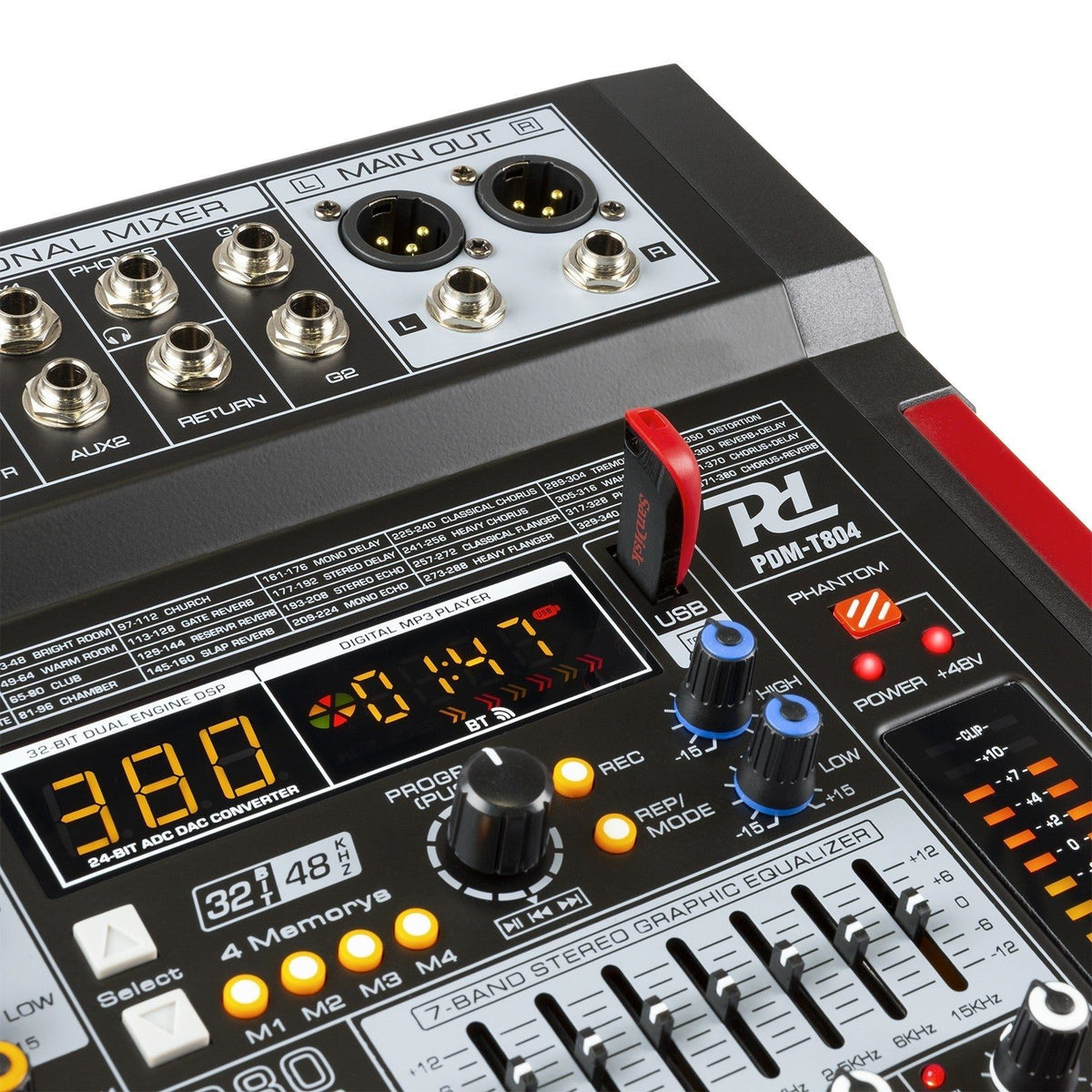

Power Dynamics PDM-T804 - 8-Channel Live Mixer with DSP and USB/BT Connectivity

Power Dynamics PDM-T804 - 8-Channel Live Mixer with DSP and USB/BT Connectivity

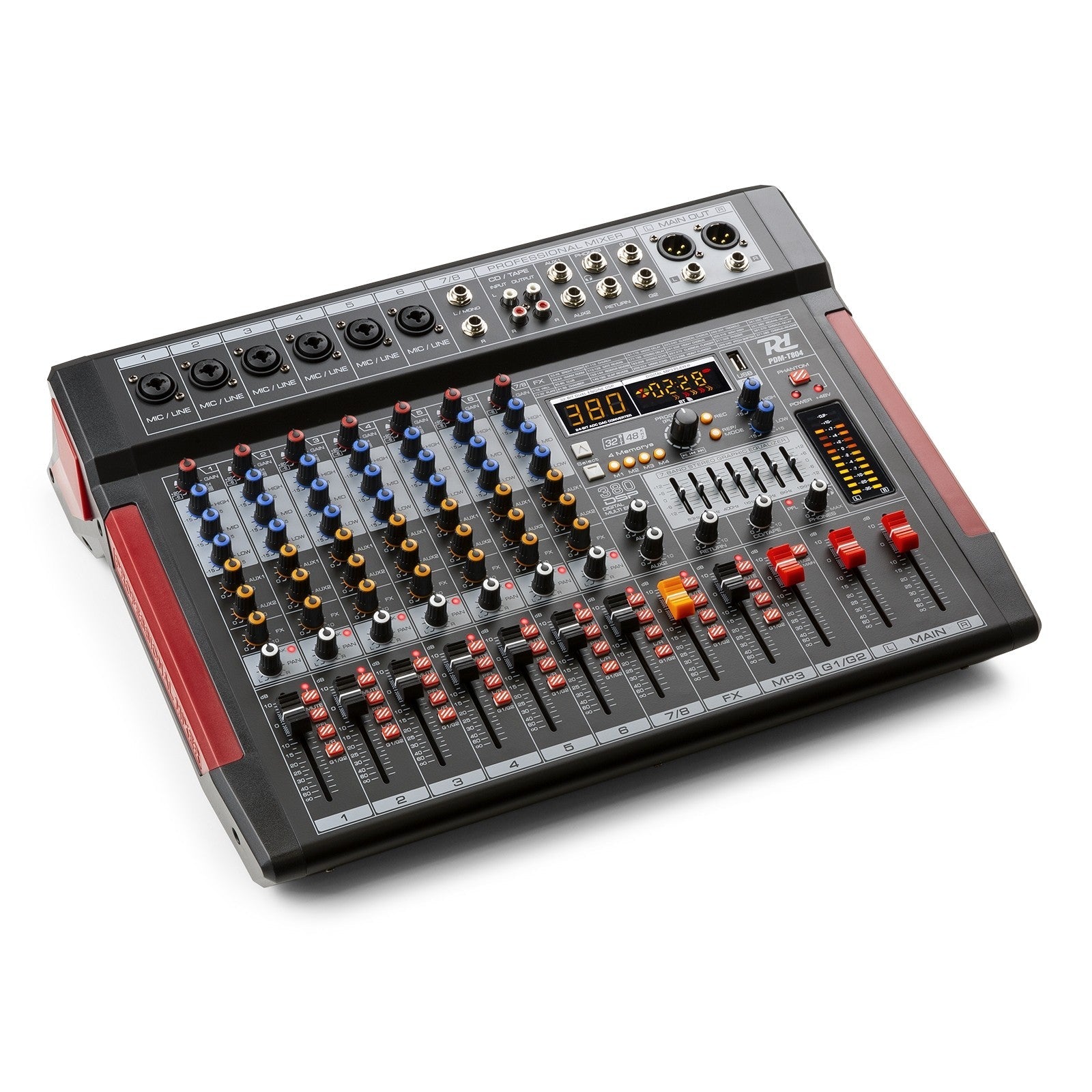

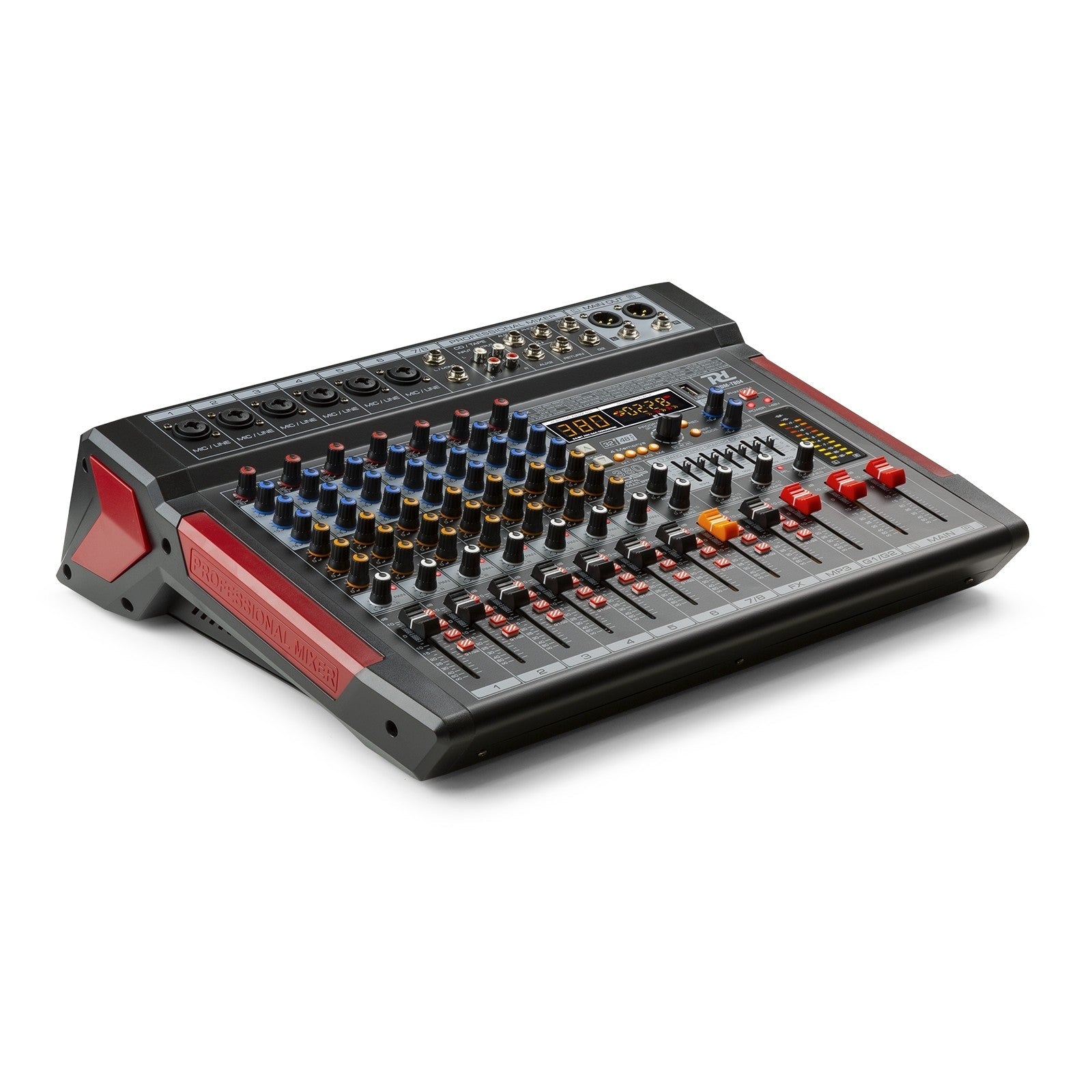

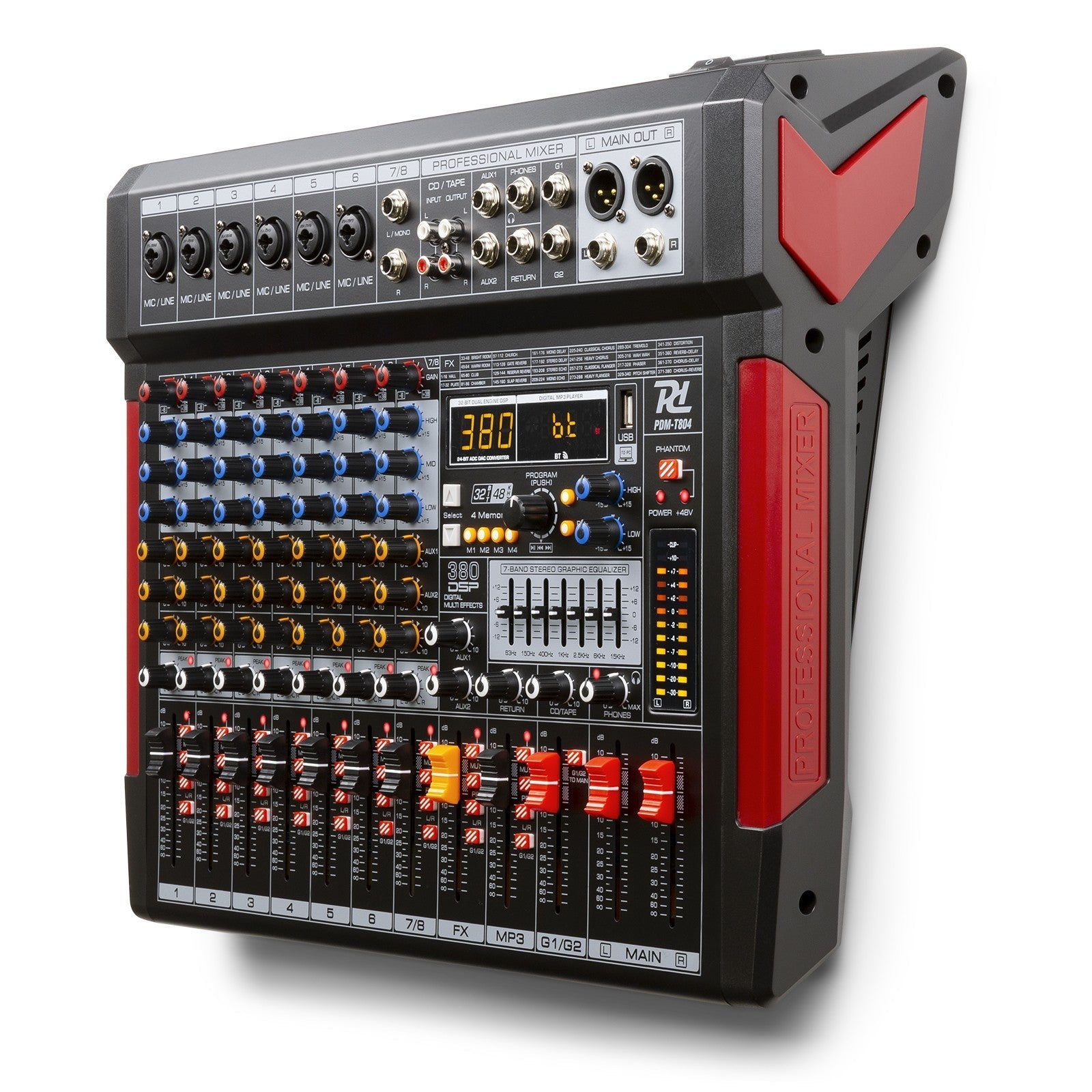

The Power Dynamics PDM-T804 is an incredibly versatile live mixer, designed to meet the demands of musicians, sound engineers, content creators, and any live or studio sound application. This 8-channel mixer combines professional functionality with an intuitive interface, making it the perfect audio control center for bands, conferences, home studios, and live events. Its robust construction and comprehensive feature set ensure reliable performance and high-quality sound in any situation.

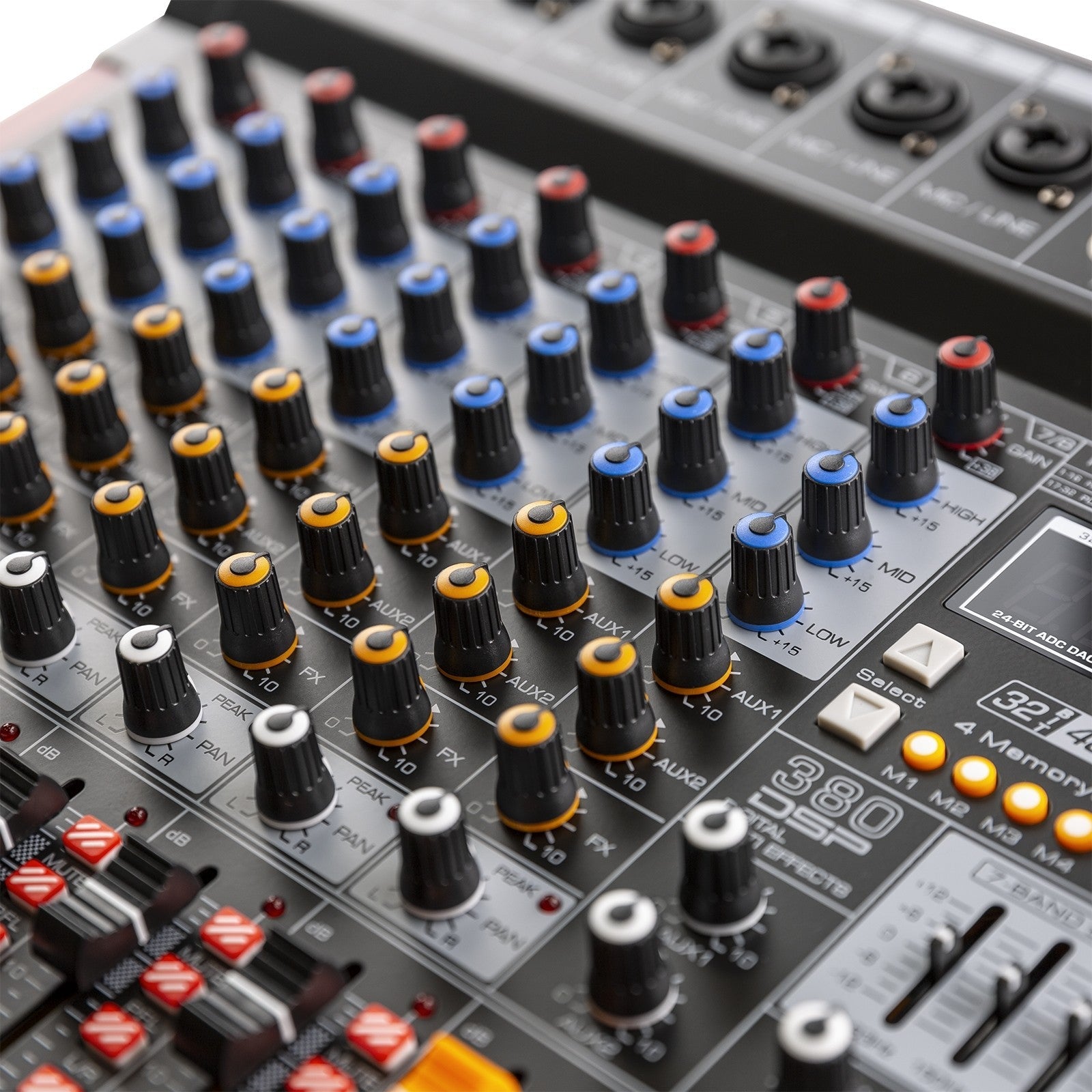

Equipped with eight combo mic/line inputs (XLR/Jack combo), the PDM-T804 offers complete flexibility for connecting a wide range of audio sources, from condenser microphones, which can be powered by switchable +48V phantom power, to instruments and line players. Each channel features a three-band EQ control (treble, mid, and bass), allowing for precise tone adjustment for each source. In addition, gain, pan, effects send, and auxiliary return controls per channel provide comprehensive mix control.

One of the most outstanding features of this mixer is its modern connectivity. It incorporates a Bluetooth receiver for wireless audio streaming from smartphones, tablets, or other compatible devices, ideal for playing background music or backing tracks without cables. The USB port is bidirectional and multifunctional: it allows playback of MP3 files from a USB drive and direct MP3 recording with a single click. Additionally, it functions as a full-duplex USB audio interface for connecting the mixer to a computer, facilitating digital audio recording and playback with your preferred production software.

Main features

• Versatile 8-Channel Mixer: Equipped with 8 XLR/6.3mm combo jack inputs for microphones and line instruments.
• 32-bit DSP processor: Includes 380 high-quality digital effects, such as reverbs, delays, and chorus, with 4 memories for saving presets.
• Bluetooth Wireless Connectivity: Built-in receiver for streaming audio directly from mobile devices without cables.

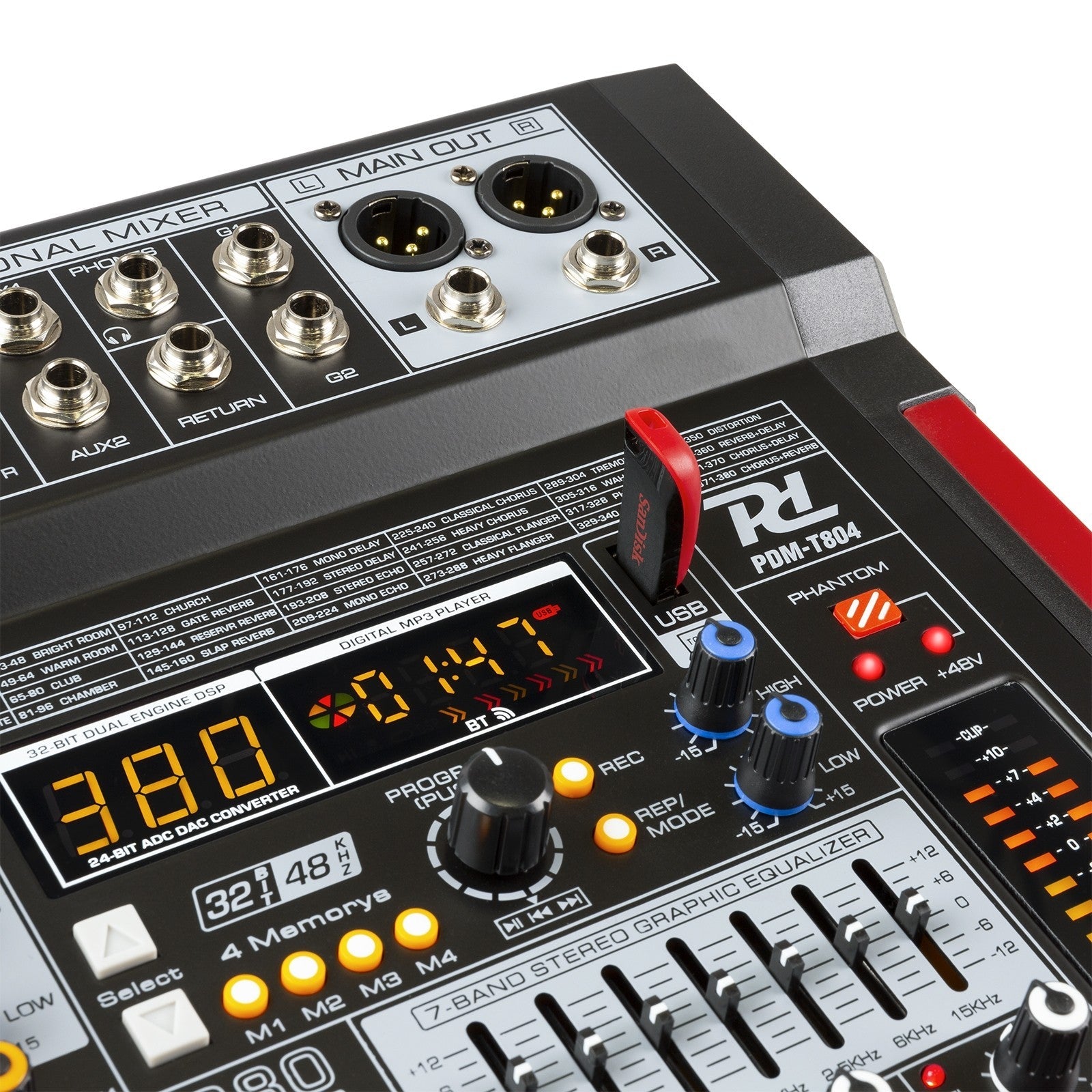

• USB Audio Interface and MP3 Recorder: Full-duplex USB port for recording the stereo mix on a PC or Mac, and for recording and playing MP3 files on a USB memory stick with one-touch recording function.
• +48V Phantom Power: Allows the use of professional condenser microphones on all microphone inputs.
• Complete Equalization: 3-band EQ (bass, mid, treble) on each channel and a 7-band stereo graphic equalizer on the main output for total control of the final sound.
• Professional Control per Channel: Each channel has MUTE, PFL (Pre-listen), assignment to L/R and G1/G2 outputs, panning, FX send and auxiliary return controls.
• Balanced Outputs and LED Metering: Balanced stereo main outputs (XLR and 6.3mm jack) for clean connection to PA systems, along with LED VU meters and peak LEDs for precise visual monitoring.

Product benefits

The PDM-T804 mixer is designed to offer maximum flexibility and creative control. Its ability to manage multiple audio sources, apply professional-quality effects, and offer diverse recording and playback options makes it an all-in-one solution. For the live musician, it simplifies the equipment needed by integrating effects and track playback. For the home studio, it acts as a robust audio interface and mixing center. Bluetooth connectivity adds a layer of modern convenience, eliminating cables and streamlining setup for events or practice sessions.

Use cases

• Musicians and Small Bands: Ideal for managing mixes in rehearsals and live performances in small venues, controlling vocals, guitars, keyboards and backing tracks from a single unit.
• Home Recording Studios: It functions as the core of a home studio, allowing the connection of microphones and instruments to record demos or complete productions on a computer.
• Content Creators and Podcasters: Perfect for podcasters and streamers who need to mix multiple microphones, sound effects, and other audio sources in real time.
• Fixed Installations and Events: Suitable for small conference rooms, educational centers or places of worship that require an easy-to-use but professional-capable audio mixing system.

Frequently Asked Questions

Can I record all 8 channels separately on my computer via USB?
The PDM-T804's USB interface functions as a 2-in/2-out audio device, meaning it sends the main stereo mix to your computer. It does not allow multitrack recording of each channel individually.

Does the +48V phantom power activate for each channel independently?
Phantom power is activated by a single master switch that supplies +48V to all XLR microphone inputs simultaneously. It is designed for use with microphones that require this type of power.

Do I need to install any software or drivers to connect the mixer to a PC or Mac?
These types of mixers are generally class-compliant, meaning they don't require the installation of specific drivers. Your operating system (Windows or macOS) should automatically recognize it as a standard audio device when you connect it.

What kind of effects does the DSP processor include?
The 32-bit DSP processor features a large library of 380 effects, including different types of reverb (hall, room, plate), delays (echo), chorus, flanger, phaser, and other modulation effects to enrich your sound.

Project description

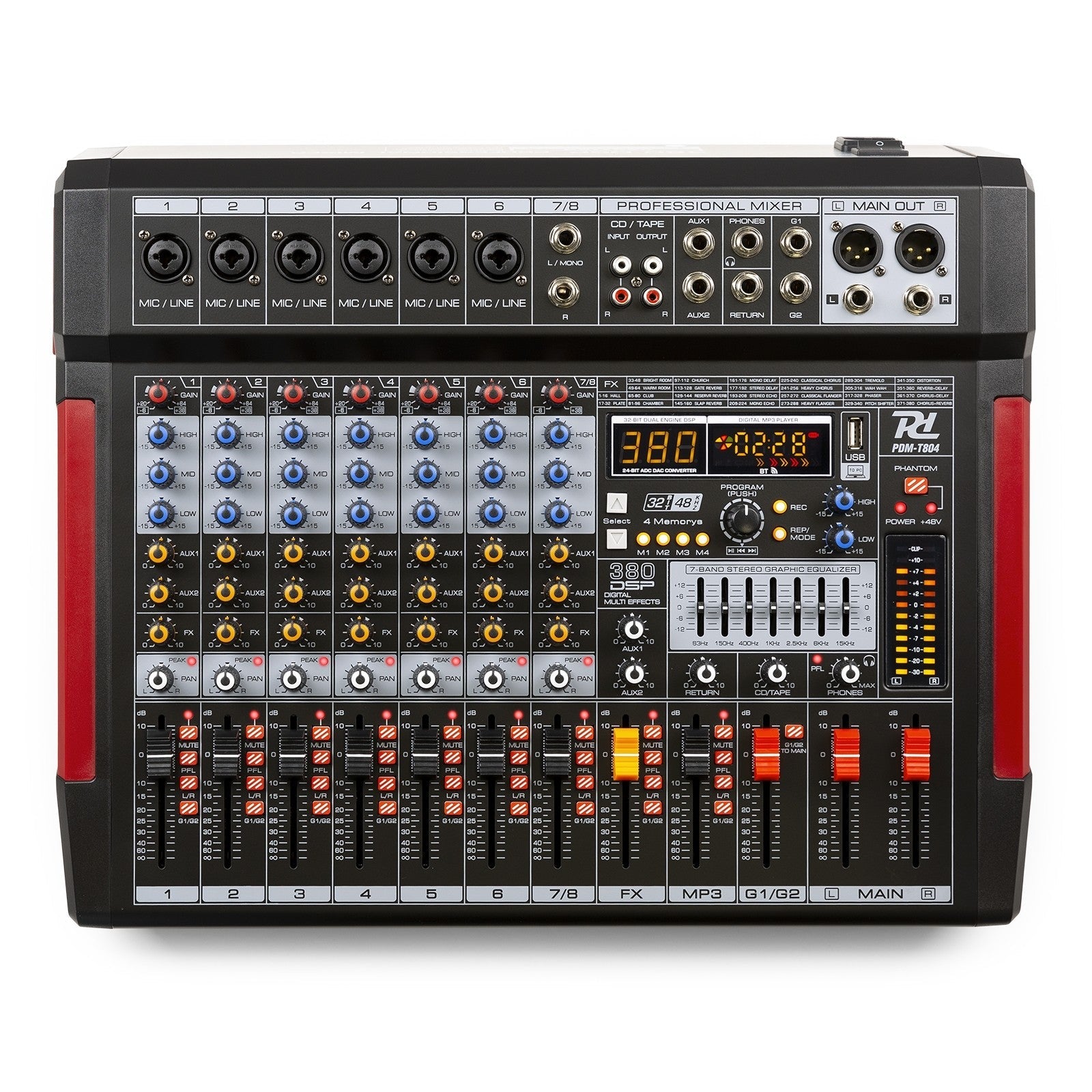

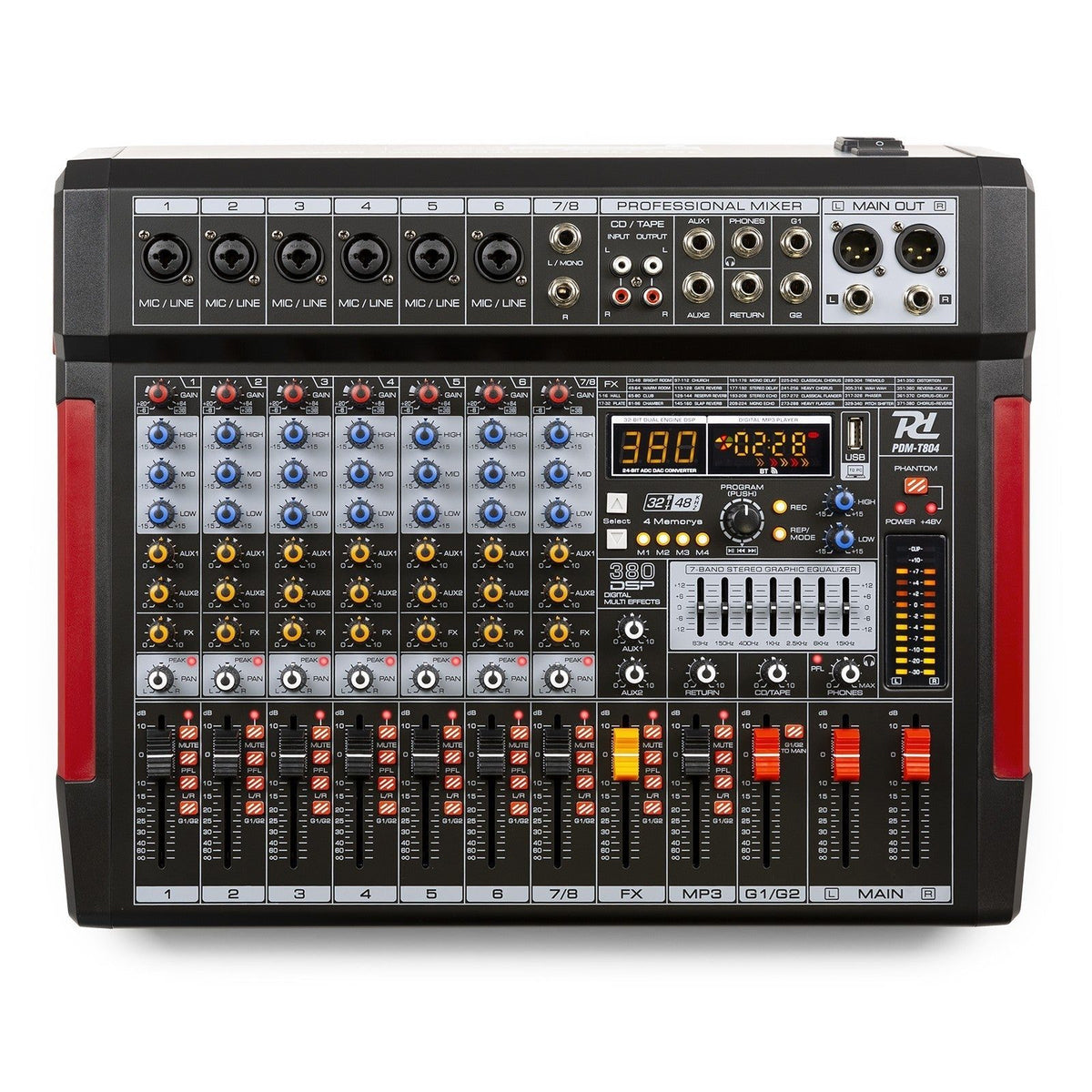

This 8-channel live mixer features eight combo inputs (XLR/6.3 mm jack). It incorporates a 32-bit DSP processor with 380 effects and four presets, along with a 7-band stereo graphic equalizer. Bluetooth connectivity is available for audio streaming, and a full-duplex USB port allows for MP3 playback/recording and connection to a PC as an audio interface. Each channel includes a 3-band EQ, gain control, pan control, FX send, and auxiliary input. It offers switchable +48V phantom power, balanced stereo main outputs (XLR/6.3 mm jack), a headphone output, and PFL and mute functions per channel. The frequency response is 20Hz to 20,000Hz, and the total harmonic distortion (THD) is less than 0.5%.
