Power Dynamics PDM-T604 - 6-Channel Live Mixer with DSP and MP3

Power Dynamics PDM-T604 - 6-Channel Live Mixer with DSP and MP3

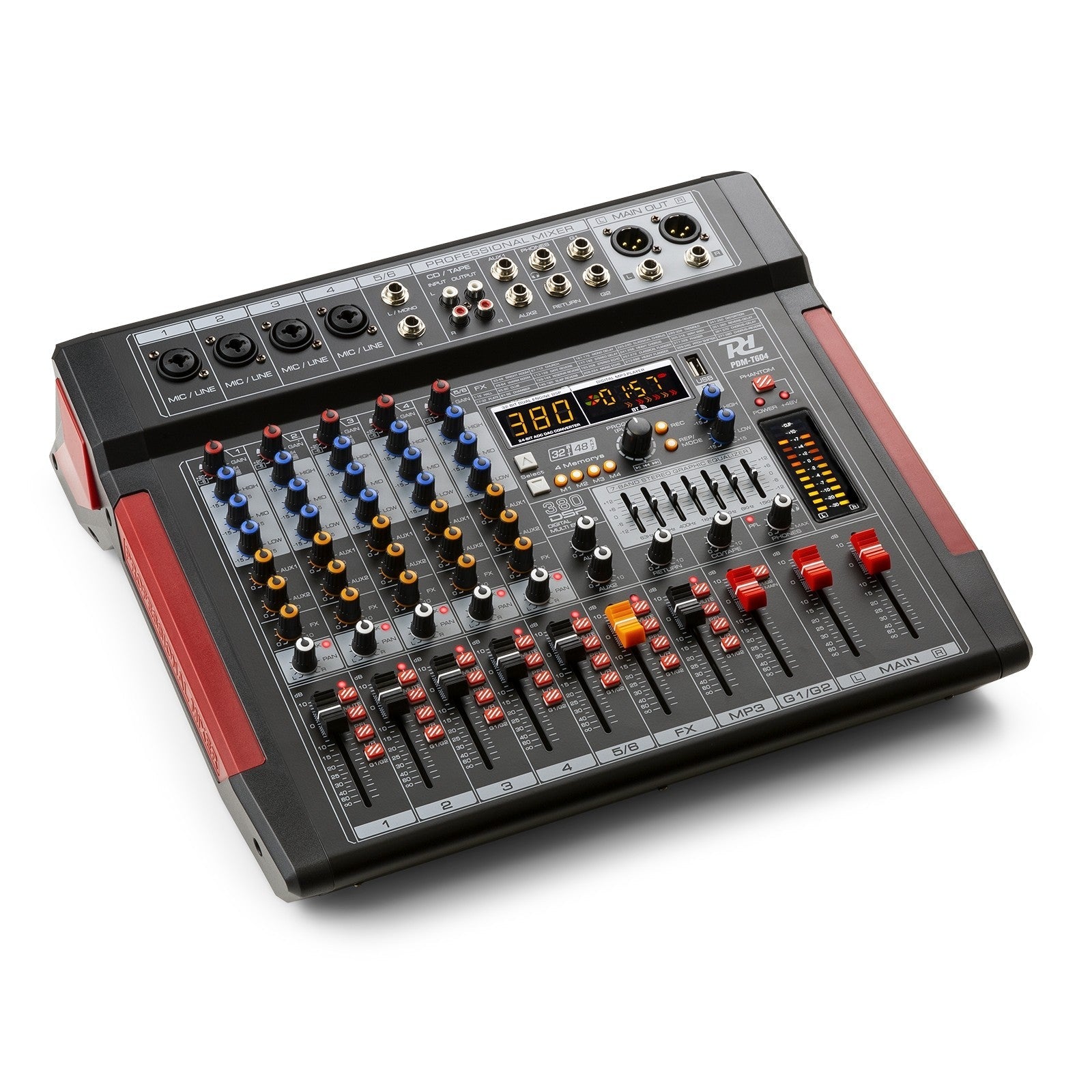

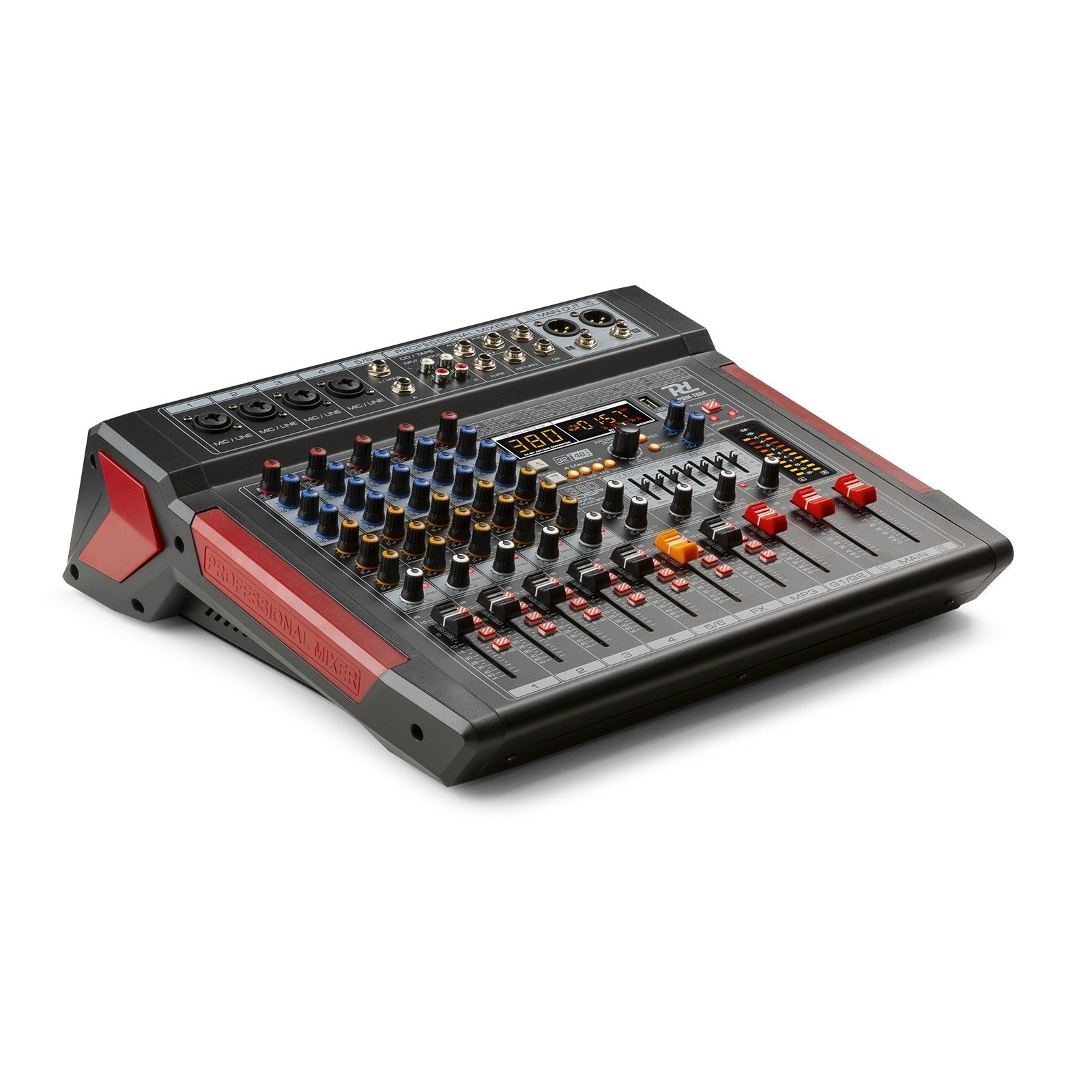

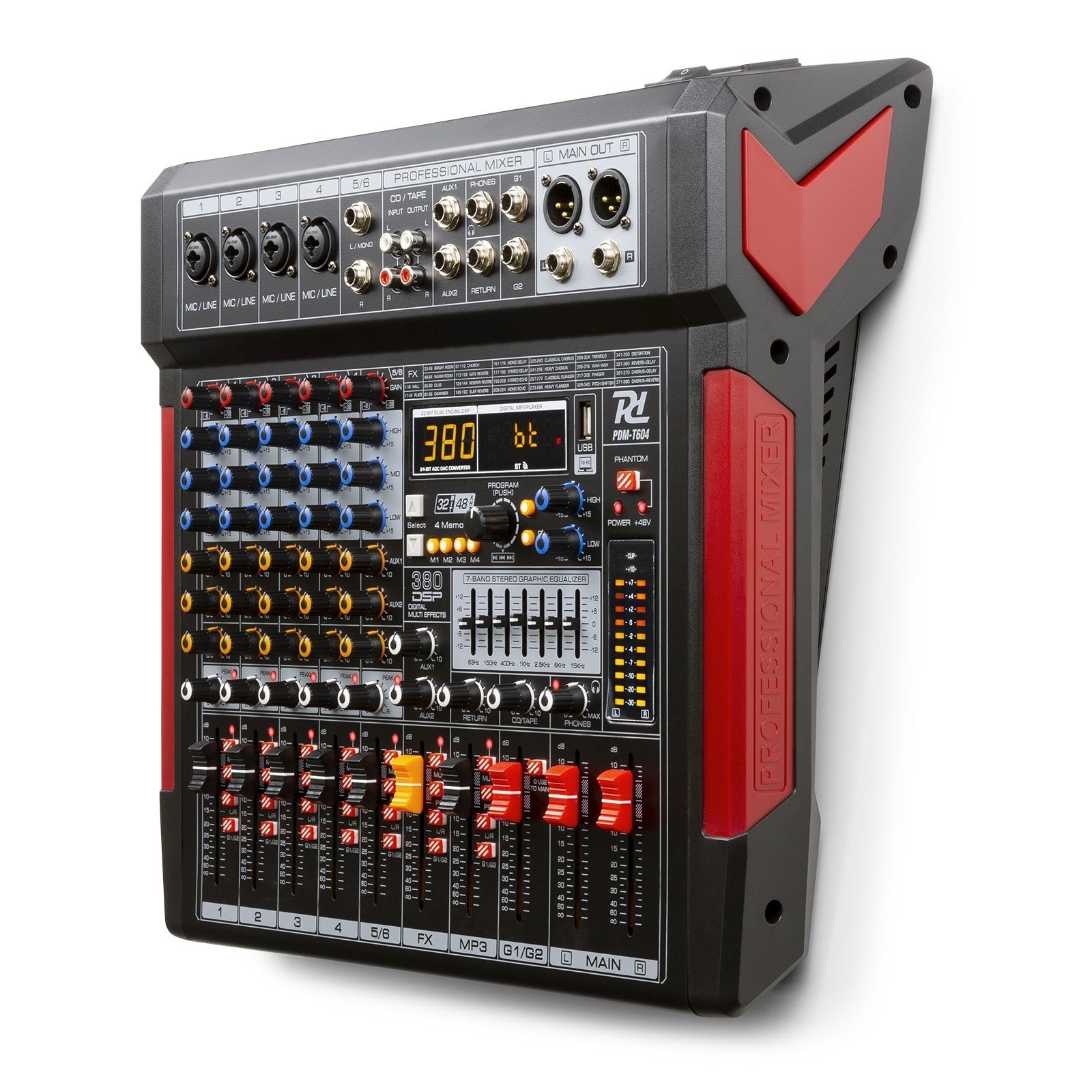

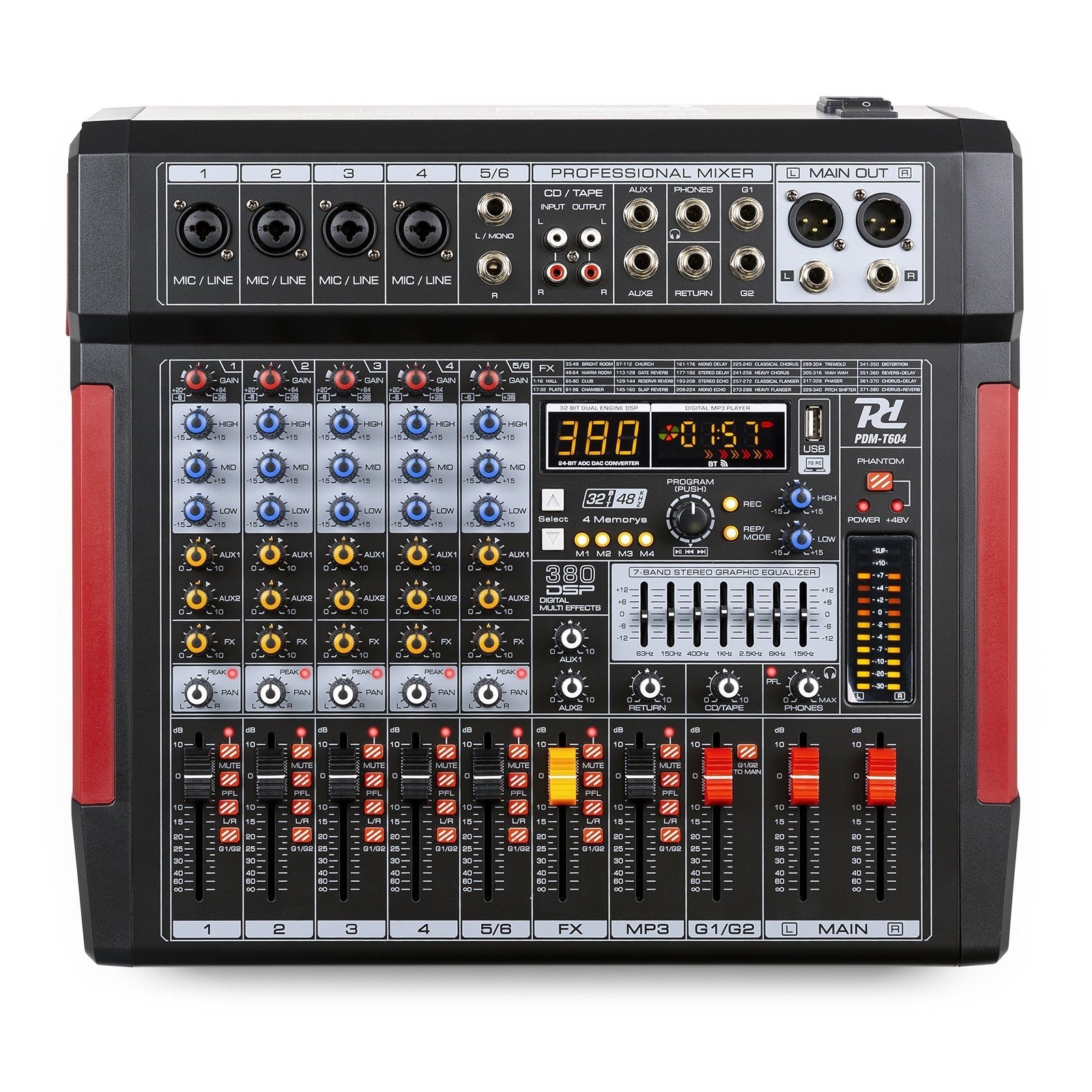

The Power Dynamics PDM-T604 is an incredibly versatile stage mixer designed to meet the demands of musicians, sound engineers, and any live or studio audio application. This 6-channel mixer combines robust functionality with modern connectivity, making it the perfect hub for bands, solo artists, conferences, or home studios. Each of its 6 input channels features XLR/Jack combo connectors, allowing you to connect both microphones and instruments with pristine sound quality. Low-noise microphone preamps, along with switchable +48V phantom power, ensure compatibility with professional condenser microphones to capture every nuance of vocals or instruments.

At the heart of the PDM-T604 is a powerful 32-bit DSP effects processor that provides 380 high-quality presets, from reverbs and delays to chorus and flangers, with four memories to save your favorite settings. This eliminates the need for external effects processors, keeping your setup compact and efficient. For complete control over the final mix, the mixer incorporates a 7-band stereo graphic equalizer, ideal for tailoring the sound to the acoustics of any room. In addition, each individual channel has its own 3-band EQ (treble, mid, and bass), gain control, panning, and effects send, offering exceptional mixing flexibility.

Connectivity is one of the PDM-T604's strengths. Thanks to its built-in Bluetooth receiver, you can wirelessly stream audio from a smartphone or tablet, perfect for playing backing tracks or ambient music. Its USB port not only allows MP3 playback but also offers a one-click recording function to capture your mix directly to a USB drive. Furthermore, this port functions as a full-duplex USB audio interface, making it easy to connect to a computer to record your stereo mix in your preferred DAW (Digital Audio Workstation).

Main features

• 6-channel mixer: Equipped with 6 mic/line inputs via XLR/6.3mm combo jack connectors for maximum flexibility.
• 32-bit DSP processor: Includes 380 digital effects (reverb, delay, chorus, etc.) with 4 user memories for unlimited creativity.
• Bluetooth connectivity: Enables wireless audio streaming from compatible devices, ideal for backing tracks or background music.

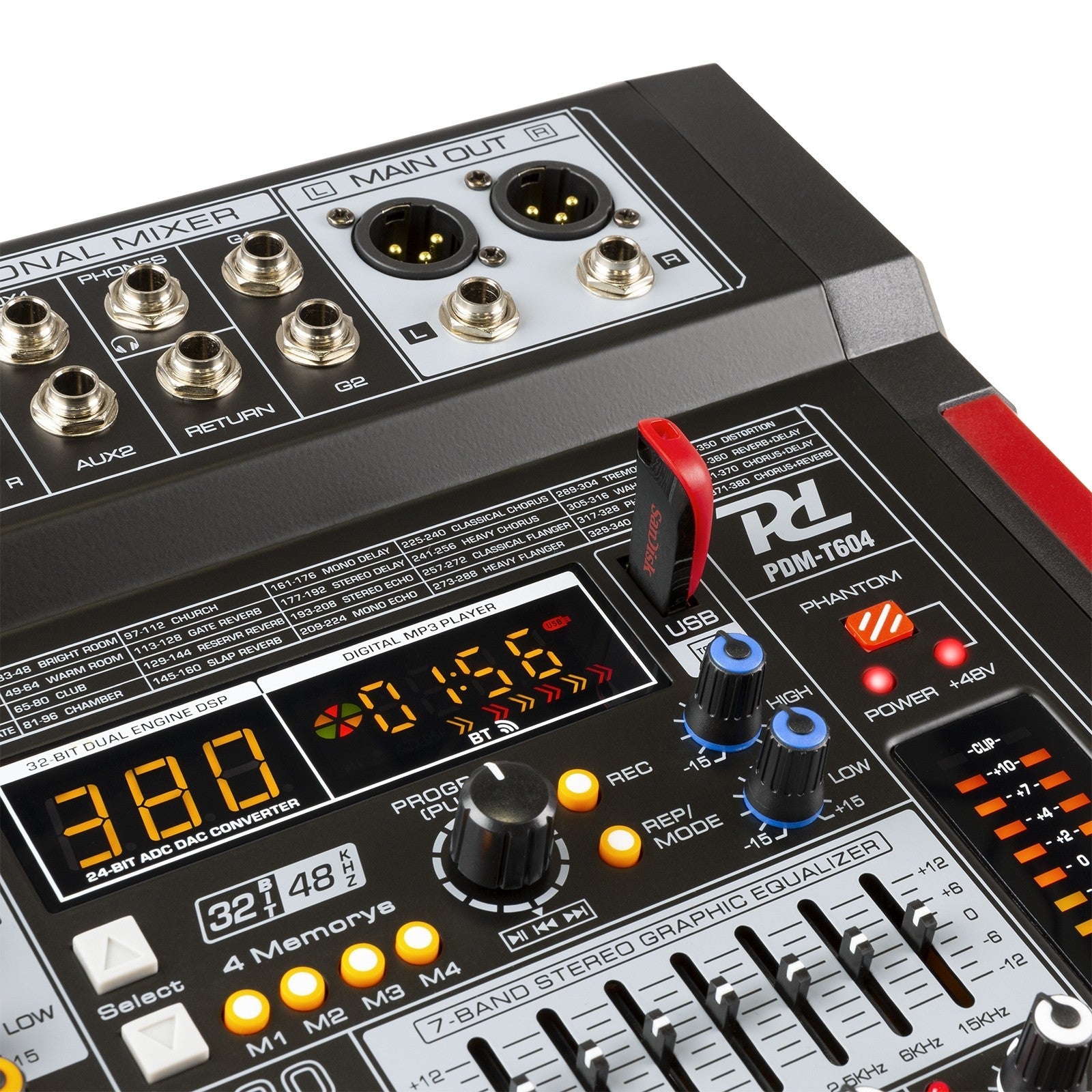

• USB Audio Interface and Recorder: Record the stereo mix directly to a USB memory stick with a single button or connect it to a PC/Mac to use it as an audio interface.
• Complete equalization: It has a 3-band equalizer (bass, mid, treble) on each channel and a 7-band stereo graphic equalizer on the main output.
• +48V Phantom Power: A single global switch activates power for all microphone channels, allowing the use of studio condenser microphones.

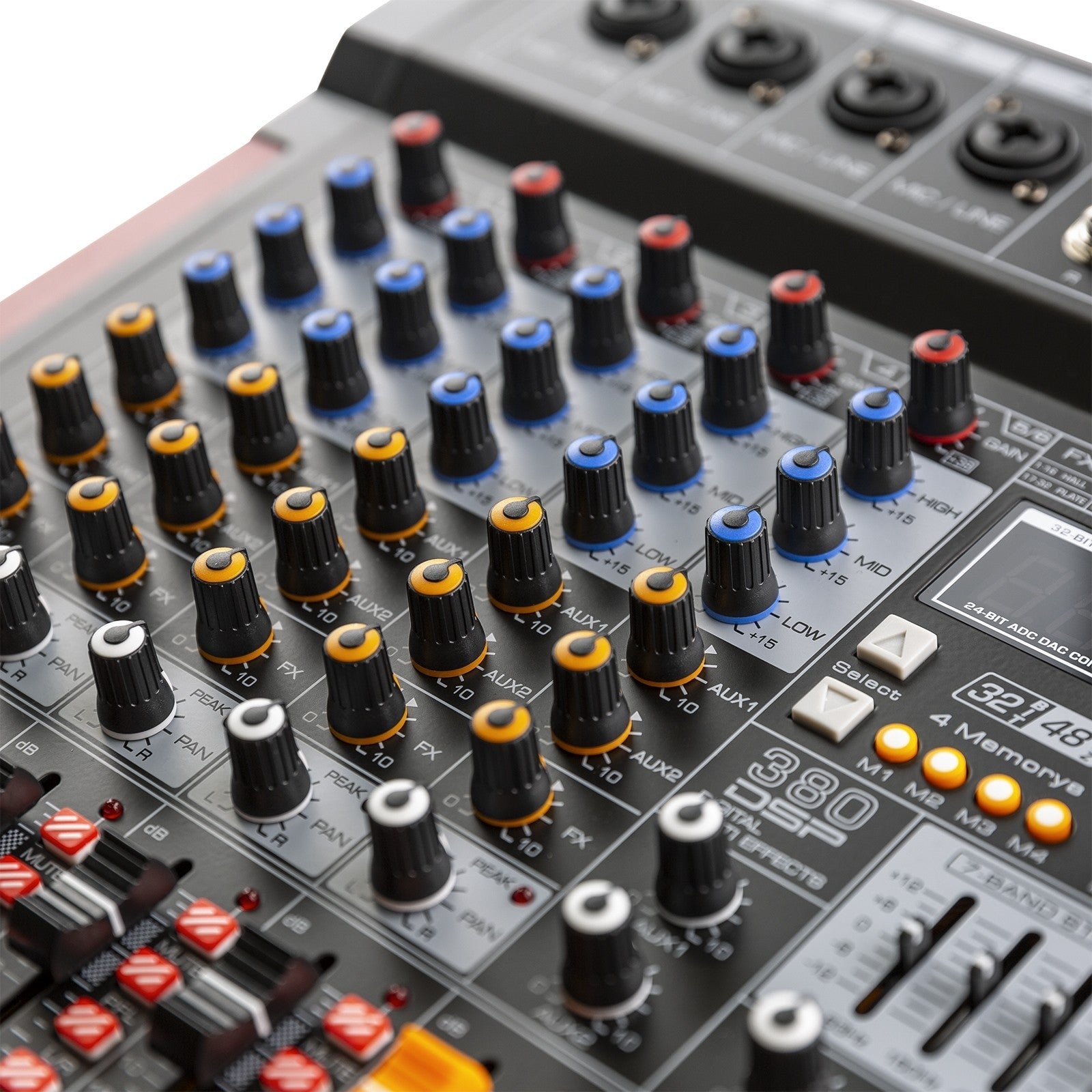

• Comprehensive control per channel: Each channel has controls for gain, pan, effects send (FX), auxiliary send (AUX), mute, PFL (pre-listening) and group assignment (G1/G2).
• Professional outputs: Balanced stereo main outputs in XLR and 6.3mm jack format for a clean and noise-free connection to PA systems or studio monitors.
• Precise monitoring: LED VU meter to monitor output levels and peak LEDs on each channel to prevent distortion.

Benefits for the musician and the sound engineer

The PDM-T604 is designed to simplify workflow without sacrificing control. For live bands, it offers an all-in-one solution for mixing vocals, instruments, and backing tracks with professional-quality effects. Sound engineers will appreciate its intuitive design, balanced outputs, and PFL monitoring options. For content creators and musicians in home studios, its USB audio interface function is a gateway to high-quality recording, allowing them to easily record demos, podcasts, or full productions.

Use cases

• Live musicians and bands: Ideal for managing sound at small concerts, rehearsals or events, mixing multiple audio sources with built-in effects.
• Home recording studios: It functions as the core of a home studio, allowing you to record vocals and instruments directly on a computer.
• Podcasting and Streaming: Manage multiple microphones and audio sources, such as jingles or remote interviews via Bluetooth, with professional control.
• Fixed installations: Perfect for conference rooms, houses of worship or small theaters that need a reliable and easy-to-use mixer.

Frequently Asked Questions

Can I record each channel to a separate track on my computer?

No, the PDM-T604's USB audio interface sends the main stereo mix (2 channels) to your computer. It is not a multitrack mixer for recording. It allows you to record the final result of your mix.

Can the +48V phantom power be activated on each channel individually?

Phantom power is activated by a single global switch that supplies +48V to all XLR microphone inputs simultaneously. It is not switchable per channel.

What kind of effects does the DSP processor include?

The DSP features 380 presets covering a wide range of common effects in music production, such as different types of reverb (Hall, Room, Plate), delays (Echo), chorus, flanger, phaser and other modulation effects.

Do I need to install drivers to connect the mixer to a computer?

Generally, these types of mixers with a USB interface are "class compliant," meaning they don't require the installation of specific drivers on modern operating systems like Windows or macOS. The system should recognize them automatically.

Project description

6-channel live mixer with six XLR/6.3mm combo inputs. It features a 32-bit DSP processor with 380 effects and four presets. The main output includes a 7-band stereo graphic equalizer, while each channel has a 3-band equalizer (bass at 80Hz, treble at 12kHz). Bluetooth connectivity is provided for audio streaming, and a USB port allows for MP3 recording and playback. It also functions as a PC audio interface. Additional features include +48V global phantom power, balanced XLR/6.3mm main outputs, an adjustable headphone output, and mute, PFL, and group assignment functions per channel. The frequency response is 20Hz to 20,000Hz, and the total harmonic distortion (THD) is less than 0.5%.
