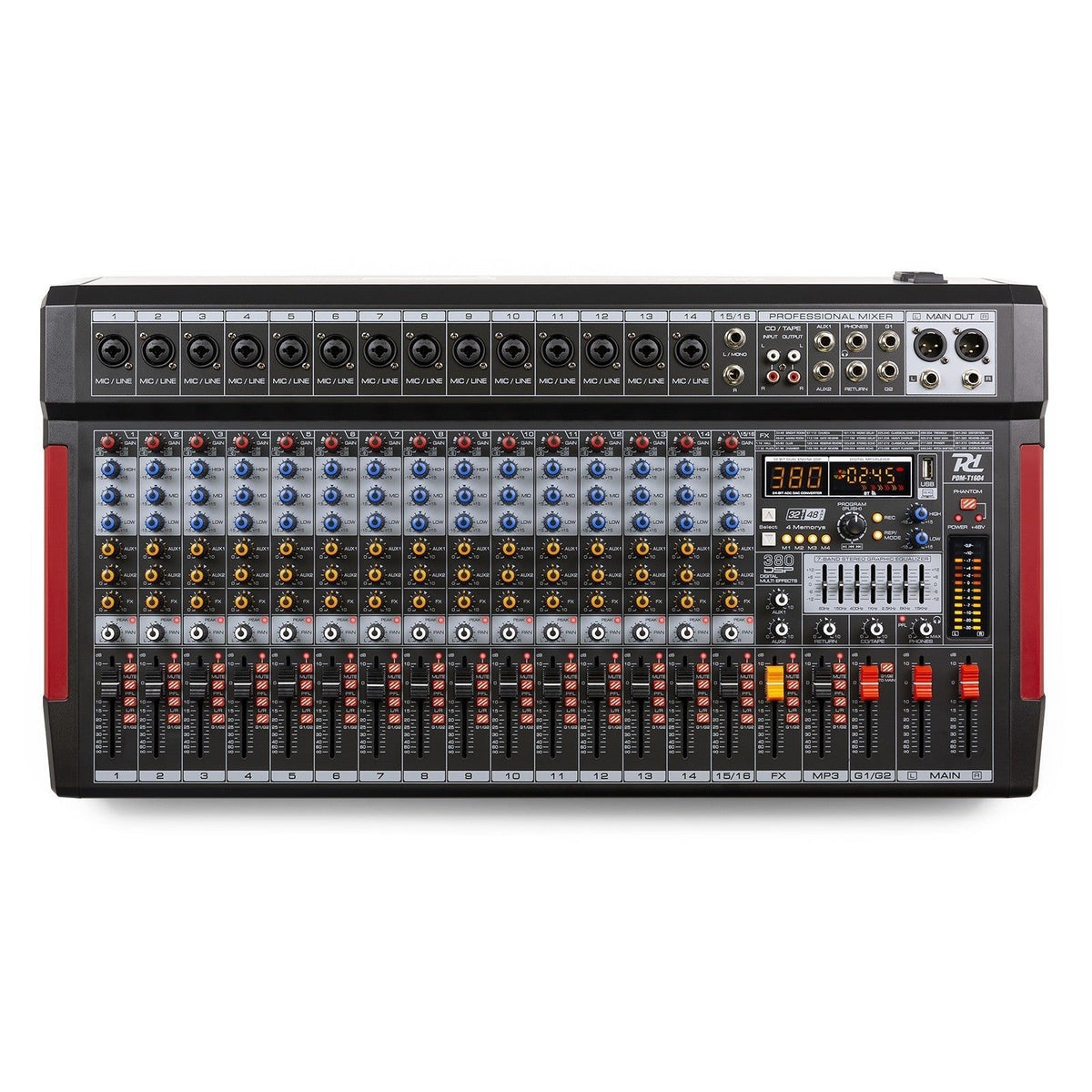

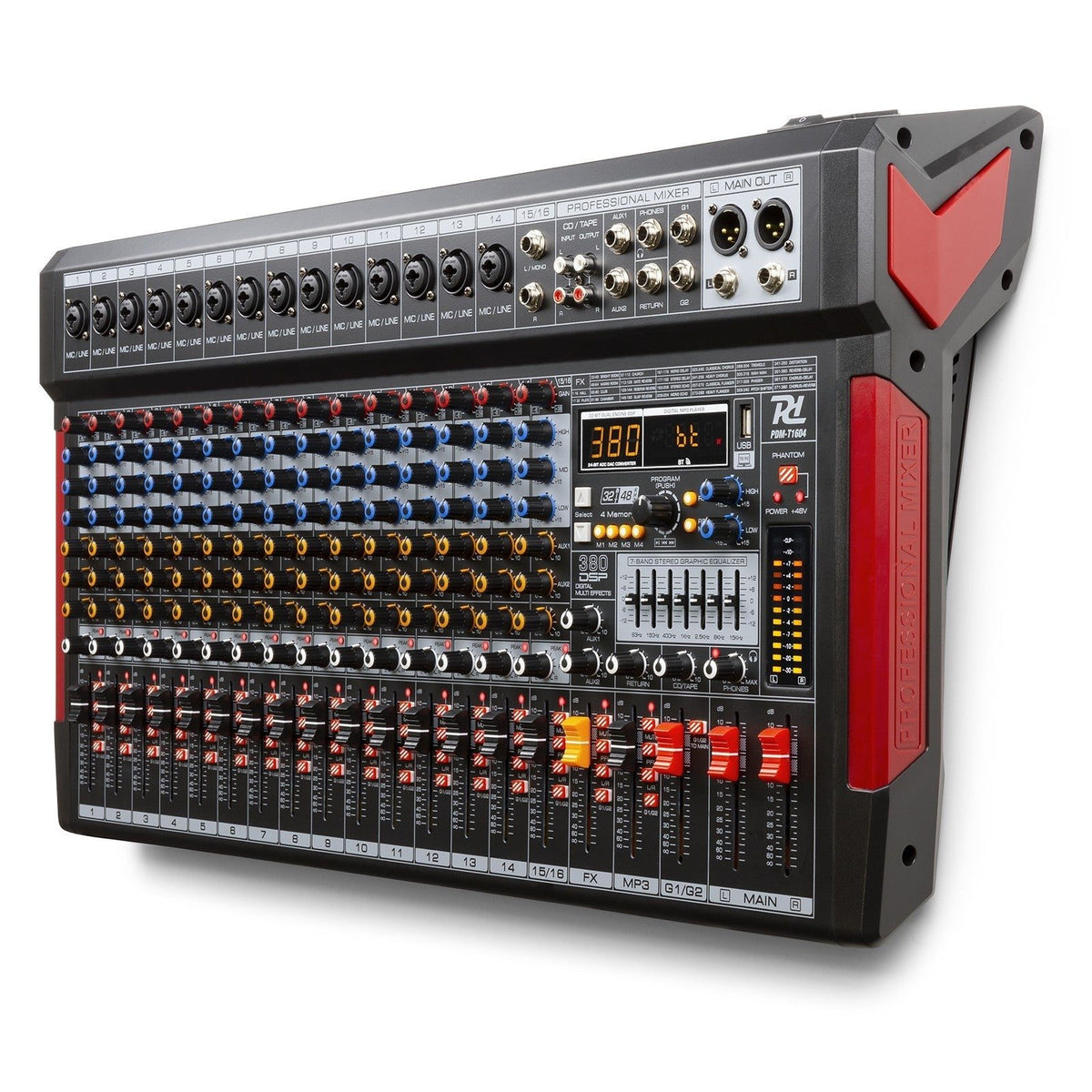

Power Dynamics PDM-T1604 - 16-Channel Professional Live Mixer with DSP and USB

Power Dynamics PDM-T1604 - 16-Channel Professional Live Mixer with DSP and USB

The Power Dynamics PDM-T1604 is an incredibly versatile live mixing console, designed to meet the demands of musicians, sound engineers, and producers across a wide range of applications. Whether you're powering a live band, managing conference audio, equipping a project studio, or setting up a permanent installation, this 16-channel mixer offers complete control and modern connectivity in a robust and user-friendly form factor.

At the heart of the PDM-T1604 is a powerful 32-bit DSP effects processor that provides access to a library of 380 high-quality effects, from reverbs and delays to chorus and flangers. It also features four presets for saving your favorite configurations, allowing for instant recall. For precise tonal control over the final mix, it includes a 7-band stereo graphic equalizer in the master section.

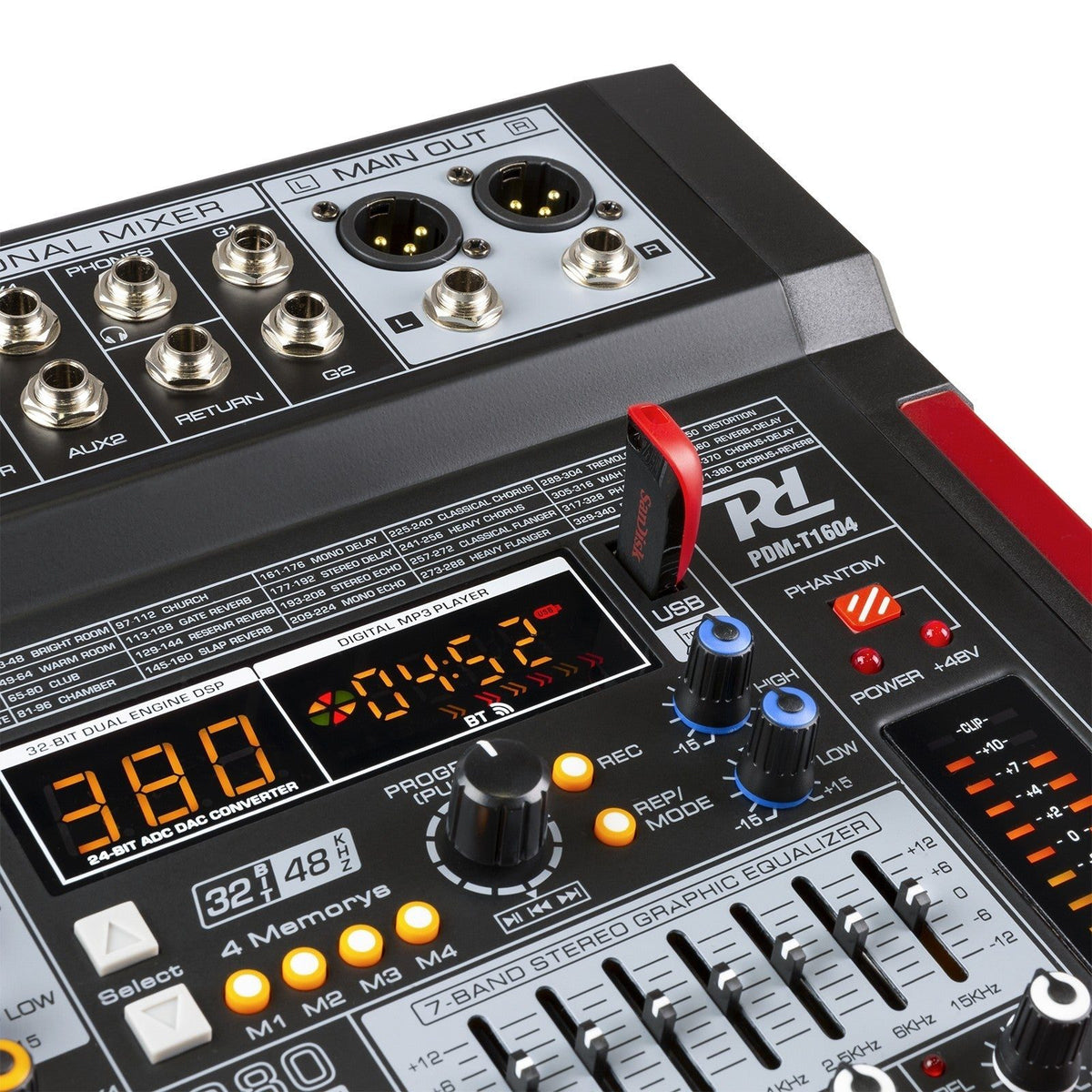

Connectivity is one of its strong points. The 16 input channels feature low-noise microphone preamps and combo XLR/Jack connectors, accepting both microphone and line-level signals. Globally switchable +48V phantom power allows the use of professional condenser microphones. Furthermore, the PDM-T1604 integrates a Bluetooth receiver for wireless audio streaming from any compatible device and a multi-function USB port that not only plays MP3 files but also allows you to record the main mix directly to a USB drive with a single click.

This console also functions as a full-duplex USB audio interface, making it easy to connect to a PC or Mac computer to record the stereo mix in your preferred music production software (DAW) or to play audio from the computer through the console.

Main Features

• 16-Channel Multipurpose Mixer: Equipped with 16 mic/line inputs with XLR/Jack combo connectors for maximum flexibility.
• DSP Effects Processor: 32-bit effects engine with 380 presets and 4 user memories to add depth and professionalism to your sound.
• Complete Digital Connectivity: Includes a Bluetooth receiver for streaming, a USB port for direct MP3 playback and recording, and a USB audio interface for connection to a computer.
• Professional Channel Control: Each channel has a 3-band equalizer (treble, mid, bass), gain control, panning, effects send (FX), auxiliary return, and Mute and PFL (Pre-Fader Listen) buttons.
• +48V Phantom Power: Allows the use of studio and live condenser microphones.
• Master Graphic Equalizer: A 7-band graphic EQ on the main output to precisely adjust the sound to the room acoustics.
• Balanced and Flexible Outputs: Main stereo outputs in XLR and 6.3 mm jack format, plus group outputs (G1/G2) to create submixes.
• Visual Monitoring: High-precision LED VU meter and peak LEDs on each channel for total control of signal levels.

Product Benefits

The Power Dynamics PDM-T1604 is designed to simplify your workflow without sacrificing quality or control. Its intuitive design allows both beginners and seasoned professionals to quickly achieve a high-quality mix. The ability to record directly to a USB drive is a huge benefit for bands who want to capture their rehearsals or gigs without the hassle of a computer. Integrated Bluetooth and an audio interface make it the perfect hub for any modern sound setup, bridging the analog and digital worlds.

Use Cases

• Live Bands: Ideal for mixing multiple instruments and vocals in small to medium-sized venues. Apply built-in effects and record the performance directly to a USB drive for later review.
• Project Studios and Home Studios: It functions as the main mixer for connecting microphones, synthesizers, and other hardware. The USB interface makes it easy to record the stereo mix in your DAW.
• Fixed Installations: Perfect for theaters, places of worship, or conference rooms that need to reliably manage multiple audio sources such as microphones, computers, and music players.
• Podcasting and Content Creation: Allows you to connect multiple high-quality microphones and other audio sources, offering an all-in-one solution for producing content with professional sound.

Frequently Asked Questions

Can I record each channel separately on my computer via USB?
No, the integrated USB audio interface sends the main stereo mix to the computer. It does not allow multitrack recording of individual channels.

Does the +48V phantom power apply to all channels simultaneously?
Yes, the +48V phantom power is global, meaning it is switched on or off for all XLR microphone channels simultaneously.

What kind of effects does the DSP processor include?
The DSP includes a wide variety of common effects such as Reverb (Hall, Room, Plate), Delay (Echo), Chorus, Flanger, Phaser and combinations thereof, offering 380 presets in total.

Is it possible to play music from my phone via Bluetooth and mix it with the microphones at the same time?
Yes, you can pair your device via Bluetooth and its signal will enter a dedicated stereo channel, allowing you to control its volume and mix it with the other 16 mic/line inputs.

Project description

16-channel live mixer. Each channel features an XLR/Jack combo input, low-noise preamp, gain control, 3-band EQ (treble, mid, bass), FX send, auxiliary return, and pan control. It includes a 32-bit DSP processor with 380 presets and 4 user memories. A 7-band stereo graphic equalizer is available on the main output. Integrated features include a Bluetooth receiver, MP3 player/recorder via USB port, and a full-duplex USB audio interface for PC connection. It offers +48V global phantom power. The main outputs are balanced stereo (XLR and 6.3 mm jack). It incorporates mute and PFL functions per channel, and two output groups (G1/G2). Internal 100-240VAC power supply. Dimensions: 377 x 704 x 120 mm. Weight: 7 kg.
