beamZ Pro Pandora 1600 - 1.6W Professional TTL RGB Laser
The beamZ Pro Pandora 1600 is a professional laser system designed to deliver a high-impact visual spectacle in any environment. With a guaranteed power of 1300mW and a maximum output of 1600mW, this system combines the intensity of its three laser diodes (Red, Green, and Blue) to project graphics and light beams with exceptional brilliance. It is the perfect tool for permanent installations in clubs, discos, corporate events, and for mobile productions that demand reliability and superior performance.
The core of the Pandora 1600 is its TTL (Transistor-Transistor Logic) color modulation system. This technology allows each color diode to be switched on or off independently, generating seven pure and vibrant colors: red, green, blue, cyan, magenta, yellow, and white. Combined with its high-speed optical graphics scanner of 30,000 points per second (30Kpps), the Pandora 1600 is capable of tracing complex patterns, fluid animations, and logos with extraordinary precision and sharpness, transforming any surface into a dynamic canvas.
Versatility of control is one of its strongest points. Professionals can take advantage of the ILDA port to connect the laser to a computer and use specialized software to design and run custom shows without creative limitations. Furthermore, its complete DMX integration, with 12- or 23-channel modes, allows comprehensive control of all parameters from a standard lighting console. For more straightforward use, the standalone (with pre-programmed shows) and sound-activated modes offer plug-and-play operation that reacts intelligently to the beat of the music.
Main features
-
High Output Power: Offers a guaranteed power of 1300mW and reaches a maximum peak of 1600mW for outstanding visual impact.
-
RGB Laser Sources: Equipped with high-quality diodes: 300mW Red, 200mW Green and a powerful 800mW Blue.
-
TTL Color Modulation: Capable of generating 7 solid, high-intensity colors, perfect for aerial effects and defined graphics.
-
High-Speed Graphic Scanner: Its 30Kpps at 8° scanning system guarantees crisp, stable, and smooth graphic projections, free of flicker.
-
Complete Professional Control: Fully compatible with ILDA for software control and DMX (12 or 23 channel modes) for integration into lighting systems.
-
Flexible Operating Modes: Includes standalone modes with pre-programmed shows, sound activation with adjustable sensitivity, and Master/Slave function for synchronizing multiple units.
-

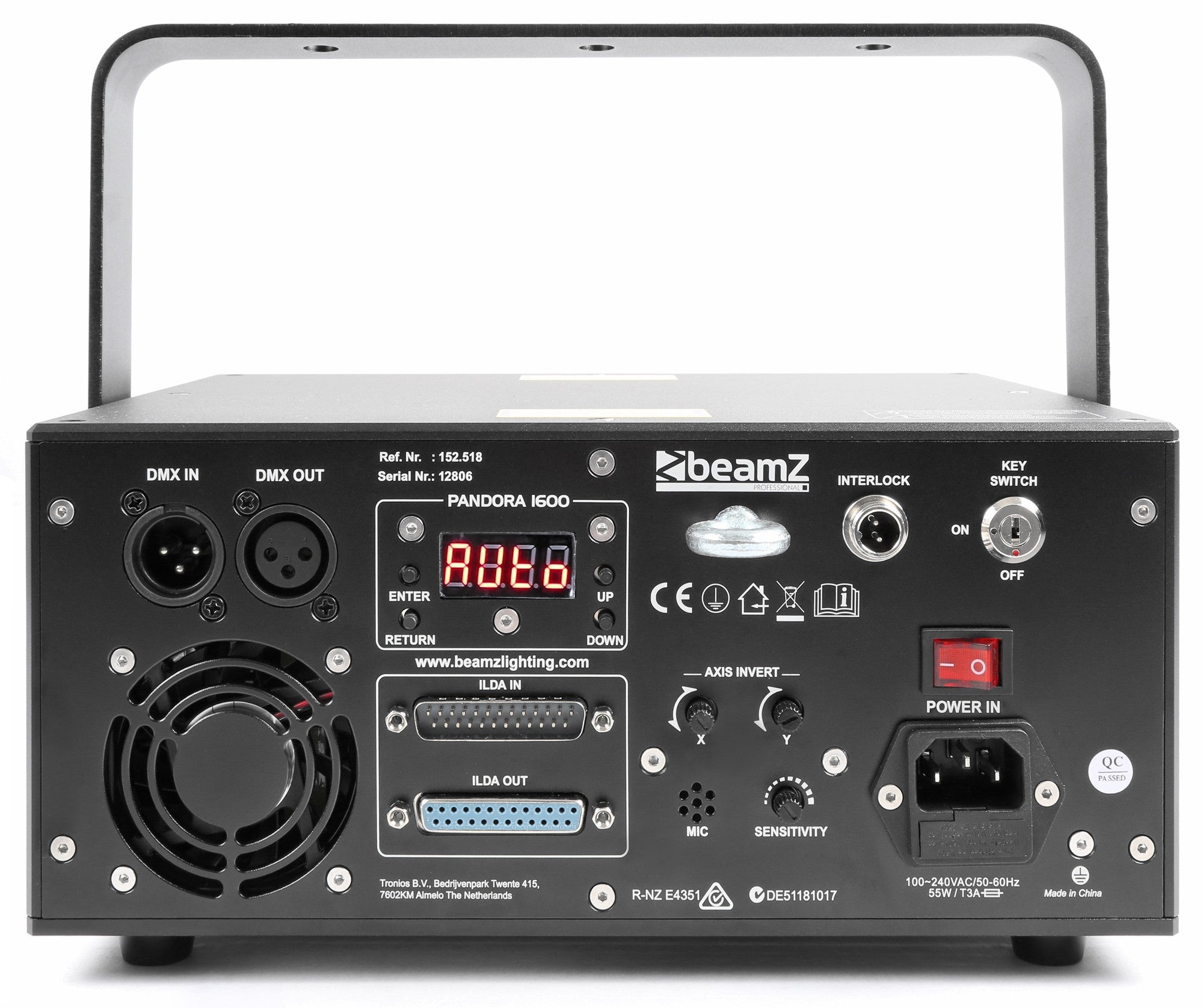

Professional Connectivity: It has DMX input and output via 3-pin XLR connectors and a standard ILDA DB25 port.
-

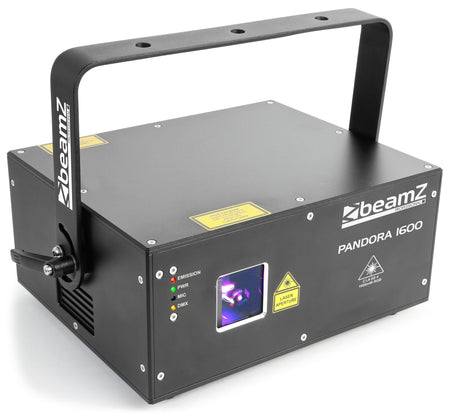

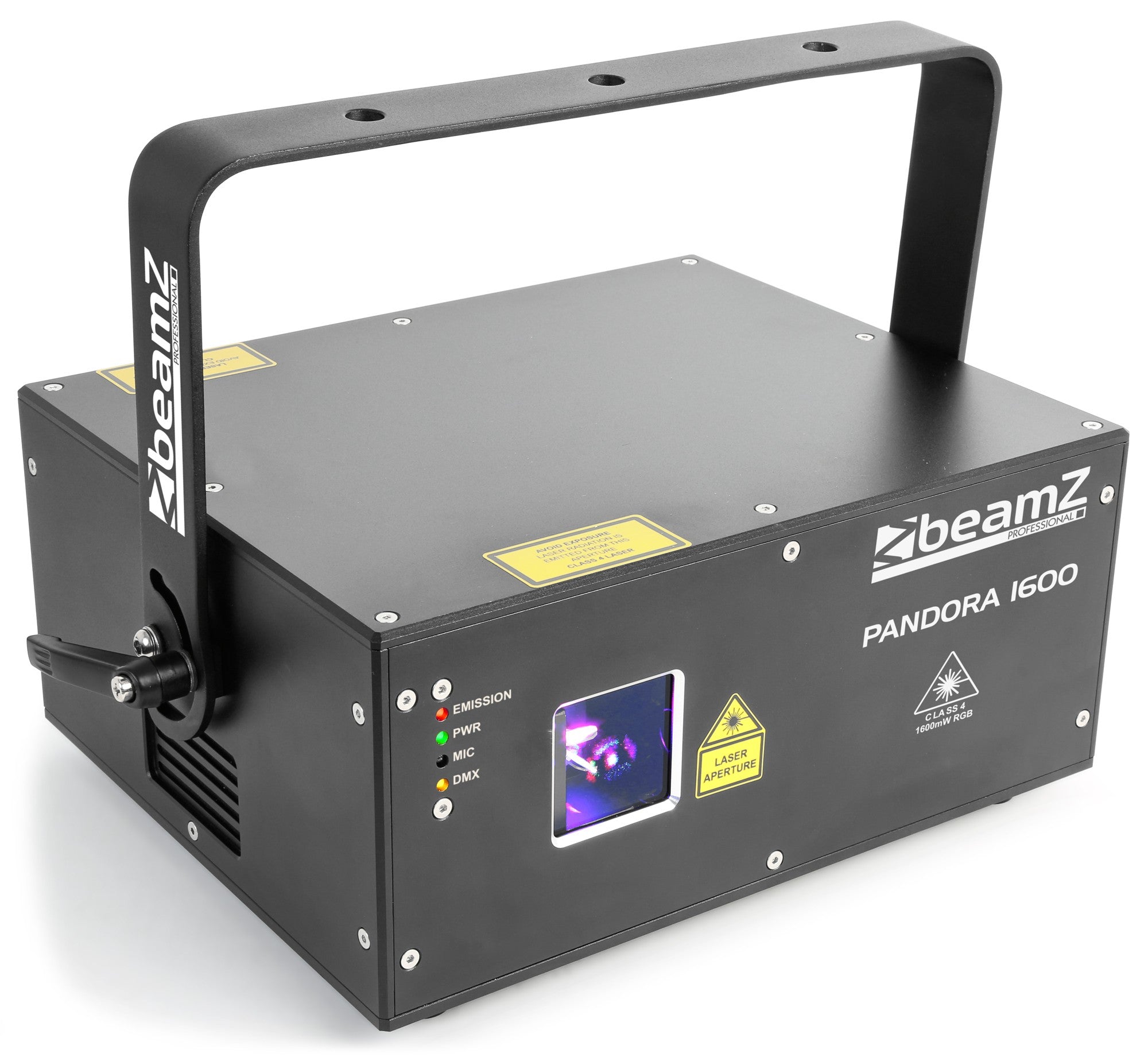

Robust and Functional Design: Built on a sturdy metal chassis, it features a handle that facilitates both transport and mounting on trusses or supports.
Benefits for the lighting professional
The Pandora 1600 is designed for creatives looking to take their productions to the next level. Its high power ensures that effects are visible and spectacular, even in large venues. The precision of its graphic scanner opens a world of possibilities for event customization, allowing you to project everything from corporate logos to complex artistic animations. Its flexible controls make it adaptable to any workflow, from a mobile DJ needing a quick setup to a lighting designer seeking granular control over every effect.
Use cases
This laser is the ideal solution for a wide range of applications. In nightclubs and festivals, it creates stunning beam show effects that fill the space when combined with smoke or fog machines. At corporate events, its ability to project high-precision graphics makes it an unparalleled advertising and branding tool. For audiovisual equipment rental companies, the Pandora 1600 is a versatile and reliable unit suitable for concerts, weddings, product launches, and any event that demands a visual wow factor.
Frequently Asked Questions
- What does "TTL modulation" mean?
- TTL (Transistor-Transistor Logic) means that each laser diode (red, green, and blue) has only two states: fully on or fully off. By combining these three diodes, seven distinct colors (red, green, blue, cyan, magenta, yellow, and white) can be created at their maximum intensity. Unlike analog modulation, it does not allow for the dimming of individual colors to create wider palettes.
- Do I need special software to use ILDA control?
- Yes. To use the ILDA connection, you need a computer with compatible laser control software (such as Pangolin QuickShow or similar) and a DAC (Digital-to-Analog Converter) hardware interface. The laser's DB25 ILDA port connects to this interface, which in turn connects to the computer.
- Is it mandatory to use a smoke machine?
- To visualize the beams and aerial effects in space, the use of a smoke machine or, preferably, a fog machine (hazer) is essential. Without particles in the air, the laser projections will only be visible on the surfaces they hit (walls, ceilings, etc.).
- What is the difference between 12 and 23 channel DMX modes?
- The 23-channel mode offers much more detailed control over laser parameters, allowing individual adjustment of patterns, rotation, size, movement, color, and other effects. The 12-channel mode provides more simplified control, ideal for quick integration into lighting setups or when a limited number of channels are available on the DMX controller.
Project description
Professional laser with a guaranteed output power of 1300mW and a maximum power of 1600mW. It incorporates red (300mW @ 635nm), green (200mW @ 532nm), and blue (800mW @ 447nm) laser diode sources with TTL RGB color modulation for generating 7 colors. It is equipped with a 30kpps optical scanning system at 8° and an X/Y axis inversion function. It offers control via ILDA (DB25 connector), DMX (12 or 23 channel modes with 3-pin XLR connection), standalone mode with pre-programmed shows, and sound activation. It operates on a 100-240VAC 50Hz power supply and has a power consumption of 80W. Its dimensions are 243 x 295 x 128 mm, and it weighs 5.1 kg.
