beamZ Pro P30-C20 - 2-way 60° corner square truss, 1.0 m

beamZ Pro P30-C20 - 2-way 60° corner square truss, 1.0 m

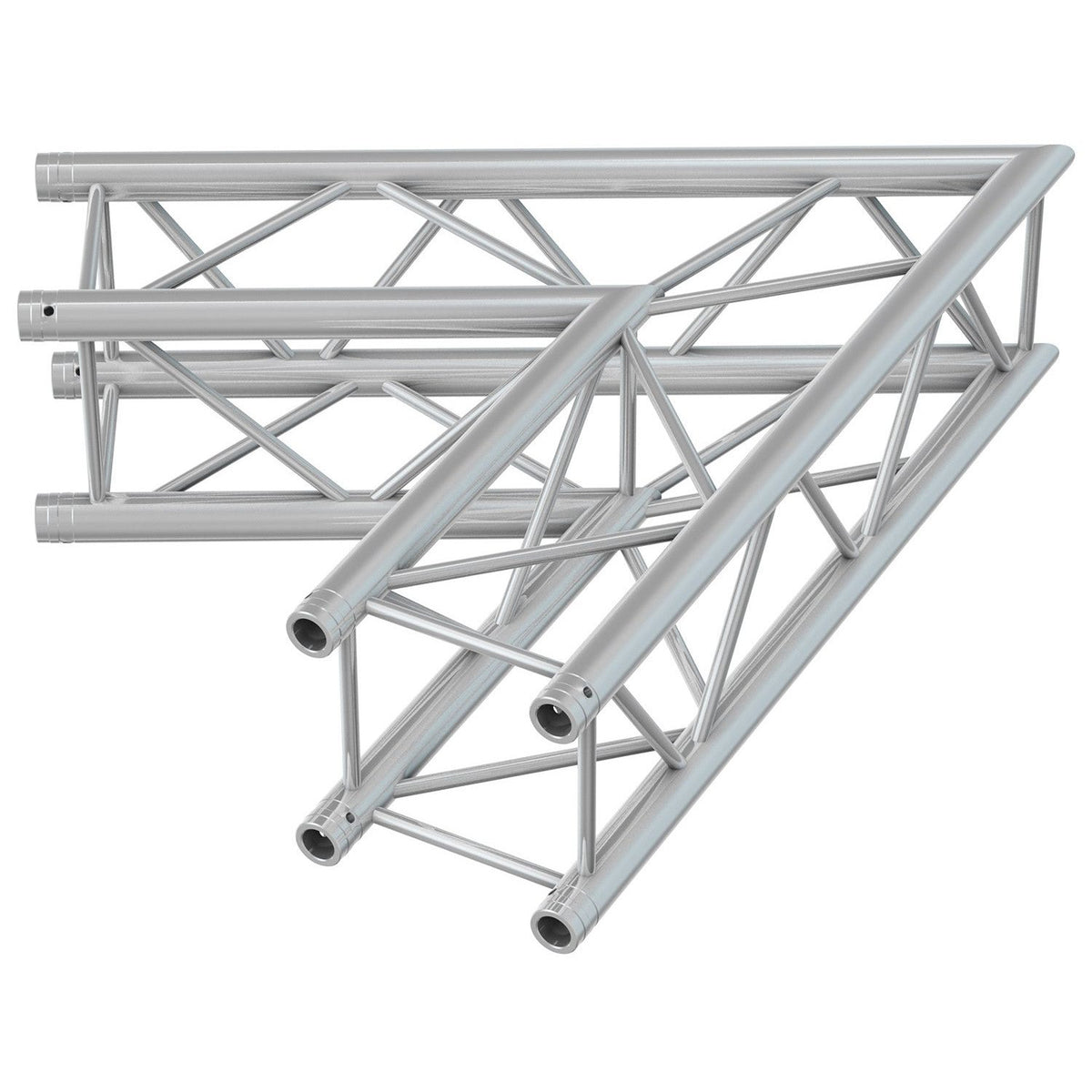

The beamZ Pro P30-C20 is a square aluminum truss designed as a 2-way 60° corner within the professional P30 system. Manufactured from high-strength EN-AW 6082 T6 alloy and finished in natural aluminum, this component allows for the creation of solid and secure 60° angled structures, while maintaining the same standard 290 x 290 mm cross-section as the rest of the P30 range.

Measuring 1000 x 1000 x 290 mm (L x W x H) , each corner arm offers 1.0 m of usable length , ideal for integration into bridges, roofs, enclosed structures, walkways, or special designs for stages and stands. Its structure is based on 51 x 2 mm main tubes (chords) and 16 x 2 mm braces , achieving a very favorable balance between lightness and rigidity. Despite its size, the assembly weighs approximately 8.2 kg , facilitating transport and handling during assembly and disassembly.

The P30-C20 shares the philosophy of the P30 system: quick and easy assembly , lightweight design , and full compatibility with all other sections, corners, and accessories in the series. The P30 coupling system (conical connectors, pins, and safety springs) is not included and must be purchased separately, allowing you to reuse your existing connection hardware. This model is manufactured in Europe and is TÜV certified , providing an additional guarantee of quality and safety for demanding professional applications.

Main features

• Square aluminum truss for the P30 modular system.
• 60º 2-way corner (corner 60º) to create angled structures.
• Standard P30 section of 290 x 290 mm , compatible with the rest of the range.
• EN-AW 6082 T6 aluminum alloy , with high mechanical strength.
• Main tubes (chords): 51 x 2 mm.
• Braces: 16 x 2 mm.
• Dimensions (L x W x H): 1000 x 1000 x 290 mm.
• Approximate weight: 8.2 kg.
• Square aluminum truss with quick and easy assembly and lightweight construction.
• P30 coupling system not included , prepared for conical connectors and P30 pins.
• Made in Europe , with professional production standards.
• TÜV certified , guaranteeing its quality and safety of use.

Product benefits

• Design flexibility : The 2-way 60º corner allows for the creation of angled shapes (e.g., hexagonal or diagonal structures) that add dynamism to any assembly.
• Full integration into the P30 system : by sharing section, alloy and tube measurements with the rest of the P30 trusses, it combines effortlessly with straight sections, crosses, other corners and accessories.
• Quick and easy assembly : designed to work with the P30 coupling system , which reduces assembly and disassembly times compared to traditional screwed systems.
• Lightweight yet robust structure : 51 x 2 mm tubes and 16 x 2 mm braces offer an excellent strength/weight ratio, ideal for rental companies and tours.
• Proven safety : TÜV certification is a strong argument in projects that require technical documentation and compliance with European standards.
• Natural aluminum finish : offers a clean, technical aesthetic, suitable for both visible structures and mounting behind sets or curtains.

Use cases

• Concert and festival venues where 60º angles are required to configure roofs, side wings or wrap-around structures.
• Trade fair and exhibition stands that seek non-rectangular shapes to stand out visually, support signs, lighting and decorative elements.
• Corporate events and product presentations with lightweight structures that integrate LED screens, suspended logos or stage frames.
• Theaters and auditoriums that need to expand or modify existing structures with angled branches at 60º.
• Truss and lighting rental companies that require versatile parts to adapt their P30 stock to different spaces and designs.

Frequently Asked Questions

What type of part is the P30-C20 exactly?
The P30-C20 is a 2-way 60° corner for P30 square truss . It allows two sections of P30 to be joined at a 60-degree angle.

Does it include the P30 system connectors?
No. The P30 coupling system is not included . You must use P30 conical connectors, pins, and safety springs, available as separate accessories.

What material is it made of?
It is made of EN-AW 6082 T6 aluminum , with 51 x 2 mm main tubes and 16 x 2 mm braces , following the same specification as the rest of the P30 truss.

Is it TÜV certified?
Yes, the P30-C20 is TÜV certified , which guarantees that it meets recognized European quality and safety standards.

Is it compatible with other elements in the P30 range?
Yes, it integrates fully with straight sections, other corners, crosses, base plates, towers and accessories of the P30 system, maintaining the same 290 x 290 mm section.

Installation, compatibility and safety

To install the beamZ Pro P30-C20, it is recommended to use only original P30 system conical connectors and pins , ensuring a perfect fit and proper load distribution. Before loading the structure with lights, screens, or other equipment, verify that all connections are properly seated and secured with their safety springs. It is essential to adhere to the P30 system load charts and apply good rigging practices, especially in aerial setups or over public walkways.

Because it is manufactured in Europe and shares specifications with the entire P30 range, the P30-C20 guarantees dimensional and quality uniformity, which is key when combining parts from different batches in large structures.

Project description

beamZ Pro P30-C20 square aluminum truss, 2-way 60° corner for P30 system, 290 x 290 mm section, made of EN-AW 6082 T6 alloy with 51 x 2 mm main tubes and 16 x 2 mm cross members . Dimensions 1000 x 1000 x 290 mm (L x W x H) , aluminum color, approximate weight 8.2 kg , TÜV certified , P30 coupling system not included, made in Europe.
