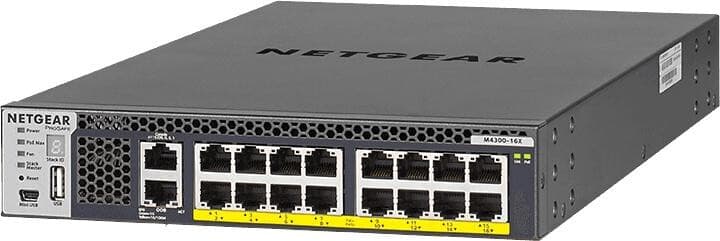

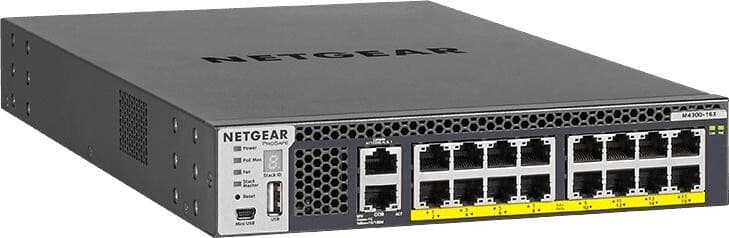

Netgear M4300-16X [XSM4316PA] - Stackable Managed Switch 16 Ports 10G Multi-Gig PoE+ (199W)
Take your network infrastructure to the next level with the Netgear M4300-16X (XSM4316PA-100NES) , a high-performance switching solution designed for businesses that demand speed, versatility, and advanced, hassle-free management. This Layer 3 managed switch features 16 Gigabit Ethernet over copper (10GBASE-T) ports , enabling a smooth and cost-effective transition to 10GbE networks using the standard RJ45 (Cat6A) cabling found in many installations.
What sets the M4300-16X apart is its intelligent Multi-Gigabit capability. Each of its 16 ports automatically detects and negotiates the optimal speed required by the connected device, supporting 100M, 1G, 2.5G, 5G, and 10G standards. This makes it the perfect partner for deploying the latest Wi-Fi 6 and Wi-Fi 7 access points, which often require speeds greater than 1 Gigabit but less than 10 Gigabit, thus optimizing bandwidth without bottlenecks.

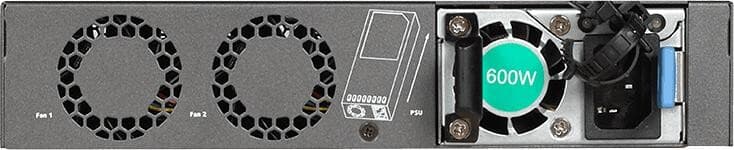

In addition to its incredible speed, this model incorporates PoE+ (Power over Ethernet Plus) technology on all its ports. With an initial power budget of 199W (thanks to its included APS299W modular power supply), it can power critical devices such as 4K IP surveillance cameras, advanced VoIP phones, and high-performance access points directly through the network cable, simplifying installation and reducing cable clutter.
Designed for maximum efficiency in the data center or wiring closet, the M4300-16X features an innovative half-width form factor. This allows two switches to be mounted in a single 1U rack space, offering exceptional port density and the ability to configure active-active top-of-rack redundancy in a minimal footprint. Its stackable architecture allows it to be combined with other models in the M4300 series (including mixed 1G and 10G models) to manage the entire stack as a single logical entity.
Main features
-

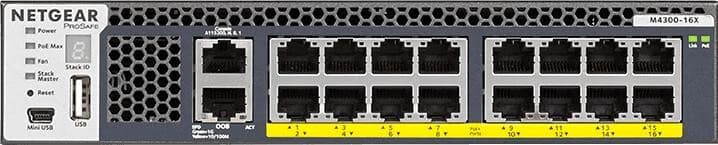

10G Multi-Gigabit Connectivity: 16 RJ45 ports supporting speeds of 100M, 1G, 2.5G, 5G and 10G, dynamically adapting to the needs of each device.
-
Flexible PoE+ Power: Includes a 199W PoE power budget, ideal for IoT and surveillance deployments. The power supply is modular, allowing for future upgrades if more power is required.
-
Complete Layer 3 Management: Includes static routing, RIP, VRRP, OSPF, and PIM without the need for additional licenses, offering enterprise-level capabilities from day one.
-
Versatile Stacking: Virtual chassis technology that allows stacking multiple switches (mixing 1G and 10G models) for unified management and high availability with non-interruptible failover (NSF).
-
Half-Width 1U Design: Compact form factor that allows the installation of two units side by side in a single rack space, optimizing server space.
-
Ready for AV over IP: "Zero Touch" setup for professional audiovisual networks, with IGMP Snooping and Querier pre-configured to work immediately with SDVoE solutions.
Benefits for business infrastructure
The Netgear M4300-16X is more than just a switch; it's an investment in scalability. For small and medium-sized businesses and the enterprise network edge, it eliminates the need for costly fiber optic rewiring by enabling 10G speeds over copper. Its mixed-stack capability protects your investment, allowing you to scale by adding new switches to the stack as your bandwidth needs increase, without having to replace existing infrastructure.
Furthermore, for IT administrators, management is intuitive through a comprehensive web interface or an industry-standard command-line interface (CLI), making it easy to implement security policies, VLANs, and quality of service (QoS) to prioritize critical traffic such as voice and video.
Use cases
-
Pro AV (Professional Audio and Video) Installations: Thanks to its pre-configuration for multicast, it is the preferred switch for distributing 4K/8K video over IP with zero latency in environments such as stadiums, auditoriums and control rooms.
-
Network core for SMEs: Acts as a robust and compact "Core" switch for small and medium-sized businesses that need to connect servers and NAS storage at 10Gbps for fast backups and virtualization.
-
High-Density Wi-Fi 6 Deployment: Provides the 2.5G and 5G connectivity needed to get the most out of modern access points that break the Gigabit barrier, while also supplying the necessary PoE power.
-
Advanced IP Video Surveillance: Powers and connects high-resolution security cameras that require high bandwidth and uninterrupted power.
Frequently Asked Questions
-
Does the switch come with a power supply included?
Yes, the XSM4316PA model includes an APS299W modular power supply that provides the 199W PoE budget.
-
Can I mount this switch in a standard rack?
Yes, the necessary hardware for mounting it in a standard 19-inch rack is included. Its half-width design allows for mounting a single unit (centered or off-center) or two units side-by-side in a 1U rack.
-
Do I need to purchase licenses for Layer 3 features?
No, all Layer 3 functionalities (routing, OSPF, etc.) are available out of the box at no additional license costs.
-
Does it work with Cat5e cables?
It can achieve speeds of 2.5G and 5G on good quality Cat5e cables over short distances, but to ensure a stable 10Gbps, the use of Cat6A cabling is strongly recommended.
Project description
Netgear M4300-16X (XSM4316PA) Layer 3 managed switch. It features 16 RJ45 10GBASE-T ports with Multi-Gigabit support (100M/1G/2.5G/5G/10G) and PoE+ (802.3at) capability on all ports. It includes a 199W PoE power budget via a hot-swappable APS299W modular power supply. The 1U half-width form factor allows for high-density rack mounting. It offers a switching capacity of 320 Gbps and a forwarding rate of 238 Mpps. It supports physical and virtual stacking (Spine and Leaf) with Non-Disruptive Failover (NSF) and mixed topologies with other M4300 series models. It includes advanced static routing, RIP, OSPF, VRRP and PIM features, as well as IGMP/Multicast preconfiguration for AV over IP applications.
