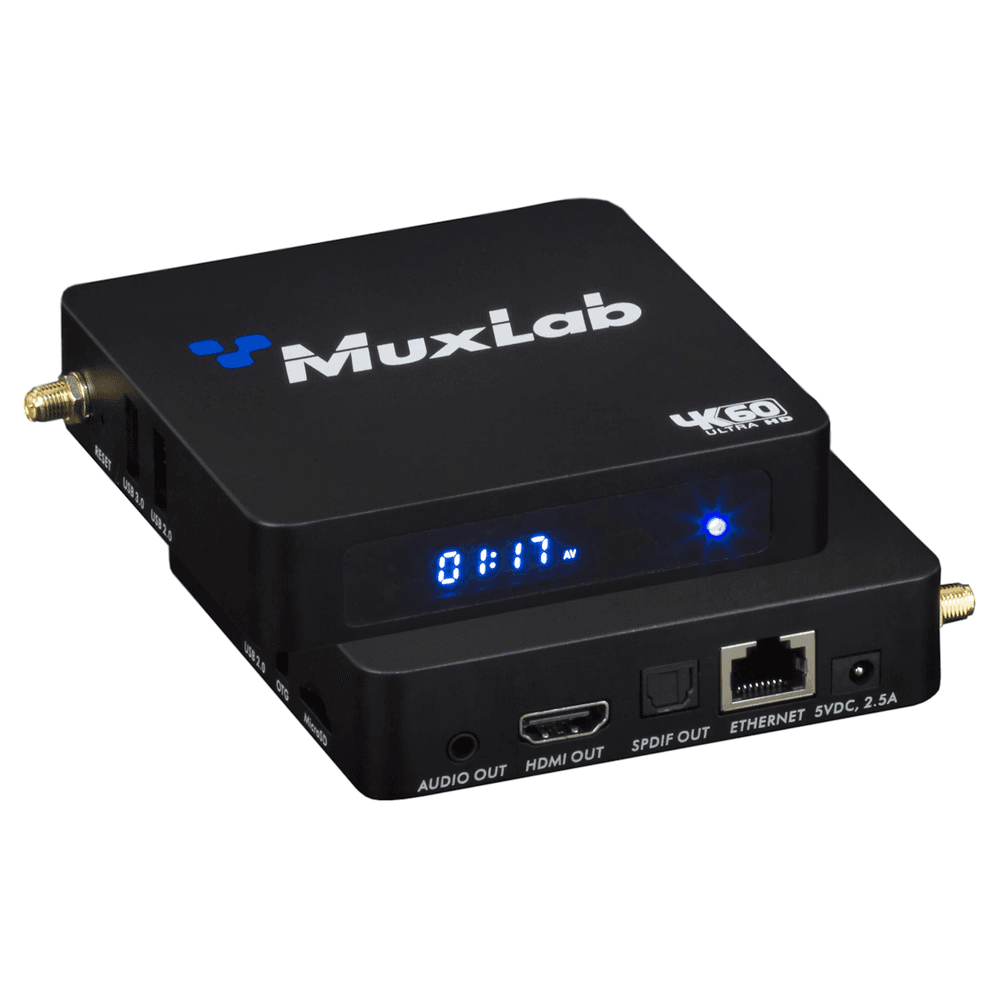

MuxLab 500890 - HDMI over IP Receiver with Digital Signage Player
The MuxLab 500890 is a high-performance device that exceptionally combines the functionality of an HDMI over IP receiver and a digital signage player. Designed for professional audiovisual installations, this equipment allows the reception of H.264/H.265 video signals with resolutions up to 4K at 60Hz (4:4:4) , guaranteeing superior, uncompromising image quality. It is the ideal solution for distributing multimedia content over long distances via a standard Ethernet network.
When used with a compatible transmitter, such as the MuxLab 500763-TX or 500764-TX models, the 500890 receiver can extend an HDMI source up to 100 meters using a single twisted-pair cable (Cat5e/6). Its network architecture is incredibly versatile, allowing point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations. This scalability makes it the ideal centerpiece for complex projects like video walls and multiview systems, where multiple sources and displays need to coexist and be centrally managed.
Main Features
-
4K Ultra HD Video Quality: Supports resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, delivering vibrant colors, crisp text, and exceptional image clarity.
-
Dual Functionality: Operates as a standard AV over IP receiver and as a powerful digital signage player, all in one compact device.
-
Efficient Compression: Uses H.264 and H.265 video codecs to optimize network bandwidth without sacrificing visual quality, ideal for congested networks.
-
Long Distance Extension: Transmits audio and video signals up to 100 meters over a standard network cable.
-
Flexible Audio Outputs: It has an HDMI output for embedded audio and video, an SPDIF (TosLink) digital audio output and a stereo analog audio output (mini-jack), facilitating integration with any sound system.
-
Standalone Signage Player: Managed through MuxLab's DigiSign CMS software, it can store and play content lists, schedules, and timetables independently, without requiring a constant connection to the management PC.
-
Streaming Protocol Support: Compatible with Multicast, RTSP, RTMP, and HLS protocols for maximum flexibility in receiving video streams from various sources.
Product Benefits
The MuxLab 500890 is designed for systems integrators and IT professionals seeking a robust and flexible content distribution solution. Its ability to function as both a traditional receiver and a digital signage player reduces the amount of hardware required, simplifying installation and lowering overall project costs. Management via DigiSign CMS software allows for the creation and scheduling of dynamic content, including video, images, RSS feeds, and HTML5 widgets, providing a powerful and centralized visual communication platform.
Use Cases
Thanks to its versatility, the 500890 receiver is perfect for a wide range of commercial and corporate applications:
-
Corporate Environments: For conference rooms, reception areas and internal communication.
-
Retail and Advertising Sector: As an engine for digital advertising networks (Digital Signage) in stores, shopping centers and shop windows.
-
Education: To distribute educational content and notices on university campuses and training centers.
-
Control and Command Centers: Integration into Video Walls for monitoring and visualization of critical data.
-
Hospitality and Leisure: In hotels, restaurants, stadiums and sports arenas for the transmission of live events and promotional content.
Frequently Asked Questions
Which transmitters are compatible with the MuxLab 500890?
This receiver is fully compatible with MuxLab 500763-TX and 500764-TX transmitters for full HDMI over IP extension functionality.
Do I need special software to manage the digital signage function?
Yes, digital signage content management is done through MuxLab's DigiSign CMS software, which runs on a PC and allows you to create, schedule and manage all content for players on the network.
Can this device operate autonomously?
Yes. Once the playlists and schedules are loaded onto the receiver from the CMS, it can operate independently, playing the scheduled content without being permanently connected to the management software.
What type of network cable is recommended?
It is recommended to use unshielded twisted pair (UTP) cable of category 5e or higher to reach the maximum distance of 100 meters and ensure optimal performance, especially with 4K signals.
Project description
HDMI over IP receiver with integrated digital signage player. Supports video resolutions up to 4K/60Hz (4:4:4) and H.264/H.265 video compression. Features an RJ45 input (1 Gbps) and HDMI, SPDIF digital audio, and stereo mini-jack analog audio outputs. Allows signal extension up to 100 meters. Compatible with Multicast, RTSP, RTMP, and HLS protocols and manageable via DigiSign CMS software. The device complies with HDMI 2.0 and HDCP 2.2 standards. Black metal housing with included external power supply.
