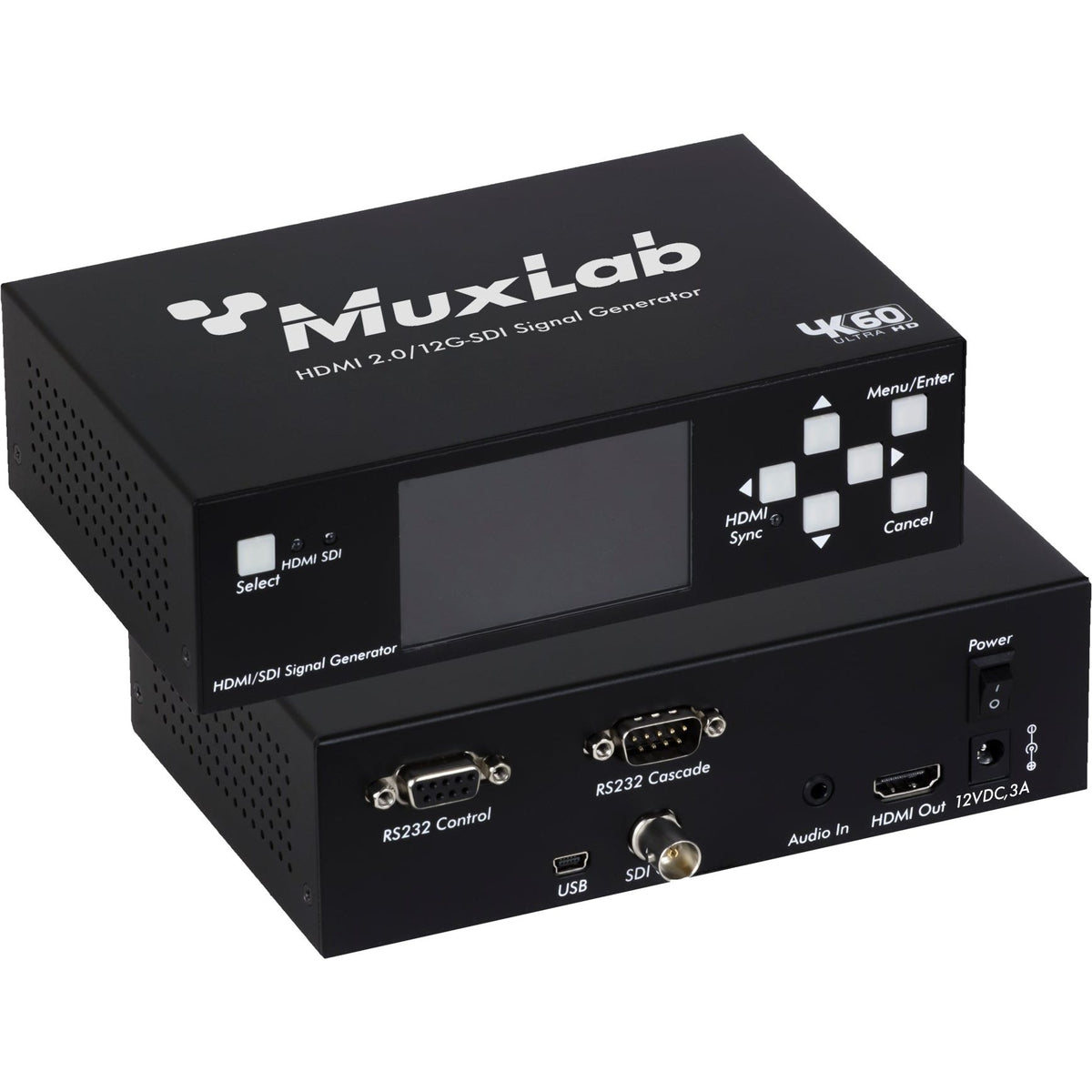

MuxLab IMU-500830-V2 - HDMI 2.0/12G-SDI Signal Generator
The MuxLab IMU-500830-V2 is a professional, portable test tool designed for audiovisual engineers, installers, and integrators. This signal generator produces test patterns for HDMI 2.0 and 12G-SDI connections, enabling accurate validation and diagnosis of the operation and capabilities of a wide range of video equipment. Supporting resolutions up to 4K at 60 Hz (4:4:4), this device is essential for verifying signal integrity in demanding installations, from broadcast and television studios to data centers and AV testing environments.
Equipped with a 3-inch LCD screen, the IMU-500830-V2 offers an intuitive interface for previewing patterns and navigating configuration menus. Its rugged, portable design, complemented by an internal rechargeable lithium-ion battery, provides up to five hours of runtime, offering maximum flexibility for field work. Furthermore, the unit allows for advanced EDID and HDCP management, with the ability to enable or disable versions 1.4 and 2.3 for comprehensive compatibility testing. For a complete workflow, it can be used in conjunction with the MuxLab 500831 signal analyzer for advanced connectivity and cable quality testing.
Main Features
-
Dual Signal Support: Compatible with HDMI outputs up to version 2.0 and with HD/3G/12G-SDI signals, offering wide versatility for different professional environments.
-
High Resolution 4K: Capable of generating signals with resolutions up to 4K @ 60Hz with 4:4:4 chroma subsampling, guaranteeing maximum image quality for testing.
-
Wide Range of Patterns: Includes 37 preset test patterns and 43 predefined resolutions to cover most test scenarios, including 2D and 3D signals.
-
Integrated LCD Screen: A 3-inch color screen allows direct preview of generated patterns and facilitates menu configuration without the need for an external monitor.
-
HDCP and EDID Management: Allows you to enable and disable support for HDCP 1.4 and 2.3, as well as advanced management of EDID information to troubleshoot compatibility issues.
-
Color Space Flexibility: Supports multiple color spaces, including RGB, YUV4:4:4, YUV4:2:2 and YUV4:2:0, plus Deep Color up to 48 bits.
-
Integrated Audio: It has a 3.5 mm analog audio input and supports the generation of up to 7 audio channels for complete audiovisual signal testing.
-
Remote and Local Control: It can be managed locally through its control panel or remotely via RS-232 and USB ports, using the free management software for Windows.
-
Portability and Autonomy: Its compact design and internal rechargeable battery that offers up to 5 hours of continuous use make it the perfect tool for jobs outside the workshop.
Benefits for the AV Professional
The MuxLab IMU-500830-V2 signal generator is an essential tool for any technician or integrator. It simplifies video infrastructure validation, enabling the rapid identification of problems in cables, projectors, monitors, or any other receiving device (sink). By generating a reliable and standardized reference signal, it eliminates guesswork in the diagnostic process, saving time and operating costs. Its portability ensures that you always have a powerful tool at hand to certify complex installations and guarantee that all system components are functioning according to customer specifications.
Use Cases
This generator is the ideal tool for a variety of professional applications. In broadcast and television studios , it is used to calibrate monitors and verify the integrity of the 12G-SDI signal chain. AV system integrators use it during the installation of conference rooms, home theater systems, and digital signage solutions to ensure all devices are compatible and display the image correctly. In data centers and IT departments , it facilitates testing cabling infrastructure and signal extenders before final deployment. Finally, audiovisual engineers and product developers use it as a reference source to validate the performance of new devices.
Frequently Asked Questions
What resolutions does the MuxLab IMU-500830-V2 support?
It supports a wide range of resolutions, including VESA, 480p, 720p, 1080i, 1080p, 2160p, and up to 4K at 60Hz. It features 43 preset resolutions and allows you to program up to 10 custom configurations.
Can I test for HDCP compatibility?
Yes, the device allows you to manually enable or disable support for HDCP 1.4 and 2.3, which is essential for diagnosing handshake problems between protected sources and displays.
Does it need to be plugged into a power outlet to work?
Not necessarily. The generator has an internal lithium-ion battery that provides up to 5 hours of autonomous operation, making it completely portable for field work.
How is the generator controlled?
It can be controlled directly from the front panel buttons and LCD screen, or remotely by connecting it to a PC via USB or RS-232 ports and using the free management software provided by MuxLab.
Can this device also analyze signals?
No, this model is a signal generator. For analysis, MuxLab offers the 500831 model, which is designed to work in conjunction with the 500830-V2 to perform a complete system diagnostic.
Project description
Portable video signal generator with HDMI 2.0 and 12G-SDI outputs. Supports resolutions up to 4K (3840x2160 and 4096x2160) at 60 Hz with 4:4:4 subsampling. Features 37 test patterns, 43 preset resolutions, and 10 user-programmable resolutions. Includes a 3-inch LCD screen for preview and configuration. Offers EDID management and HDCP control (1.4/2.3 on/off). Supports RGB, YUV (4:4:4, 4:2:2, 4:2:0), and Deep Color color spaces up to 48 bits. Includes a 3.5mm analog audio input. The unit can be controlled locally or via RS-232 and USB ports. Powered by an internal rechargeable lithium-ion battery with up to 5 hours of autonomy.
