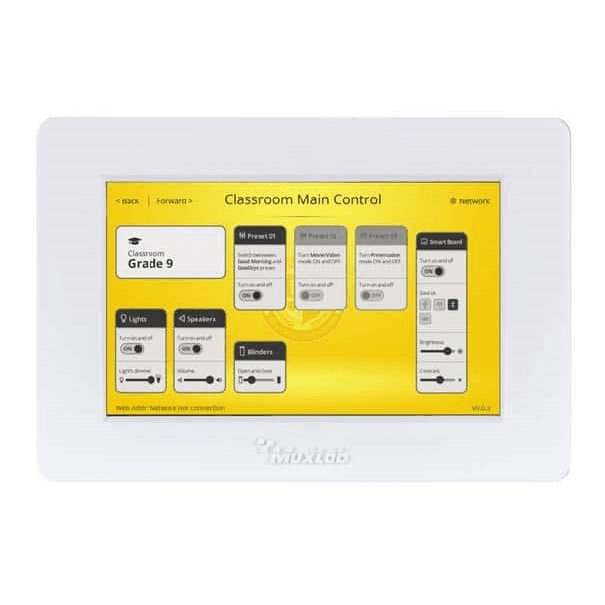

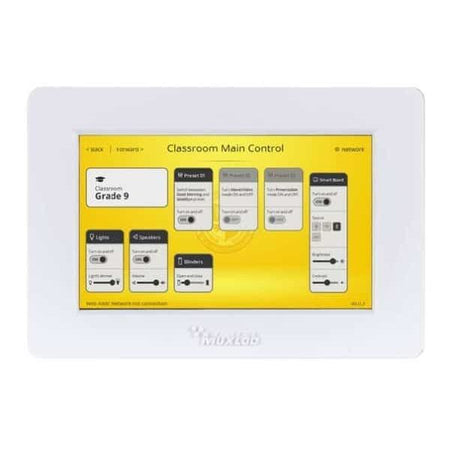

MuxLab IMU-500817-WH - 5" Touch Control Panel with PoE
The MuxLab IMU-500817-WH is an advanced and versatile control solution that combines a high-resolution touchscreen with a powerful integrated control processor. Designed for centralized and intuitive management of audiovisual and automation systems, this device features a 5-inch capacitive touchscreen that provides a smooth and precise response. Its elegant white finish allows for discreet and professional integration into any wall, whether in corporate, educational, or high-end residential environments. The key advantage of its design is Power over Ethernet (PoE), which dramatically simplifies installation by allowing a single network cable to provide both data connectivity and power, eliminating the need for local power supplies and reducing cable clutter.
Main Features
-
5" Capacitive Touch Screen": Offers a crisp and bright user interface with a resolution of 800x480 pixels, ensuring clear visual control and easy interaction.
-
Integrated Control Processor: It's not just a screen, but a complete control system capable of autonomously managing MuxLab and third-party devices.
-
Power over Ethernet (PoE): Compatible with the IEEE 802.3af standard, it allows for a clean and efficient installation with a single Ethernet cable for both data and power.
-
Multiple Control Ports: Equipped with a wide range of ports, including 2x RS-232, 1x RS-485, 1x Infrared (IR) emitter, 2x low voltage relays and 2x voltage sensing ports for maximum compatibility.
-
Network Connectivity: It has an Ethernet port (RJ45) for control via TCP/IP, UDP and Telnet, allowing robust integration into the local network.
-
Programmable Interface: The configuration and customization of the graphical interface are conveniently done through a web browser, allowing you to create custom buttons, pages, and macros for each project.
Product benefits
The MuxLab 500817-WH control panel is designed to simplify the complexity of modern systems, delivering an exceptional end-user experience.
-
Centralized Control: Unifies the management of multiple devices such as projectors, screens, video matrices, audio systems and lights from a single intuitive access point.
-
Simplified Installation: Thanks to PoE technology, installation costs and times are significantly reduced, requiring less cabling and labor.
-
Maximum Flexibility: Its ability to control equipment through virtually any standard protocol (IP, serial, IR) makes it a solution adaptable to new or existing installations.
-
Intuitive User Experience: The customizable graphical interface allows you to adapt the control to the specific needs of the user, making the handling of complex technology accessible to everyone.
-
Professional Integration: Its wall-mounted design and minimalist aesthetic ensure seamless integration into any decor, adding a touch of modernity and sophistication.
Use Cases
This control panel is the ideal choice for a wide variety of applications requiring reliable and easy control:
-
Meeting and Conference Rooms: To start presentations, control video conferences, adjust lighting and lower projection screens with a single touch.
-
Classrooms and Auditoriums: Allows educators and speakers to easily manage audiovisual equipment without the need for technical assistance.
-
Residential AV Systems: Perfect for controlling home theater systems, multi-zone audio, smart lighting, and other connected home devices.
-
Commercial and Hospitality Environments: For the management of digital signage, background music systems and control of event rooms.
Frequently Asked Questions
Does this control panel require an external processor to function?
No, the MuxLab IMU-500817-WH combines the capabilities of a touch panel and an advanced control processor. It can directly control end devices through its multiple ports (RS-232, IR, Relay, etc.) and network.
What is needed for wall mounting?
The panel is designed to be mounted in a standard electrical wall box. It is recommended to consult the installation manual to confirm compatibility with 1- or 2-gang boxes according to regional standards.
How do I customize the user interface?
All programming and configuration is done through an integrated web interface. Simply connect to the panel's IP address from a browser to design the interface, add buttons, and program commands.
Can it be powered without using PoE?
Yes, in addition to PoE, the device has an input for an external 24VDC power supply (you should check if it is included).
Project description
Control panel with a 5-inch capacitive touchscreen and 800x480 pixel resolution. It integrates a web-programmable control processor. Connectivity is provided via a 10/100Base-T Ethernet LAN port (RJ45) with PoE (IEEE 802.3af) power supply. The panel includes the following control ports: two RS-232, one RS-485, one infrared (IR) emitter port, two low-voltage relay ports, and two voltage sensing inputs. Designed for wall mounting. Finished in white. Dimensions: 145 x 100 x 37 mm. Weight: 344 g.
