MuxLab 500816-IP - 8-button PoE IP control panel
The MuxLab 500816-IP is a versatile, programmable control panel designed for centralized and simplified management of professional audiovisual systems. With a compact design suitable for wall or desktop mounting, this 8-button panel integrates seamlessly into any environment, from boardrooms and classrooms to control centers and showrooms. Each of its eight buttons is backlit and fully programmable, allowing up to six commands per button and intuitive control of a wide range of devices.

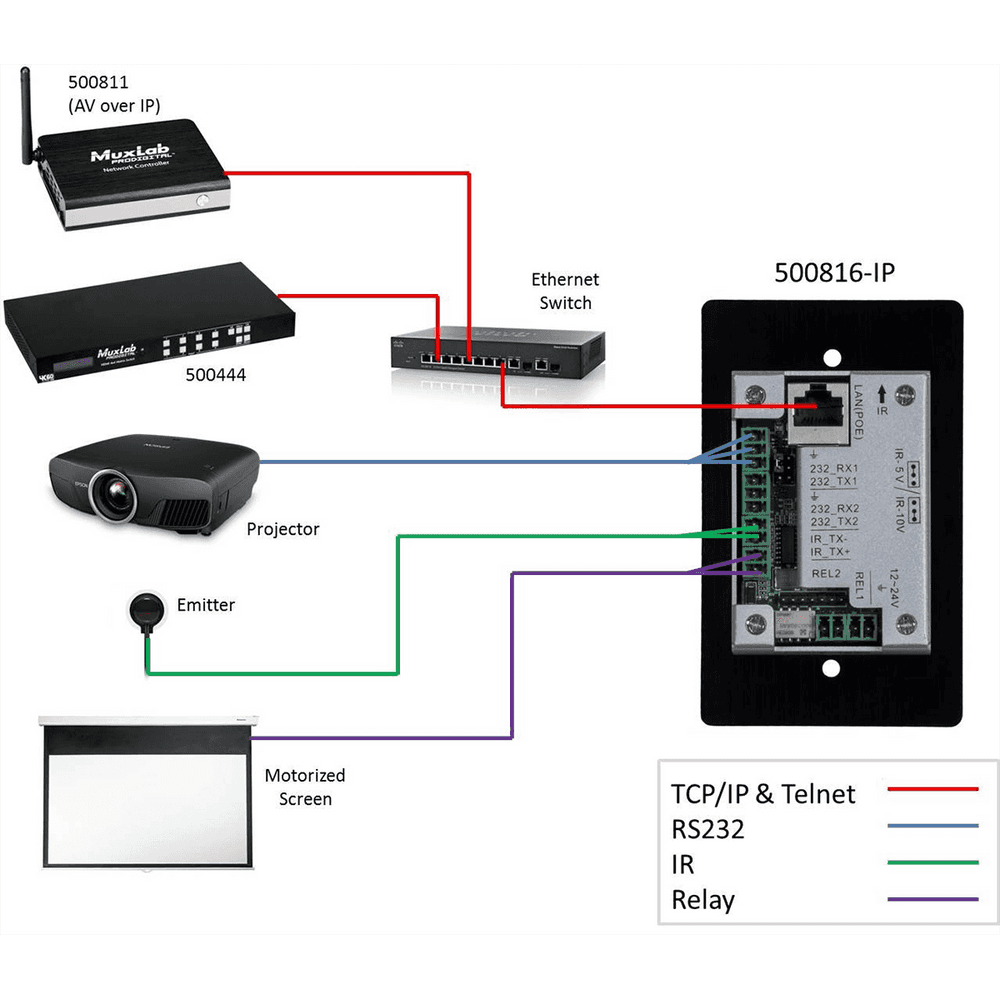

Thanks to its advanced connectivity, the 500816-IP can control MuxLab devices, such as AV-over-IP systems, via the ProDigital network controller, and is also compatible with third-party equipment such as projectors, displays, switching matrices, and other audiovisual sources. Power over Ethernet (PoE) simplifies installation by combining power and data connections over a single cable, eliminating the need for local power supplies and reducing cable clutter. Configuration is straightforward via an integrated web interface, accessible from any browser, which allows you to program buttons, configure control ports, and even learn infrared (IR) commands from other remote controls.
Main features
-
Universal Control: Manage devices via multiple protocols, including IP (TCP/IP, Telnet, HTTP, UDP), RS-232, IR, and relays.
-
8 Programmable Buttons: Each button is backlit and can be individually configured to run macros or sequences of up to 6 commands.
-

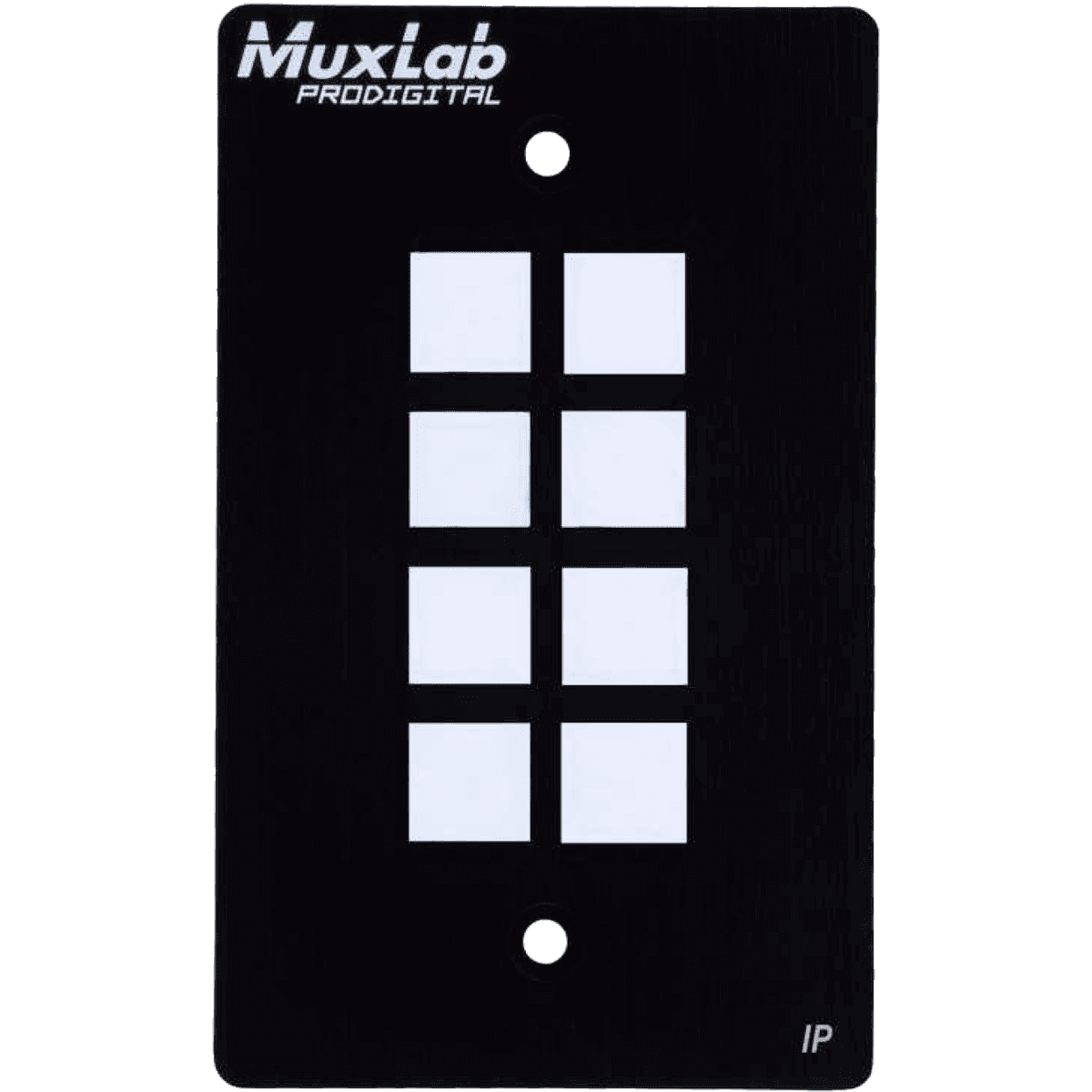

Customizable Labels: The buttons have a removable plastic cover that allows you to insert custom labels for easy identification of their functions.
-
PoE power supply: It is powered directly through the network cable thanks to its compatibility with Power over Ethernet (PoE), facilitating a clean and efficient installation.
-
Web Configuration: Intuitive web interface for easy programming and management without the need for specialized software. Allows you to configure the network, program buttons, and use the IR learning function.
-

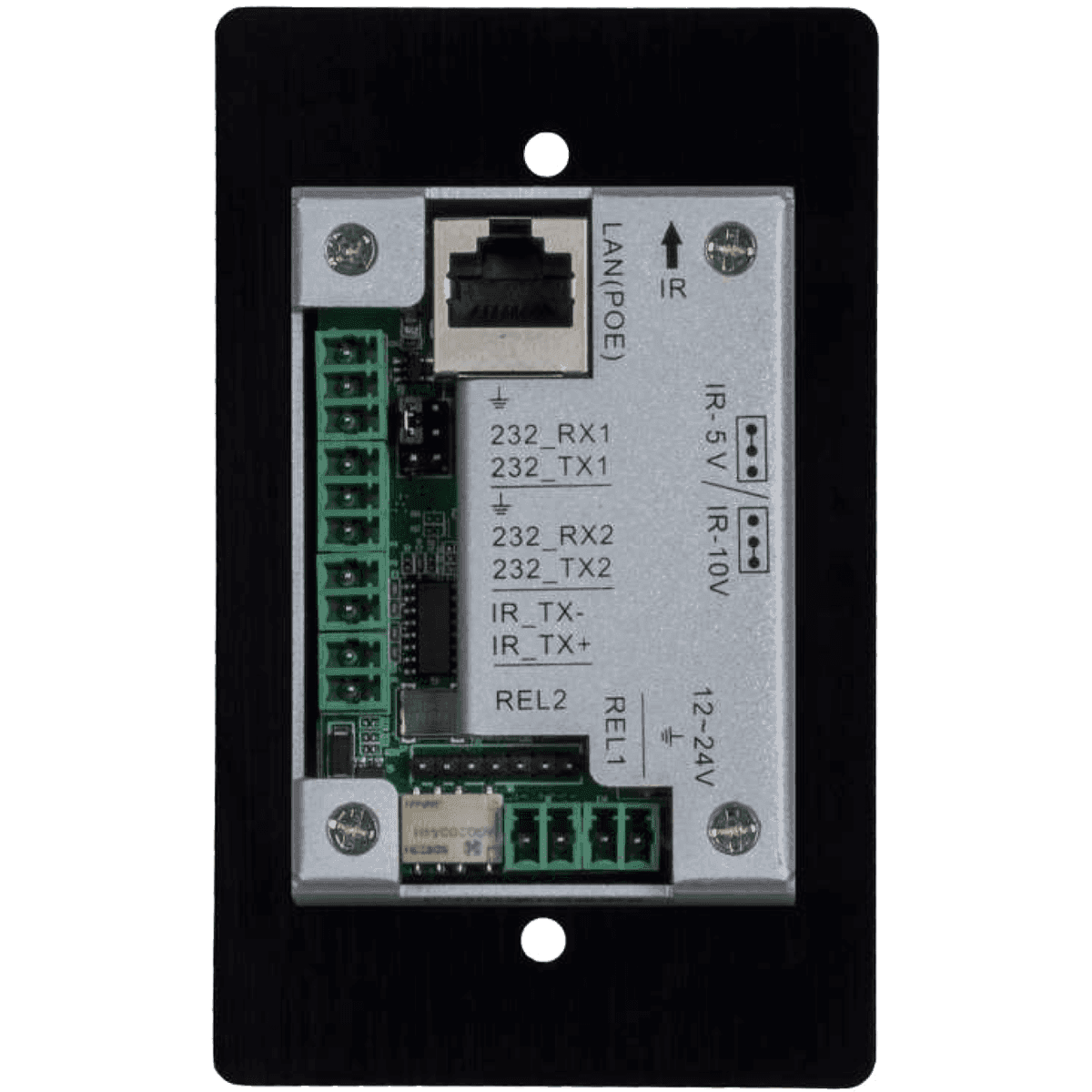

Multiple Connection Ports: Equipped with an Ethernet port, two RS-232 ports, an infrared (IR) output port, and two relay ports for maximum control flexibility.
-
Versatile Design: Its compact design allows for flexible mounting, whether on a standard wall or placed on a table or desk.
Benefits for the integrator and the end user
The MuxLab 500816-IP panel is designed to simplify the complexity of modern AV systems. For integrators, the ability to control multiple devices from different manufacturers through a single interface significantly reduces installation and programming time. PoE power and web-based configuration further streamline the process. For the end user, this panel translates into a hassle-free user experience. Instead of managing multiple remote controls or complex interfaces, users can trigger complete scenarios, such as "Start Presentation" or "Shut Down Room," with the push of a single button, improving efficiency and reducing the potential for operational errors.
Use cases
This control panel is the ideal solution for a wide variety of applications:
-
Meeting and conference rooms: Control projectors, motorized screens, videoconferencing systems and AV sources with a single keypad.
-
Classrooms and auditoriums: Simplify the handling of audiovisual equipment for teachers and speakers, allowing them to focus on the content.
-
Showrooms and commercial spaces: Manage content playback on multiple screens and sound systems centrally.
-
Home Cinema and Home Automation: Integrate the control of home cinema equipment, lighting, and other smart devices into a single, accessible control point.
Frequently Asked Questions
How do I configure the panel buttons?
Configuration is done through a web interface accessed by connecting a computer to the same network as the panel. From the browser, specific functions can be assigned to each button, including IP, RS-232, IR, and relay commands.
Is it compatible with devices that are not from the MuxLab brand?
Yes, the 500816-IP panel is fully compatible with third-party devices that can be controlled via TCP/IP, Telnet, RS-232, IR or relays.
What is PoE and why is it useful?
PoE (Power over Ethernet) is a technology that allows network cables to carry electrical power. This means the control panel can receive both data and power through a single Ethernet cable, simplifying installation and eliminating the need for a separate power supply near the device.
Can I control multiple devices with a single button?
Yes, each button can be programmed to execute a sequence of up to six different commands. For example, a single button can turn on a projector, lower a screen, select an HDMI source, and turn off the room lights simultaneously.
Project description
Wall-mounted or desktop control panel with 8 programmable, backlit buttons. It features one Ethernet (LAN) port with PoE (PD) support, two RS-232 ports, one IR output, and two relay outputs. It allows device control via TCP/IP, Telnet, HTTP, and UDP protocols. Configuration and programming are performed via an integrated web interface with an IR learning function. Dimensions: 114 x 70 x 36 mm.
