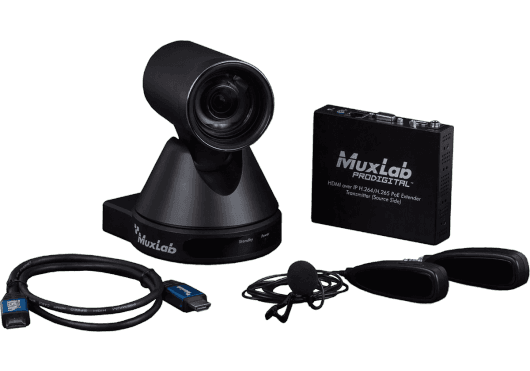

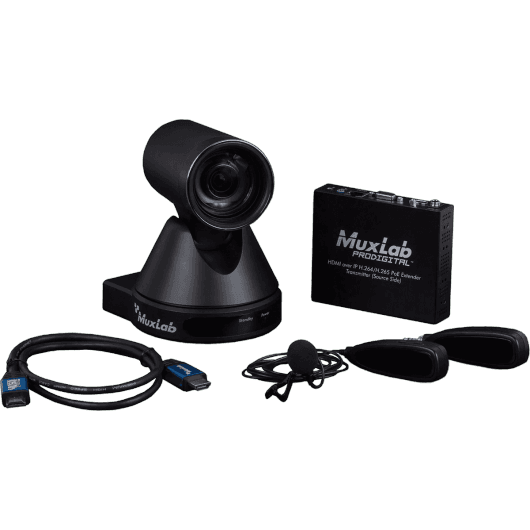

MuxLab IMU-500786 - Streaming Kit with HDMI/IP PTZ Camera and Transmitter
The MuxLab IMU-500786, also known as the MuxStream Pro Single-Camera Live Streaming Kit, is a comprehensive, professional solution designed for streaming live video and audio content over the internet. This complete package includes all the essential components for content creators, educators, businesses, and places of worship to broadcast their events, presentations, or services to a global audience with exceptional quality. It simplifies streaming production by combining a high-performance PTZ camera, a versatile A/V over IP transmitter, and a wireless microphone system, ensuring quick setup and intuitive operation.
The heart of the system is the MuxLab 500791 PTZ camera, which captures Full HD 1080p images at 60 frames per second. Its powerful lens offers 12x optical zoom and 16x digital zoom, allowing for detailed close-ups without loss of quality, ideal for covering everything from wide shots to close-ups in auditoriums or large rooms. The camera is built around a high-quality 1/2.7-inch, 2.07-megapixel CMOS sensor, which, along with an advanced 2D and 3D noise reduction algorithm, ensures a sharp and clear image even in low-light conditions. Remote control of its pan, tilt, and zoom (PTZ) functions facilitates dynamic and professional production from a single location.
For transmission, the kit includes an H.264/H.265 A/V over IP transmitter capable of handling video streams up to 4K at 30 Hz. This device encodes the camera signal and audio for transmission over LAN networks or directly to the internet, using high-efficiency codecs that ensure low-latency transmission (less than 200 ms) and optimized bandwidth consumption. It is compatible with popular streaming protocols such as RTMP, RTSP, and HLS, allowing direct streaming to platforms like YouTube, Facebook Live, and Wowza, as well as integration with production software such as OBS or Wirecast. The transmitter features an HDMI input for the camera, a 3.5 mm audio input, and can be powered by its power supply or via PoE (Power over Ethernet) for greater installation flexibility.
Main features
-
Complete Streaming Solution: Includes PTZ camera, A/V over IP transmitter, wireless lavalier microphone and essential cabling for immediate setup.
-
Full HD PTZ Camera: Model 500791 with 1080p/60 resolution, 12x optical zoom and 16x digital zoom for versatile, high-quality video capture.
-
Advanced Image Sensor: 2.07 Megapixel CMOS sensor with excellent low-light performance and 2D/3D noise reduction.
-
Up to 4K Transmission: The transmitter supports video streams up to 4K at 30 Hz with H.264/H.265 compression for efficient, high-quality transmission.
-
Low Latency: Latency of less than 200 milliseconds in low latency mode with H.265, crucial for real-time interaction.
-
Quality Wireless Audio: Wireless lavalier microphone system that operates in the 2.4 GHz band for clear, wire-free voice capture.
-
Centralized Control: Complete system management, including transmitter configuration and camera PTZ control, via the free MuxStream Control App (available for iOS, Android and Windows).
-
Flexible Connectivity: The transmitter can be powered via its power supply or via PoE (IEEE 802.3af), simplifying installation.
Product benefits
The MuxLab IMU-500786 kit eliminates guesswork and complexity when setting up a live streaming system. By providing pre-selected and fully compatible components, it ensures seamless integration and reliable performance right out of the box. Users benefit from professional-quality video and crystal-clear audio, significantly enhancing the production value of their broadcasts. Flexible PTZ control and compatibility with major streaming platforms make it a future-proof investment, adaptable to a wide range of content production needs.
Use cases
This kit is the ideal solution for a variety of live streaming applications. In education, it allows for the broadcasting of classes and lectures to students remotely. For businesses, it's perfect for webinars, general meetings, and product launches. In places of worship, it facilitates the broadcasting of services and events to the congregation online. It's also an excellent tool for fitness trainers conducting virtual classes, chefs for live cooking demonstrations, and any content creator looking for a robust, high-quality streaming solution.
Frequently Asked Questions
Do I need advanced technical knowledge to install and use this kit?
No. The kit is designed to be a plug-and-play solution. Setup is simplified by the MuxStream Control app, which guides the user through system configuration and connecting to streaming platforms.
Can I stream to multiple platforms simultaneously?
The transmitter sends a single output stream. To stream to multiple platforms simultaneously (multistreaming), you would need to use a third-party service or software that receives the stream from the transmitter and distributes it to the different platforms.
What distance can there be between the transmitter and the network switch?
The transmitter can be connected to an Ethernet network switch using a Cat5e/6 cable up to 100 meters long.
Does the wireless microphone require a complicated setup?
No, wireless microphone systems that operate in the 2.4 GHz band typically pair automatically or with just the push of a button, offering a simple and quick setup.

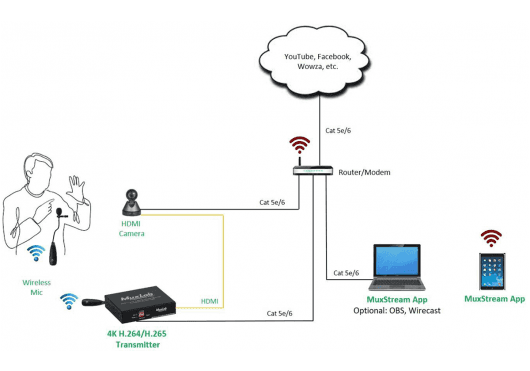

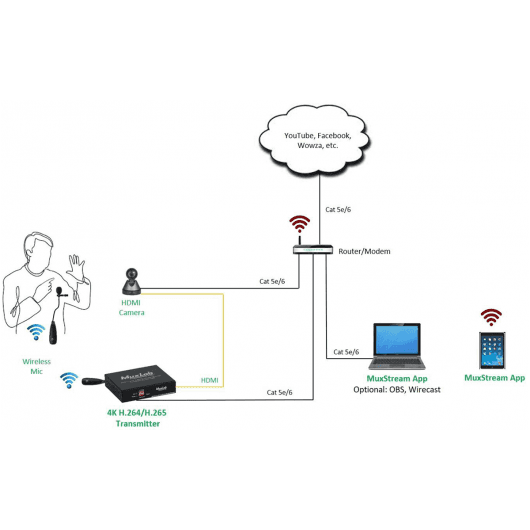

Project description
Live video streaming kit consisting of: a PTZ (Pan-Tilt-Zoom) camera, model number 500791, with Full HD 1920x1080p output resolution at 60 fps, a 1/2.7-inch 2.07MP CMOS sensor, 12x optical zoom and 16x digital zoom, and HDMI and IP video outputs. It includes an A/V over IP transmitter that supports H.264/H.265 encoding and input resolutions up to 4K at 30 Hz, with RTSP, RTMP, and HLS transmission protocols, and PoE (IEEE 802.3af) power. The system is completed with a 2.4 GHz wireless lavalier microphone kit, including a transmitter and receiver, and a 2-meter HDMI cable. System management is handled by a control application for Windows, iOS, and Android.
