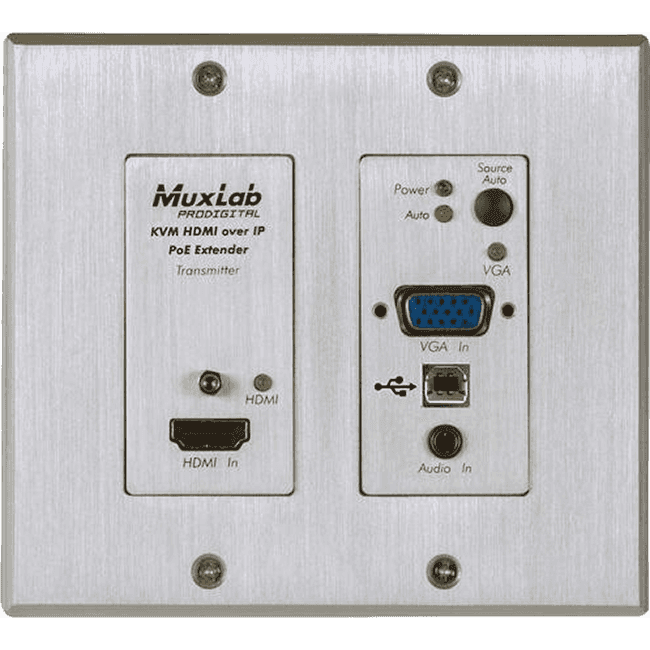

MuxLab 500777-TX - HDMI/VGA/USB over IP 4K Transmitter Wall Plate
The MuxLab 500777-TX is a high-performance transmitting wall plate designed for integrating and extending audiovisual and data signals in professional environments. This versatile device transmits HDMI or VGA video signals, along with audio and USB 2.0, over an IP network using a single Cat5e/6 cable up to 100 meters. Its two-gang wall plate design ensures a clean, discreet, and professional installation, ideal for conference rooms, classrooms, collaborative spaces, and digital signage systems.
Capable of handling video resolutions up to 4K UHD (3840x2160 at 30Hz 4:4:4 or 60Hz 4:2:0), this transmitter guarantees exceptional, uncompromising image quality. Visually lossless JPEG 2000 compression, with a latency of just one frame (16 ms), ensures smooth, natural transmission, crucial for interactive applications. Flexibility is key, offering HDMI and VGA inputs with mini-jack audio, as well as a USB 2.0 port with an automatic switching function that selects the first active source detected, simplifying the user experience.
Power over Ethernet (PoE) dramatically simplifies installation by eliminating the need for an external power supply on the wall plate, receiving power directly from a PoE-compatible network switch (PSE). Furthermore, the 500777-TX can be managed remotely over the network or locally via a push button, offering complete control over power source selection. This transmitter is a robust and reliable solution for any distributed IP AV system, compatible with MuxLab IP receivers for creating complex and scalable point-to-point, point-to-multipoint, or multipoint-to-multipoint configurations.
Main features
-
Transmission over IP: Extends HDMI, VGA, audio and USB 2.0 signals up to 100 meters over a single Cat5e/6 cable.
-
4K video quality: Supports HDMI resolutions up to 4K@30Hz (4:4:4) and 4K@60Hz (4:2:0), and VGA up to 1920x1200@60Hz.
-
Multiple Inputs: It has an HDMI input, a VGA input with its corresponding 3.5 mm stereo audio input, and a USB 2.0 port.
-
Intelligent Switching: Offers automatic switching capability to the last connected source or manual selection via button on the front panel or remote control.
-
PoE Power: It is powered via PoE (Power over Ethernet) from a compatible network switch, simplifying cabling and installation. It also supports an optional power adapter (500993).
-
Low Latency: Uses JPEG 2000 compression for a typical latency of only 16 milliseconds (one frame).
-
HDCP 2.2 Compatibility: Complies with the latest digital content protection standards.
-
Flexible Management: It can be managed through the MuxLab Pro Digital Network Controller (500812), the MuxlabControl application for smartphones and tablets, and third-party control systems.
-
Professional Design: Two-gang wall plate format for a flush and aesthetic installation.
Product benefits
The MuxLab 500777-TX transmitter is designed for integrators and end users seeking a reliable, scalable, and easy-to-install AV connectivity solution. Its ability to transmit multiple signal types over a single, low-cost network cable significantly reduces cabling complexity and cost in any installation. PoE power eliminates the need for additional power outlets at the wall plate location, offering greater mounting flexibility. Its versatile inputs and auto-switching capability make it ideal for dynamic environments where different users need to quickly connect their devices, such as meeting rooms and classrooms, improving efficiency and collaboration.
Use cases
This device is the ideal choice for a wide range of applications:
-
Boardrooms and Conference Rooms: Allows presenters to easily connect laptops and other devices to a main screen or projector, regardless of whether they have HDMI or VGA output.
-
Classrooms and Educational Environments: Facilitates the connection of computers, tablets and interactive whiteboards (Smart Boards) to classroom projection systems, supporting USB extension for interactivity.
-
Digital Signage: Allows the distribution of high-quality video content to screens located in remote locations within a building or campus.
-
Residential AV Systems: Offers a clean solution for connecting video sources in a living room or home theater to a centralized computer.
-
Control and Monitoring Centers: Facilitates the transmission of signals from multiple sources to a video matrix or video wall over a standard network infrastructure.
Frequently Asked Questions
What type of network cable is recommended for the MuxLab 500777-TX?
Unshielded twisted-pair (UTP) Cat5e or Cat6 cable is recommended to achieve the maximum distance of 100 meters. In environments with high electromagnetic interference, shielded twisted-pair (STP) cable should be used.
Do I need a power supply for this transmitter?
Not necessarily. The device is designed to be powered via PoE (IEEE 802.3af) from a network switch. If your switch does not provide PoE, you can purchase the optional MuxLab 500993 power adapter separately.
Which receivers is this transmitter compatible with?
It is compatible with MuxLab over IP receivers such as models 500758-RX and 500759-RX to create a complete signal extension system.

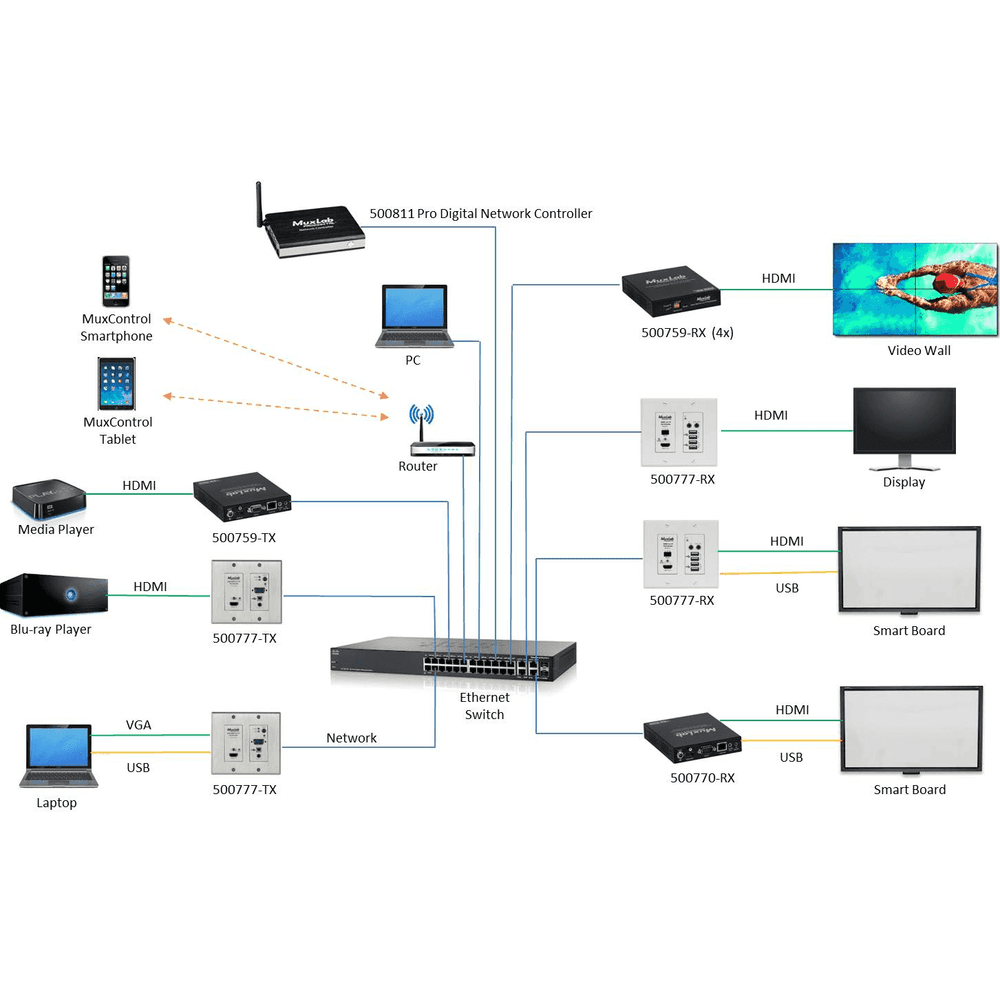

Can I connect multiple transmitters and receivers on the same network?
Yes, point-to-multipoint and multipoint-to-multipoint systems can be configured by connecting multiple transmitters and receivers through a managed Gigabit Ethernet network switch that supports IGMP and Jumbo Frames.
Project description
Dual-gang wall plate for transmitting signals over IP networks. Supports HDMI 2.0 and VGA inputs with associated 3.5mm audio, and a USB 2.0 port. Transmits video up to 4K@30Hz (4:4:4) and 4K@60Hz (4:2:0) for HDMI, and 1920x1200@60Hz for VGA. Signal extension reaches up to 100 meters over a single Cat5e/6 cable. Uses JPEG 2000 compression with a latency of 16 ms. HDCP 2.2 compliant and powered via PoE (IEEE 802.3af). Features an RJ45 port for IP signal output. Dimensions are 128 x 111 x 42 mm and weight is 0.61 kg.
