MuxLab 500772-TX - HDMI KVM over IP Transmitter with 4K and PoE Support

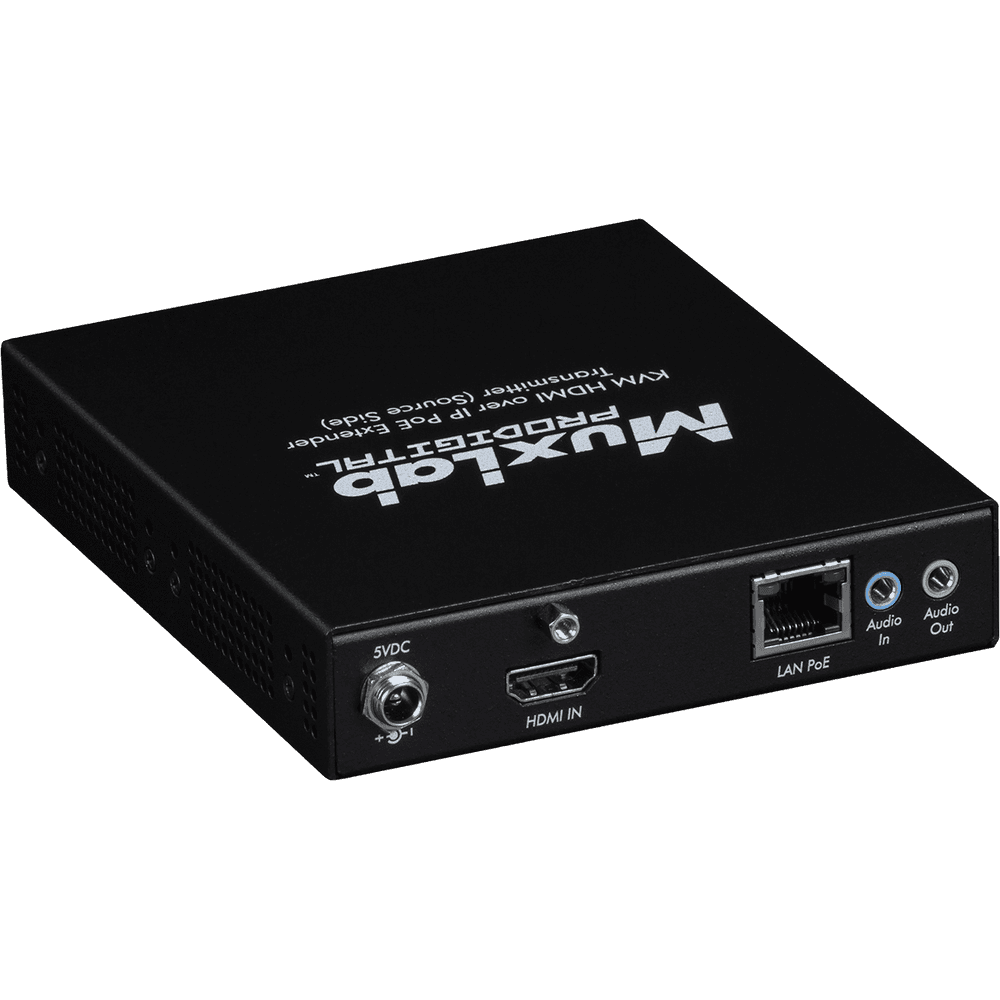

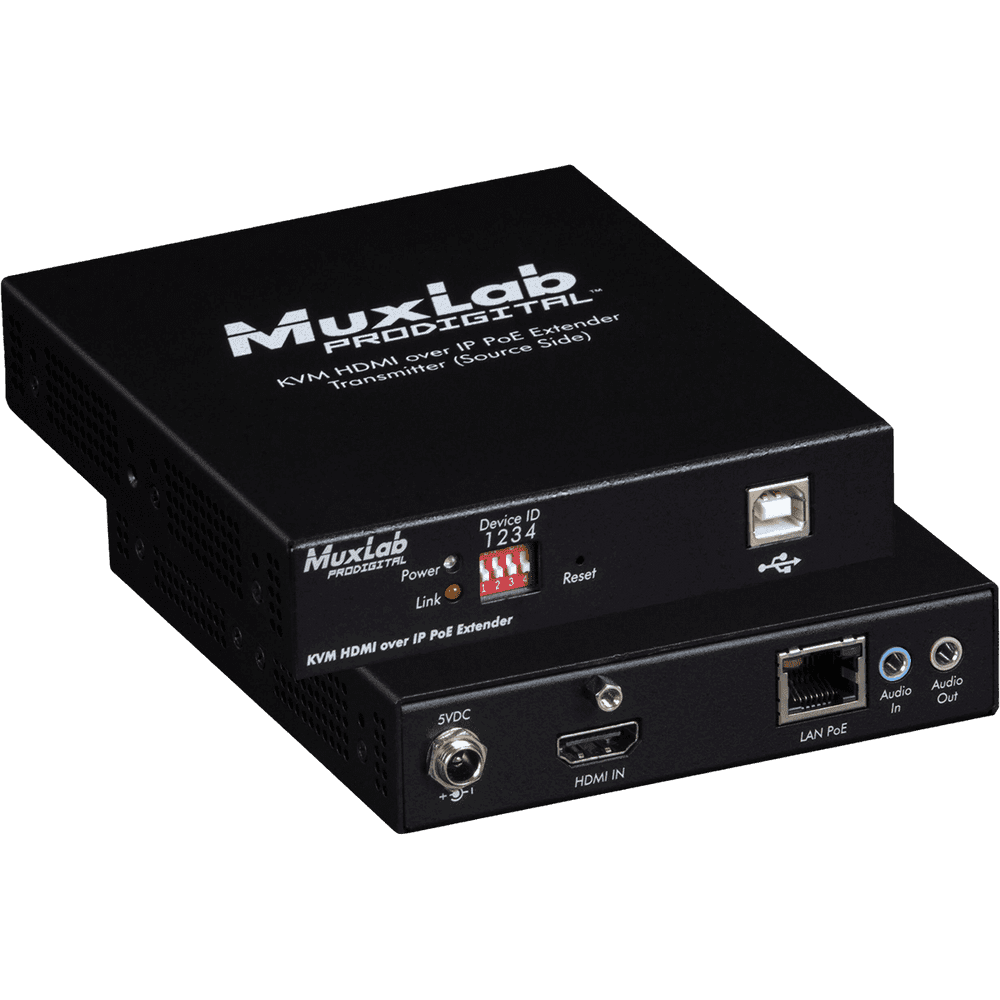

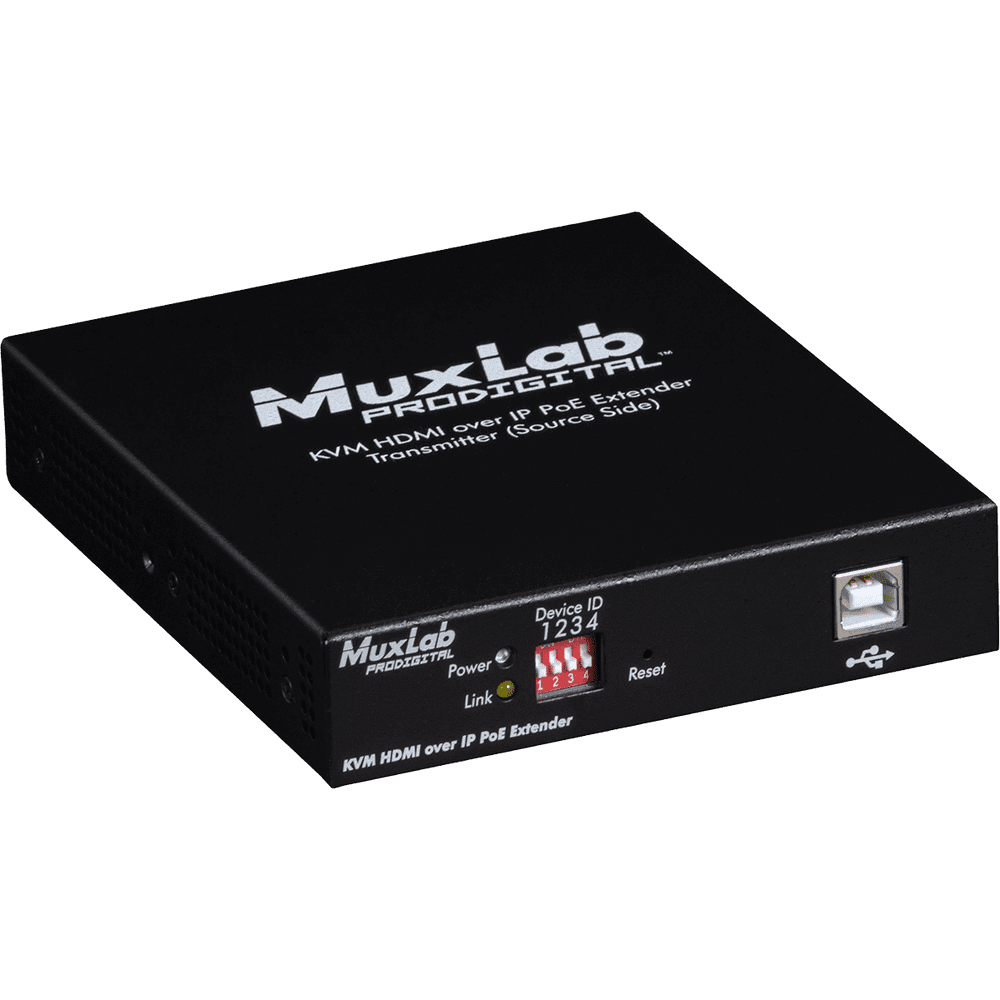

The MuxLab 500772-TX is a high-performance HDMI and KVM-over-IP transmitter designed to extend and distribute ultra-high-definition (UHD) audio and video signals, along with USB control, over a standard local area network (LAN). This device is the central component for creating highly scalable and flexible AV distribution and remote control systems, leveraging existing Gigabit network infrastructure. It allows HDMI and USB signals to be transmitted up to 100 meters using a single Cat5e/6 network cable, eliminating the need for costly and lengthy proprietary cabling runs.
Supporting video resolutions up to 4K at 60Hz (4:2:0) and 4K at 30Hz (4:4:4), the 500772-TX ensures exceptional image quality, compatible with HDR (High Dynamic Range) content for enhanced contrast and a richer color palette. Its visually lossless JPEG 2000 compression and ultra-low latency of approximately one frame (16 ms) make it ideal for applications where real-time response is critical. In addition to video transmission, this device extends USB 2.0 signals, enabling remote control of computers and servers via keyboard and mouse (KVM). Power over Ethernet (PoE IEEE 802.3af) greatly simplifies installation by eliminating the need for an external power supply at the transmitter location.
Main features
-
4K UHD Streaming: Supports video resolutions up to 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4), and is compatible with HDR content for superior picture quality.
-
KVM over IP Extension: Transmits HDMI, audio, and USB 2.0 signals over a standard Gigabit network, allowing remote control of keyboards, mice, and other peripherals.
-
Long Range: Extends the signal up to 100 meters over a single Cat5e or Cat6 network cable.
-
Ultra Low Latency: Offers a latency of only 16 milliseconds (equivalent to 1 frame), guaranteeing a smooth, real-time control experience.
-
PoE Power: Compatible with the PoE standard (IEEE 802.3af), allowing the device to be powered directly through the network cable when connected to a PoE switch.
-
Flexible Audio Management: It features a stereo mini-jack audio input for inserting an external audio source into the HDMI signal and an output for local monitoring.
-
Superior Scalability: Enables point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, creating virtual video and KVM matrices with hundreds of devices on the same network.
-
Extended Control: Supports the passage of control signals via infrared (IR) and RS232 to manage remote devices such as screens or projectors.
Product benefits
-
Installation Flexibility: Utilize existing network cabling infrastructure to reduce costs and simplify deployment in any environment, from offices to industrial complexes.
-
Centralized Operation: Allows a single operator to manage multiple servers or workstations from a single remote console, improving efficiency and workflow.
-
Professional Image Quality: 4K HDR video streaming with visually lossless compression ensures content is displayed with maximum fidelity, ideal for graphic design, video editing, and data centers.
-
Future-Proof System: The ability to expand the system simply by adding more transmitters and receivers to the network offers a scalable solution that grows with your needs.
-
Clean and Simple Installation: Thanks to PoE support, cable clutter and dependence on nearby power outlets are reduced, facilitating a cleaner and more professional installation.
Use cases
The MuxLab 500772-TX is the perfect solution for a wide range of professional applications, including:
-
Control and Data Centers: Remote management of servers and computer systems with real-time monitoring.
-
Digital Signage: Distribution of 4K video content to multiple screens in shopping malls, airports, stadiums and public spaces.
-
Corporate and Educational Environments: Equipping conference rooms, classrooms and auditoriums for interactive presentations and AV content distribution.
-
Medical Sector: Remote viewing of high-resolution medical images in operating rooms and diagnostic rooms.
-
Design and Post-Production Studios: Control of high-performance workstations located in secure, climate-controlled server rooms from the creative's workstation.
Frequently Asked Questions
- What is the maximum video resolution this transmitter supports?
- It supports up to Ultra HD 4K (3840x2160) at 60Hz with 4:2:0 chroma subsampling, and 4K at 30Hz with 4:4:4. It is also compatible with HDR content.
- Do I need a compatible receiver for it to work?
- Yes, this is just the transmitter. To complete the system, you need at least one compatible receiver, such as the MuxLab 500772-RX, connected to a display.
- Can I connect multiple transmitters and receivers on the same network?
- Yes, you can connect hundreds of transmitters and receivers through a Gigabit network switch to create a fully scalable, distributed KVM video matrix system.
- What types of USB devices can I control remotely?
- It is primarily designed for human interface devices (HID) such as keyboards and mice, although it is also compatible with other USB 2.0 peripherals such as drawing tablets, printers, or storage devices.
- Is it mandatory to use a PoE switch?
- It is not required. The device can be powered by an optional power adapter (sold separately) if your network switch does not provide PoE power.
Project description

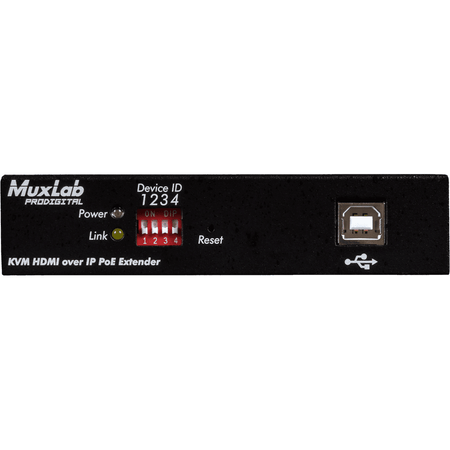

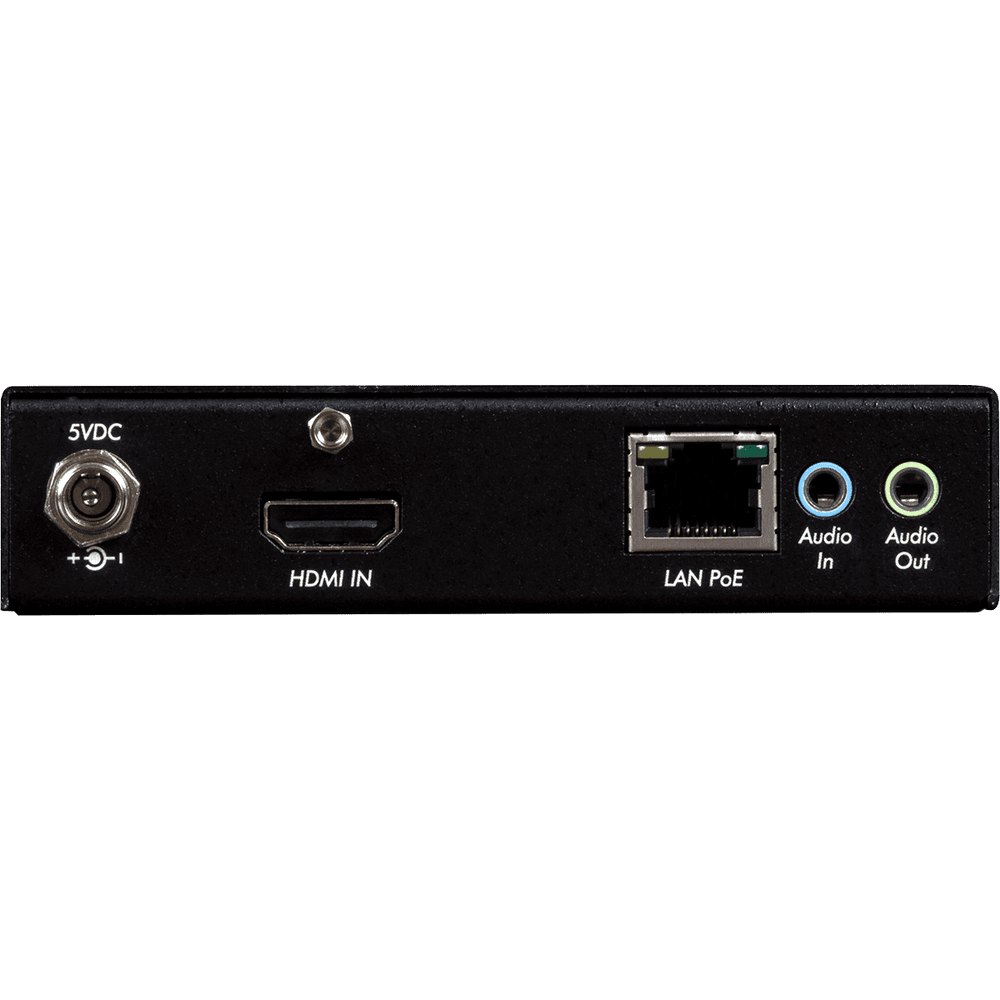

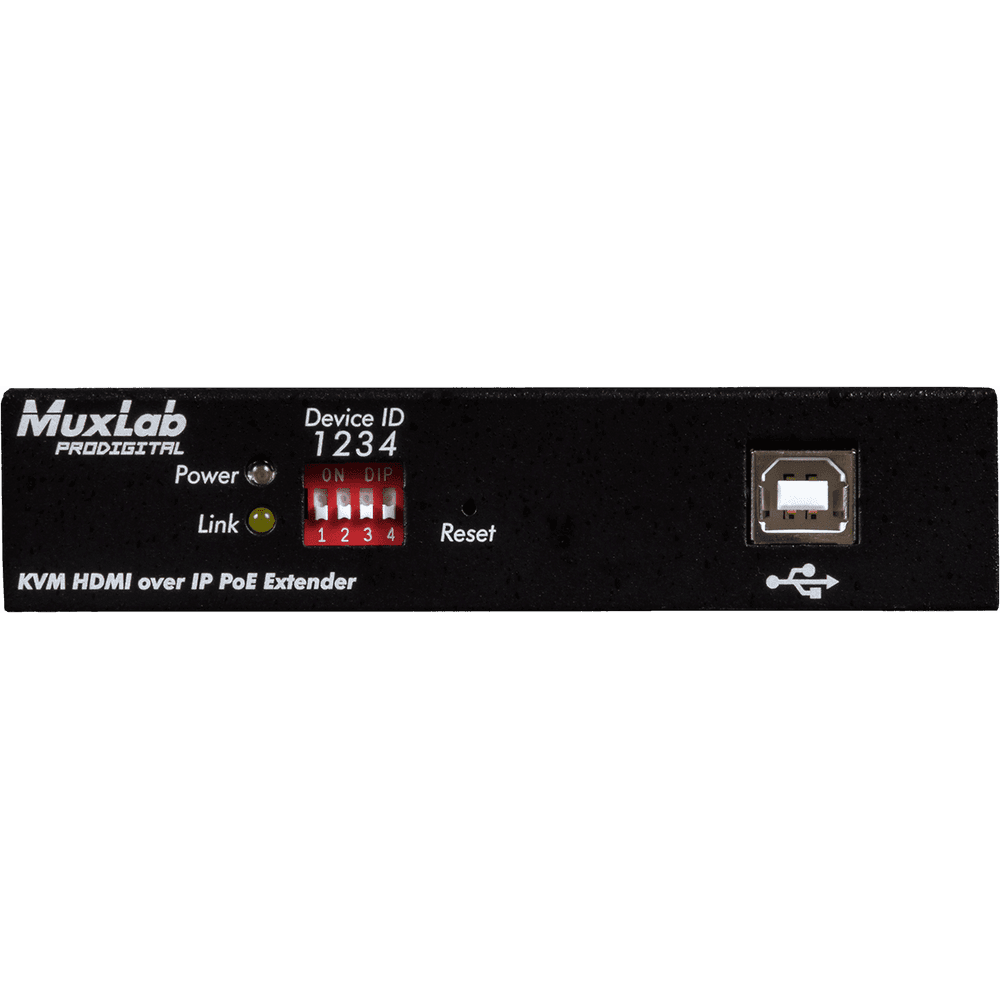

HDMI KVM over IP transmitter, model 500772-TX. It allows the extension of HDMI, USB 2.0, IR, and RS232 signals up to 100 meters over a single Cat5e/6 cable. It supports video resolutions up to 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4) with HDR, HDCP 2.2, and HDCP 1.4. It uses JPEG 2000 compression with a latency of 16 ms. It features one HDMI input, one analog audio input (3.5 mm mini-jack), one analog audio output (3.5 mm mini-jack), one USB-B port, and one RJ45 output for 1 Gbps IP networking. It supports power via PoE (IEEE 802.3af) or an optional power adapter. Power consumption is 6 W. The chassis measures 112 x 129 x 25 mm and weighs 0.68 kg. Configurable via DIP switches.
